6x500ml or 6x300ml GL12 touch screen LCD floor standing high speed large capacity refrigerated centrifuge in 2022
- Information

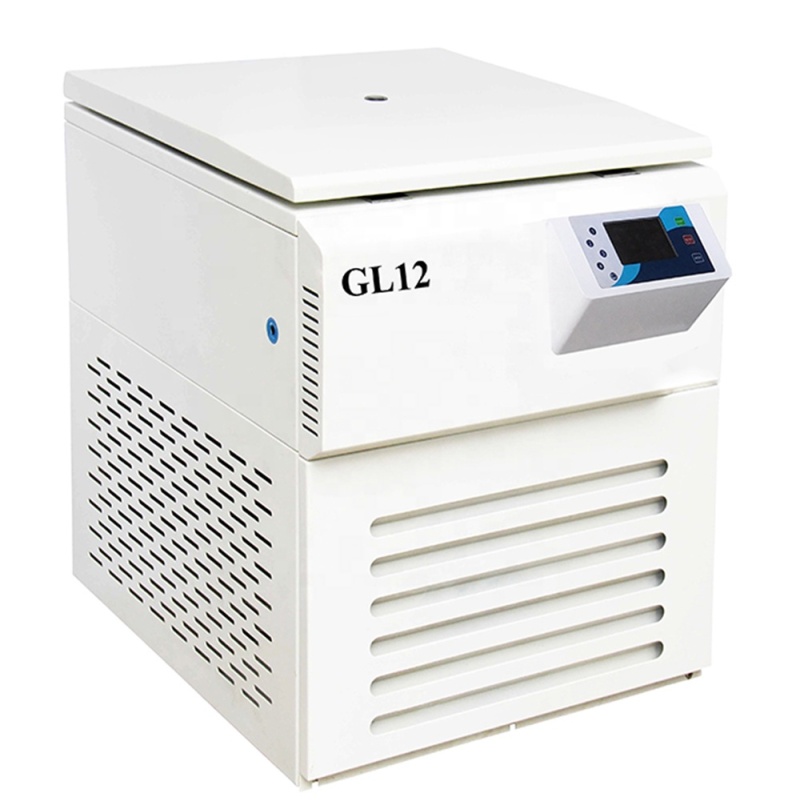

2022 latest GL12 LCD touch screen floor standing large capacity refrigerated centrifuge
Features
1. Microprocessor control, High resolution LCD display with touch screen functions. Parameters (speed, RCF, time)in running can be edited and changed.
2. Program memory up to 100 kinds. It can store all the parameters automatically in operation, and can use directly when start up next time.
3. Hold function
4. 10 Acceleration & 10 deceleration soft brake system.
5. Brush-less frequency motor with simpler construction, more reliable performance, longer life and quietly running.
6. Automatic lid lock, automatic door opening and closing with automatically rotor lid opening.(Optinal)
7. super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
8. Adapters are available by experiment requirements.
9. 3 tiers protection steel cover, safe and reliable.
10. CE EMC IEC 61010 certificate.
GL12 Technical Parameter:
|
Max. Speed |
12000rpm |
|
Max. RCF |
22650×g |
|
Max. Capacity |
4×1000ml |
|
Timer |
1~9h59min |
|
RPM/RCF Convert |
Yes |
|
Noise (dB) |
≤ 60 |
|
Temperature Range |
-20~40℃ |
|
Acc/Dec |
10 Kinds |
|
Speed Accuracy |
±20r/min |
|
Temperature Accuracy |
±1℃ |
|
Voltage(V/Hz) |
AC 220V/110V 50HZ/60HZ |
|
Size (L x W x Hmm) |
780×675×830mm |
|
Net Weight(Kg) |
260KG |
|
Certificates |
CE,ISO & Calibration report are available |

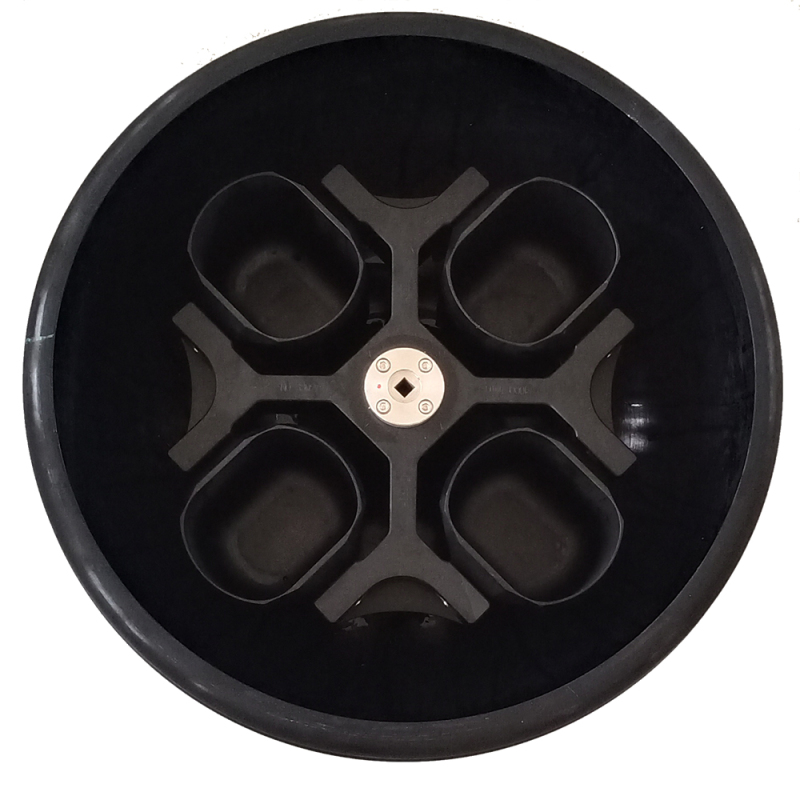

Matched Rotors for GL12
|
Order No. |
Rotor No. |
Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
|
L12-1 |
Angle Rotor |
12000 |
6×250/300ml |
22650 |
|
L12-2 |
Angle Rotor |
8000 |
6×500ml |
11740 |
|
L12-3 |
Swing Rotor |
4500 |
4×1000ml |
5140 |
|
L12-4 |
Microplate Rotor |
4000 |
4×4×96well |
2940 |
|
L12-5 |
4000 |
2×4×96well |
2490 |
|
|
L12-6 |
Angle Rotor |
10000 |
4×500ml |
16110 |
Our company, Changsha Yingtai centrifuges factory, specilized in centrifuge manufacturing over 20 years, we gave full support to our customers all over the world, any after sales service with 24 hours, within one year warranty, any quality problem, we will bear all the cost during the warranty time.
Changsha YIngtai Instrument Co. Ltd specilized in centrifuge manufacturing over 20 years, can make nearly all kinds of centrifuges, such as high speed centrifuge, low speed centrifuge, floor standing centrifuge, tabletop centrifuge, mini centrifuge, also customized centrifuges according to customers' different requirement. We have two bulidings for centrifuge manufacturer, we have our rotor processing line. Our centrifuges already export to over 100 countries.
