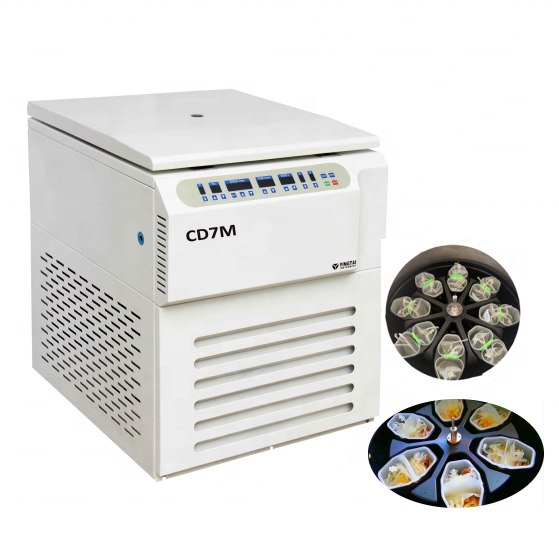

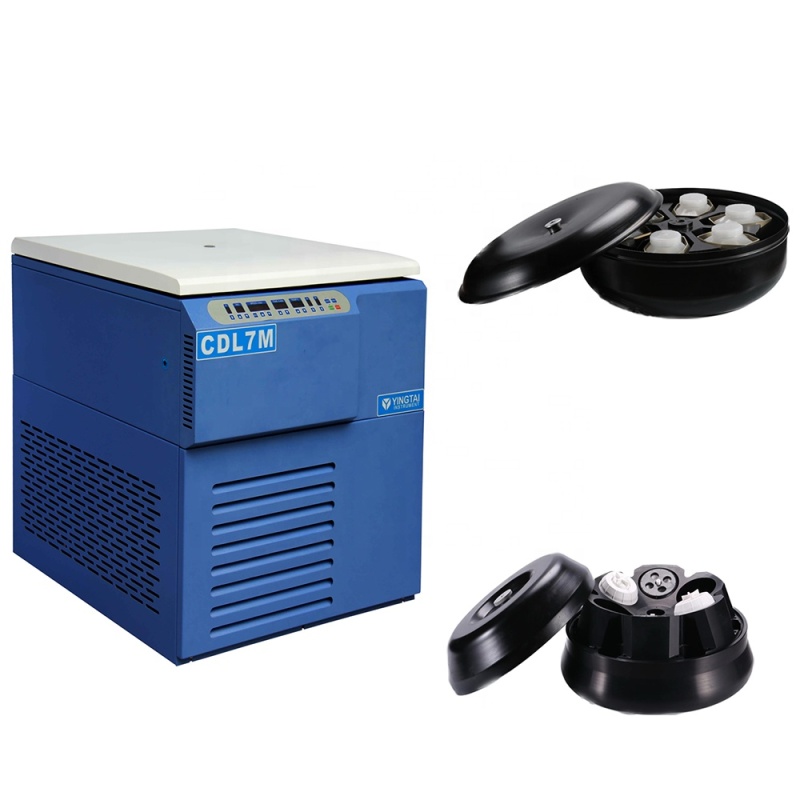

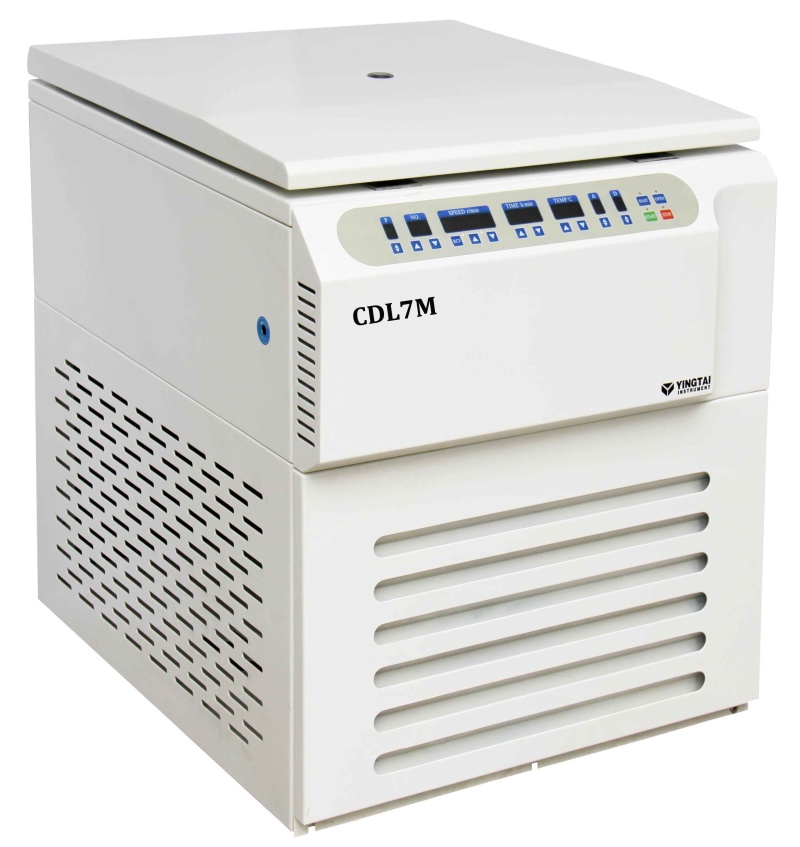

6x2400ml CDL7M large capacity refrigerated centrifuge
- Information
Yingtai CDL7M large capacity refrigerated floor standing centrifuge, Max capacity 6x2400ml, it can hold 2400ml bottles, can also hold blood bags, also can be customized adapters for different tubes, use for industry, defoaming. Details can send email to us.
CDL7M Technical Parameter:
|
Max. Speed |
7000rpm |
|
Max. RCF |
11650×g |
|
Max. Capacity |
6×2400ml(12*500ml blood bag) |
|
Time Range |
1~9h59min |
|
RPM/RCF Convert |
Yes |
|
Noise (dB) |
≤ 65 |
|
Temperature |
-20~40℃ |
|
Acc/Dec |
10 Kinds |
|
Speed Accuracy |
±20r/min |
|
Temperature Accuracy |
±1℃ |
|
Voltage(V/Hz) |
AC 380V 50HZ/60HZ |
|
Size (W x D x Hmm) |
940×890×1000mm |
|
Net Weight(Kg) |
570KG |
|
Certificates |
CE,ISO & Calibration report are available |
Matched Rotors for CDL7M
|
Order No. |
Rotor No. |
Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
|
7M-1 |
Swing Rotor |
4000 |
6×2400ml |
5330 |
|
7M-2 |
Angle Rotor |
7000 |
6×1000ml |
11650 |
|
7M-3 |
Swing Rotor |
4200 |
2×6×1000ml |
5680 |
ODM and OEM service both available, if you need us to customize rotor according to special requirement, we can also do it, as our factory specilized in centrifuge filed over 20 year, our centrifuges export to over 100 countries. For our CDL7M large capacity refrigerated centrifuge, it is very stable.
Our factory, Changsha Yingtai Instrument Co, Ltd has been specilized in centrifuge since 2001, we can make nearly all kinds of centrifuges, from min palm centrifuges to our DL8M max capacity 8*2000ml, and also special centrifuges, such as cytology centrifuge, cell washer centrifuge, gel card centrifuges, oil test centrifuge, PRP centrifuge, gerber centrifuge and so on. Also we do OEM sevice and ODM service of centrifuge for many customers already. High quality and favorable price let us win many customers all over the world.
