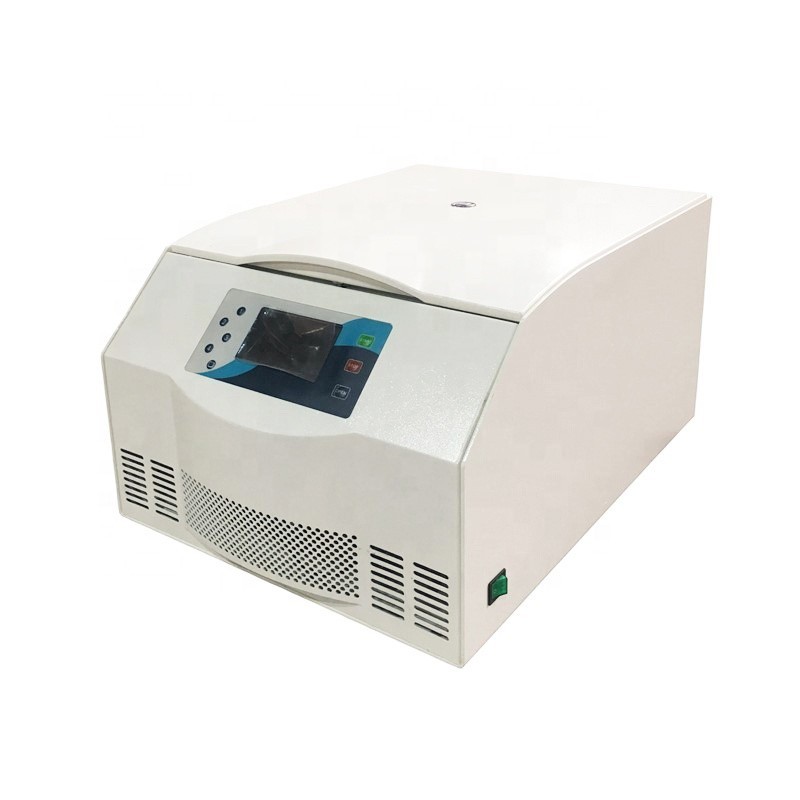

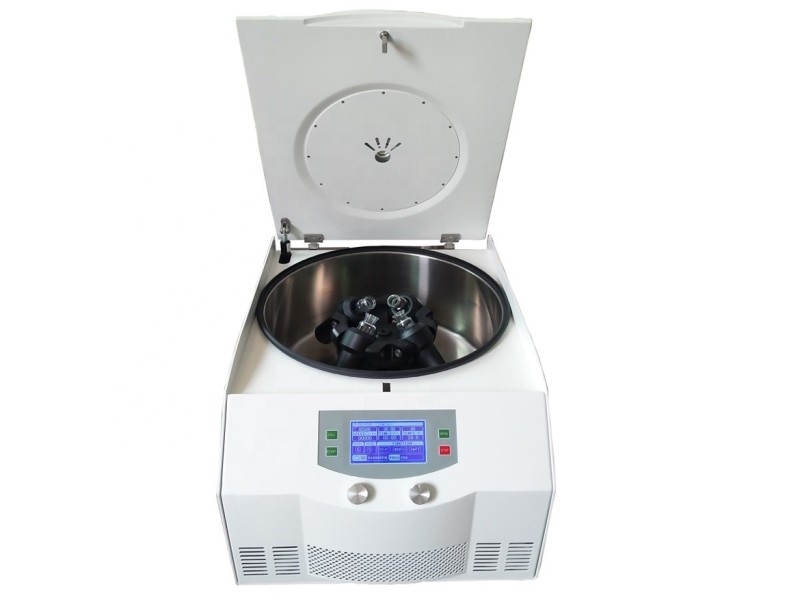

Benchtop low speed 5000rpm large capacity lab centrifuge TD5B
Benchtop low speed 5000rpm large capacity lab centrifuge TD5B
1).Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2). Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3). Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4). Microprocessor control, TD5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5). 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Changsha, China
- 1 week
- 10000 sets
- Information
Benchtop low speed 5000rpm large capacity lab centrifuge TD5B
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
The capacity is 4 x 800ml in Swing out rotor matching Adapters for 5ml, 7ml, 10ml, 50ml tubes...to meet various of testings flexible. Widely used in the fields of biochemistry, biological products, pharmaceutical factory and laboratory.
1. Product details of TD5B large capacity medical laboratory centrifuge
Features
Ø metal housing is safe and compact. It is of microprocessor control accuracy high.
Ø Brush-less frequency motor, free maintenance, no powder pollution
Ø Digital display Speed/RCF & Time for options
Ø There are 10 rates of speed up and down faster and stable.
Ø Electronic safety lock alarm inside, just press down the top lid until it will lock in sealed and open up after separation automatically.
Ø Both over-speed and imbalance protection functions are available
2. Application & Prduct features for TD5B large capacity medical laboratory centrifuge
TD5B Clinical Laboratory Plasma blood seperation centrifuge machine is widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.Tubes can vary in size from 1.2mL to 15mL, while bags are usually around 300mL to 500mL.
The role of a centrifuge in testing blood is to separate whole blood into its various components. Each component of blood has a specific use in the body and therefore a different test may be required FOR EACH component. Blood can be centrifuged in a tube, bottle or bag. Blood collected from blood donors are collected in bags. Blood collected at a hospital or testing lab is collected in tubes. Blood collection in a bottle is for microbiological testing and contains transport media to preserve the micro-organism.
1).Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2). Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3). Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4). Microprocessor control, TD5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5). 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
3.Quality Warranty
1. We have one –year warranty on our all products
2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.
3. We will visit our customers every year, see whether the machine is in good condition, if something wrong happened to our machine, we will repair it for you.
4. we will pay attention to the feedback of the customers within 24 hours.
5. We won’t charge customers any money for repairing the machine in one-year warranty time, the freight is also on us.
6. We only charge for the accessories on repairing the machine beyond the one-year warranty time.
7. We have technician training class twice a year, training the technician for our distributor.
1. Main paramers for TD5B large capacity medical laboratory centrifuge
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×800ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 58 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 685×500×385mm |
Net Weight(Kg) | 67KG |
Certificates | CE,ISO & Calibration report are available |

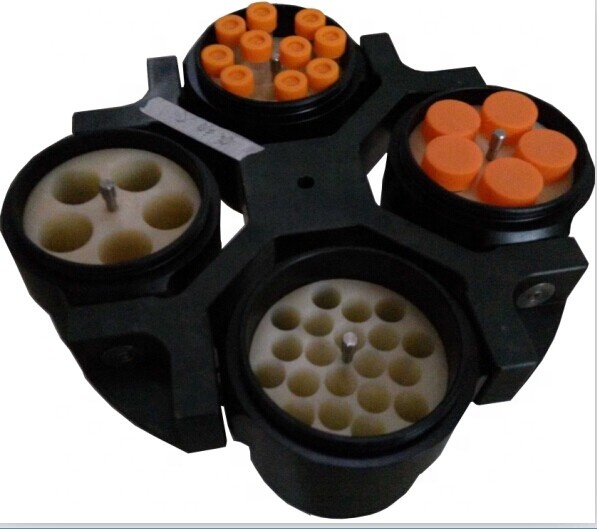

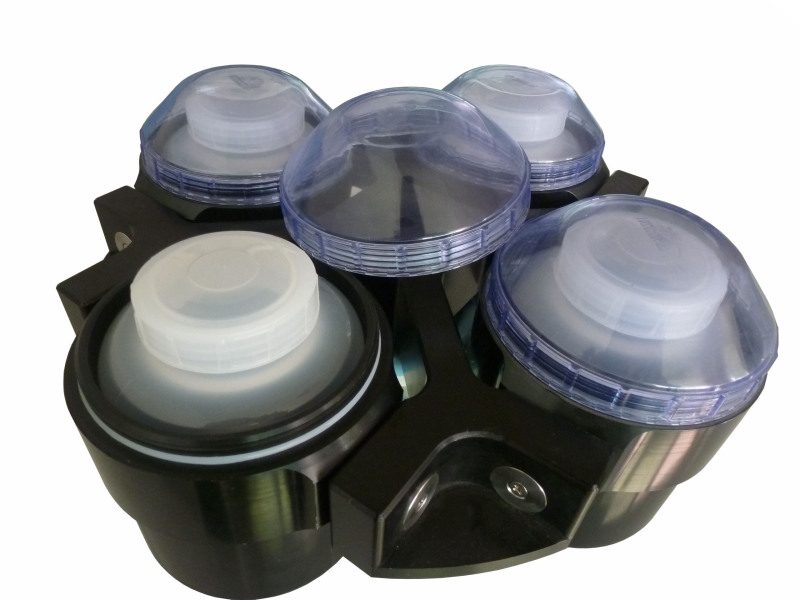

2. Matched rotors for TD5B large capacity medical laboratory centrifuge
Order No. | Rotor type | Max.Speed (rpm) | Max.Volume (ml) | Max.RCF (xg) |
5BM-1 | Swing out rotor | 4,000 | 4x800ml (round cup) | 3,450 |
5BM-10 | Swing out rotor | 4,000 | 4x7x50ml | 3,450 |
Packaging & Shipping
To ensure safe delivery, we would pack our centrifuge with inner protective foam to make sure the rotor and stainless chamber not collide and scrtach. We would use standard carton or wooden box and optional pallet for shipment. Customers can choose to ship by courier door to door service, by air or by sea , we have dicount VIP price from DHL, UPS and Fedex etc to saving delivery cost for you.
