Low speed 6000rpm swing rotor low speed large capacity centrifuge TD6
Low speed 6000rpm swing rotor large capacity centrifuge TD6
1. The shell is made of all steel, with built-in protective steel sleeve. It is simple and compact with low noise.
2. With advanced CPU control system, microcontroller can control speed, time and relative centrifugal force more accurately.
3. Maintenance-free DC brushless/variable frequency motor, speed range 100-6000rpm
4. Equipped with door cover protection to ensure safe operation of the instrument
5. It is suitable for the separation of radioimmunology, biochemistry and blood products.
- Changsha, China
- 1 week
- 10000 sets
- Information
Low speed 6000rpm swing rotor large capacity centrifuge TD6
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Instrument characteristics
1. The shell is made of all steel, with built-in protective steel sleeve. It is simple and compact with low noise.
2. With advanced CPU control system, microcontroller can control speed, time and relative centrifugal force more accurately.
3. Maintenance-free DC brushless/variable frequency motor, speed range 100-6000rpm
4. Equipped with door cover protection to ensure safe operation of the instrument
5. It is suitable for the separation of radioimmunology, biochemistry and blood products.
Technical parameter
Model | TD6 | ||
Max speed | 6000r/min | ||
Speed accuracy | ±10rpm | ||
Max RCF | 5600*g | ||

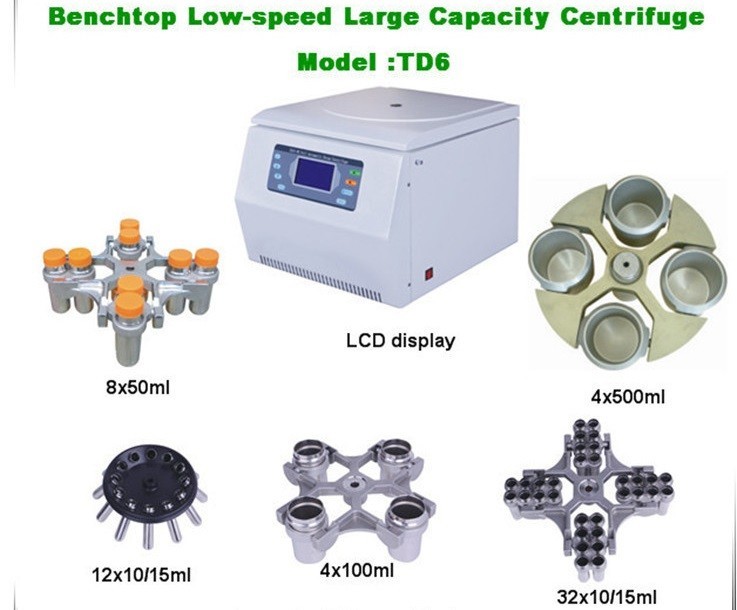

No.1 angle rotor | 12*10/15ml | 6000r/min | 5600*g |
No.2 swing rotor | 24*10/15ml | 4200r/min | 3120*g |
No.3 swing rotor | 108*5ml | 4000r/min | 4200*g |
No.4 swing rotor | 16*10/15ml | 5000r/min | 4100*g |
No.5 swing rotor | 8*50ml | 4000r/min | 3120*g |
No.6 swing rotor | 8*100ml | 4000r/min | 3120*g |
No.7 swing rotor | 4*500ml | 4000r/min | 3600*g |
No.8 microplate | 2*2*96hole | 4000r/min | 2300*g |
Timing range | 0~99min | ||
Noise | ≤60dB(A) | ||
Power supply | AC220V&110V 50Hz 10A | ||
Dimensions | 630*500*425mm | ||
Weight | 52kg | ||
