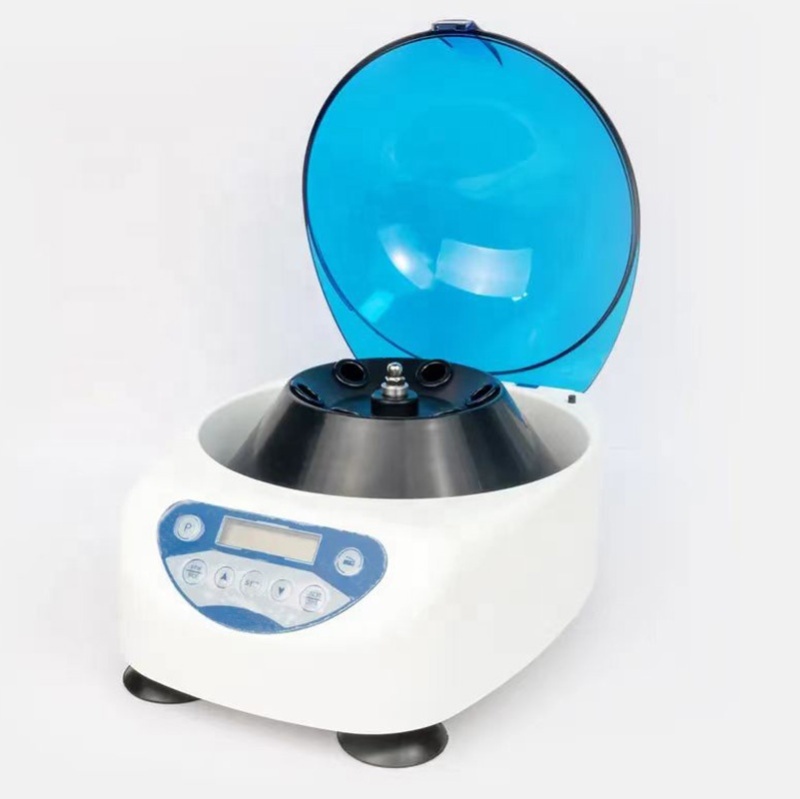

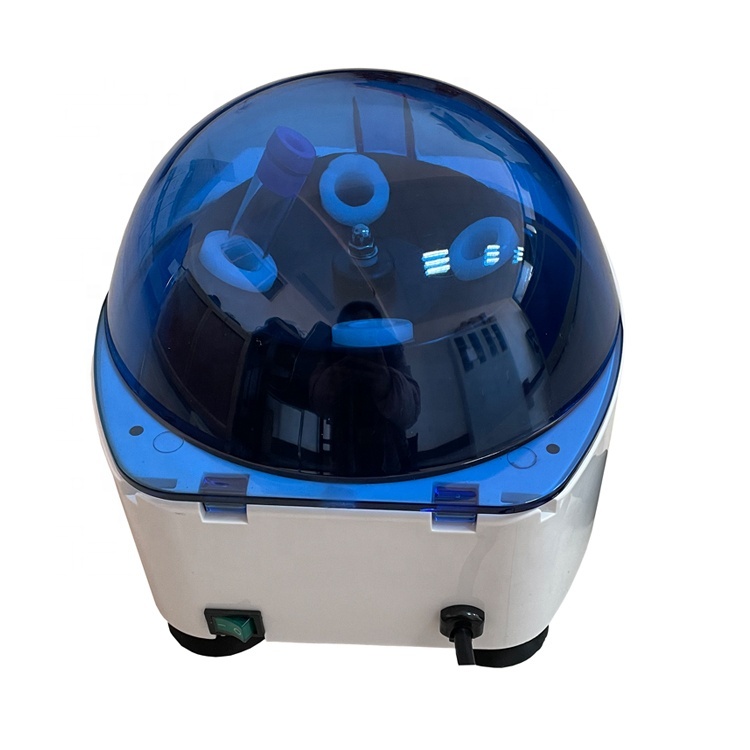

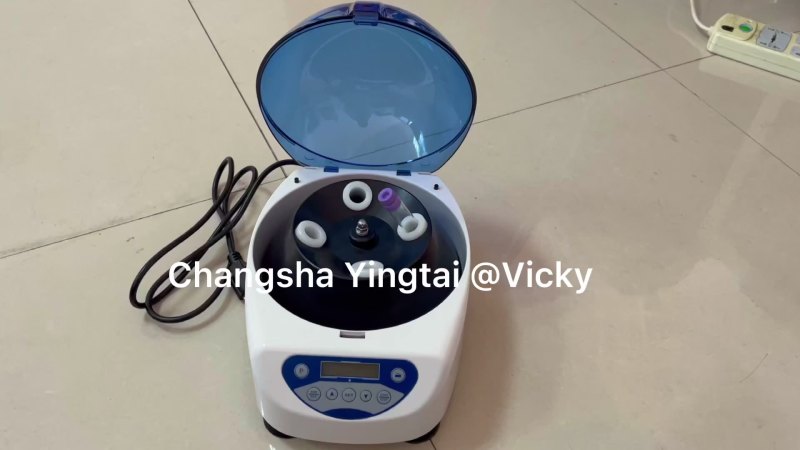

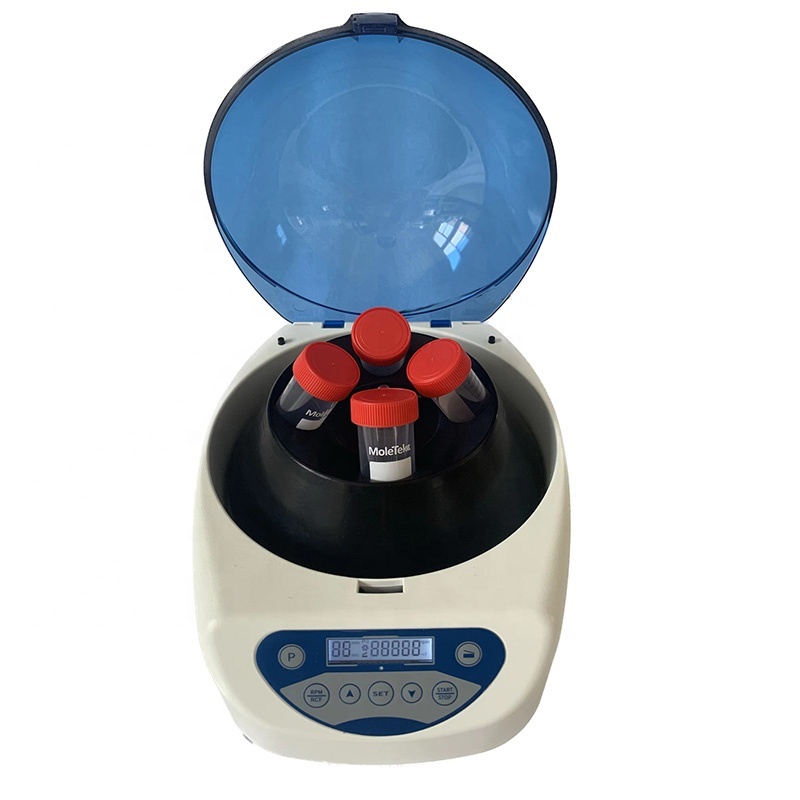

TD4B low speed centrifuge with angle rotor 4x50ml
- Information
TD4B portable low speed centrifuge can hold both 50ml and 15ml, can for the PRP tube 30ml 15ml, 12ml, 22ml, 10ml, 9ml,8ml PRP tube in the market, details welcome to check with us.
Features
1. Widely used in laboratory, hospital and etc...
2.Maintenance -free brushless motor, no powder pollution, quick in speed up and down.
3. Max. 5000rpm, smooth in operation, low noise and small vibration.
4. Micro computer control system, LCD display the RCF, time and speed.
5.Automatically store all the running parameters, which can be used directly next time when the machine is turned on.
6. Electric cover lock, compact design, super speed and imbalance protection.
7. With over speed and imbalance protection.
TD4B Technical Parameter
|
Max. Speed |
5000rpm |
|
Max. RCF |
2637×g |
|
Max. Capacity |
4×50ml |
|
Time Range |
0~99min |
|
RPM/RCF Convert |
Yes |
|
Noise (dB) |
≤ 55 |
|
Temperature |
Normal |
|
Acc/Dec |
10 Kinds |
|
Speed Accuracy |
±20r/min |
|
Temperature Accuracy |
/ |
|
Voltage(V/Hz) |
AC 220V/110V 50HZ/60HZ |
|
Size (W x D x Hmm) |
280×220×175mm |
|
Net Weight(Kg) |
3.5KG |
|
Certificates |
CE,ISO & Calibration report are available |
Matched Rotors for TD4B
|
Order No. |
Rotor Type |
Max Speed (rpm) |
Max Volume (ml) |
Max RCF (g) |
|
NO31501 |
Angle Rotor |
5000 |
4×50ml |
2615 |
|
NO31502 |
Angle Rotor |
5000 |
6x15/10ml |
2637 |
|
2637 |
||||
|
6x5ml vacuum tube adapter |
2637 |
