Low speed 5000rpm blood test medical centrifuge TDZ5-WS
Low speed 5000rpm blood test medical centrifuge TDZ5-WS

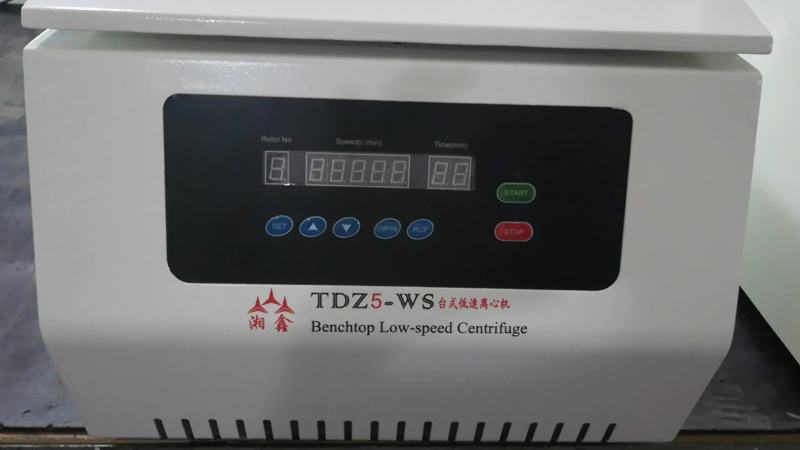

Digital display
Microcomputer control, AC frequency conversion motor, stable operation, low noise, meet the qualitative analysis of serum, plasma and urea in medicine, blood station, clinical laboratory and biochemical laboratory.
- Information

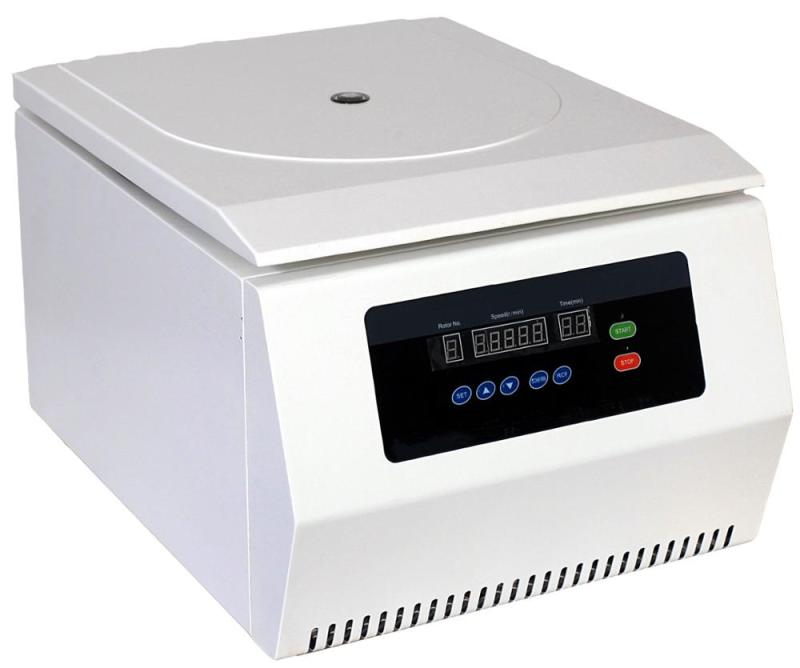

Low speed 5000rpm blood test medical centrifuge TDZ5-WS
Digital display swing rotor 5000rpm medical centrifuge
Instrument characteristics
Microcomputer control, AC frequency conversion motor, stable operation, low noise, meet the qualitative analysis of serum, plasma and urea in medicine, blood station, clinical laboratory and biochemical laboratory.
Features:
n Metal external case.
n Rubber suspensions reduce the vibrations.
n Gas spring to prevent falling of door.
n Emergency lid lock release.
n Safety lid interlock to prevent cover opening during centrifugation.
n Choice of high brake, low brake.
n Imbalance high detector with cutoff.
n Stable speed output even under unstable voltage conditions.
n Countdown timer.
n Recall of last set parameters.
technical parameter
Model | TDZ5-WS | ||
Max speed | 5500r/min | ||
Speed accuracy | ±10rpm | ||
Max RCF | 5220*g | ||
No.1 angle rotor | 12*15ml | 5500r/min | RCF 5220*g |

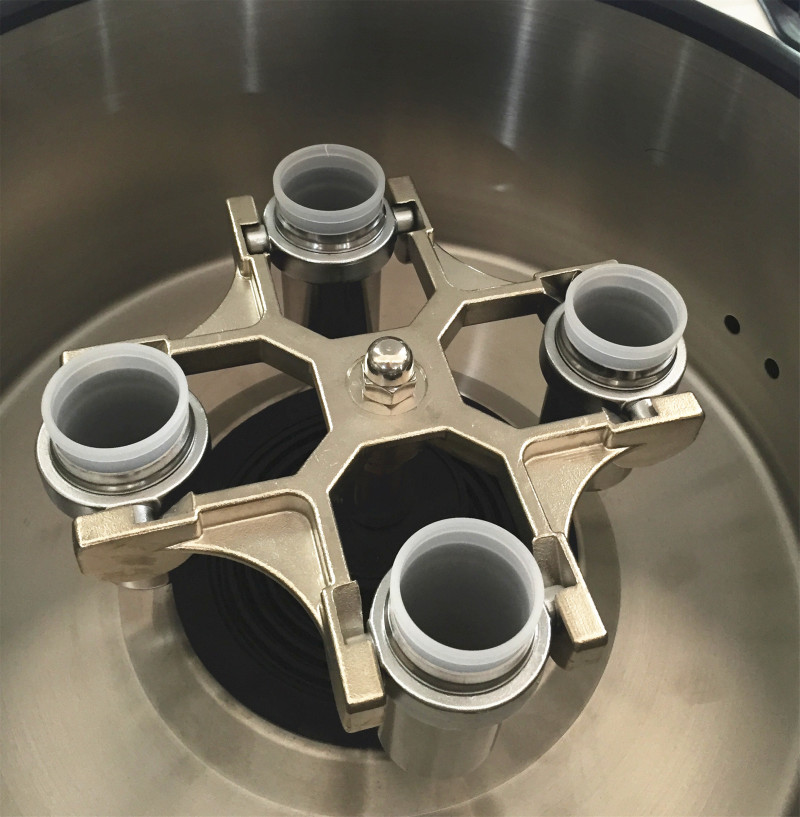

No.2 swing rotor | 4*100ml | 4000r/min | RCF 3020*g |
No.3 swing rotor | 8*50ml | 4000r/min | RCF 3020*g |
8*100ml | 4000r/min | RCF 3020*g | |

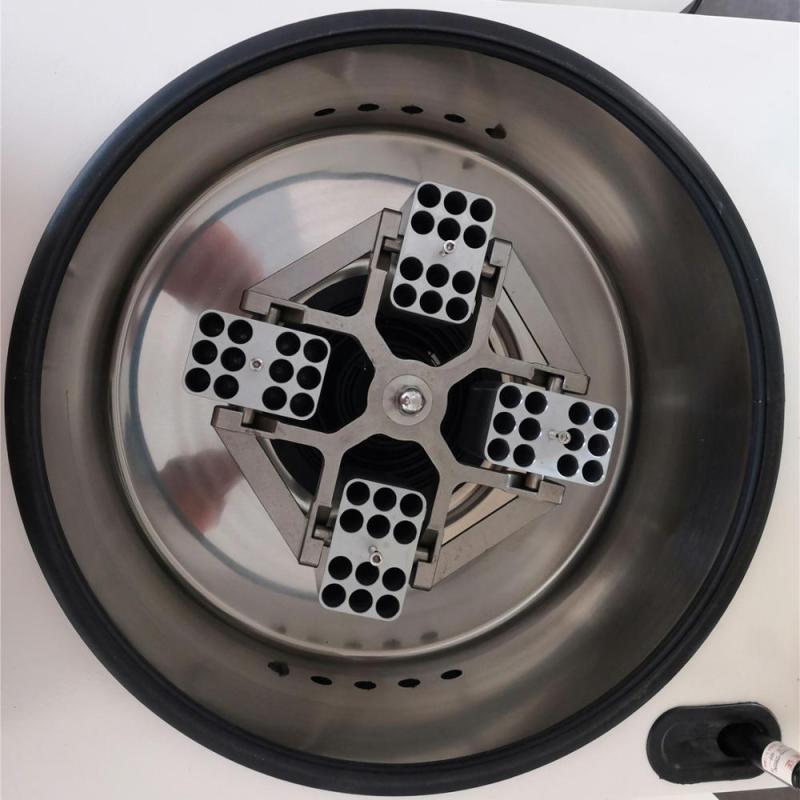

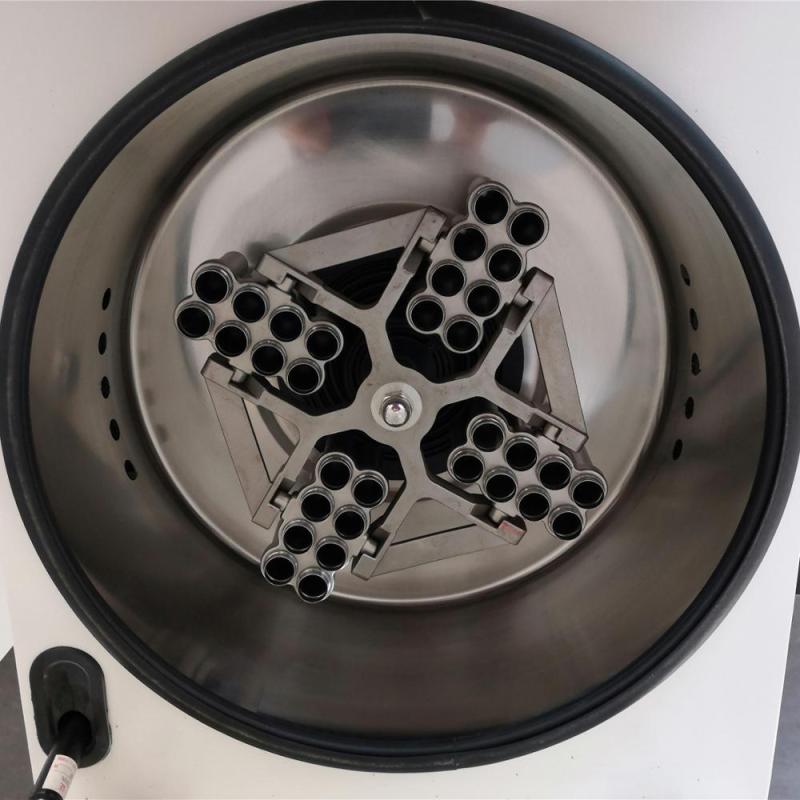

No.4 swing rotor | 32*15ml | 4000r/min | RCF 3020*g |
No.5 swing rotor | 32*10ml | 4000r/min | RCF 3020*g |

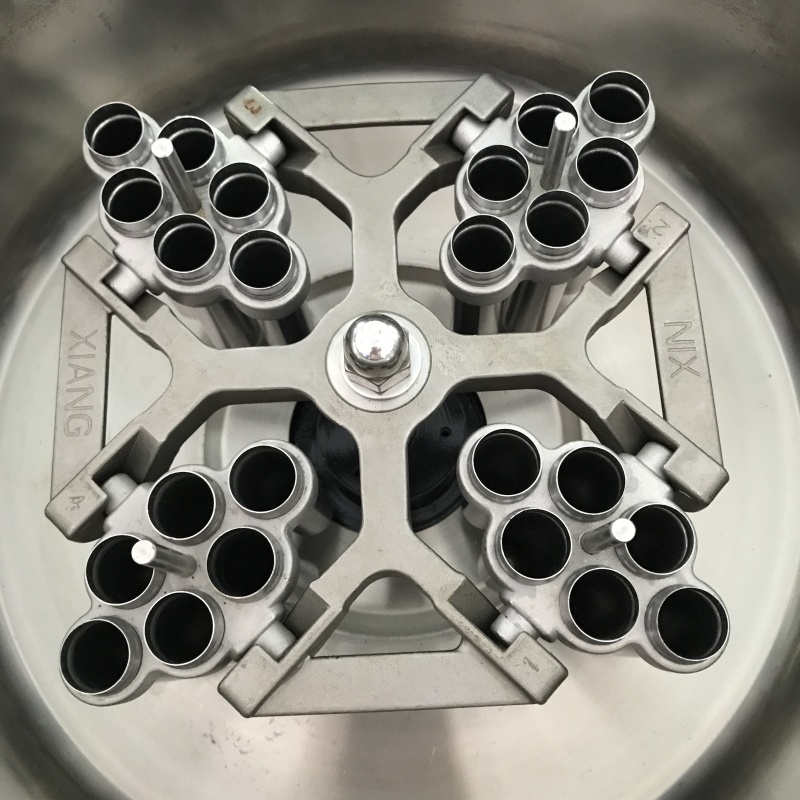

No.6 swing rotor | 24*15ml | 4000r/min | RCF 3020*g |
No.7 swing rotor | 48*5ml | 4000r/min | RCF 3020*g |
No.8 swing rotor | 72*2/5ml | 4000r/min | RCF 3020*g |

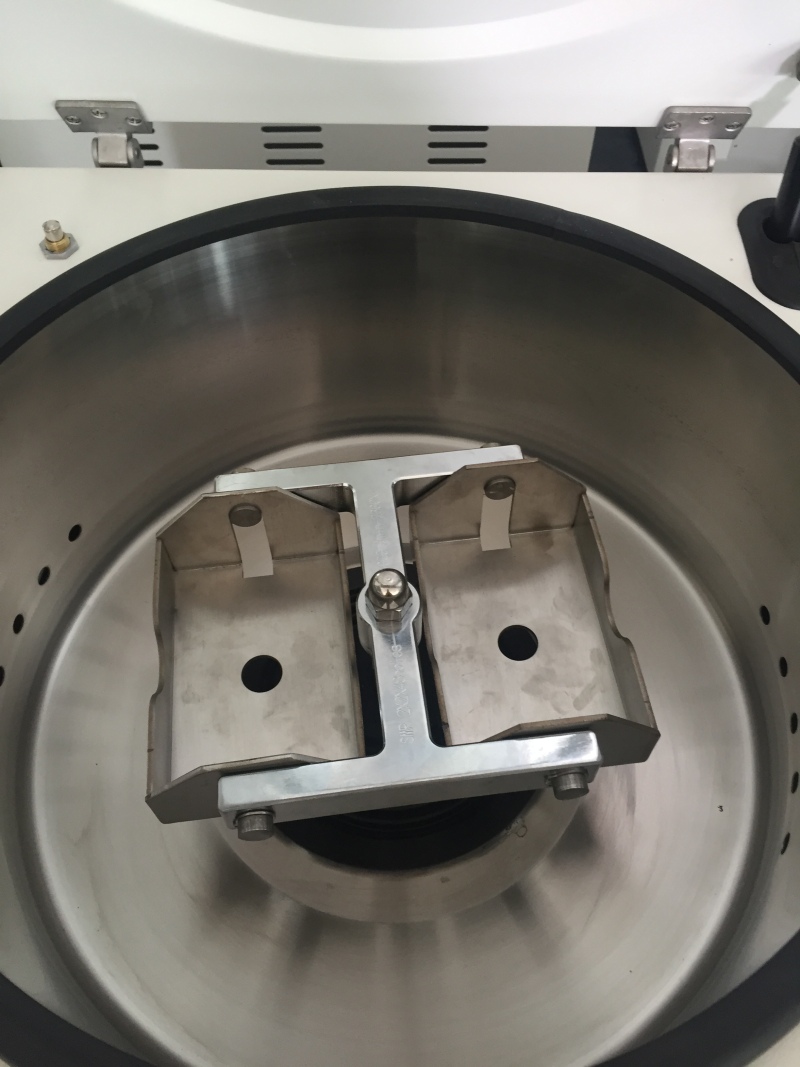

4*250ml | 4000r/min | RCF 3300*g | |
No.9 swing rotor | 24*10ml | 4000r/min | RCF 3020*g |
48*15ml | 4000r/min | RCF 3000*g | |
No.10 Enzyme labelled rotor | 2*2*96hole | 4000r/min | RCF 2300*g |
Timing range | 0~99min | ||
Motor | Frequency Conversion Motor and Microcomputer Control | ||
Minimum Acceleration/Deceleration Time | 20/25s | ||
Noise | ≤60dB(A) | ||
Power Supply | AC220V&110V 50Hz 5A | ||
Dimensions | 580*450*370mm | ||
Weight | 39kg | ||
