Low Speed large capacity swing bucket 4x800ml 5000 rpm lab centrifuge for lab and medical use

  • Information

TD5B Low Speed large capacity 4x800ml 5000 rpm lab centrifuge for lab and medical use

Product Description

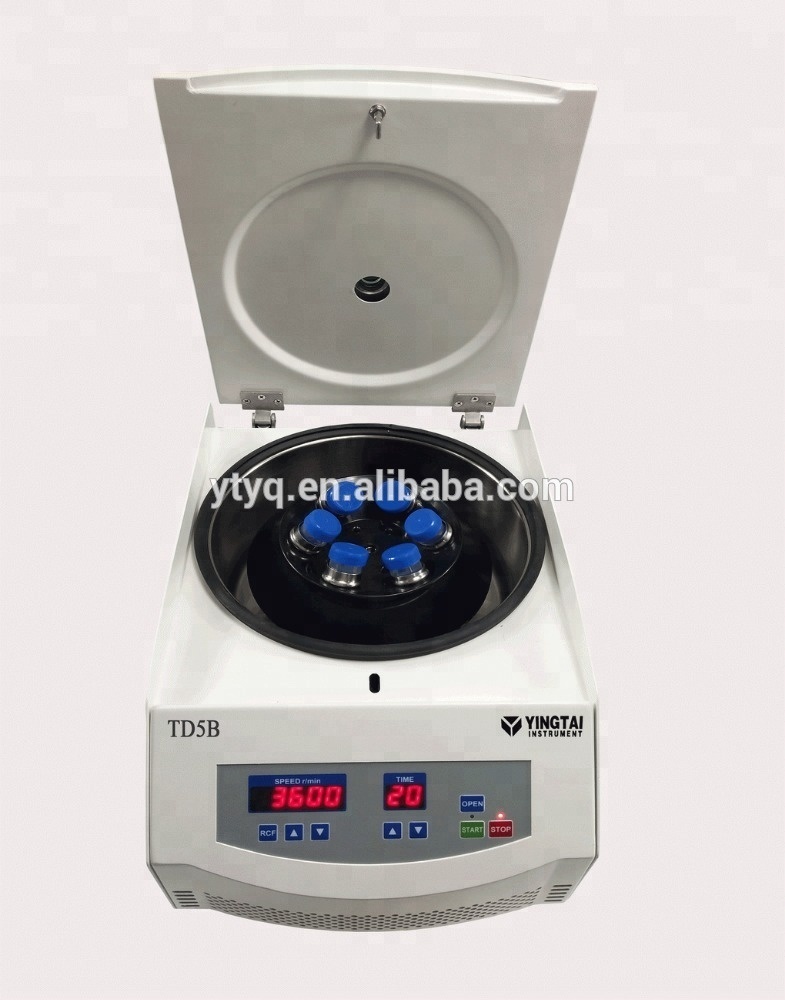

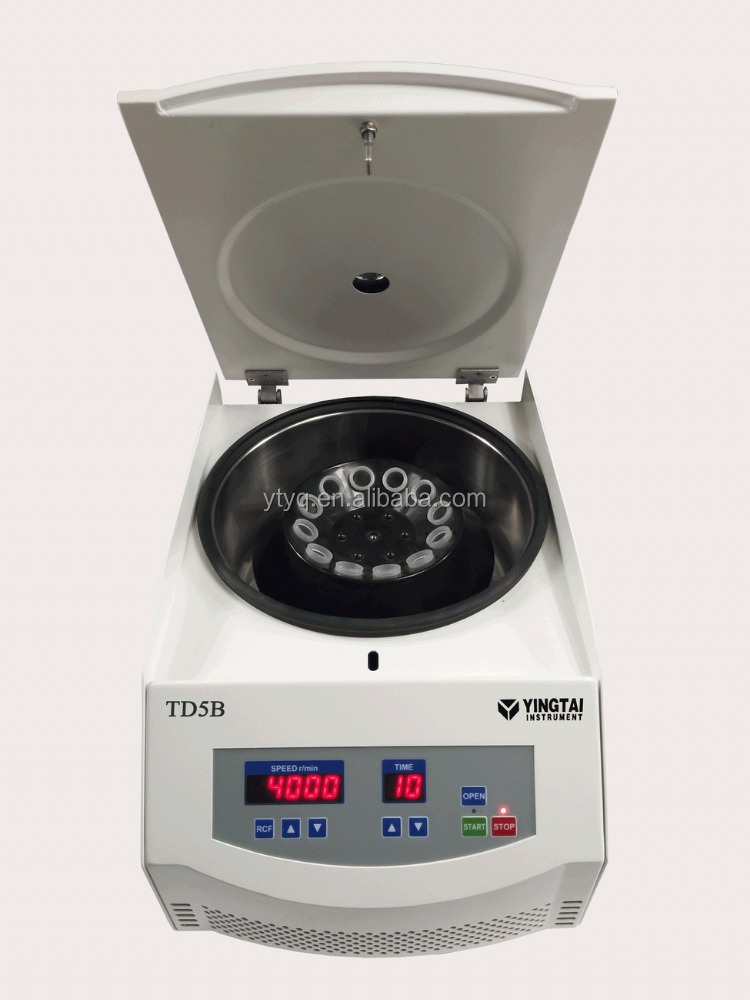

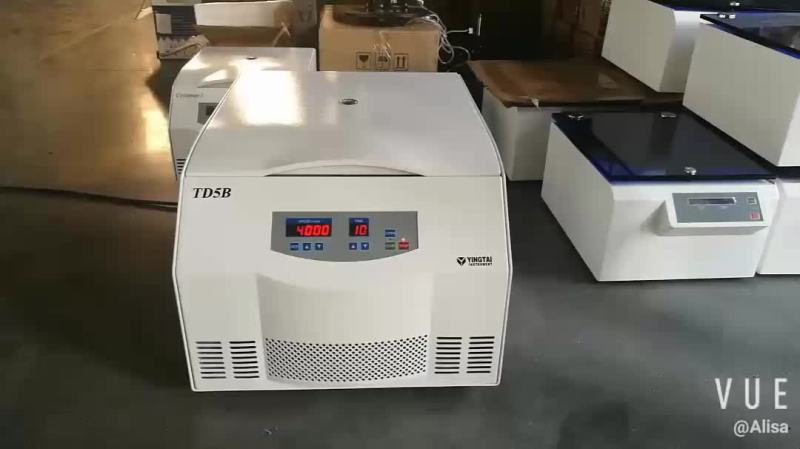

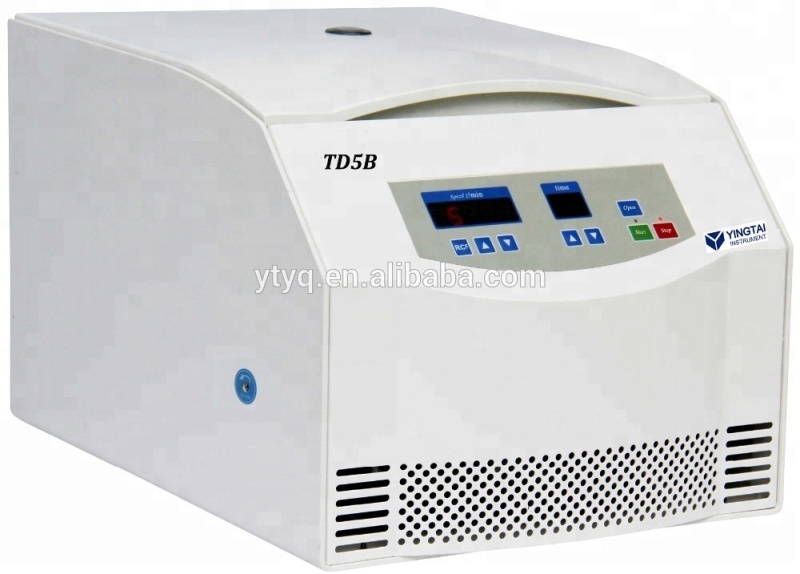

1.  Photos for TD5B Lab centrifuge









2. Product details of TD5B Lab centrifuge





3. Prduct features for TD5B Lab centriufuge



TD5B Low Speed large capacity 5000 rpm lab centrifuge for lab and medical use  is widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.



1).Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2). Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3). Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4). Microprocessor control, TD5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5). 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.





Parameters &rotors

1. Main paramers for TD5B laboratory centrifuge for lab use



Max. Speed

5000rpm

Max. RCF

4730×g

Max. Capacity

4×800ml

Time Range

0~99min

RPM/RCF Convert

Yes

Noise (dB)

58

Temperature

Normal

Acc/Dec

10 Kinds

Speed Accuracy

±20r/min

Temperature Accuracy

/

Voltage(V/Hz)

AC 220V/110V  50HZ/60HZ

Size (W x D x Hmm)

685×500×385mm

Net Weight(Kg)

67KG

Certificates

CE,ISO & Calibration report are available



2. Matched rotors for TD5B lab centrifuge for laboratory use





Quality Warranty



1. We have one –year warranty on our all products

2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.

3. We will visit our customers every year, see whether the machine is in good condition, if something wrong happened to our machine, we will repair it for you.

4. we will pay attention to the feedback of the customers within 24 hours.

5. We won’t charge customers any money for repairing the machine in one-year warranty time, the freight is also on us.

6. We only charge for the accessories on repairing the machine beyond the one-year warranty time.

7. We have technician training class twice a year, training the technician for our distributor.



Packaging & Shipping

To ensure safe delivery, we  would pack our centrifuge with inner protective foam to make sure the rotor and stainless chamber not collide and scrtach. We would use standard carton or wooden box and optional pallet for shipment. Customers can choose to ship by courier door to door service, by air  or by sea , we have dicount VIP price from DHL, UPS and Fedex etc to saving delivery cost for you.





Company Information

Located in the world biggest centrifuge manufacture  centre, Changsha, China.  Changsha Yingtai Instrument Co.,Ltd is a professional manufacturer of centrifuges since 2001. With years of experience accumulation and constant technological innovation in centrifuge area, Yingtai brand centrifuges are remarkable of stable quality, good centrifugal performance , long use life and good after-service.



As one of the leading and top sale centrifuge manufacturers in China, we can make nearly all kinds of centrifuge, such as refrigerated centrifuge, non-refrigerated centrifuge, low speed centrifuge, high speed centrifuge, PRP centrifuge, haematorcrit centrifuge, cyto centrifuge, blood bank centrifuge, oil test centrifuge, micro centrifuge and etc. Our centrifuges have passed CE, ISO certificates and have been exported to more than 80 countries all over the world, such as USA, Germany, France, UK, Japan, UAE, Dubai, Brazil, New zealand .We also provide OEM service. Stable quality and good after-service are our remarkable advantages in this area.
