Lab Mini High Speed Micro Centrifuge 500-12000rpm LCD Display Mini Centrifuga

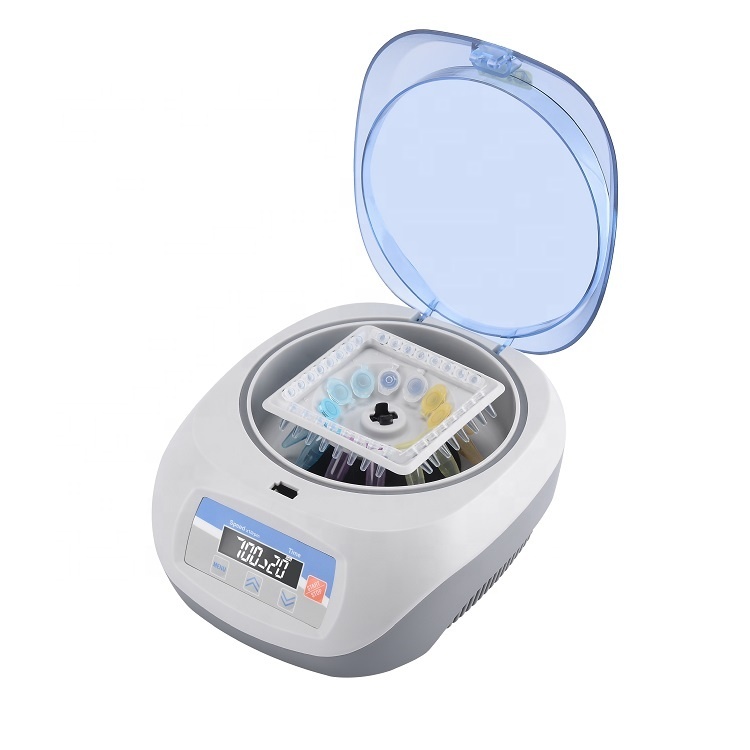

MINIL-12G Mini Micro Lab Centrifuge Features:
1. MiniL-12G centrifuge is widely used in laboratory and hospital.

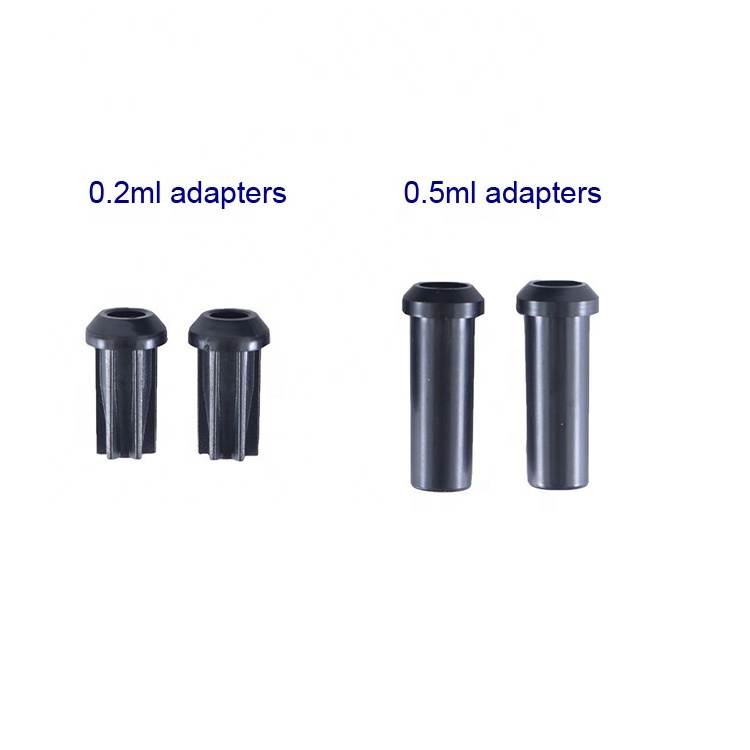

2. This model can fit in 5ml, 2ml, 1.5ml, 0.5ml and 0.2ml tubes.
3. The handheld centrifuge is very suitable for microtubule filtration and fast centrifugation, the micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.
4. Light weight, small size and beautiful design.
5. Easily control, super speed protection.
6. LCD display.
MINIL-12G Mini Micro Lab Centrifuge Technical Parameters:
|
Product number |
MiniL-12G |
|
Input power |
AC100-250V/50/60Hz |
|
Power fuse |
PPTC / self-recovery fuse / no need to replace |
|
Input power [W] |
45W |
|
control method |
ST16 bit MCU/PWM/speed regulation; |
|
Display method |
Black and white LCD |
|
motor |
DC24V/DC permanent magnet motor |
|
Effective centrifuge time |
1-99min./1-59sec. |
|
Speed [r/min.] |
500~12000rpm±5% |
|
Speed increase |
500rpm |
|
Maximum relative centrifugal force [×g] |
9660×g |
|
Misoperation/fault alarm |
Voice prompt + display code |
|
Size: length × width × height [mm] |
194×229×120 |
|
Weight (no rotor) |
2Kg |
|
Noise at maximum speed |
≤47dB(A) |
|
Fastest acceleration time |
≤12s |
|
Fastest deceleration time |
≤16s |
|
Protection level |
IP21 |
|
Allowable ambient temperature / relative humidity |
5-40℃/80% |
Note: Ambient temperature 23 ° C / at 23 ° C ambient temperature.
MINIL-12G Mini Micro Lab Centrifuge Matched Rotors:
|
Product number |
Rotary number(Rotor) |
Capacity (ml × tube number) |
Maximum speed (r/min.) |
Max Rcf |
Test tube type
|
|

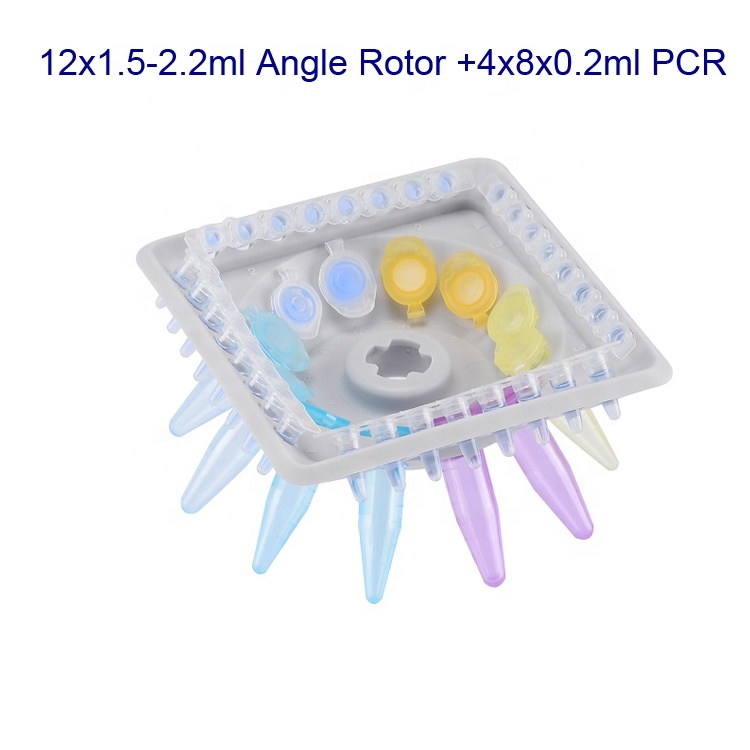

MiniL-12G-A-1 |
#1 Angle-rotor |
1.5/2.2×12+PCR0.2×8×4 row |
12000 |
9500 |
PP cone bottom cover |
|

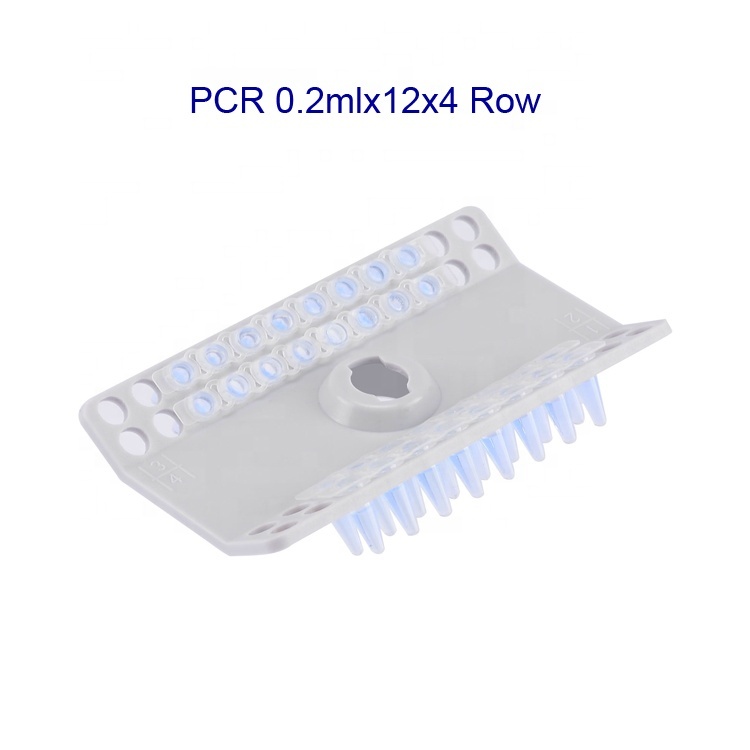

MiniL-12G-A-2 |
#2 Angle-rotor |
PCR 0.2×12×4 row |
12000 |
5960 |
PP cone bottom cover |
|

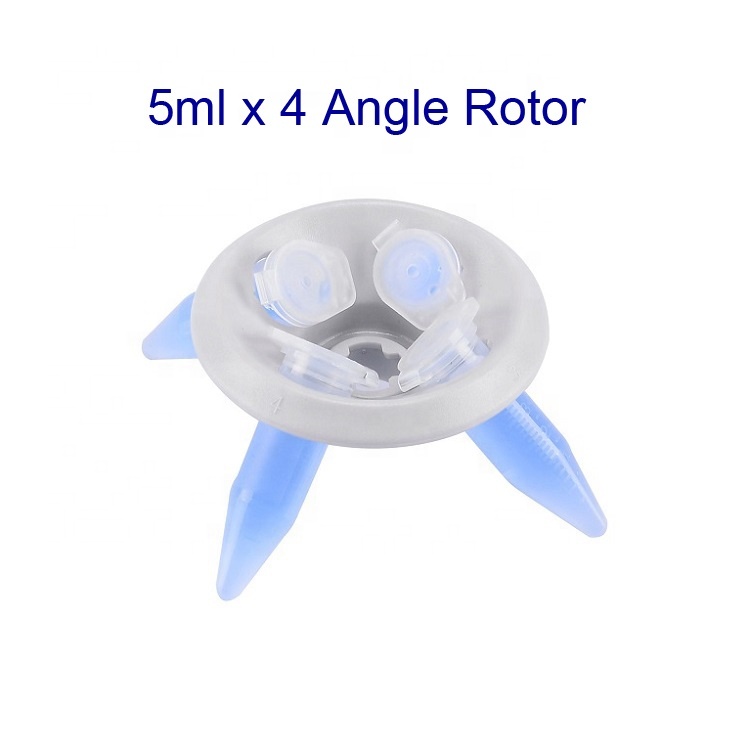

MiniL-12G-A-3 |
#3 Angle-rotor |
5×4 |
12000 |
9660 |
PP cone bottom cover |
|

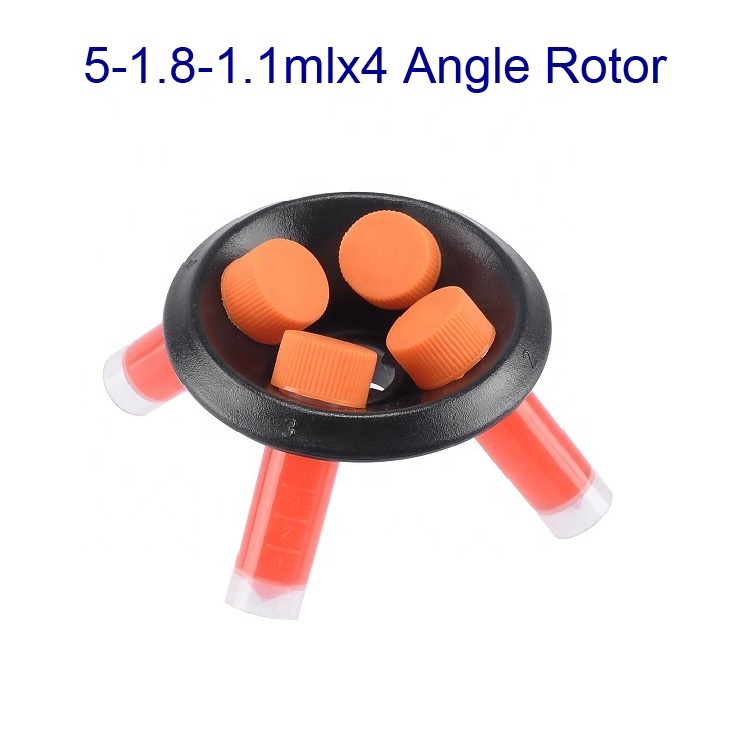

MiniL-12G-A-5 |
#5 Angle-rotor |
5/1.8/1.1×4 |
7000 |
3180 |
PP can be screwed |
Please note that #3 Angle-rotor and #5 Angle-rotor are optional.
ISO/CE Certificates:
1. One -year warranty.
2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.
3. We have professional overseas sales department, we always reply to our clients within 24 hours.
4. We won't charge clients any money for repairing the machine during one-year warranty time, the freight is also on us.
5. We only charge for the accessories on repairing the machine beyond the one-year warranty time.
6. We have technician training class twice a year, training the technician for our distributor.
Changsha Yingtai Instrument Co.,Ltd is located in the world biggest centrtifuge manufacture center, Changsha, China, a professional manufacturer of centrifuges since 2001. As one of the leading and top sale centrifuge manufacturers in China, we can make nearly all kinds of centrifuges, such as refrigerated centrifuge, non-refrigerated centrifuge, low speed centrifuge, high speed centrifuge, PRP centrifuge, hametocrit centrifuge, cyto centrifuge, blood bank centrifuge, crude oil testing centrifuge, micro centrifuge and etc. Our centrifuges are CE/ISO certificated and have been exported to more than 100 countries all over the world, such as Argentina, Australia, Belgium, Brazil, Canada, Denmark, Dubai, France, Germany, Italy, New Zealand, UK, USA and so on. We also provide OEM service. Stable quality and good after-sales service is our remarkable advantages in this field.
