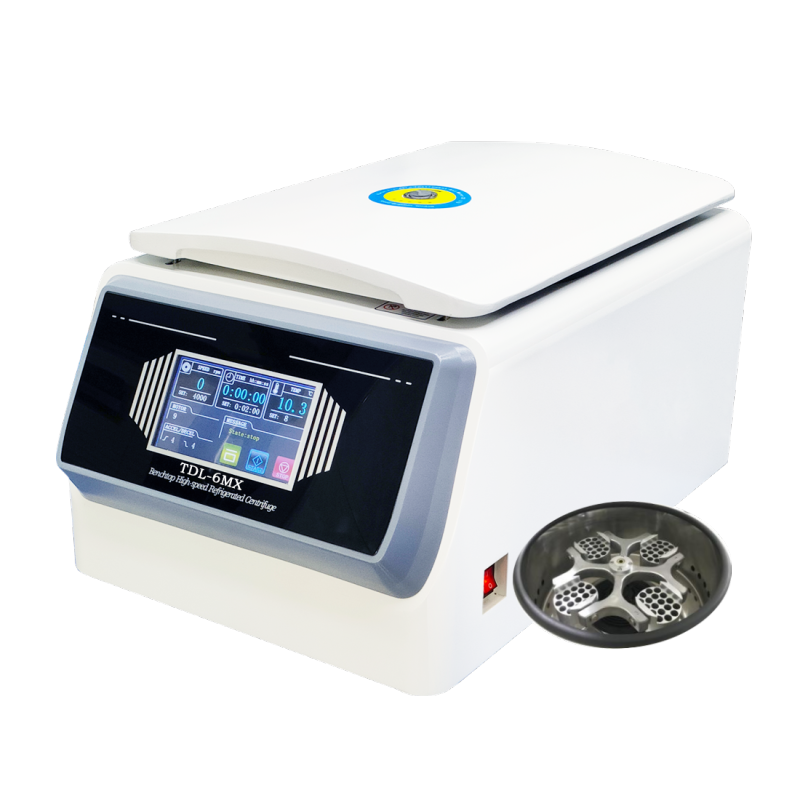

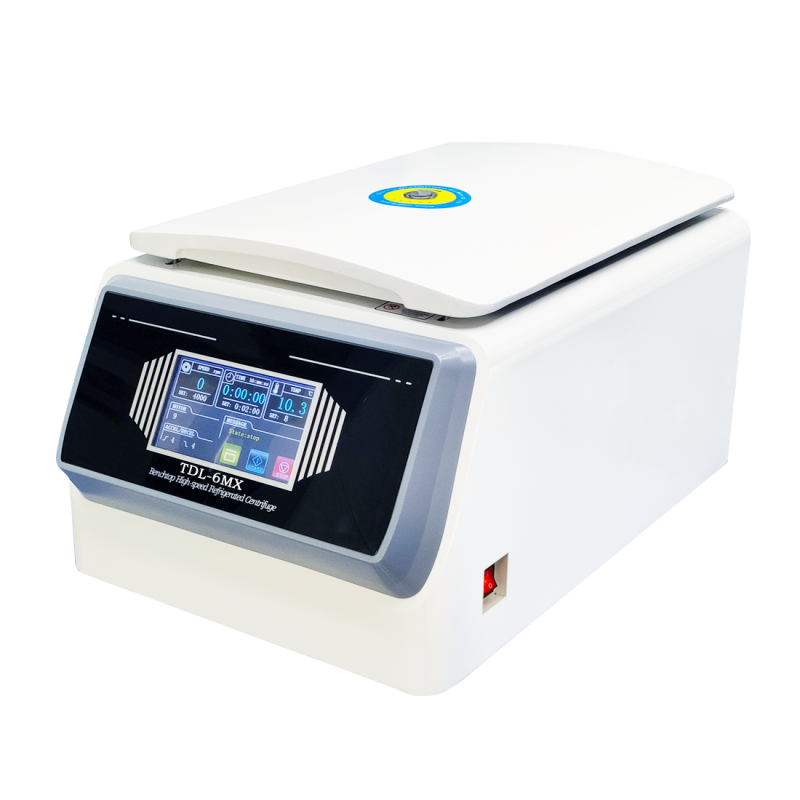

Intelligent Low Speed 6000 RPM Refrigerated Centrifuge TDL-6MX
Intelligent Low Speed 6000 RPM Refrigerated Centrifuge TDL-6MX
1. Microprocessor control, speed control by frequency-conversion and CFC compressor.Maintenance free Frequency-conversion motor without carbon dust pollution.
2. Advanced door lid control system can both electric control open and close door lid, also equipped with emergency lid lock release to avoid power off unexpected.
3. 10 programs can be stored, quickly recall the last used program.
4. Automatic rotor identification to avoid over speed running by mistake operate.
5. Easy operation, 7 inches LCD touch panel, shows all parameters in screen.
6. With Emergency lid lock release, in case of power off.
7. Error minder for wrong operate or problem.
- Information
Intelligent Low Speed 6000 RPM Refrigerated Centrifuge TDL-6MX
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features
1. Microprocessor control, speed control by frequency-conversion and CFC compressor.Maintenance free Frequency-conversion motor without carbon dust pollution.
2. Advanced door lid control system can both electric control open and close door lid, also equipped with emergency lid lock release to avoid power off unexpected.
3. 10 programs can be stored, quickly recall the last used program.
4. Automatic rotor identification to avoid over speed running by mistake operate.
5. Easy operation, 7 inches LCD touch panel, shows all parameters in screen.
6. With Emergency lid lock release, in case of power off.
7. Error minder for wrong operate or problem.
Technical parameters
Model | I-TDL-6MX | Speed Accuracy | ±50r/min |
Max Speed | 6000r/min | Timer Range | 0~99min |
Max RCF | 5600xg | Temp Range | -20℃~+40℃ |
Display | LCD Touch display | Max Capacity | 4×250ml |
Noise | ≤60dB(A) | Power Supply | AC220v&110V 50Hz 18A |
Weight | 85kg | Dimension | 720x500x420mm |

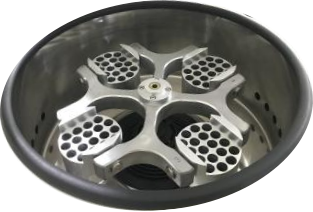

Rotor:
No. | Max Speed | Max RCF | Max Capacity |
No.1 Angle Rotor | 6000r/min | 5600xg | 12×15/10ml |
No.2 Swing Rotor | 4000r/min | 3020xg | 24×10/15ml |
No.3 Swing Rotor | 4000r/min | 3020xg | 32×10/15ml |
No.4 Swing Rotor | 4000r/min | 3020xg | 4/8×50ml |
No.5 Swing Rotor | 4000r/min | 3020xg | 72×2/5ml |
No.6 Swing Rotor | 4000r/min | 3000xg | 48×5ml |
No.7 Swing Rotor | 4000r/min | 3020xg | 4/8×100ml |
No.8 Swing Rotor | 4000r/min | 3300xg | 4×250ml |
No.9 Swing Rotor | 4000r/min | 3020xg | 48×10/15ml |
No.10 MTP | 3000r/min | 2300xg | 2x2x96holes |
