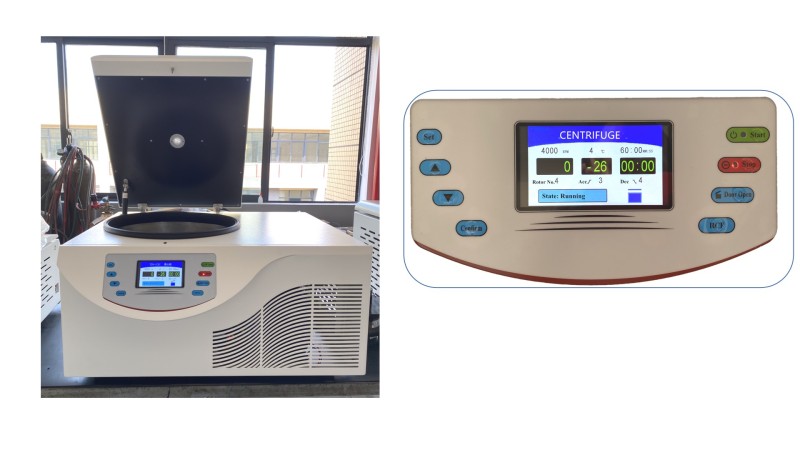

Clinical benchtop low speed 6000 RPM refrigerated Centrifuge
Clinical benchtop low speed 6000 RPM refrigerated Centrifuge
1.Adopt advanced CPU control system to realize microprocessor control of rotate speed, temperature and RCF.
2.Maintenance-free frequency conversion motor can prevent over-speed operation.
3.With imported freon-free refrigeration system operating, for the purpose of environment protection.
4.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
- Changsha, China
- 1 week
- 10000 sets
- Information
Clinical benchtop low speed 6000 RPM refrigerated Centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features:
1.Adopt advanced CPU control system to realize microprocessor control of rotate speed, temperature and RCF.
2.Maintenance-free frequency conversion motor can prevent over-speed operation.
3.With imported freon-free refrigeration system operating, for the purpose of environment protection.
4.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
Technical parameters

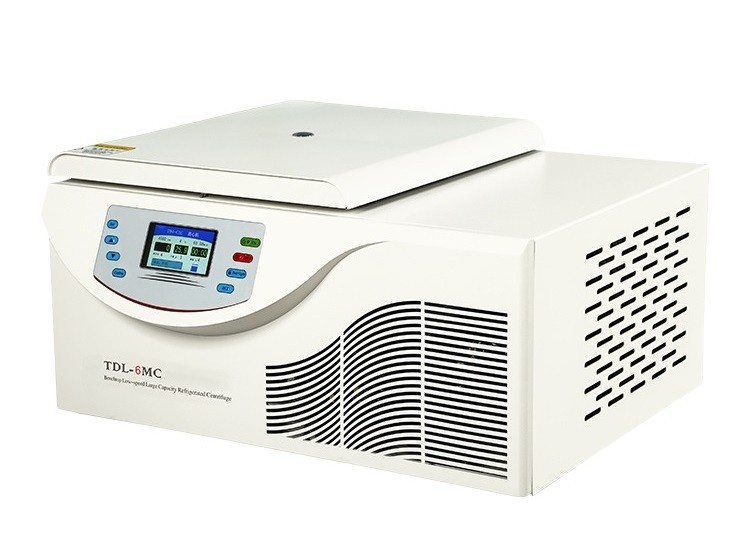

Model | TDL-6MC |
Max speed | 6000r/min |
Speed accuracy | ±10rpm |
Max RCF | 5470*g |
Max capacity | 6*500ml |
Temperature accuracy | ±1℃ |
Temperature range | -20℃~40℃ |
Time range | 0~99min |
Motor | Variable frequency motor, Microcomputer control |
Noise | ≤60dB(A) |
Power supply | AC220V&110V 50Hz 10A |
Dimensions | 830*750*480mm |
Weight | 150kg |
Rotor

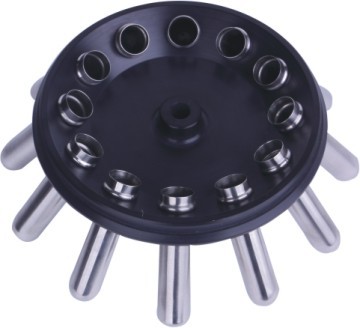

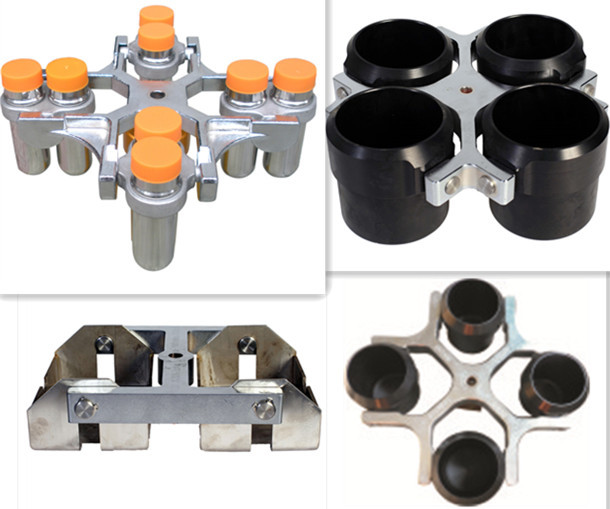

No.1 Angle Rotor Max speed: 6000r/min Max RCF: 4500*g Max capacity:12*10/15ml | No.2 Swing Rotor Max speed: 4000r/min Max RCF: 4390*g Max capacity:6*500ml |

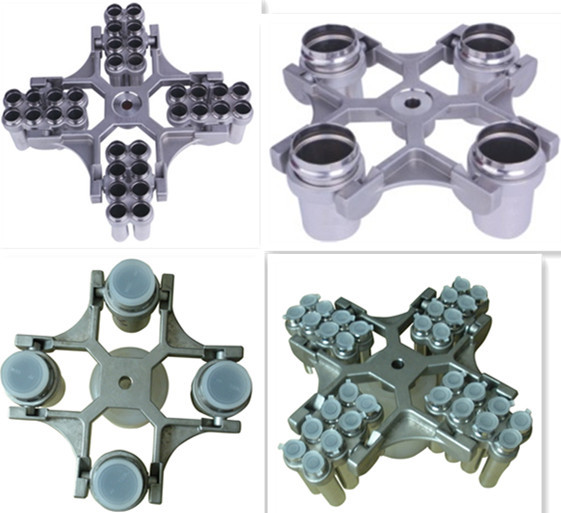

No.3 Swing Rotor Max speed: 4000r/min Max RCF: 4100*g Max capacity:148*7ml | No.4 Swing Rotor Max speed: 4000r/min Max RCF: 3600*g Max capacity:4*500ml |
No.5 Swing Rotor Max speed: 4000r/min Max RCF: 5470*g Max capacity:4*750ml | No.6 Horizontal enzyme labeled rotor Max speed: 4000r/min Max RCF: 2300*g Max capacity:2*2*96hole |
No.7 Swing Rotor Max speed: 4000r/min Max RCF: 2810*g Max capacity:8*50ml | No.5 Swing Rotor Max speed: 4000r/min Max RCF: 3840*g Max capacity:96*5/7ml |
