Benchtop Large Capacity Low Speed Clinical Lab Centrifuge TD6-WS
Intelligent Benchtop Large Capacity Low-Speed centrifuge TD6-WS
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. With electric door lid open and closed system, also equipped with emergency lid lock release in case of power off unexpected.
3. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
4. 10 programs can be stored, quickly recall the last used program.
5. With air cooling fans to avoid high temperature with long time working.
6. Full colored touch panel, shows with RPM, RCF, Acc, Dec , Rotor No., etc.
Automatic rotor identification avoid over speed running
- Information

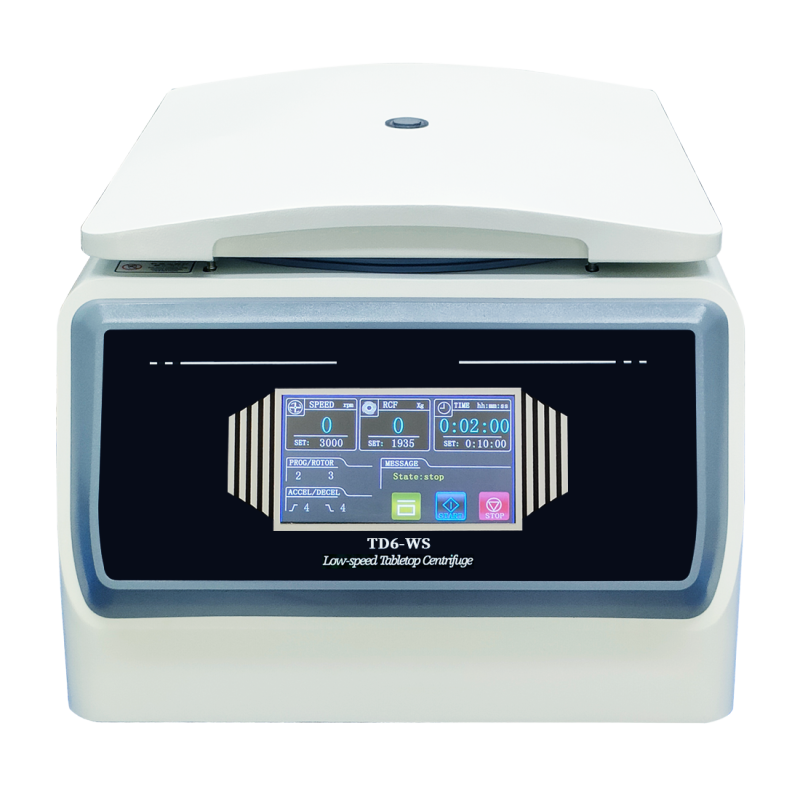

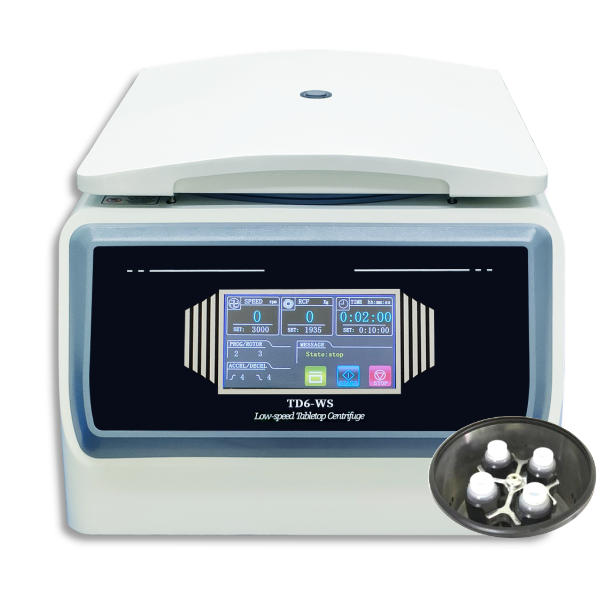

Intelligent Benchtop Large Capacity Low-Speed centrifuge TD6-WS
Product Introduction
I-TD6-WS is low speed Large Capacity centrifuge, Which is the idea machine for Biological, hospital clinics laboratories,Epidemic prevention stations and to separate samples of blood, plasma, Urine and so on.
Features
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. With electric door lid open and closed system, also equipped with emergency lid lock release in case of power off unexpected.
3. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
4. 10 programs can be stored, quickly recall the last used program.
5. With air cooling fans to avoid high temperature with long time working.
6. Full colored touch panel, shows with RPM, RCF, Acc, Dec , Rotor No., etc.
Automatic rotor identification avoid over speed running
Technical Parameters
Model | I-TD6-WS | ||
Max Speed | 6000r/min | ||
Speed Accuracy | ±30rpm | ||
Max RCF | 5600×g | ||
Timer Range | 0~99min | ||

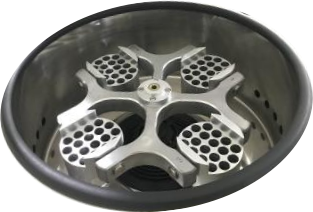

Rotor No. | Rotor Capacity | Speed (r/min) | RCF (xg) |
No.1 Angle Rotor | 12×10/15ml | 6000 | 5600 |
No.2 Swing Rotor | 24×5ml | 4200 | 3120 |
No.3 Swing Rotor | 108×5ml | 4000 | 4200 |
No.4 Swing Rotor | 16×10/15ml | 5000 | 4100 |
No.5 Swing Rotor | 8×50ml | 4200 | 3120 |
4×50ml | |||
No.6 Swing Rotor | 8×100ml | 4200 | 3120 |
No.7 Swing Rotor | 4×500ml | 4000 | 3600 |
No.8 Well Plates Rotor | 2×2×96holes | 4000 | 2300 |
Timer Range | 0~99mins | ||
Noise | ≤65dB(A) | ||
Power Supply | AC220V & 110V 50Hz 5A | ||
Dimension | 605×505×420mm(L×W×H) | ||
Weight | 52kg | ||
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
