Detecting blood type centrifuge, A, B, AB, O blood type
- Information
Blood card test centrifuge can match with Diamed Card, widely used in hospital to test the blood type, cross-matching test.

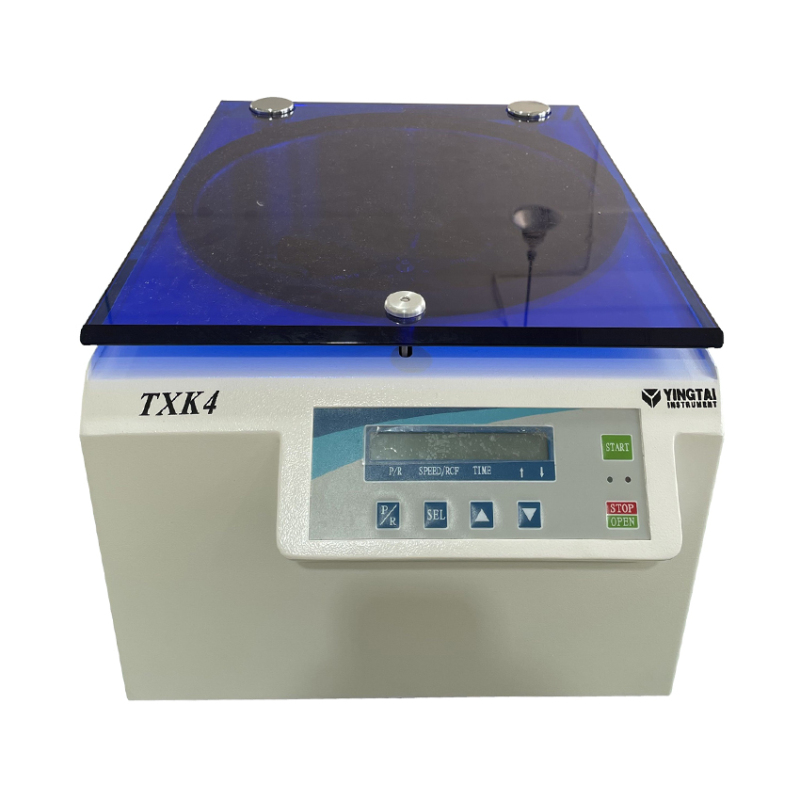

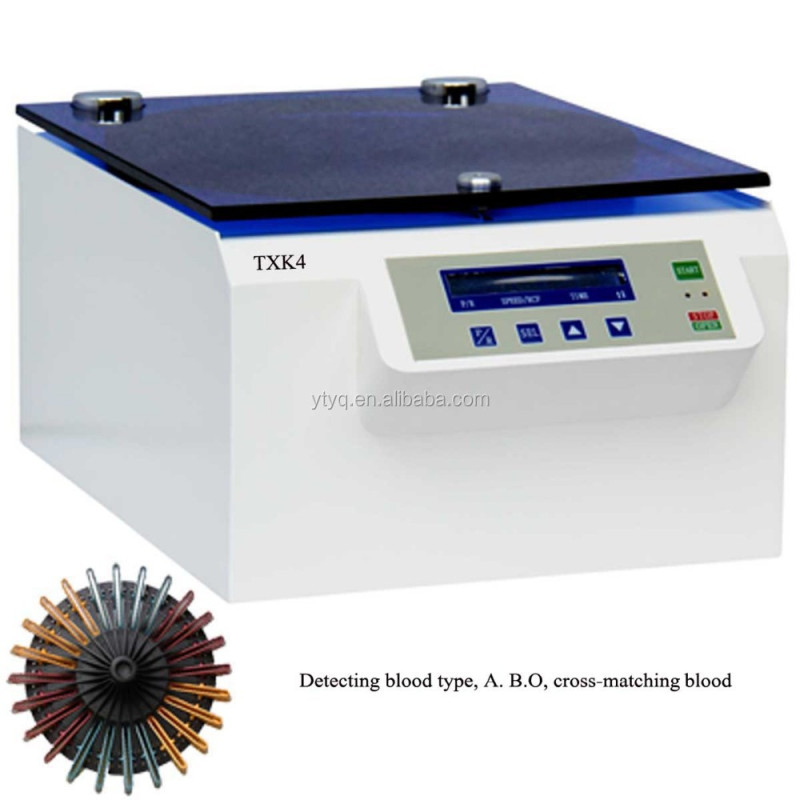

Model:TXK4 Blood group serological tests multipurpose centrifuge
TXK4 blood group serological tests multipurpose centrifuge is our latest product,which get through our technical department and several professional biological technical companies together research and make experients, then TXK came out. Mainly used in the test of blood group serology, blood type, Microcolumn agglutination, immunodetection and etc.
Features:
1.Brushless DC motor to make sure free maintenance, no poweder polution, micro computer controland digital display the time, spees and RCF to let easily operation.
2.Special centrifugation technical to different reagent according to the requirement.
3.Regular centrifugation program, customers can press the button to choose the required one.
4.Electrical lid lock,overspeed and imbalance protection.
5.SERO rotor for erythrocy washing, HLA rotor for lymphocyte washing,cross-matching blood rotor are availale.
TXK4 Technical Parameter:
|
4000rpm |
|
|
Max. RCF |
2120×g(24Cards), 1480×g(12Cards) |
|
Max. Capacity |
24 Cards/12Cards |
|
Time Range |
0~99min59sec |
|
RPM/RCF Convert |
Yes |
|
Noise (dB) |
≤ 55 |
|
Temperature |
Normal |
|
Acc/Dec |
10 Kinds |
|
Speed Accuracy |
±20r/min |
|
Voltage(V/Hz) |
AC 220V/110V 50HZ/60HZ |
|
Size (W x D x Hmm) 12Cards |
485×320×250mm |
|
Net Weight(Kg) 12 Cards |
17KG |
|
Size (W x D x Hmm) 24 Cards |
500×360×250mm |
|
Net Weight(Kg) 24 Cards |
19KG |
|
Certificates |
CE,ISO & Calibration report are available |

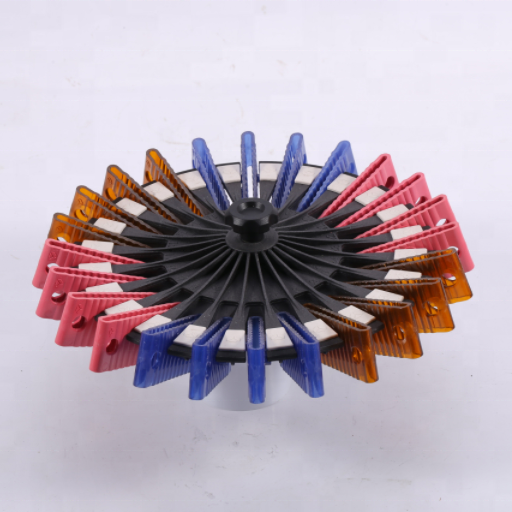

Matched Rotors for TXK4
|
Rotor No. |
Rotor |
Max Speed (rpm) |
Max Volume (ml) |
Max. RCF(×g) |
|
NO33183 |
Swing Rotor |
4000 |
12 cards |
1480 |
|
NO33184 |
Swing Rotor |
3000 |
24 cards |
1190 |
Changsha Yingtai Instrument Co.,Ltd is a professional centrifuge manufacturer widely used in the field of medicine,life science,agriculture science,institute and so on, our main products are high-speed centrifuge,low seed centrifuge, refrigerated centrifuge, large capacity refrigerated centrifuge, cell smear centrifuge, blood centrifuge dedicated card, pharmaceutical centrifuges, mini centrifuge and other specialized types of continuous separation centrifuges.
Business over ten years, we learn from foreign advanced production technology and centrifuge design. Adhering to innovation in technology, in recent years, we had made great progress in the field of centrifuge used in experimental research. I won the China Instrument Association innovation award in the 5th China International Scientific Instrument and Laboratory Equipment Exhibition. Has applied for domestic 50000r/min ultracentrifuge trial project.
In the same industry,Yingtai is a company with import and export right, Our products are exported to UK, USA, ITALY, UAE, BRASIL, NEW ZEALAND.... and got very good reputation from our customers..
The reasons of customers choosing Yingtai:
1. Strong R&D team
2. Quality first and customer uppermost
3. Competitive price and short delivery time
4. Perfect after-sales service with technical support and satisfactory training
Yingtai sincerely hope to work closely with your company. Welcome to contact us for detail information, thank you.
We will go through all the questions with you. Just send email to us, we will reply you as soon as possible~
Exhibition Photo:
