Benchtop Low-Speed centrifuge TDZ5-WS
Benchtop Low-Speed centrifuge TDZ5-WS
Low speed centrifuge are widely used in medical and Biological Field, Health Examination center, and laboratories etc.
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. Safety Interlock system that prevents opening the centrifuge lid during running.
3. With Emergency lid lock release, in case of power off.
4. Imbalance sensor, Over speed
5. 10 programs can be stored, quickly recall the last used program.
6. With air cooling fans to avoid high temperature with long time working.
7. Digital or LCD display for choose, which indicated the Speed, time, RCF etc.
- Information
Benchtop Low-Speed centrifuge TDZ5-WS
Blood Bank Hospital Biochemistry Laboratory Pharmaceutical
Product Introduction:
TDZ5-WS low speed centrifuge are widely used in medical and Biological Field, Health Examination center, and laboratories etc.
Features:
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. Safety Interlock system that prevents opening the centrifuge lid during running.
3. With Emergency lid lock release, in case of power off.
4. Imbalance sensor, Over speed
5. 10 programs can be stored, quickly recall the last used program.
6. With air cooling fans to avoid high temperature with long time working.
7. Digital or LCD display for choose, which indicated the Speed, time, RCF etc.
Technical Parameters:
Model | TDZ5-WS | ||
Max Speed | 5500r/min | ||
Speed Accuracy | ±10rpm | ||
Max RCF | 5220×g | ||
Timer Range | 0~99min | ||

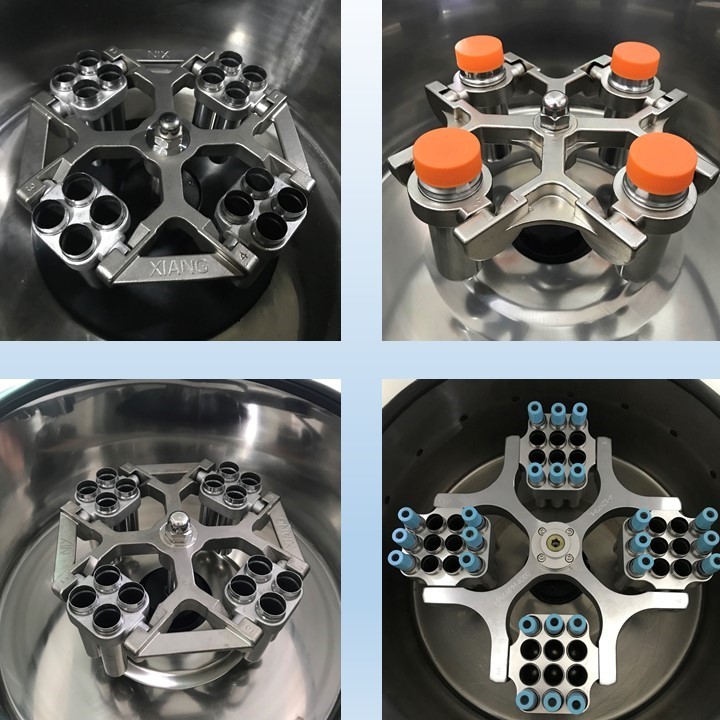

Rotor No. | Rotor Capacity | Speed (r/min) | RCF (xg) |
No.1 Angle Rotor | 12×10/15ml | 5500 | 5220 |
No.2 Swing Rotor | 4×100ml | 4000 | 3020 |
No.3 Swing Rotor | 8×50ml | 4000 | 3020 |
8×100ml | 4000 | 3020 | |
No.4 Swing Rotor | 32×10/15ml | 4000 | 3020 |
No.5 Swing Rotor | 24×10/15ml | 4000 | 3020 |
No.6 Swing Rotor | 48×5ml | 4000 | 3020 |
No.7 Swing Rotor | 72×2/5ml | 4000 | 3020 |
No.8 Swing Rotor | 4×250ml | 4000 | 3300 |
No.9 Swing Rotor | 48×10/15ml | 4000 | 3000 |
No.10 Micro plates | 2×2×96holes | 4000 | 2300 |
Timer Range | 0~99mins | ||
Noise | ≤65dB(A) | ||
Power Supply | AC220V & 110V 50Hz 5A | ||
Dimension | 580×450×360mm(L×W×H) | ||
Weight | 39kg | ||
Note: Rotors can be customized.
Rotor Number | Max Speed | Max RCF | Capicity |
No.1 Angel Rotor | 5500r/min | 5220xg | 12x15ml |
No.2 Swing Rotor | 4000r/min | 3020xg | 4x100ml |
No.3 Swing Rotor | 4000r/min | 3020xg | 8x50ml |
4000r/min | 3020xg | 8x100ml | |
No.4 Swing Rotor | 4000r/min | 3020xg | 32x15ml |
No.5 Swing Rotor | 4000r/min | 3020xg | 32x10ml |
No.6 Swing Rotor | 4000r/min | 3020xg | 24x15ml |
No.7 Swing Rotor | 4000r/min | 3020xg | 48x5ml |
No.8 HorizontalRotor | 4000r/min | 3020xg | 72x5ml |
4000r/min | 3300xg | 4x250ml | |
No.9 Horizontal Rotor | 4000r/min | 3300xg | 48x15ml |
No.10 swing enzyme-labeled rotor | 3500r/min | 2300xg | 2x2x96 |
