DL6MB Large Capacity Refrigerated Centrifuge Blood Bank for 500ml blood bags
DL6MB Large Capacity Refrigerated Centrifuge Blood Bank for 500ml blood bags
1. Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.
2. Brushless frequency motor for model DL6MB which in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Model DL6MB with the digital display which indicates the speed, time and temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. There are 6 kinds of rotors for your choice.
6. Electric lid lock, compact design, super speed and imbalance protection.
7. The centrifuge body is made of high-quality steel, safe and reliable.
- Changsha, China
- 1 week
- 10000 sets
- Information
DL6MB Large Capacity Refrigerated Centrifuge Blood Bank for 500ml blood bags
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher. If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Product Description
Tips for Blood Separation
Why Do Blood Separation ?
Because there are platelets in the blood, and the blood will coagulate; After centrifugation, different components have different functions and can be stored for a long time.
Centrifugal Force Range of Blood Separation
It is relative to set 1500xg ~ 2500xg. If the centrifugal force is too large, the blood cell wall will rupture to cause blood melting. That is why users need to select low-speed centrifuges to separate blood. (high speed centrifuges are required for experiments such as extracting DNA from red blood cells, but this is not called blood centrifugation.)
Normal or Cooling System ?
If the temperature in centrifugal chamber is too high, which will damage the blood, so the non-refrigerated centrifuges can be selected for small quantity and short-time centrifugation; For large quantity and long-time spin like blood bags separation, and then refrigerated centrifuges should be selected. The general setting temperature range is 4 ℃ -12 ℃.
Features For Floor Refrigerated Centrifuges
Driving System
——Self developed special variable frequency motor, large torque, dust-free, anti-interference, low noise, maintenance free, long service life.
——It is driven by imported flexible shaft, which has a certain self compensation function, reduces the random disturbance of the sample in the process of acceleration and deceleration to the minimum, and can withstand a little unbalance.
Control System
we independently develops and designs microprocessor for precise control and automatically memory the last running program.
It can store and call 10 kinds of programs, and call common programs with one key.
10 kinds of acceleration rates and 10 kinds of deceleration rates are available for users to flexibly select appropriate separation to achieve the best centrifugal effect.
Display System
LED red light display, high brightness and clarity, strong anti-interference and long service life.
LCD touch screen.
Real time display of speed, centrifugal force, time, temperature and other parameters, smart operation.
Refrigeration System
The imported fluorine-free compressor unit and R404A refrigerant are adopted, which are completely free of CFC and HCFC , environmental.
The double cycle refrigeration process has strong cold and heat exchange capacity. At the highest speed, the temperature in the centrifugal chamber can reach - 10 ℃ or below.
Prefabricated cold function available.
Imported double solenoid valve control, temperature control is more accuracy than single valve control.
The centrifugal chamber and door cover adopt isocyanate and cyclopentane foaming agent, with a thickness of 25mm, which has excellent temperature preservation and down noise level.
Features
1. Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.
2. Brushless frequency motor for model DL6MB which in great torque, free maintenance, no powder pollution, quick in speed up and down.
3. Model DL6MB with the digital display which indicates the speed, time and temperature.
4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
5. There are 6 kinds of rotors for your choice.
6. Electric lid lock, compact design, super speed and imbalance protection.
7. The centrifuge body is made of high-quality steel, safe and reliable.

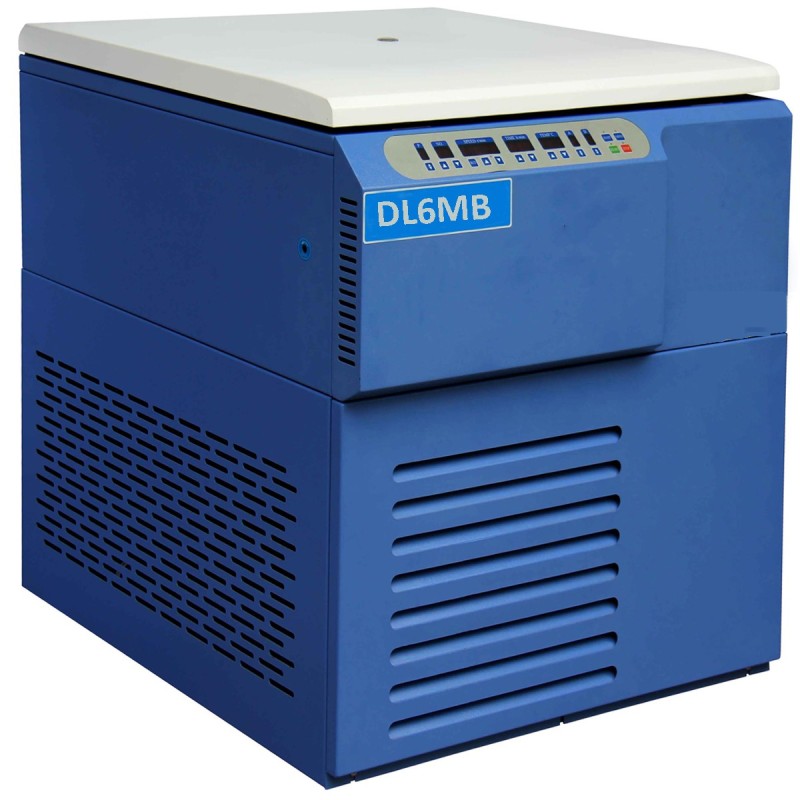

Technical Parameters For Large Capacity Refrigerated Centrfiuge DL6MB
Max Speed | 6,000r/min | Max RCF | 6,600xg |
Max Volume | 6x1000ml | Power supply | AC220V,50HZ,20A |
Timer | 1~9h/59min | Noise | ≤65dBA |
Dimension | 800×740×930mm | Net Weight | 310KG |
Speed Accuracy | ±20r/min | Plywood box(W*D*H) | 1050x850x1450mm |
Temperature range | -20℃ ~ 40℃ |
|

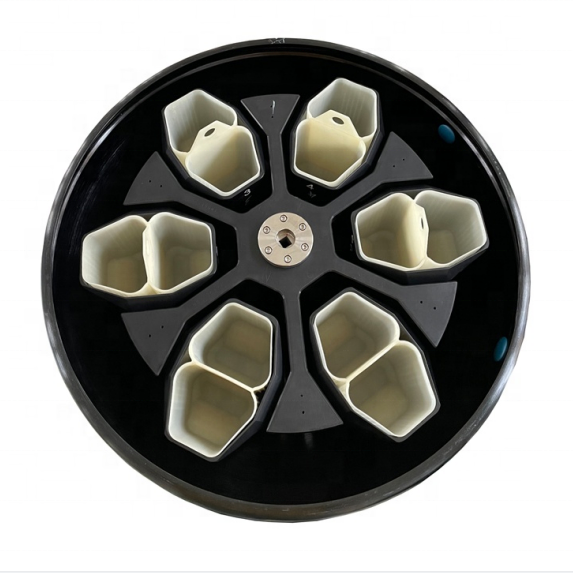

Matched Rotors For Large Capacity Refrigerated Centrfigue DL6MB
Rotor No. | Rotor type | Max.Speed (rpm) | Max.Volume (ml) | Max.RCF (xg) |

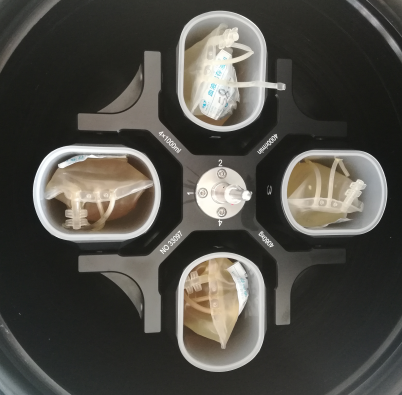

No30298 | Swing out rotor | 4,200 | 6x1000ml (round/square cup ) | 5,100 |
No30221 | Angle rotor | 6,000 | 4x300ml | 5,390 |
No30222 | Angle rotor | 6,000 | 6x300ml | 5,660 |
No30223 | Angle rotor | 6,000 | 6x500ml | 6,600 |
Blood Bank Station for 200ml/400ml/500ml Blood Bag Separation Refrigerated Centrifuges
Popular 6x1000ml DL6MB Refrigerated Laboratory Centrifuge centrifugadora plasma
Standard plywooden box for export
Packing includes 1 pc centrifuge main unit + 1 pc rotor + tools
Maintenance
1. You should take out the rotor from the centrifugal chamber when you don't use the machine for a long time, and then store them in the ventilation and dry place after cleaning.
2. Clen the centrifugal chamber when finished centifugation, dismantle the central sleeve from the axle regularly, and lubricate the axie and central sleeve, in case of corrosion.
3. Keep the place which settle the centrifuge clean, make sure the freezer is not chocked by dirty subjects.
Quality Gurantee
2.1 We have full one year warranty on our all products.
2.2 After the machine fixed our professional technician will file it and keep track f the usage of the machine.
2.3 We will track our customer regularly, see whether the machine is in good condition, if something wrong happened to our machine, we will guide professionally to repair
2.4 We will pay attention to the feedback of the customers within 24hours
2.5 We will charge for accessaries on repairing the machine beyond the one year warranty, and beyond the quality as well.
2.6 We also can offer technician training class, and training the technician for our distributors.
