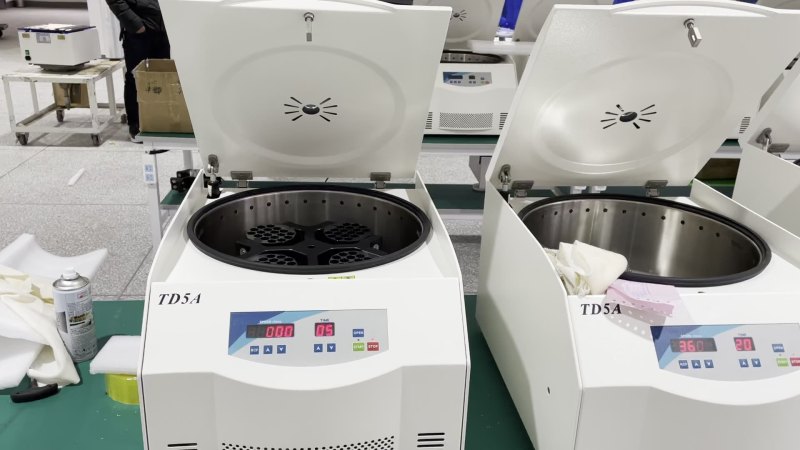

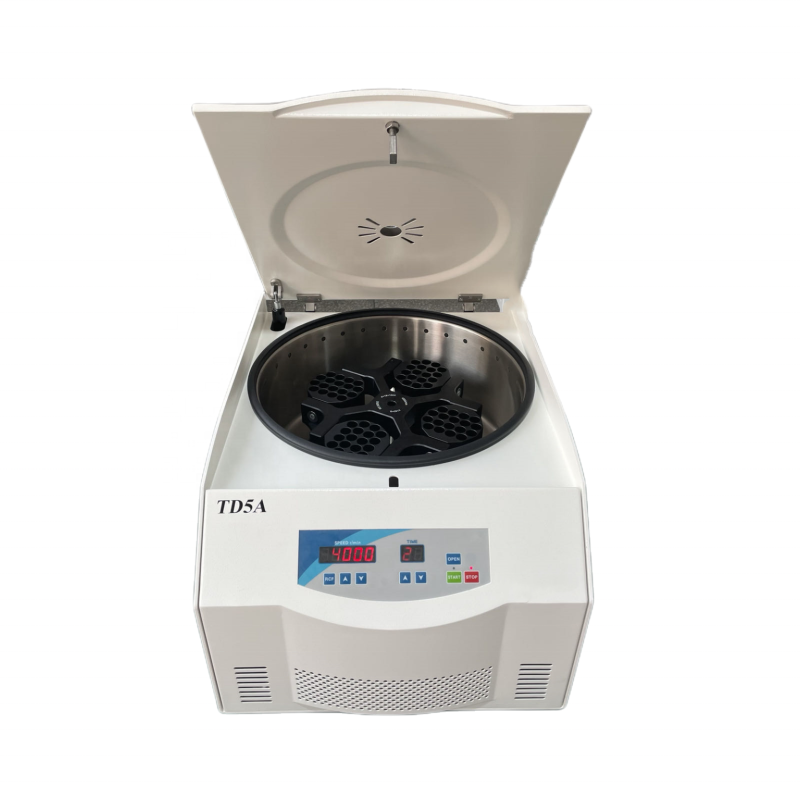

Benchtop Low Speed 5000 RPM TD5A Clinical centrifuge
Benchtop Low Speed 5000 RPM TD5A Clinical centrifuge
1. Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Swing out rotors & Angle Rotors both for options. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, TD5A with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5. 10 kinds of accelerating and decelerating speed rates for your choice.
6. 3 phase to get the ideal centrifugation result.
- Changsha, China
- 1 week
- 10000 sets
- Information
Benchtop Low Speed 5000 RPM TD5A Clinical centrifuge
4x300ml swing buckets for 250ml centrifuge tube
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
It is a Tabletop Low Speed Clinical Equipment Lab Centrifuge, widely used in the field of blood bank, hospital and laboratory.
Features for 5000rpm Blood laboratory centrifuge medical centrifuge 4x300ml swing buckets
1. Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Swing out rotors & Angle Rotors both for options. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, TD5A with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5. 10 kinds of accelerating and decelerating speed rates for your choice.
6. 3 phase to get the ideal centrifugation result.
Technical Parameters
Max.Speed | 5,000r/min |
Max.Capacity | 4x300ml |
Timer | 0~99min |
Dimension | 620x450x355mm |
Speed Accuracy | ±20r/min |
Max.RCF | 4,730xg |
Power supply | AC220V, 50/60Hz |
Noise | ≤58dBA |
Net weight | 52KG |
Temperature range | Non-refrigerated |

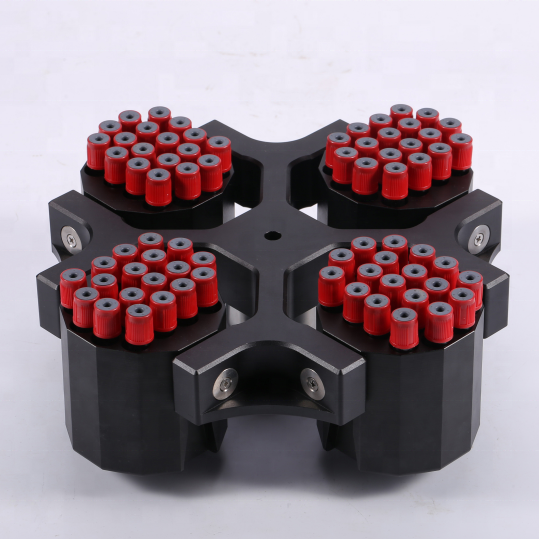

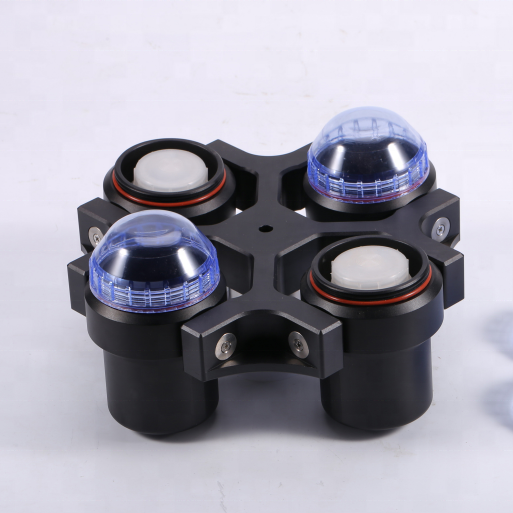

Matched Rotors for Large Capacity Multipurpose Lab/Hospital Centrifuge TD5A
Order No. | Rotor type | Max.Speed (rpm) | Max.Volume (ml) | Max.RCF (xg) |
No31392 | Swing out rotor | 4,000 | 4x300ml | 3,180xg |
Adapters in 300ml buckets ( round cup ) | ||||
For 5ml tube to do 4x10x5ml | For 7ml tube to do 4x10x7ml | For 10ml tube to do 4x9x10ml | For 15ml tube to do 4x7x15ml | For 50ml tube to do 4x2x50ml |
No31491 | Micrplater rotor | 4,000 | 2x4x96well | 3,210xg |
No31377 |
Swing out rotor |
5,000 | 4x50ml | 4,730xg |
4x100ml | 4,730xg | |||
4,000 | 32x15ml | 3,200xg | ||
No30589 | Swing out rotor | 4,000 | 96x5ml | 2,840xg |
No30592 | Swing out rotor | 4,000 | 96x7ml | 3,150xg |
No30627 | Angle rotor | 5,000 | 30x15ml | 3,830xg |
No30641 | Angle rotor | 4,000 | 12x50ml | 2,880xg |
No30614 | Angle rotor | 5,000 | 6x100ml | 3,130xg |
No30643 | Angle rotor | 4,000 | 12x100ml | 2,970xg |
It would be packed in plywooden box with 78x52.5x50cm
