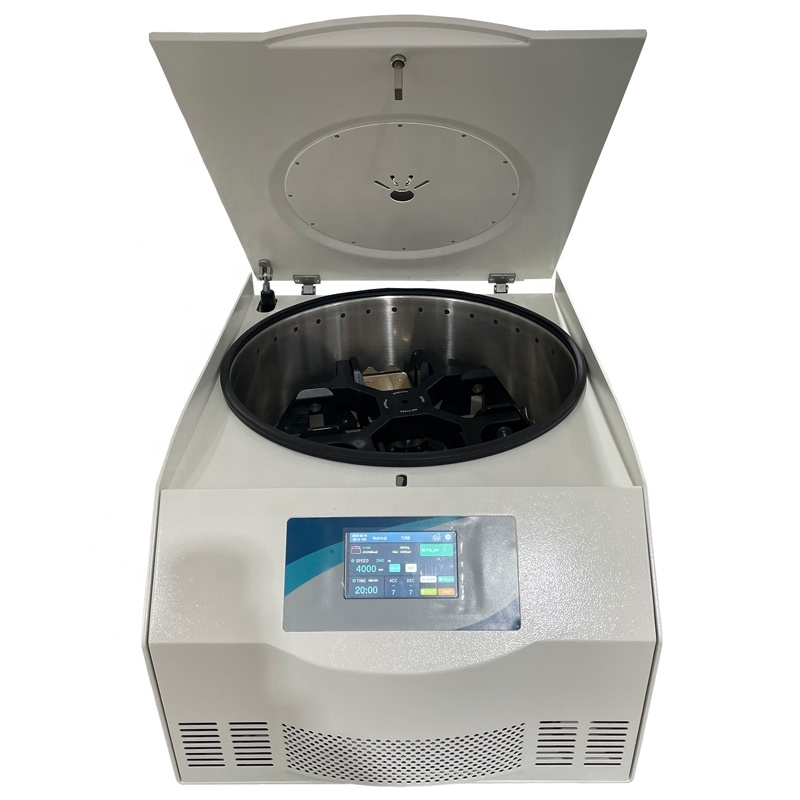

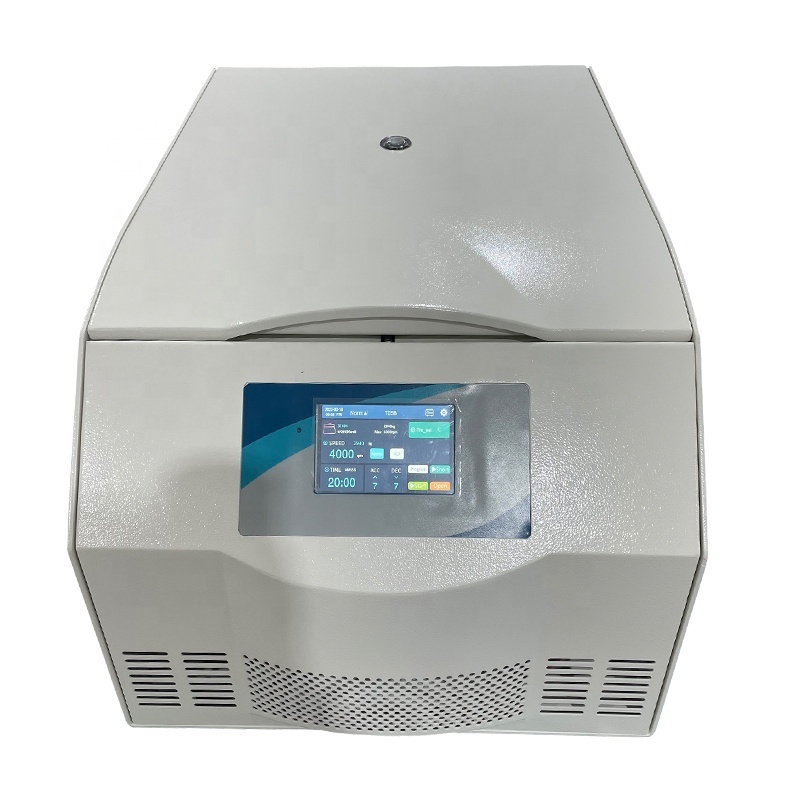

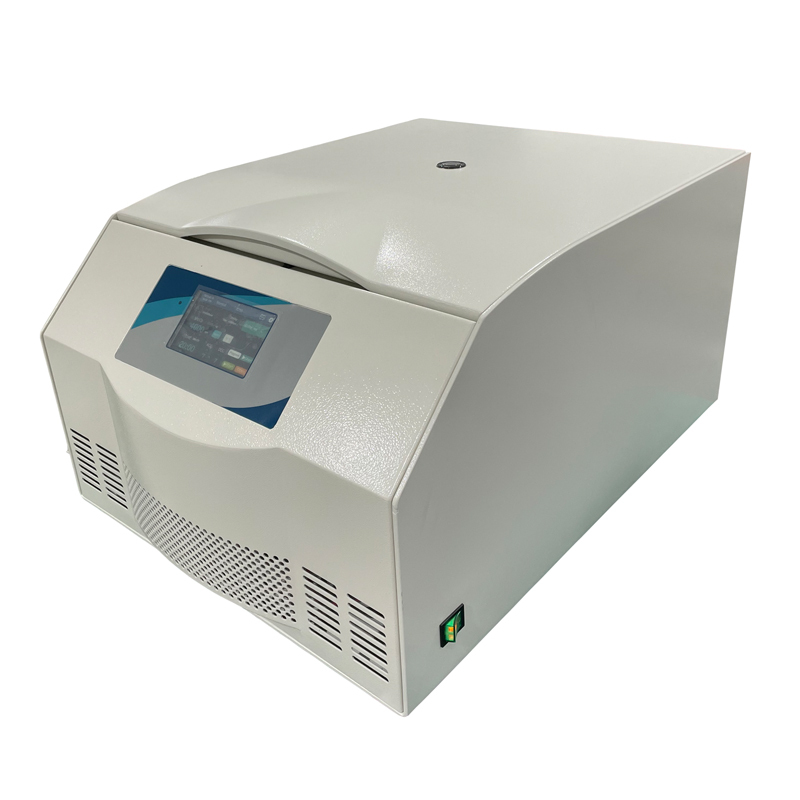

TD5B LCD Display 4x800 Swing Bucket Lab Centrifuge Machine
TD5B LCD Display 4x800 Swing Bucket Lab Centrifuge Machine
1. Brushless motor, no powder pollution, free-maintenance.

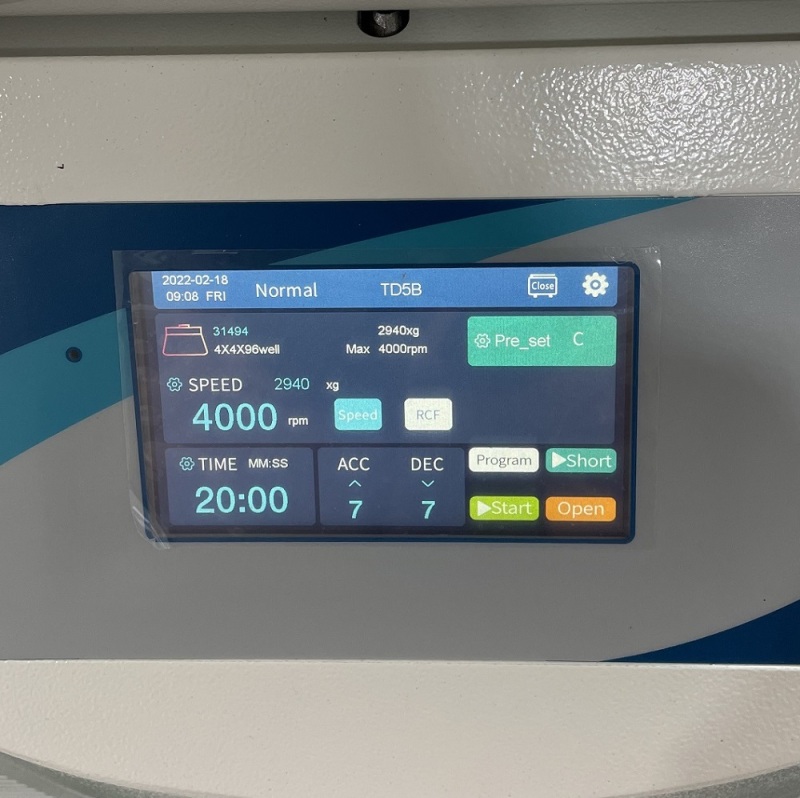

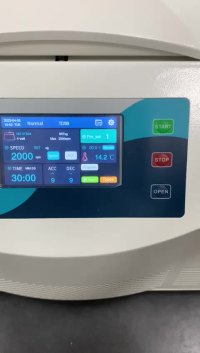

2. The digital display indicates the speed, time and temperature.
3. Micro-computer control system, there are 10 kinds of acceleration and deceleration for your choice.
4. Automatically electric lid lock, over speed/temperature protection and imbalance protection.
5. There are many rotors for choice.
6. The centrifuge body is made of high-quality steel, safe and reliable.
- Information
TD5B LCD Display 4x800 Swing Bucket Lab Centrifuge Machine
TD5B 5000rpm 4x800ml Lab Centrifuge Application:
Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory, hospitals and blood banks.
TD5B 5000rpm 4x800ml Lab Centrifuge Features:
1. Brushless motor, no powder pollution, free-maintenance.
2. The digital display indicates the speed, time and temperature.
3. Micro-computer control system, there are 10 kinds of acceleration and deceleration for your choice.
4. Automatically electric lid lock, over speed/temperature protection and imbalance protection.
5. There are many rotors for choice.
6. The centrifuge body is made of high-quality steel, safe and reliable.
TD5B 5000rpm 4x800ml Lab Centrifuge Technical Parameters:
| Max. Speed | 5000rpm |
| Max. RCF | 4730xg |
| Max. Capacity | 4x800ml |
| Timer | 0-99min |
| Speed Accuracy | 20rpm |
| Noise(DB) | Less than 60DBA |
| Voltage(V/HZ) | AC220V/110V,50HZ 10A |
| Dimension(LxWxHmm) | 700x500x400mm |
| Net Weight(Kg) | 67KG |
| RPM/RCF Convert | Yes |
| Certificates | CE, ISO |
| Warranty | 1 Year |

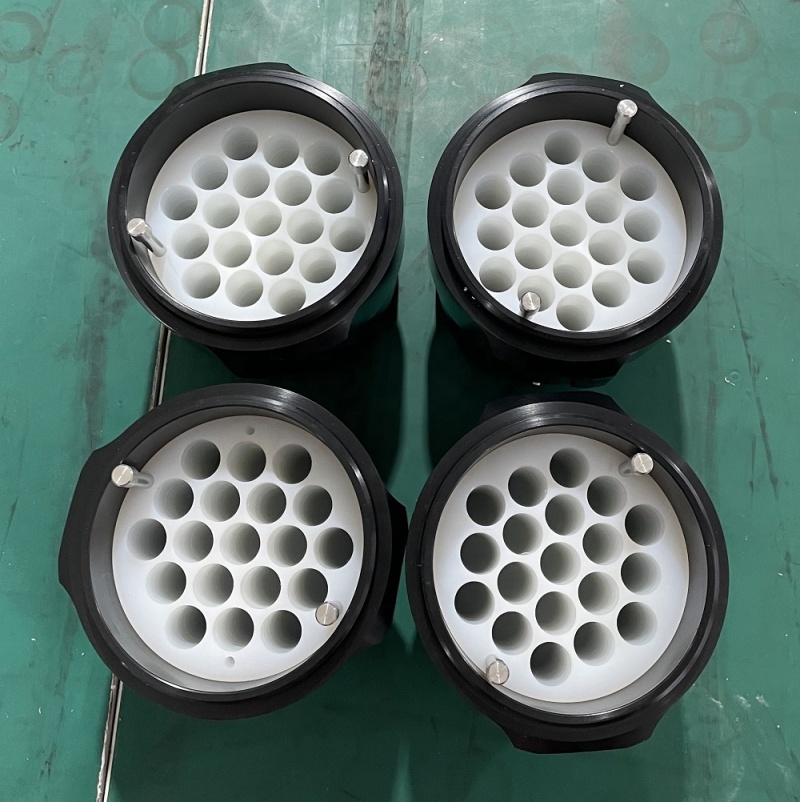

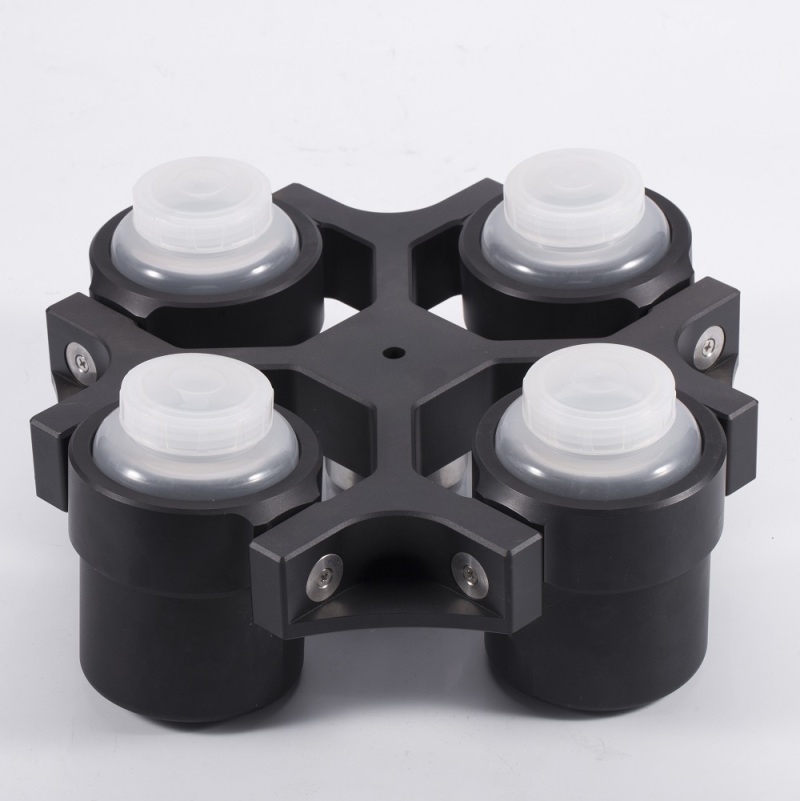

TD5B 5000rpm 4x800ml Lab Centrifuge Matched Rotors:
| Order No. | Rotor Type | Max Speed(r/min) | Volume(ml) | Max. RCF(xg) |
| 5B-1 | Swing Rotor | 4000 | 4x800ml | 3450 |
| 5B-2 | Swing Rotor | 4000 | 4x750ml | 3530 |
| 5B-3 | Swing Rotor | 4000 | 4x500ml | 3380 |
| 5B-4 | Swing Rotor | 4000 | 4x4x96(well) | 2940 |
| 5B-5 | Microplate Rotor | 4000 | 2x4x96(well) | 3210 |
| 5B-6 | 2x3x48(well) | 2300 | ||
| 5B-7 | Swing Rotor | 5000 | 4x1x50ml | 4730 |
| 4x1x100ml | 4730 | |||
| 4000 | 4x2x100ml | 3020 | ||
| 4000 | 4x2x50ml | 3200 | ||
| 4000 | 4x4x15ml | 3200 | ||
| 4000 | 4x6x15ml | 3200 | ||
| 5B-8 | Swing Rotor | 4000 | 4x8x15ml | 3200 |
| 4000 | 4x12x5ml vacuum tube | 2480 | ||
| 4000 | 4x12x7ml vacuum tube | 2760 | ||
| 4000 | 4x12x10ml vacuum tube | 2880 | ||
| 4000 | 4x8x10/7/5ml vacuum tube | 2790 | ||
| 4000 | 4x6x10/7/5ml vacuum tube | 2790 | ||
| 4000 | 4x4x10/7/5ml vacuum tube | 2790 | ||
| 5B-9 | Swing Rotor | 4000 | 4x24x5ml vacuum tube | 2480 |
| 4000 | 4x31x5ml Khan tubes | 2480 | ||
| 5B-10 | Swing Rotor | 4000 | 4x24x7ml vacuum tube | 3140 |
| 4000 | 4x31x7ml Khan tubes | 3140 | ||
| 4000 | 4x30x7ml vacuum tube | 3140 | ||
| 4000 | 4x30x5ml vacuum tube | 3140 | ||
| 4000 | 4x40x7ml vacuum tube | 3270 | ||
| 4000 | 4x18x10ml vacuum tube | 3140 | ||
| 5B-11 | Swing Rotor | 4000 | Dairy bottle | 3830 |
| 5B-12 | Fixed Rotor | 5000 | 6x15ml | 2540 |
| 5B-13 | 5000 | 12x15ml | 3080 | |
| 5B-14 | 5000 | 24x15ml | 3500 | |
| 5B-15 | 5000 | 30x15ml | 3830 | |
| 5B-16 | 5000 | 4x50ml | 2520 | |
| 5B-17 | 5000 | 6x50ml | 2850 | |
| 5B-18 | 5000 | 12x50ml | 3860 | |
| 5B-19 | 4000 | 24x50ml | 2970 | |
| 5B-20 | 5000 | 4x100ml | 2630 | |
| 5B-21 | 5000 | 6x100ml | 3130 | |
| 5B-22 | 4000 | 12x100ml | 2970 |
ISO/CE Certificates:
Guarantee & Service
1. One -year warranty.
2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.
3. We have professional overseas sales department, we always reply to our clients within 24 hours.
4. We won't charge clients any money for repairing the machine during one-year warranty time, the freight is also on us.
5. We only charge for the accessories on repairing the machine beyond the one-year warranty time.
6. We have technician training class twice a year, training the technician for our distributor.
