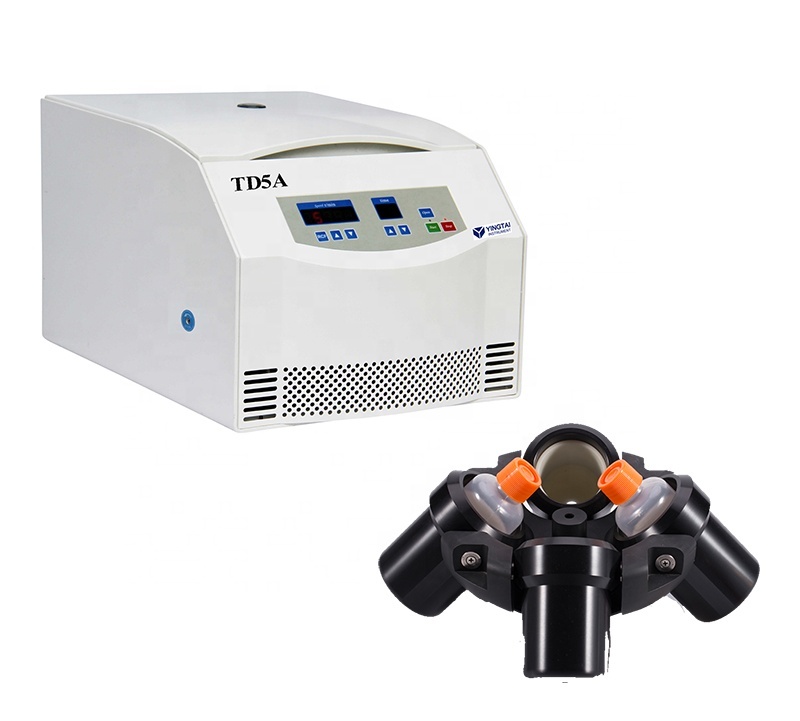

Benchtop low speed 5000 RPM TD5A laboratory centrifuge
Benchtop low speed 5000 RPM TD5A laboratory centrifuge
1. Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, TD5A with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
6. 3 phase to get the ideal centrifugation result.
- Information
Benchtop low speed 5000 RPM TD5A laboratory centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features:
1. Brushless motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, TD5A with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
6. 3 phase to get the ideal centrifugation result.
TD5A Technical Parameters:
Max speed | 5000rpm | Max RCF | 4730xg |
Max volume | 4x300ml(250bottle) | Noise | ≤58dBA |
Timer | 0~99min | Net weight | 52KG |
Dimension(HxDxW) | 621×450×360mm | Power supply | AC 220V 50HZ 10A |
Speed accuracy | ±20rpm | Package
| wooden box |
Rotors for TD5A:
No. | Type | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
No.31392
| Swing out rotor | 4000 | 4x300ml (round cup) | 2920 |
Adapter for 300ml round cup | ||||
No.30570 | Swing out rotor | 4000 | 4x300ml (square cup) | 2920 |
Adapter for 300ml square cup | ||||
31377 | Matched Buckets for the swing out rotor body | 5000 | 4x50ml | 4730 |
4x100ml | ||||
4000 | 8x100ml | 3020 | ||
8x50ml | 3200 | |||
16x15ml | 3200 | |||
24x15ml | 3200 | |||
4000 | 24x10/7ml vacuum tube | 2580 | ||
16x10ml vacuum tube | 2580 | |||
No. | Model | Max speed (rpm) | Max Volume (ml) | Max RCF (g) |
31377 | Matched Buckets for the swing out rotor body | 4000 | 32x10ml vacuum tube |
2790
|
32x7ml vacuum tube adapter | ||||
32x5ml vacuum tube adapter | ||||
48x10ml vacuum tube | 2480 | |||
48x7ml vacuum tube | 2760 | |||
48x5ml vacuum tube | 2880 | |||
72x10ml vacuum tube | 2840
| |||
| 88x7ml vacuum tube | 3140 | ||
88x5ml vacuum tube | 3140 | |||
31376 | Micro plate rotor | 4000 | 6x48 well | 2300 |
8x96 well | 2490 | |||
30638 | Angle Rotor | 5000 | 6x15ml | 2540 |
30607 | Angle Rotor | 5000 | 12x15ml | 3080 |
30639 | Angle Rotor | 5000 | 24x15ml | 3500 |
30640 | Angle Rotor | 5000 | 4x50ml | 2520 |
30611 | Angle Rotor | 5000 | 6x50ml | 2850 |
30641 | Angle Rotor | 5000 | 12x50ml | 3860 |
30613 | Angle Rotor | 5000 | 4x100ml | 2630 |
30614 | Angle Rotor | 5000 | 6x100ml | 3130 |
30642 | Angle Rotor | 4000 | 12x100ml | 2970 |
