Benchtop Low Speed 5000 RPM Centrifuge Laboratory TD5
Benchtop Low Speed 5000 RPM Centrifuge Laboratory TD5
Widely used in the experimental and scientific research in the fields of biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, laboratory, clinical trials, hospitals, etc.
- Information
Benchtop Low Speed 5000 RPM Centrifuge Laboratory TD5
Laboratory Machine with 4x250ml Swing Rotor
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
TD5 Lab Centrifuge Application:
Widely used in the experimental and scientific research in the fields of biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, laboratory, clinical trials, hospitals, etc.
TD5 Lab Centrifuge Product Features:
1. User-friendly LED display which indicates the speed, time and RCF. The technical parameter can be adjusted/changed while the machine in operation.
2. Brushless frequency motor in great torque, no powder pollution, free maintenance, quick in speed up and down, easy to operate.
3. Low speed, low noise, compact design and small vibration, it prevents the sample resuspending.
4. Electric lid lock, over speed/over temperature protection and imbalance protection.
5. 10 kinds of program stored, 10 kinds of acceleration and deceleration for your choice.
6. The centrifuge body is made of high-quality steel, with steel centrifugal chamber, it's quite safe for the user and laboratory enviroment.
7. There are many kinds of rotors for the client's choice, the centrifuge can be multi-purpose used.
TD5 Lab Centrifuge Technical Parameters:
| Max. Speed: | 5000rpm |
| Max.Volume: | 4x250ml |
| Max. RCF: | 4730xg |
| Timer: | 0~99min |
| Dimension: | 570x400x320mm |
| Speed Accuracy: | ±20rpm |
| Noise: | ≤58DBA |
| Net Weight: | 40kg |
| Power Supply: | AC220V/110V |
| Application: | Labs, hospitals, blood bank, chemistry and etc |
| Warranty: | 1 Year |
TD5 Lab Centrifuge Matched Rotors:
| Order No. | Rotor Type | Max. Speed(r/min) | Volume(ml) | Max.RCF(xg) |
| D5-1 | Swing Rotor(round cup) | 4000 | 4x250ml | 2880 |
| D5-2 | Swing Buckets | 4000 | 4x16x7ml | 2860 |
| D5-3 | 4000 | 4x16x5ml | 2470 | |
| D5-4 | 4000 | 4x13x10ml | 2830 | |
| D5-5 | Swing Rotor | 5000 | 4x1x50ml | 4730 |
| D5-6 | 5000 | 4x1x100ml | 4730 | |
| D5-7 | 4000 | 4x2x50ml | 3020 | |
| D5-8 | 4000 | 4x4x15ml | 3020 | |
| D5-9 | 4000 | 4x6x15ml | 3020 | |
| D5-10 | 4000 | 4x4x10/7 | 2770 | |
| D5-11 | 4000 | 4x4x5 vacuum tube adapters | 2360 | |
| D5-12 | 4000 | 4x6x10/7 | 2770 | |
| D5-13 | 4000 | 4x6x5 vacuum tube adapters | 2360 | |
| D5-14 | 4000 | 4x8x10/7 | 2770 | |
| D5-15 | 4000 | 4x8x5 vacuum tube adapters | 2360 | |
| D5-16 | 4000 | 4x12x5 vacuum tube | 2480 | |
| D5-17 | 4000 | 4x12x7 vacuum tube | 2760 | |
| D5-18 | 4000 | 4x12x10 vacuum tube | 2880 | |
| D5-19 | Microplate Rotor | 4000 | 2x3x96 well | 2310 |
| D5-20 | Fixed Rotor | 5000 | 6x15ml | 2540 |
| D5-21 | 5000 | 12x15ml | 3080 | |
| D5-22 | 5000 | 24x15ml | 3500 | |
| D5-23 | 5000 | 30x15ml | 3830 | |
| D5-24 | 5000 | 4x50ml | 2520 | |
| D5-25 | 5000 | 6x50ml | 2850 | |
| D5-26 | 5000 | 12x50ml | 3860 | |
| D5-27 | 5000 | 4x100ml | 2630 | |
| D5-28 | 5000 | 6x100ml | 3130 |

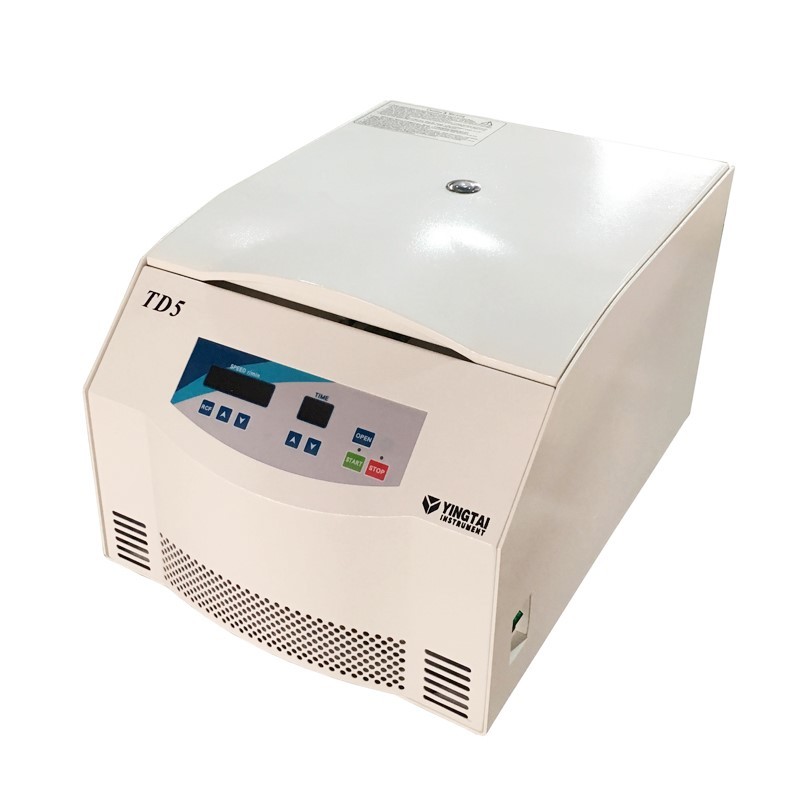

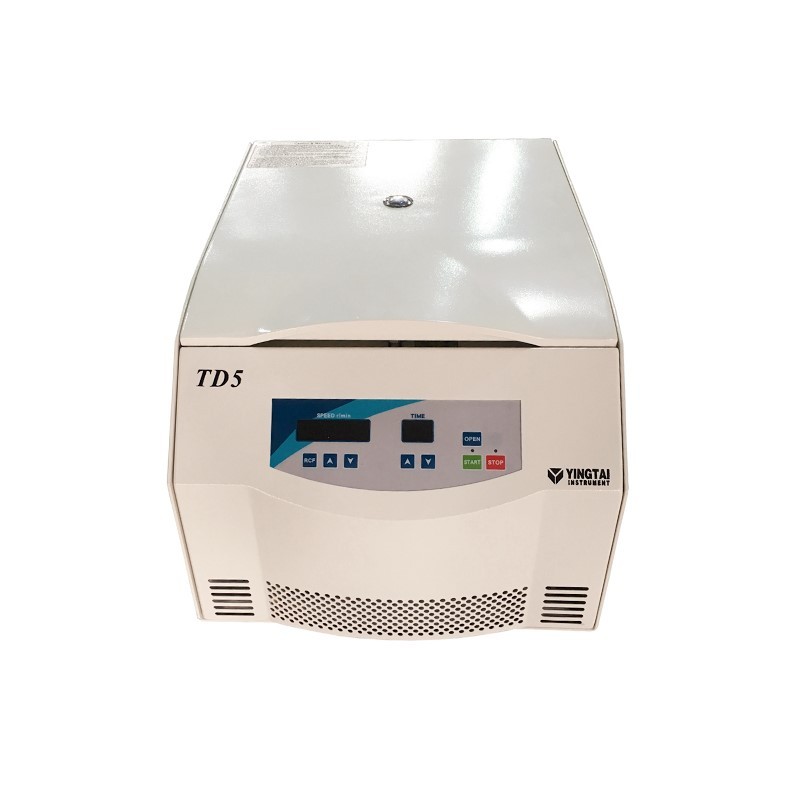

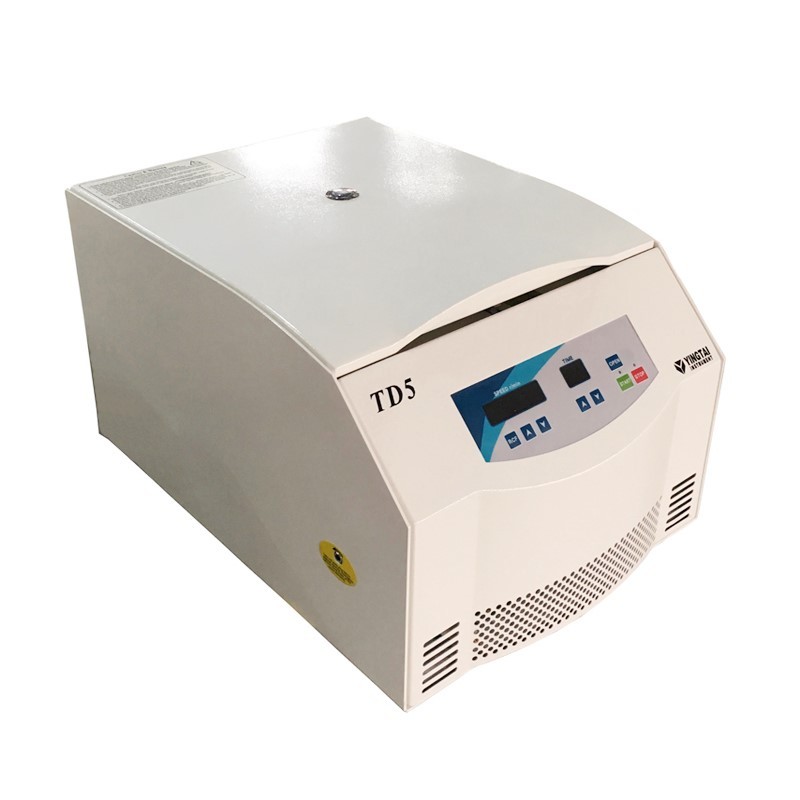

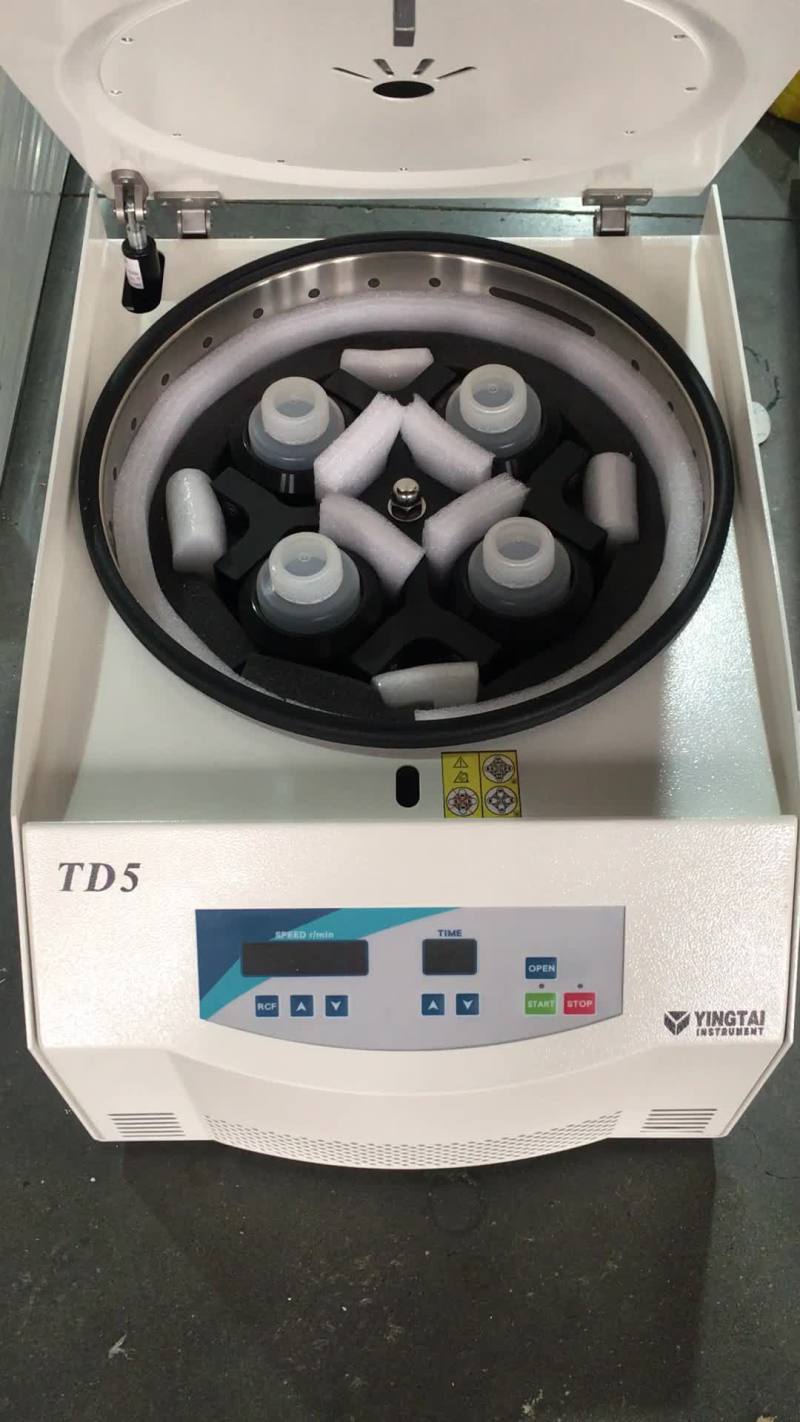

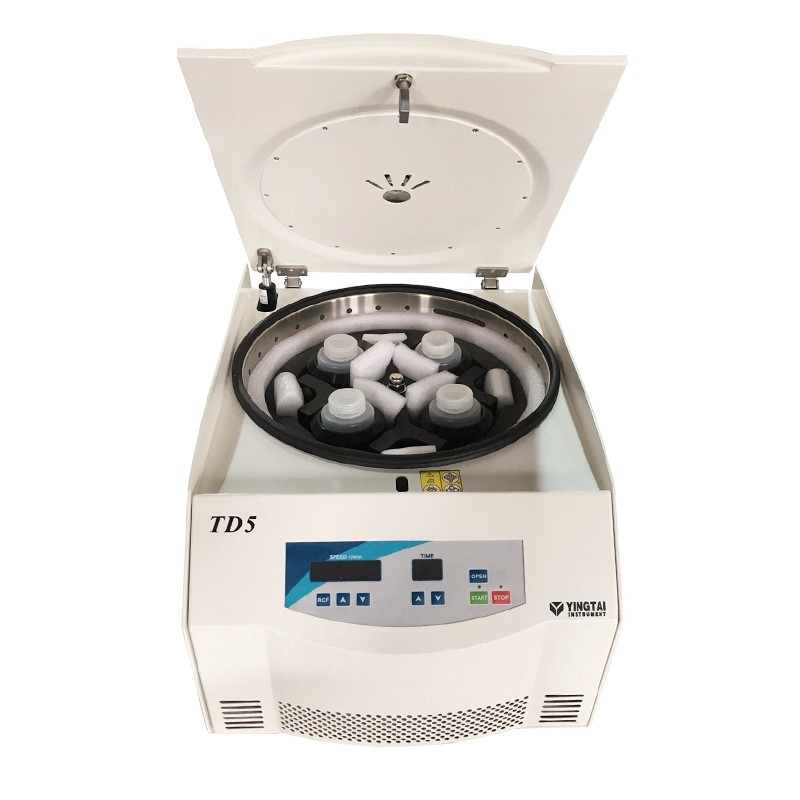

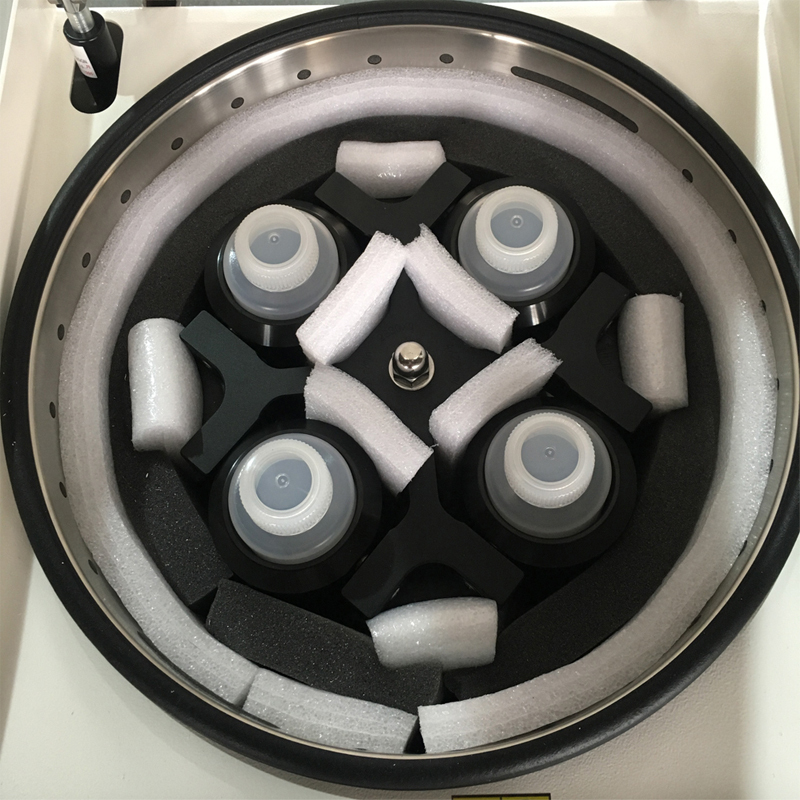

TD5 Lab Centrifuge Photos:
