Benchtop Digital Low Speed large capacity 500ml centrifuge TD5A
Benchtop Digital Low Speed large capacity 500ml centrifuge TD5A
Full steel structure with build-in protection steel, simple-compact, light-weight and low noise.
Adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
Maintenance-free brushless DC motor/frequency-conversion motor, with the speed range of 100-5000rpm, and accuracy ±20r/min.
With the door-cover protection, system of over-speed detection and advanced electronic imbalance detection, the machine process the real-time monitor, to make safe operation.
Widely applied to the field of radio-immunology, biochemistry and the separation of blood product.
- Changsha, China
- 1 week
- 10000 sets
- Information

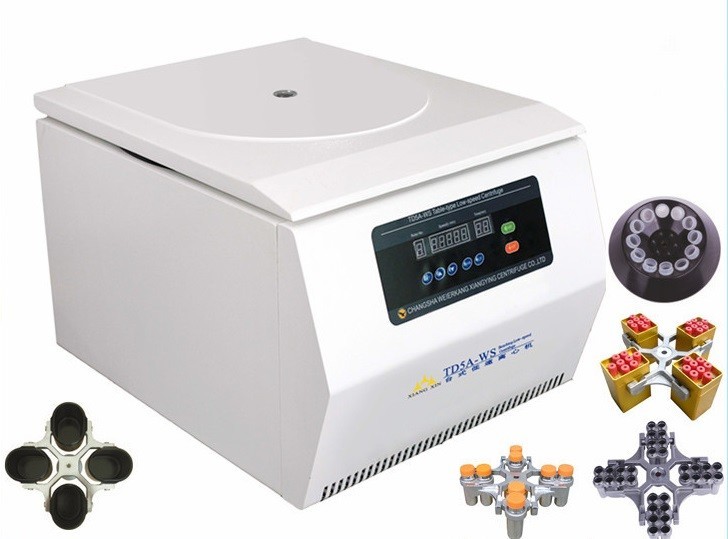

Benchtop Digital Low Speed large capacity 500ml centrifuge TD5A
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher. If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Product Description
BENCHTOP LOW-SPEED LARGE CAPACITY
CENTRIFUGE TD5A-WS
With the excellent performance and comprehensive range of accessories, TD5A-WS are able to carry out virtually any centrifuge task of universal purpose. And , since TD5A-WS can be used for both standard and special application, they are not only cost effective, they also save valuable space in the labortory.
Features:
n Full steel structure with build-in protection steel, simple-compact,
light-weight and low noise.
n Adopt advanced CPU control system, which has realized
accurately microprocessor control of rotate speed, time, temperature and RCF.
n Maintenance-free brushless DC motor/frequency-conversion motor, with
the speed range of 100-5000rpm, and accuracy ±20r/min.
n With the door-cover protection, system of over-speed detection and
advanced electronic imbalance detection, the machine process the real-time
monitor, to make safe operation.
n Widely applied to the field of radio-immunology, biochemistry and the
separation of blood product.
Technical Parameters:
Model | TD5A-WS |
Max Speed | 5000r/min |
Speed Accuracy | ±20rpm |
Max RCF | 4390×g |
Timer Range | 0~99min |
Motor | Microprocessor & Brushless DC motor |
Screen | Touch LCD Display & LED Digital Display |
Acceleration/Deceleration Rate | 0~9 grade |
Noise | ≤65dB(A) |
Power Supply | AC220V & 110V 50Hz 5A |
Dimension | 630×500×425mm(L×W×H) |
Weight | 52kg |

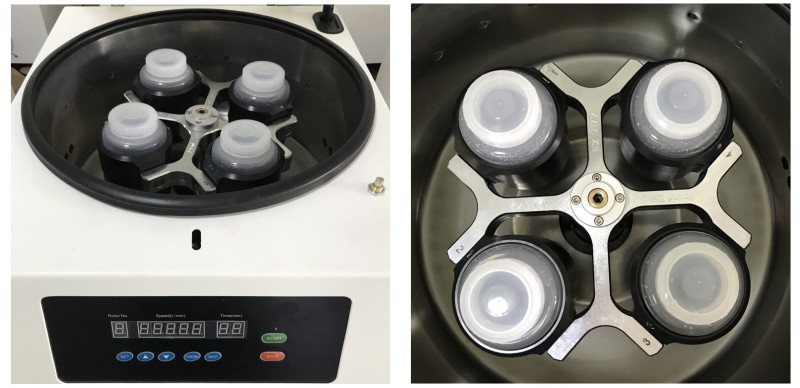

Rotor:
No.1 | Max Speed:6000r/min Capacity:12×15/10ml Max RCF:5120xg |
No.2 | Max Speed:4000r/min Max Capacity:24×10ml Max RCF:2810xg | ||||||||||||
No.3 | Max Speed:4000r/min Max Capacity:72×5/7ml Max RCF:3400xg |
No.4 | Max Speed:4000r/min Max Capacity:32×10ml Max RCF:2930xg | ||||||||||||
No.5 | Max Speed:4000r/min Max Capacity:8×50ml Max RCF:4200xg |
No.6 | Max Speed:4000r/min Max Capacity:48×5/7ml Max RCF:2980xg | ||||||||||||
No.7 | Max Speed:4000r/min Max Capacity:8×100ml Max RCF:4100xg | 2x1.5ml |
1x5ml | 1x10ml |
1x15ml | ||||||||||
No.9 | Max Speed:4000r/min Max Capacity:4×500ml Max RCF:3600xg
| 13x1.5ml | 15x5/2ml | 8x10/15ml | 4x50ml | 1x100ml | 1x250ml | ||||||||
No.10 | Max Speed:4000r/min Max Capacity:4×250ml Max RCF:2900xg | 24x1.5ml |
6x10ml | 4x10ml | 4x15ml | 1x50ml | 1x100ml | ||||||||
No.11 | Max Speed:3000r/min Max Capacity:2x2x96holes microplates Max RCF:2120xg | 49x0.2ml |
49x0.2ml |
30x1.5/2.2ml | |||||||||||
