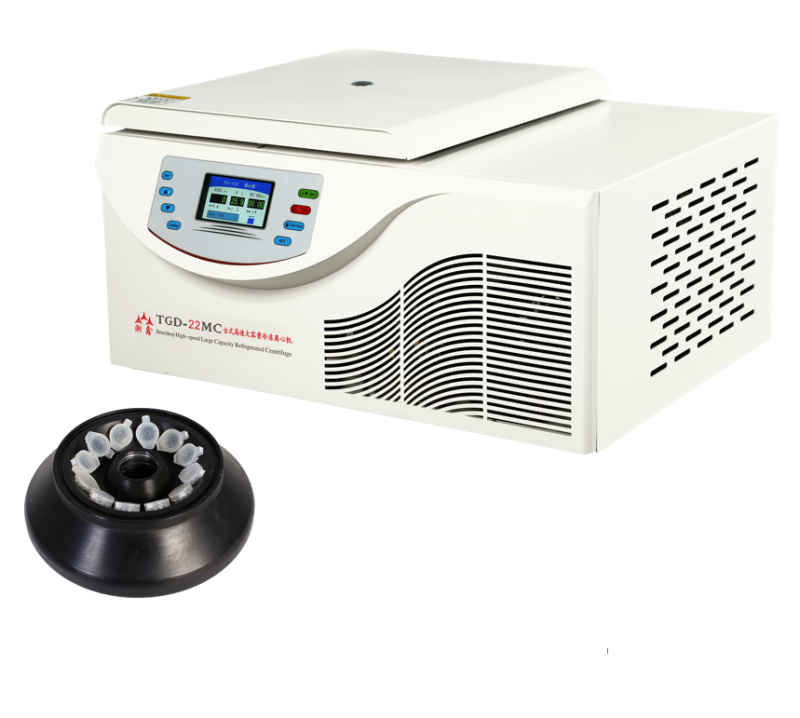

Benchtop High Speed 22000rpm Refrigerated Lab Centrifuge TGD-22MC
Benchtop High Speed 22000rpm Refrigerated Lab Centrifuge TGD-22MC
1. Medical Equipment High Speed Cold Lab Centrifuge with protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
2. Medical Equipment High Speed Cold Lab Centrifuge the alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
3. Medical Equipment High Speed Cold Lab Centrifuge can meet the requirement of both the high-speed separation and 4*750ml capacity low-speed separation.
4. Medical Equipment High Speed Cold Lab Centrifuge equipped with colorful screen and touch panel, microprocessor control and brush-less AC frequency conversion motor without carbon dust pollution.
- Changsha, China
- 1 week
- 10000 sets
- Information
Benchtop High Speed 22000rpm Refrigerated Lab Centrifuge TGD-22MC
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
1. Medical Equipment High Speed Cold Lab Centrifuge with protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
2. Medical Equipment High Speed Cold Lab Centrifuge the alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
3. Medical Equipment High Speed Cold Lab Centrifuge can meet the requirement of both the high-speed separation and 4*750ml capacity low-speed separation.
4. Medical Equipment High Speed Cold Lab Centrifuge equipped with colorful screen and touch panel, microprocessor control and brush-less AC frequency conversion motor without carbon dust pollution.
Technical Parameters
Model | TGD-22MC |
Max Speed | 22000r/min |
Max RCF | 34700xg |
Max Capacity | Swing rotor 4×750ml |
Speed Accuracy | ±20r/min |
Temp Accuracy | ±1℃ |
Temp Range | -20℃ ~ +40℃ |
Timer Range | 9H59min |
Motor | Microprocessor control, AC Frequency conversion motor |
Noise | <65dB(A) |
Power Supply | AC220V&110V 50-60Hz 18A |
Dimension | 520x720x420mm |
Weight | 95kg |

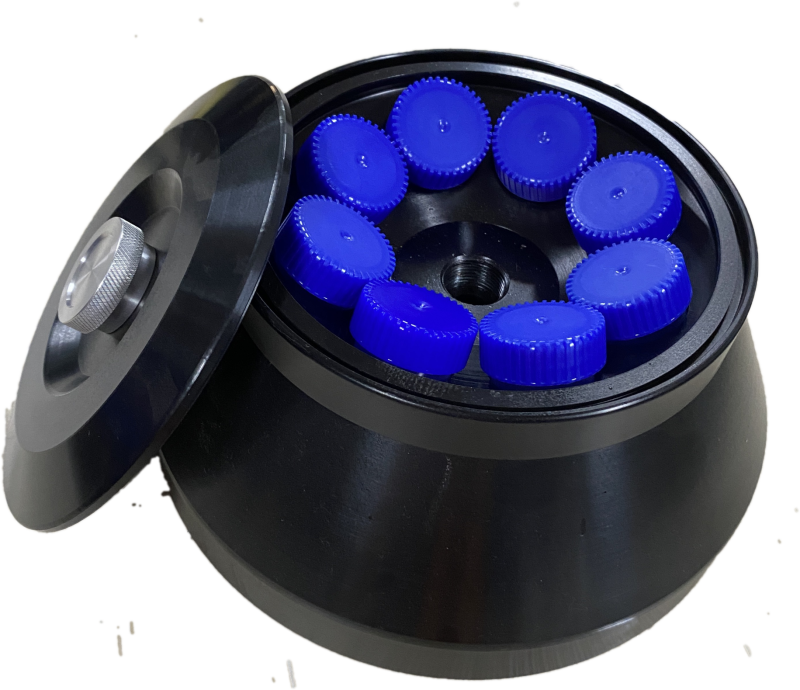

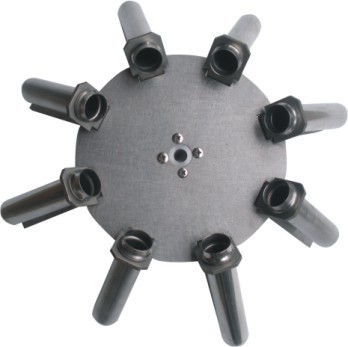

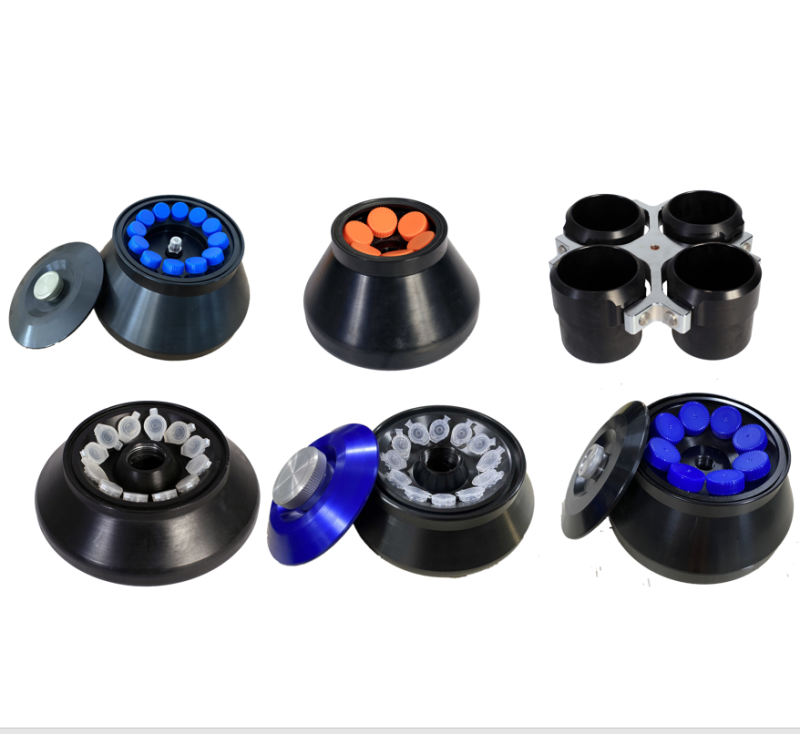

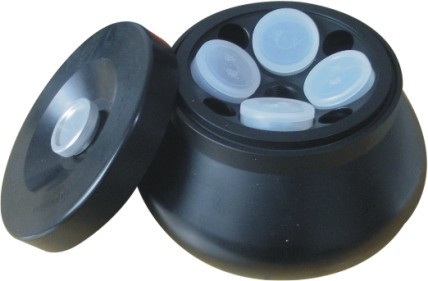

Rotors
Rotor Number | Max Speed | Max RCF | Capacity |
NO.1 Angle Rotor | 22000r/min | 34700×g | 12×1.5/2.2ml |
NO.2 Angle Rotor | 16500r/min | 18360×g | 8×5ml |
NO.3 Angle Rotor | 15000r/min | 23120×g | 12×10/15ml |
NO.4 Angle Rotor | 15000r/min | 23120×g | 6×30ml |
NO.5Angle Rotor | 13000r/min | 17940×g | 6×50ml |
NO.6 Swing Rotor | 4000r/min | 3500×g | 4×750ml |
NO.7Angle Rotor | 8000r/min | 9800×g | 8×50ml |
NO.8Angle Rotor | 10000r/min | 18300×g | 6×300ml |
Products Image
