Benchtop High Speed Refrigerated Lab Centrifuge TGL-24M/22M
Benchtop High Speed Refrigerated Lab Centrifuge TGL-24M/22M
1. Medical Equipment Refrigerated Lab Centrifuge Machine adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
2. Medical Equipment Refrigerated Lab Centrifuge Machine both automatic electronic lock and mechanical lock, it can be easy to open door cover.
3. Medical Equipment Refrigerated Lab Centrifuge Machine with protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
4. Medical Equipment Refrigerated Lab Centrifuge Machine the alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
- Information
Benchtop High Speed Refrigerated Lab Centrifuge TGL-24M/22M
TGL-24M/22M/20M/18M/16M Medical Refrigerated Lab Centrifuge
Features
1. Medical Equipment Refrigerated Lab Centrifuge Machine adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
2. Medical Equipment Refrigerated Lab Centrifuge Machine both automatic electronic lock and mechanical lock, it can be easy to open door cover.
3. Medical Equipment Refrigerated Lab Centrifuge Machine with protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
4. Medical Equipment Refrigerated Lab Centrifuge Machine the alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
Technical Parameters
| Model | TGL-24 | TGL-22 | TGL-20 | TGL-18 | TGL-16 |
| Max Speed | 24000r/min | 22000r/min | 20000r/min | 18000r/min | 16000r/min |
| Max RCF | 47800×g | 34700×g | 27800×g | 23200×g | 17800×g |
| Max Capacity | 4×100ml | ||||
| Speed Accuracy | ±20r/min | ||||
| Temp Accuracy | ±1°C | ||||
| Temp Range | -20°C ~ +40°C | ||||
| Timer Range | 0~99min | ||||
| Motor | Microprocessor control, Frequency conversion motor | ||||
| Noise | ≤60dB(A) | ||||
| Power Supply | AC220V&110V 50-60Hz 5A | ||||
| Dimension | 410x700x360mm(LxWxH) | ||||
| Weight | 85kg | ||||
Rotor
| Number | Max Speed(r/min) | Max RCF(×g) | Capacity(ml) |
| No.1 Anger Rotor | 24000 | 47800 | 12×1.5/2 |
| No.2 Anger Rotor | 16000 | 18200 | 8×5 |
| No.3 Anger Rotor | 12000 | 14800 | 12×10 |
| No.4 Anger Rotor | 13000 | 17940 | 6×50 |
| No.5 Anger Rotor | 13500 | 17760 | 24×1.5/2 |
| No.6 Anger Rotor | 10000 | 9800 | 4×100 |
| No.7 Anger Rotor | 13500 | 17000 | 36×1.5/2 |
| No.8 Anger Rotor | 8000 | 9800 | 8×50 |
| No.9 Swing Microplates Rotor | 3000 | 1400 | 2×2×48 |

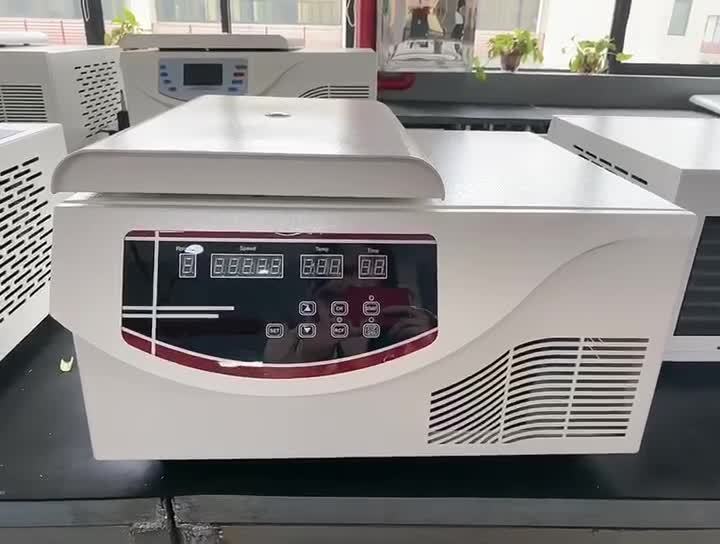

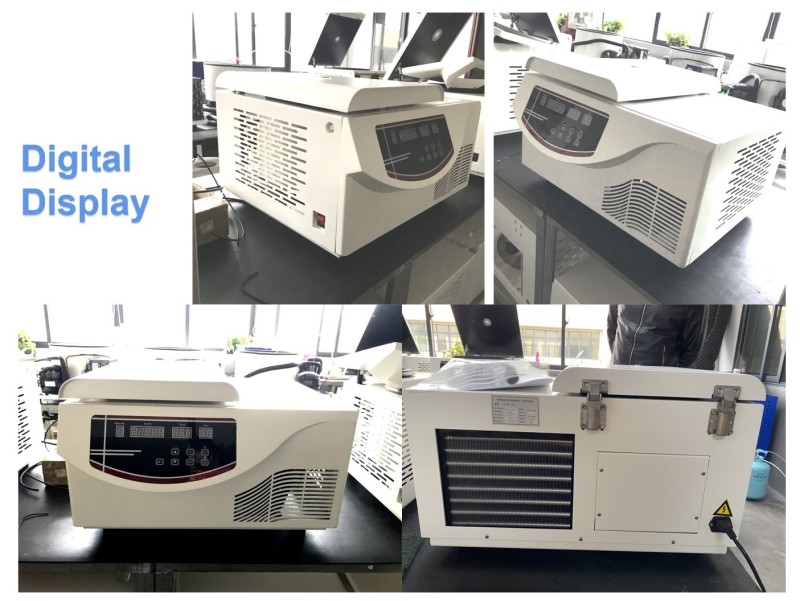

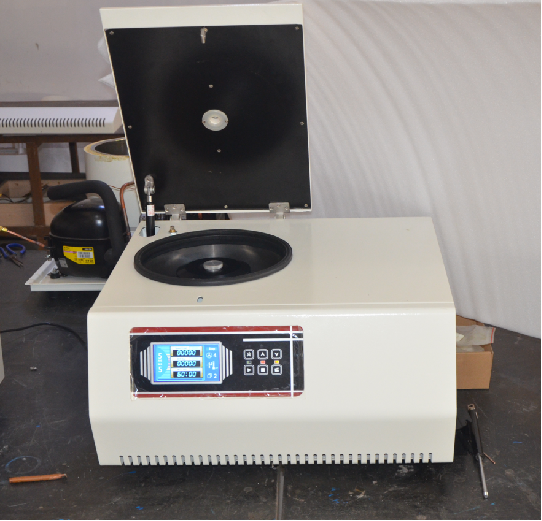

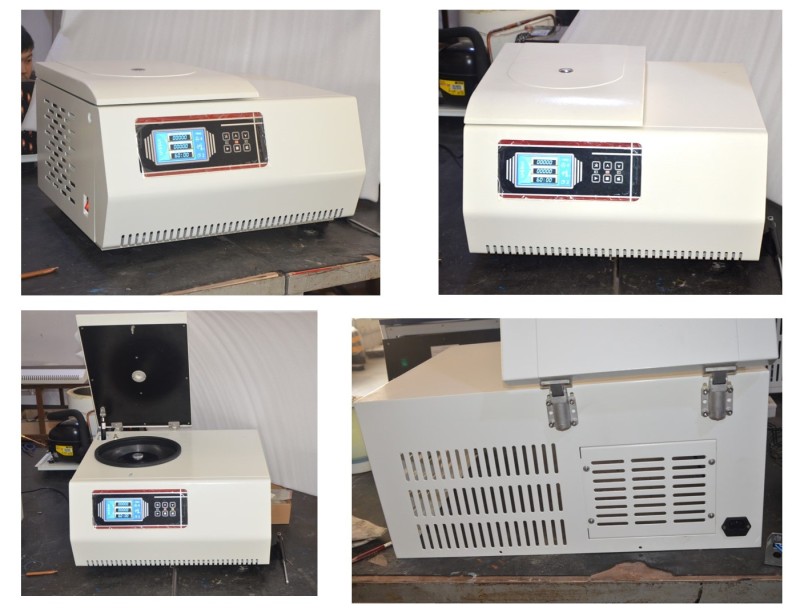

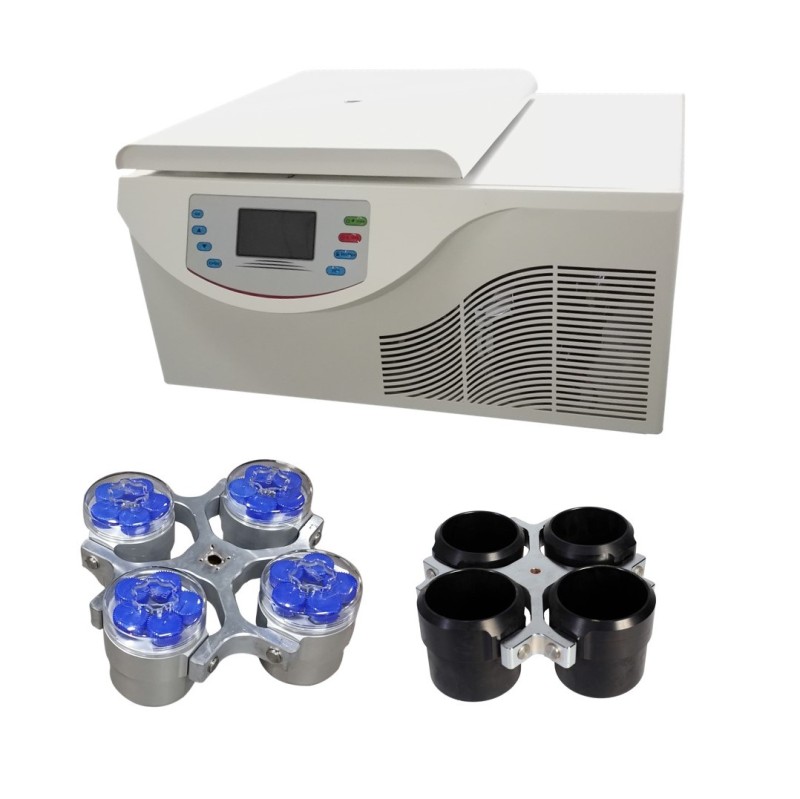

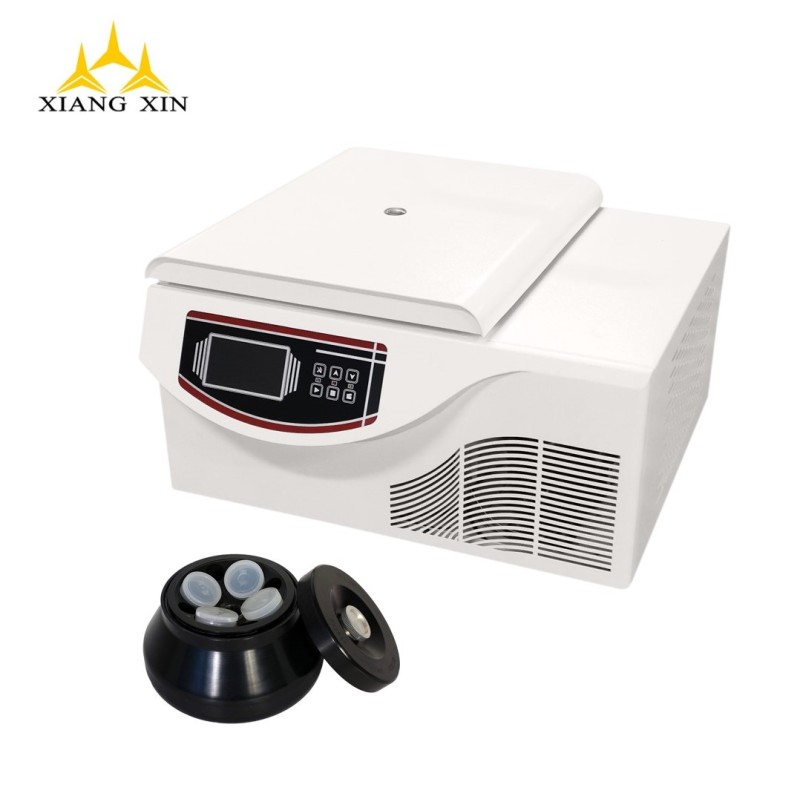

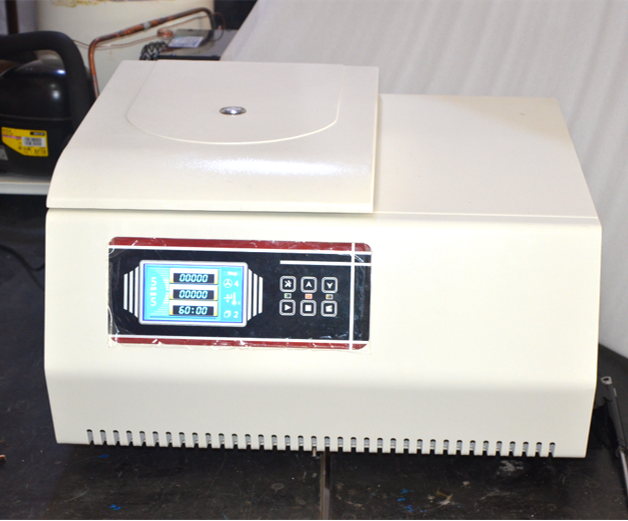

Product Images
