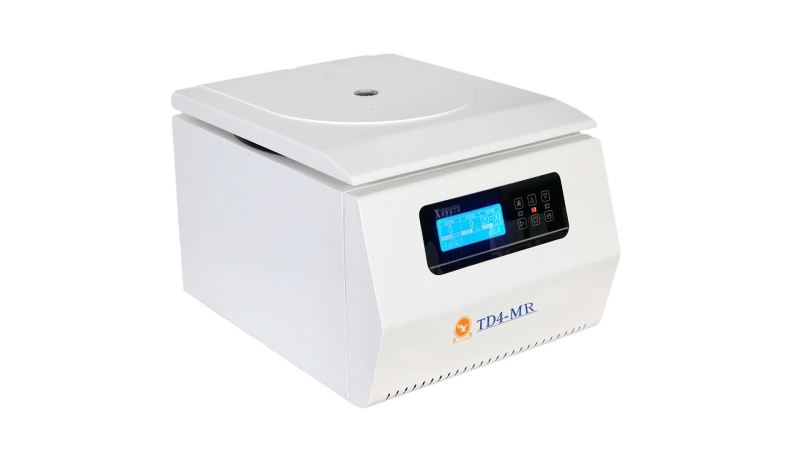

TD4-MR Multi-function Fat &PRP Purification Centrifuge 4000 RPM
TD4-MR Multi-function Fat &PRP Purification Centrifuge 4000 RPM
Achieved the maximum amount of PRP extraction through clinical research and test and special design on the Acc and Dec and RCF.
2. Microprocessor control, Frequency conversion brushless AC motor.
3. LCD display, easy to operate.
4. Protection from imbalance, lid-lock, over-speed and display the error code on the screen.
5. It is equipped with free time brake and able to set time, speed, Acc/Dec according to the requirement.
6. Equipped with Korea’s PRP kits can abstract the PRP with large capacity, more quickly and safer.
7. During the fat-transfer operation, equipped with sealed syringe cover, plug and adapters ensures it safety and non-pollution.
- Information
TD4-MR Multi-function Fat &PRP Purification Centrifuge 4000 RPM
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Introduction
TD4-MR is Fat and PRP purified centrifuge equipped with the safety device ( patented product), and it can use 10ml, 20ml syringe to separate directly, the safe transfer process ensure the high survive rate of PRP and fat ,and reduced the complex operation process, it is the idea machine for cosmetic surgery, beauty salon, clinics and so on .
Features:
1. Achieved the maximum amount of PRP extraction through clinical research and test and special design on the Acc and Dec and RCF.
2. Microprocessor control, Frequency conversion brushless AC motor.
3. LCD display, easy to operate.
4. Protection from imbalance, lid-lock, over-speed and display the error code on the screen.
5. It is equipped with free time brake and able to set time, speed, Acc/Dec according to the requirement.
6. Equipped with Korea’s PRP kits can abstract the PRP with large capacity, more quickly and safer.
7. During the fat-transfer operation, equipped with sealed syringe cover, plug and adapters ensures it safety and non-pollution.
Technical Parameters
Model | TD4-MR | ||
Max Speed | 4000r/min | ||
Max RCF | 4390xg | ||
Syringe Rotor | 4×50/60ml | 4×20ml | 4×10ml |
Centrifuge Size | Large | Small | Small |
Net Weight | 35kg | 29kg | 29kg |
Dimension | 580×450×370mm(L×W×H) | 520×395×395mm(L×W×H) | |
Speed Accuracy | ±20r/min | ||
Timer Range | 0~99min | ||
Motor | Microprocessor Control,Frequency Conversion Motor | ||
Noise | ≤60dB(A) | ||
Power Supply | AC110 &220v 50Hz-60Hz 5A | ||
1. PRP Explantation
What is PRP?
- PRP is the abbreviation of Platelet Rich Plasma, which means platelet-concentrated plasma.
- When centrifuging blood, it is separated into erythrocyte, plasma, and platelet. Among the centrifuged plasma, growth factor-rich plasma that contains more than 1,000,000/μl platelet count is referred to as PRP
What is Buffy Coat?
Buffy coat is a white, strip-shaped layer in which platelets, leukocytes and stem cells are contained, and it the core 1% of PRP.
Role of Platelet
The alpha granules of platelet contain not only the growth factors that performs the basic function in hemostasis or tissue healing such as PDGF, TGF, PDAF, PDEGF, EGF, TNF, LDGF, FGF and CTGF but proteins that act on cell adhesion such as Fibrin, Fibronectin, Vitronectin. The generation of new blood vessel and fibrous tissue as well as collagenesis stimulated by growth factors facilitates the quick regeneration of epithelial cells and enhances the ability to heal wounds.
2. Dermatology & Plastic Surgery
2.1 PRP Therapy
PRP therapy refers to a surgical procedure of applying or injecting PRP, which is collected from your own body, on or into your skin. The growth factors rich in PRP vitalize myocites, and such vitalized myocites increase the amount of collagen and elastic fibers in the skin, facilitating the rejuvenation of aged or damaged skin.
As PRP therapy doesn’t use artificial chemical substances, it provides natural looks free from rejection after surgery.· Advantages of PRP Therapy
Easy to Perform
Quick Return to Your Daily Life
Strong Efficacy
Free from Side Effects or Allergy
Wide Range of Applicability
2.2 Area of PRP Application
2.3 Efficacy of PRP Therapy
Wrinkle Removal
Freckles and Blemishes
Pimple
Scars
3. Orthopedics
Growth Factors in My Blood, Cell Regeneration Using Blood Stem Cells
3.1 PRP Pain Treatment
The ample growth factors contained in platelets activate stem cells to help tissue regeneration and relieve inflammation. Unlike pre-existing treatments that inject artificial chemical substances, the PRP injection treatment uses your own blood, which has been proven to have in no side effects such as allergic reactions or bacterial infections. It has also been proved to be safe and very effective in treatment and pain relief.
3.2 PRP Hair loss treatment
Since PRP has at least 7 growth factors and ample platelets that are rich in
cytokines (intercellular transmitter), it regenerates as it promptly eliminates
various abnormal reactions in inflammatory focus. It also helps the normal
immunomodulatory process.
* Generally, hair loss occurs when necessary nutrition or blood for hair
growth is not properly delivered to the hair root. By injecting PRP,
platelets can be directly supplied to the hair root and promote regeneration
of hair and damaged tissue.
3.3 PRP Hair Transplant
- It features an advanced engraftment over the existing hair transplant techniques.
- It provides better hair transplant efficacy when coupled with PRP treatment as it reduces swelling and inflammation.
Fat Application
