Super large capacity refrigerated centrifuge machine DL8M-12L
Super large capacity refrigerated centrifuge machine DL8M-12L
Large color touch screen display, both shows the set parameters and operation parameters.
All stainless steel internal and external structure, corrosion resistance and durable.
Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
An easy-going operator interface with a standard English operating software, user can operate freely.
With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.
- Information
Super large capacity refrigerated centrifuge machine DL8M-12L
Feature
l Large color touch screen display, both shows the set parameters and operation parameters.
l All stainless steel internal and external structure, corrosion resistance and durable.
l Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
l Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
l An easy-going operator interface with a standard English operating software, user can operate freely.
l With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
l With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
l Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
l Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
l Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.
Technical Parameters
Model | DL8M-12L |
Max Speed | 8000r/min |
Max RCF | 16872xg |
Max Capacity | 6×2400ml, 6×3×400ml(whole Blood) |
Speed Accuracy | ±50r/min |
Timer Range | 0-23h 59 min |
ac/dc Rate | 0-9(Grade) |
control&drive | (microprocessor control/direct drive) |
Daily-use Program | 9 |
Program Storage Capacity | 35 |
Refrigeration System | Imported High-performance Compressor CFC-free Refrigeration System |
Motor Power | 3KW |
Refrigerator Power | 2.5KW |
Noise | ≤65dB(A) |
Power Supply | AC220v 50Hz 35A |
Weight(Without Rotor) | 500kg |
Dimensions | 960×860×1200mm(L×W×H) |

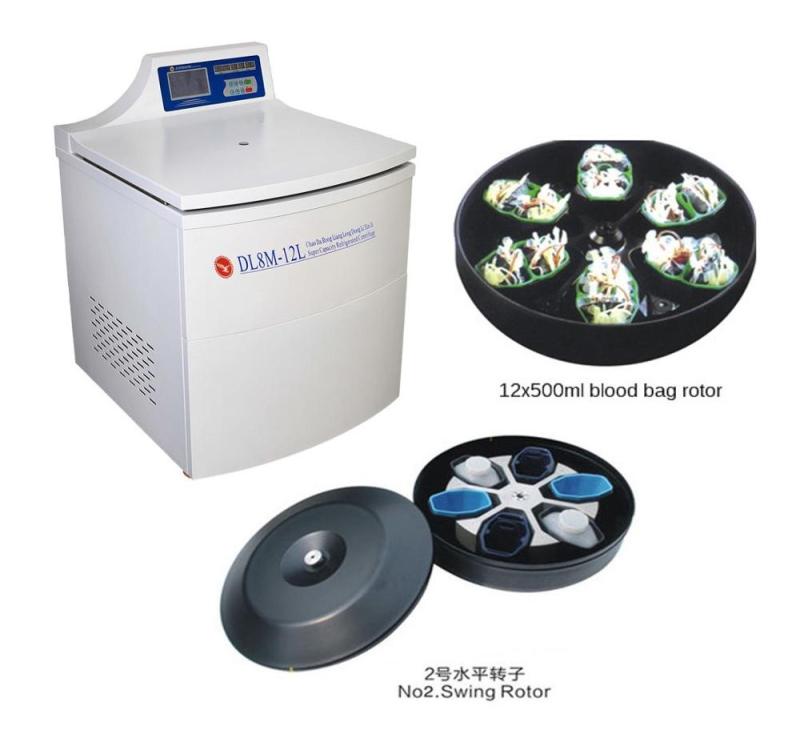

Rotor
Number | Max Speed | Max RCF | Capacity |
NO.1 Swing Rotor | 4000r/min | 5900 xg | 2×6×1000 ml |
NO.2 Swing Rotor | 4000r/min | 7060 xg | 6×2400 ml |
NO.3 Swing Rotor | 4200r/min | 5900 xg | 24×200mlQuadruple Tube 12×400-500mlBlood Bag |
No.4 Angle Rotor | 8000r/min | 16872xg | 6×1000ml |
