TD4AColor touch display low speed PRP Dental Centrifuge 4000 RPM
TD4AColor touch display low speed PRP Dental Centrifuge 4000 RPM
1) Blood Collection : Collect 15ml of blood
2) Platelet Separation : Concentrate platelet using a centrifuge
3) PRP Extraction : Extract a part of concentrated platelet and plasma by long needle
4) PRP Injection : Inject the concentrated PRP to the treatment area using an injector
- Changsha, China
- 1 week
- 5000 sets
- Information

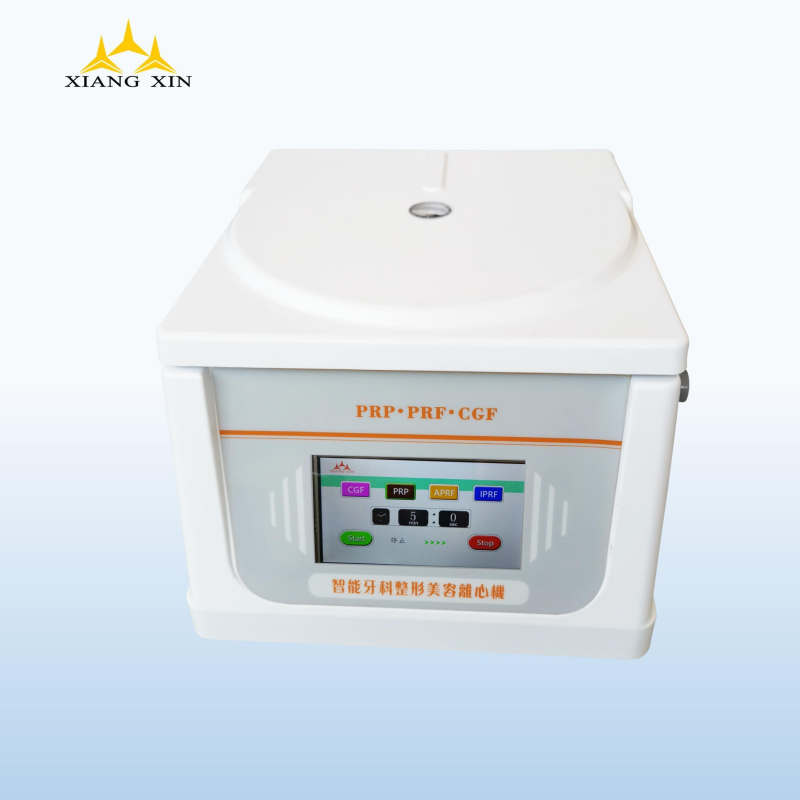

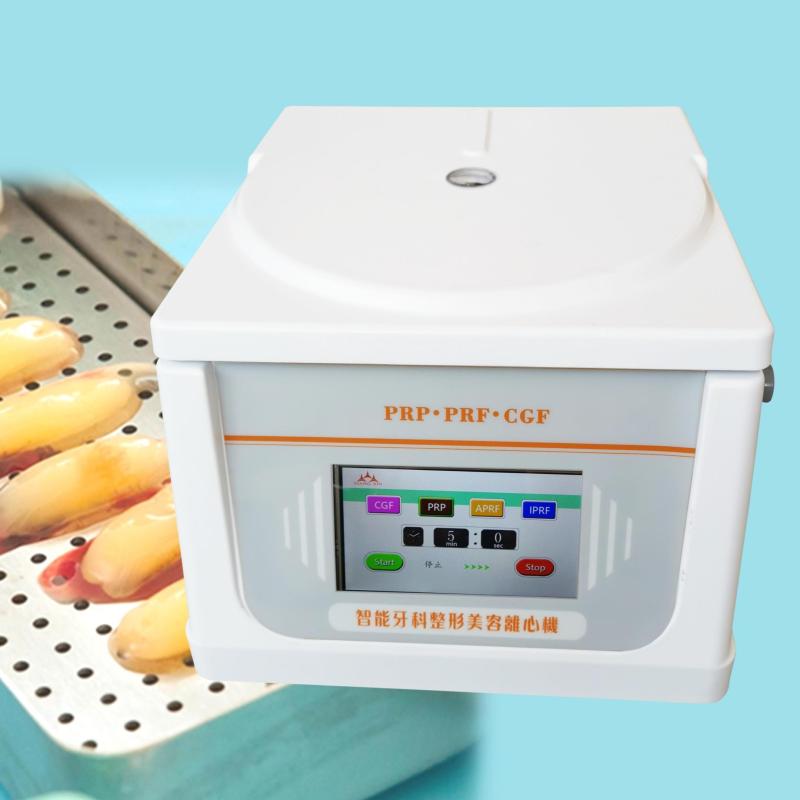

TD4AColor touch display low speed PRP Dental Centrifuge 4000 RPM
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
TD4A is PRP (platelet-rich Plasma), PRF (platelet-rich fibrin) and (CGF)Concentrate Growth Factors centrifuge, It's wdely used in Dental hospital, Plastic surgery, Orthopedics department, and Maxillo facial surgery.
Features
1. with compact structure, low noise and light weight
2. Large LCD display, with touch panel. Easy to operate
3. High efficiency for extract.

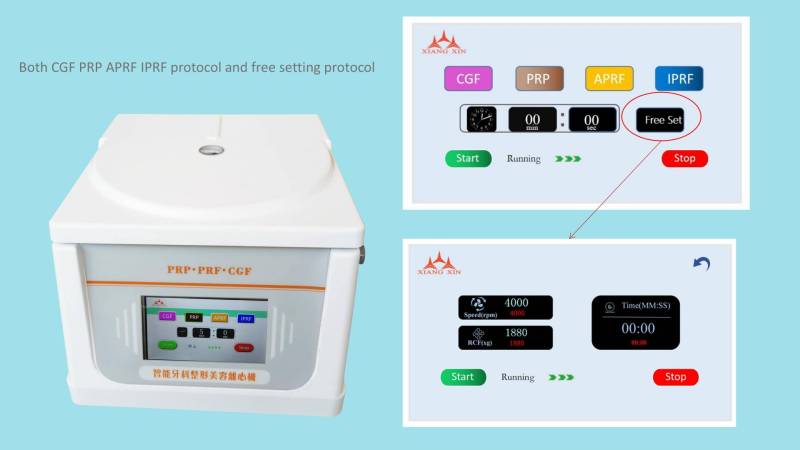

4.with dedicated program for PRP, iPRF, APRF, CGF , also can used for ordinary medical use
Technical parameters
Model | TD4A | ||||||
Max Speed | 4000r/min | ||||||

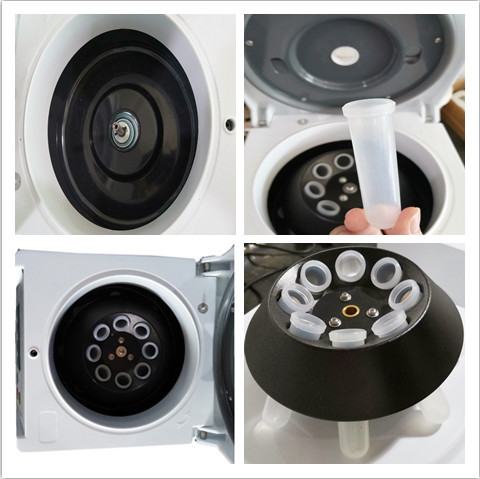

Rotor | Capacity | Max Speed | Max RCF | ||||
NO.1 Angle Rotor | 6*10/15ml | 4000r/min | 1880xg | ||||

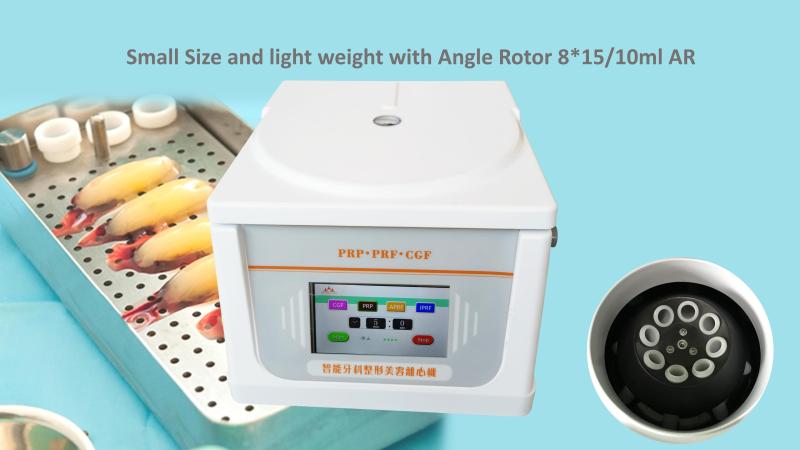

NO.2 Angle Rotor | 8*10/15ml | 4000r/min | 1800xg | ||||
Program | No.1 | No.2 | No.3 | No.4 | No.5 | ||
CGF | PRP | A-PRF | iPRF | adjustable | |||
Motor | Microprocessor & Brushless DC Motor | ||||||
Timer Range | 0~99min | ||||||
Noise | ≤50dB(A) | ||||||
Power Supply | AC220V&110V 50Hz 2A | ||||||
Dimension | 315*270*215mm(L*W*H) | ||||||
Weight | 5kg | ||||||
PRP Treatment Procedures
1) Blood Collection : Collect 15ml of blood
2) Platelet Separation : Concentrate platelet using a centrifuge
3) PRP Extraction : Extract a part of concentrated platelet and plasma by long needle
4) PRP Injection : Inject the concentrated PRP to the treatment area using an injector
1. PRP Explantation
What is PRP?
- PRP is the abbreviation of Platelet Rich Plasma, which means platelet-concentrated plasma.
- When centrifuging blood, it is separated into erythrocyte, plasma, and platelet. Among the centrifuged plasma, growth factor-rich plasma that contains more than 1,000,000/μl platelet count is referred to as PRP
What is Buffy Coat?
Buffy coat is a white, strip-shaped layer in which platelets, leukocytes and stem cells are contained, and it the core 1% of PRP.
Role of Platelet
The alpha granules of platelet contain not only the growth factors that performs the basic function in hemostasis or tissue healing such as PDGF, TGF, PDAF, PDEGF, EGF, TNF, LDGF, FGF and CTGF but proteins that act on cell adhesion such as Fibrin, Fibronectin, Vitronectin. The generation of new blood vessel and fibrous tissue as well as collagenesis stimulated by growth factors facilitates the quick regeneration of epithelial cells and enhances the ability to heal wounds.
What is CGF?
CGF (Concentrated Growth Factor) is extracted from autologous blood by our specialized variable speed centrifuge DL4-M.The concentration of growth factor is four times higher than that of normal blood active substancesand it contains CD34 positive cells and white blood cells with high activity. CD34 positive cells are important Cells for promoting the reconstruction of micro-circulatory system and collagen regeneration. In the mesoderm, filling and wound repair, micro-capillary and micro-lymphatic system can be quickly reconstructed in the treatment.
CGF application:
1. Move skin wrinkles, Improve skin dryness, relaxation, dullness, spots, pore size and other phenomena.
2. Skin anti-aging
3.Promote tissue regeneration, Repair of wounds and scars
4. Reconstruction of skin barrier and repair of tissue
5. Lipid transplantation partners to improve the survival rate of fat transplantation
6. Scalp management
7. Treatment of mesodermal and osteoarthritis
CGF Therapy advantages:
1. CGF from autologous blood, no rejection reaction
2. No Chemical additives, its safer
3. With Various concentrated growth factor, good effect
4. The CD34 positive white cells promoting micro-circulatory system and collagen regeneration
5. Multiple clinical uses - liquid/gelatinous without embolism risk
Compare of 3 generation of blood active substance PRP PRF CGF
Name | Separate results | Condition | construction | Molecular Structure |
PRP (Platelet Rich Plasma) | PPP+PRP+RBC | Anticoagulant | Liquid | Compact Tetramolecular structure |
PRF (Platelet Rich Fibrin) | PPP+PRF+RBC | No | Gel Membrane | 3-dimension loose structure |
CGF (Concentrated Growth Factor) | PPP+CFG+PRP+CD34++RBC | No | Liquid Gel Membrane Half-Gel | 3-dimension looser structure |
