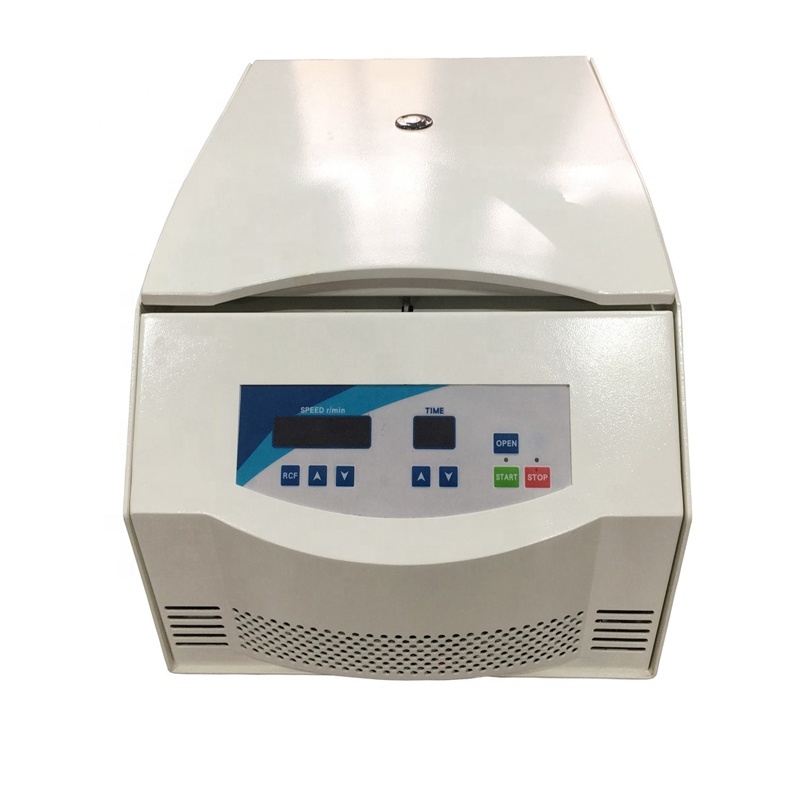

Low speed 4000 RPM TD4N benchtop clinical & lab centrifuge
Low speed 4000 RPM TD4N benchtop clinical & lab centrifuge
1.Frame is 3 tiers protection steel jacket, and with the stainless steel chamber, inside protective steel
lagging which is simple-compact,light-weight and low noise.
2.Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed,
and relative RCF, digital(LED) display which indicates the current speed, time and RCF.
3. DC inverter motor with simpler construction,more reliable performance,longer life and quietly running.
4.With many kinds of rotor for your choice.
5.Over speed and imbalance protection, the centrifuge will stop automatically when the above
situation happened, with short spin function.
6.Emergency locks under the bottom of the centrifuge which help you open the lid when power off.
7. It is consistent with CE security certification and ISO9001 quality certification.
- Information
Low speed 4000 RPM TD4N benchtop clinical & lab centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features:
1.Frame is 3 tiers protection steel jacket, and with the stainless steel chamber, inside protective steel
lagging which is simple-compact,light-weight and low noise.
2.Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed,
and relative RCF, digital(LED) display which indicates the current speed, time and RCF.
3. DC inverter motor with simpler construction,more reliable performance,longer life and quietly running.
4.With many kinds of rotor for your choice.
5.Over speed and imbalance protection, the centrifuge will stop automatically when the above
situation happened, with short spin function.
6.Emergency locks under the bottom of the centrifuge which help you open the lid when power off.
7. It is consistent with CE security certification and ISO9001 quality certification.
TD4N Technical Data:
Max speed | 4000rpm | Max RCF | 2610×g |
Max volume | 12×20ml | Power supply | AC 220V 50HZ 2A |
Timer | 0~99min | Noise | ≤55dBA |
Dimension(DxWxH) | 528×370×280mm | Net weight | 28 KG |
Speed accuracy | ±20rpm | Package
| carton box or wooden box
|

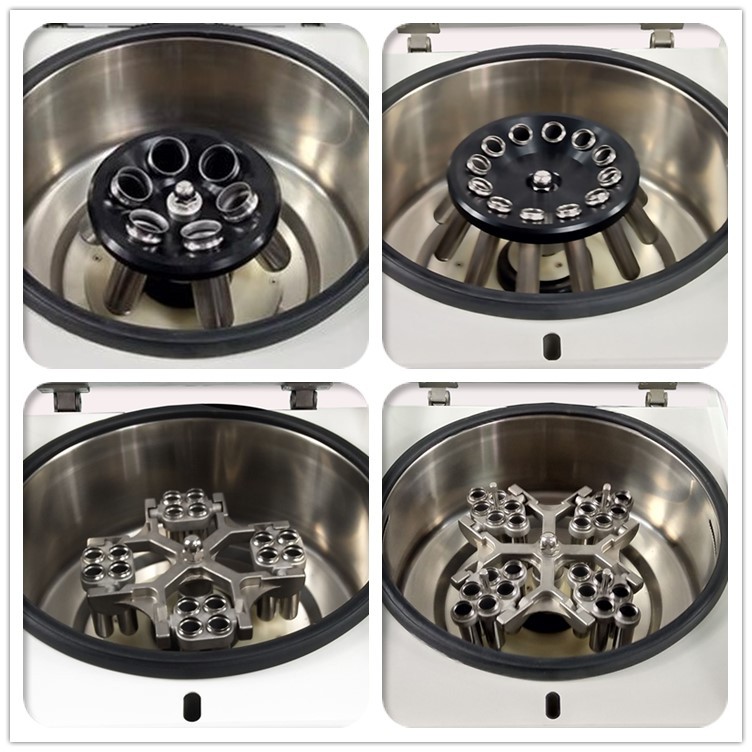

Matched Rotors for TD4N:
No | Rotors No | Max speed r/min | Volume(ml) | Max RCF(*g) |
No32686 | Swing out rotor | 4000 | 16x10/15ml | 2150 |
No31603 | Angle rotor | 4000 | 12×20ml | 2220 |
No31604 | Angle rotor | 4000 | 18×10ml | 2250 |
No32602 | Angle rotor | 4000 | 24×15ml | 2270 |
No31605 | Swing out rotor | 4000 | 4x100ml | 2250 |
