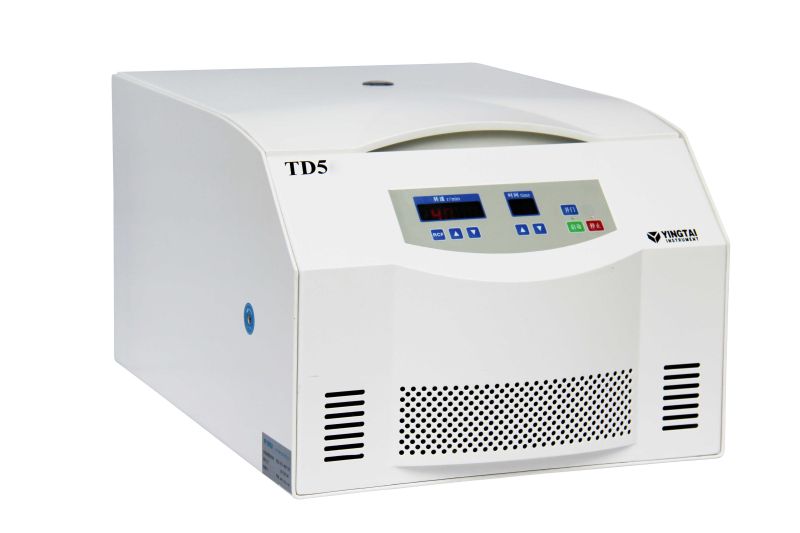

Motor brushless low speed 5000 RPM TD5 lab centrifuge
Motor brushless low speed 5000 RPM TD5 lab centrifuge
1.) Microprocessor controlled
2.)Safety interlock system that prevents opening the centrifuge lid when rotor is spinning
3). Imbalance sensor, over speed, over temperature protection
4). Digital display which indicates the speed, time, RCF in operation
5).Brake system: gradual deceleration and have possibility of interrupting the run at any time by stop key
6). Stainless steel chamber
7).10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Changsha, China
- 1 week
- 10000 sets
- Information
Motor brushless low speed 5000 RPM TD5 lab centrifuge

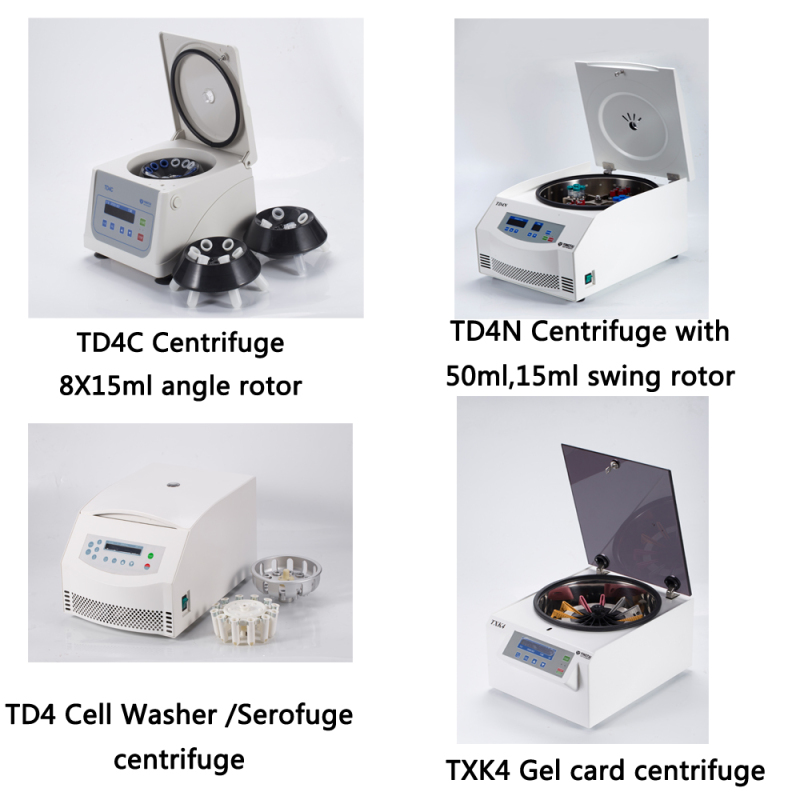

We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
1. Product features for TD5 benchtop low speed lab centrifuge machine
TD5 low speed swing out rotor laboratory centrifuge is widely used in the field of blood bank, hospital and laboratory.
1.) Microprocessor controlled
2.)Safety interlock system that prevents opening the centrifuge lid when rotor is spinning
3). Imbalance sensor, over speed, over temperature protection
4). Digital display which indicates the speed, time, RCF in operation
5).Brake system: gradual deceleration and have possibility of interrupting the run at any time by stop key
6). Stainless steel chamber
7).10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
1. Main parameters for TD5 benchtop low speed lab centrifuge machine
Max. Speed | 5000rpm |
Max. RCF | 4730×g |
Max. Capacity | 4×250ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 570×400×320mm |
Net Weight(Kg) | 40KG |
Certificates | CE,ISO & Calibration report are available |
