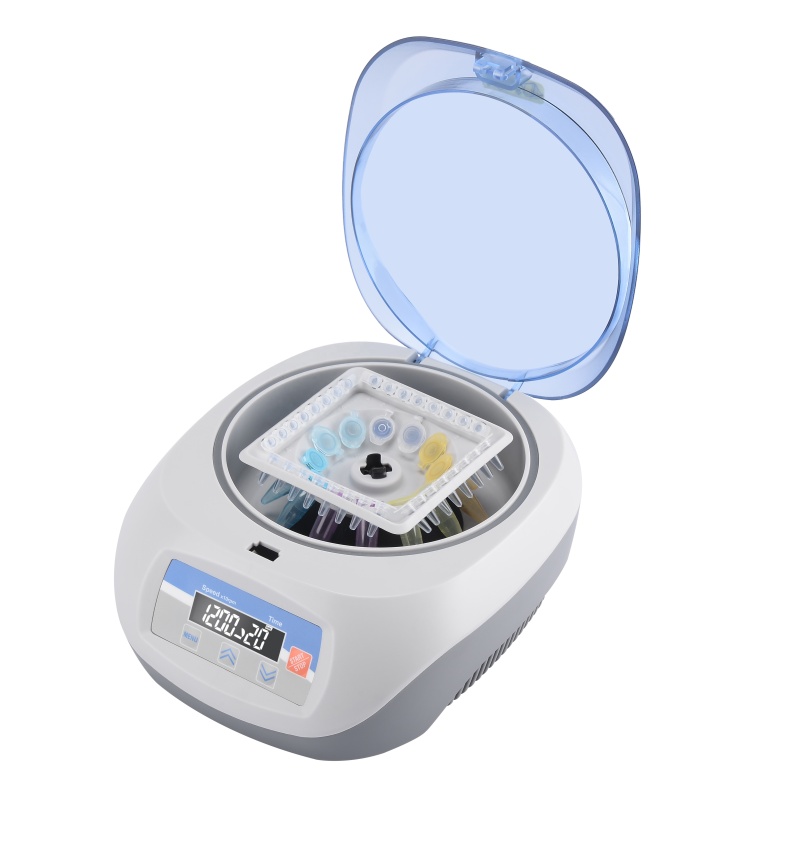

Microcentrifuge 12000rpm lab portable centrifuge MiniL-7G 12G
Microcentrifuge 12000rpm lab portable centrifuge MiniL-7G 12G
1. MiniL-7G/MiniL-12G centrifuge is widely used in laboratory and hospital.
2. This model can fit in 5ml, 2ml, 1.5ml, 0.5ml and 0.2ml tubes.
3. The handheld centrifuge is very suitable for microtubule filtration and fast centrifugation, the micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.
4. Light weight, small size and beautiful design.
5. Easily control, super speed protection.
6. LCD display
- Changsha, China
- 1 week
- 10000 sets
- Information
Microcentrifuge 12000rpm lab portable centrifuge MiniL-7G 12G
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features:
1. MiniL-7G/MiniL-12G centrifuge is widely used in laboratory and hospital.
2. This model can fit in 5ml, 2ml, 1.5ml, 0.5ml and 0.2ml tubes.
3. The handheld centrifuge is very suitable for microtubule filtration and fast centrifugation, the micro blood cell separation, microbial sample processing, experimental partition centrifugal of PCR.
4. Light weight, small size and beautiful design.
5. Easily control, super speed protection.
6. LCD display
Product Models and Main Technical Parameters:
Product number | MiniL-7G | MiniL-12G |
Input power | AC100-250V/50/60Hz | |
Power fuse | PPTC / self-recovery fuse / no need to replace | |
Input power [W] | 45W | |
control method | ST16 bit MCU/PWM/speed regulation; | |
Display method | Black and white LCD | |
motor | DC24V/DC permanent magnet motor | |
Effective centrifuge time | 1-99min./1-59sec. | |
Speed [r/min.] | 500~7000rpm±5% | 500~12000rpm±5% |
Speed increase | 500rpm | |
Maximum relative centrifugal force [×g] | 3286×g | 9660×g |
Misoperation/fault alarm | Voice prompt + display code | |
Size: length × width × height [mm] | 194×229×120 | |
Weight (no rotor) | 2Kg | |
Noise at maximum speed | ≤43dB(A) | ≤47dB(A) |
Fastest acceleration time | ≤12s | |
Fastest deceleration time | ≤16s | |
Protection level | IP21 | |
Allowable ambient temperature / relative humidity | 5-40℃/80% | |
Testing standard | EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 | |
Note: Ambient temperature 23 ° C / at 23 ° C ambient temperature

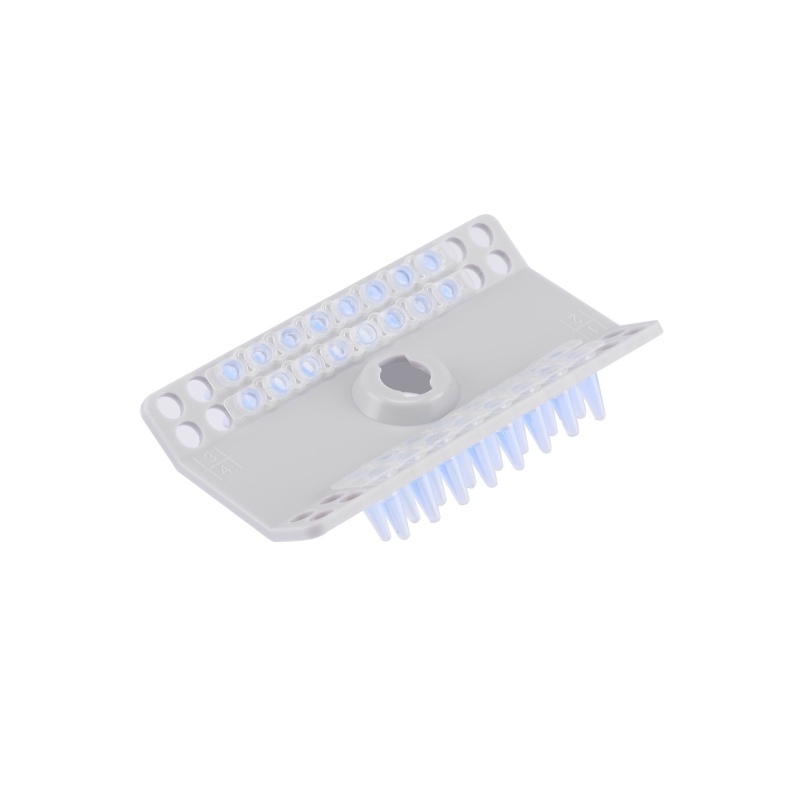

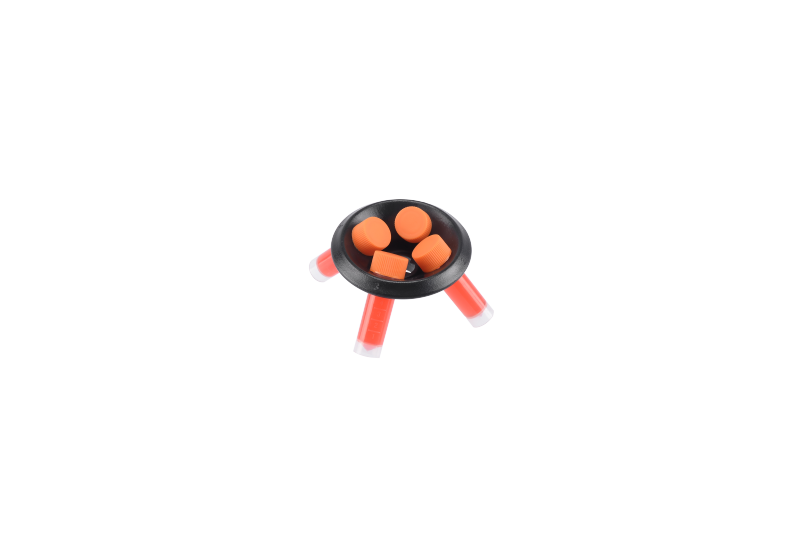

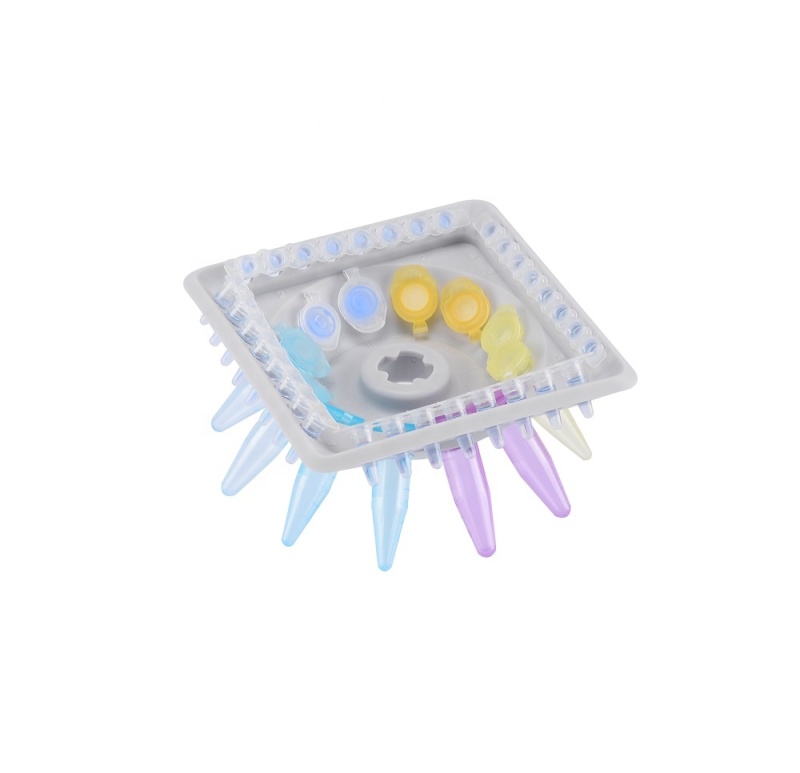

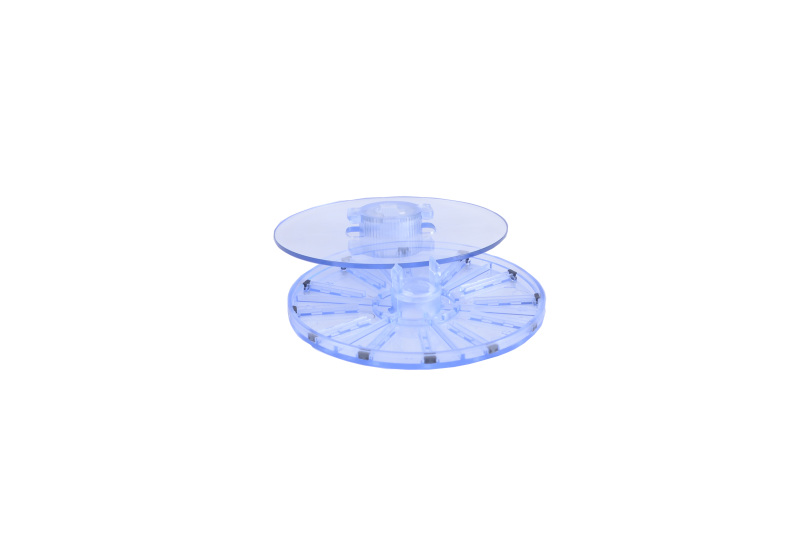

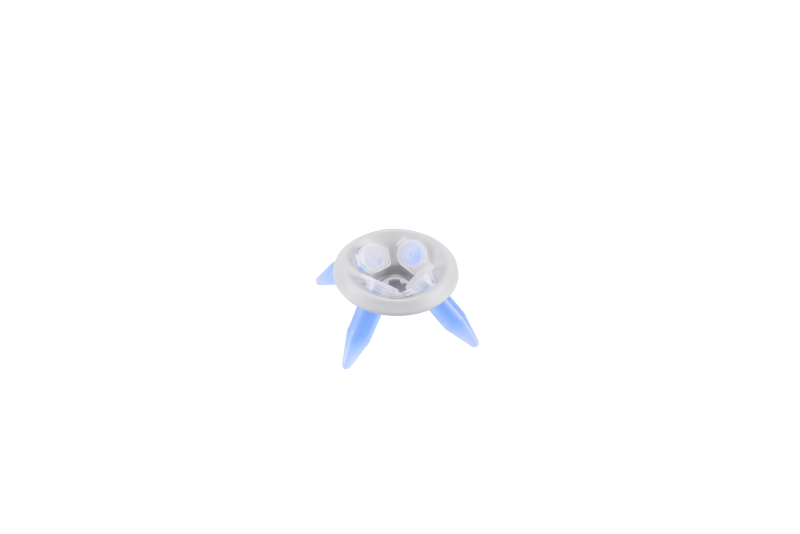

MiniL rotor parameter description:
MiniL-7G
Product number | Rotary number(Rotor) | Capacity (ml × tube number) | Maximum speed (r/min.) | Max Rcf |
Test tube type
|
MiniL-7G-A-1 | #1 Angle-rotor | 1.5/2.2×12+PCR0.2×8×4 row | 7000 | 3232 | PP cone bottom cover |
MiniL-7G-A-2 | #2 Angle-rotor | PCR 0.2×12×4 row | 7000 | 2210 | PP cone bottom cover |
MiniL-7G-A-3 | #3 Angle-rotor | 5×4 | 7000 | 3286 | EP cone bottom cover |
MiniL-7G-A-4 | #4 Angle-rotor | 5/1.8/1.1×4 | 7000 | 3180 | PP can be screwed |
Our factory in Changsha City,Hunan province:
Shipment of Centrifuge:
