High Speed Micro Refrigerated Centrifuge for Bio-chemistry test TGL-18
High Speed Micro Refrigerated Centrifuge for Bio-chemistry test TGL-18
1. Stainless steel chamber, compact structure, can can use 8 different capacity rotors.
2. Safety Interlock system that prevents opening the centrifuge lid during running.
3. 10 programs can be stored, quickly recall the last used program.
4. Imbalance sensor, Over speed and over temperature cut off
5. Easy operation, LCD touch screen, compressor control.
6. Accurate temperature control, range from -20℃~+40℃
7. With Emergency lid lock release, in case of power off.
- Changsha, China
- 1 week
- 10000 sets
- Information
High Speed Micro Refrigerated Centrifuge for Bio-chemistry test TGL-18
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Features
TGL-18 is useful for routine application in bio-technology , PCR, life science and clinical labs etc. This is suitable for routine sample analysis in Medical, Hospital and Institutional laboratories. With a wide choice of rotor heads and adapters, this unit is truly versatile.
1. Stainless steel chamber, compact structure, can can use 8 different capacity rotors.
2. Safety Interlock system that prevents opening the centrifuge lid during running.
3. 10 programs can be stored, quickly recall the last used program.
4. Imbalance sensor, Over speed and over temperature cut off
5. Easy operation, LCD touch screen, compressor control.
6. Accurate temperature control, range from -20℃~+40℃
7. With Emergency lid lock release, in case of power off.
Technical Parameters
Model | TGL-18 | Speed Accuracy | ±50r/min |
Max Speed | 18500r/min | Timer Range | 0~99min |
Max RCF | 19920xg | Motor | Convert motor |
Display | LCD touch display | Noise | ≤60dB(A) |
Max Capacity | 36 x1.5/2ml | Power Supply | AC220v&110V 50Hz 18A |
Temperature Range | -10℃~+30℃ | Dimension | 600x330x300mm(L*W*H) |
Temperature Accuracy | ±1℃ | Weight | 40kg |

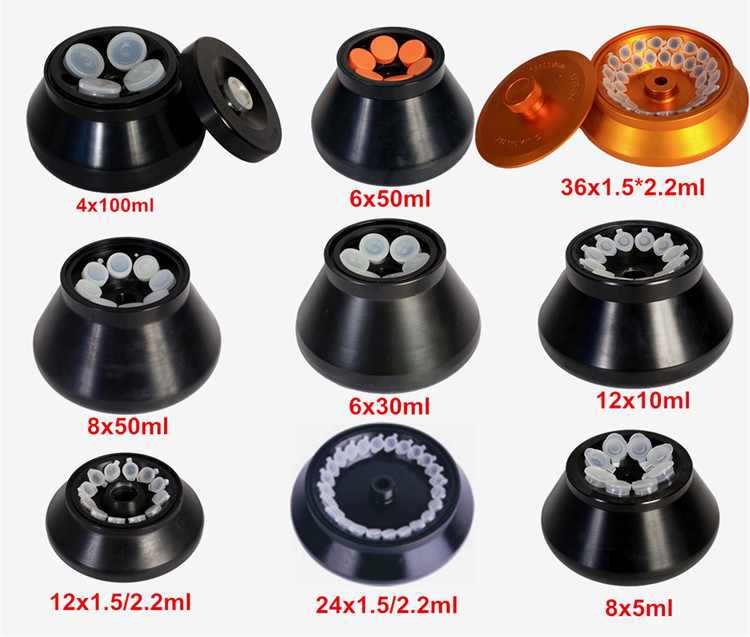

No.1 AR | Max Speed:18500r/min Capacity:12×0.5ml AR Max RCF:19920xg | No.2 AR
| Max Speed:16000r/min Capacity:12×1.5/2.2ml AR Max RCF:17800xg |
No.3 AR | Max Speed:14000r/min Capacity:24×1.5/2.2ml AR Max RCF:18860xg | No.4 AR | Max Speed:15000r/min Capacity:3/2×8×0.2ml PCR tube Max RCF:14750xg |
No.5 AR | Max Speed:11000r/min Capacity:36×1.5/2.2ml AR Max RCF:10800xg | No.6 AR | Max Speed:16000r/min Capacity:18×0.5ml AR Max RCF:15450xg |
No.7 AR | Max Speed:12000r/min Capacity:12/8×5ml AR Max RCF:10560xg | No.8 AR | Max Speed:12000r/min Capacity:48×0.5ml Max RCF:11060xg |
Product Images
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
