laboratory high speed 18000 RPM portable centrifuge TG18
laboratory high speed 18000 RPM portable centrifuge TG18
used for laboratories, biology, industrial and hospital clinics.
The shell adopts steel structure,which is simple-compact,
light-weight and low-noise.
Adopt advanced CPU control system to realize
microprocessor control of rotate speed, temperature and RCF.
With stainless steel structure, guard ring around chamber.
Protection for door lid, over speed, imbalance and
over-temperature.
With CFC gas libre.
LCD display, easy to operate.
- Information
laboratory high speed 18000 RPM portable centrifuge TG18
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.

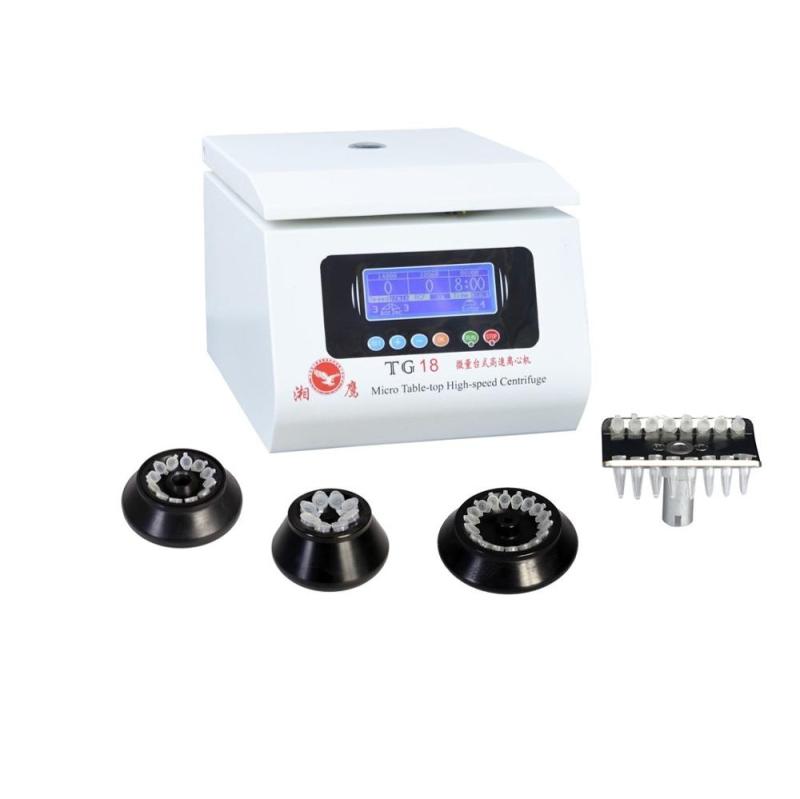

Micro Table-top High-speed Centrifuge Model:TG18
TG18 can be equipped with differebt rotors in the micro bench type, offering a complete solution in the preparation of samples to be centrifuged for research laboratories, biology, industrial and hospital clinics.
Features
n The shell adopts steel structure,which is simple-compact,
light-weight and low-noise.
n Adopt advanced CPU control system to realize
microprocessor control of rotate speed, temperature and RCF.
n With stainless steel structure, guard ring around chamber.
n Protection for door lid, over speed, imbalance and
over-temperature.
n With CFC gas libre.
n LCD display, easy to operate.
Technical Parameters
Model | TG-18 |
Max Speed | 18000r/min |
Max RCF | 18860xg |
Display | LCD touch display |
Max Capacity | 36 x1.5/2ml |
Speed Accuracy | ±50r/min |
Timer Range | 0~99min |
Motor | Convert motor |
Noise | ≤60dB(A) |
Power Supply | AC220v&110V 50Hz 18A |
Dimension | 600x330x300mm(L*W*H) |
Weight | 12kg |

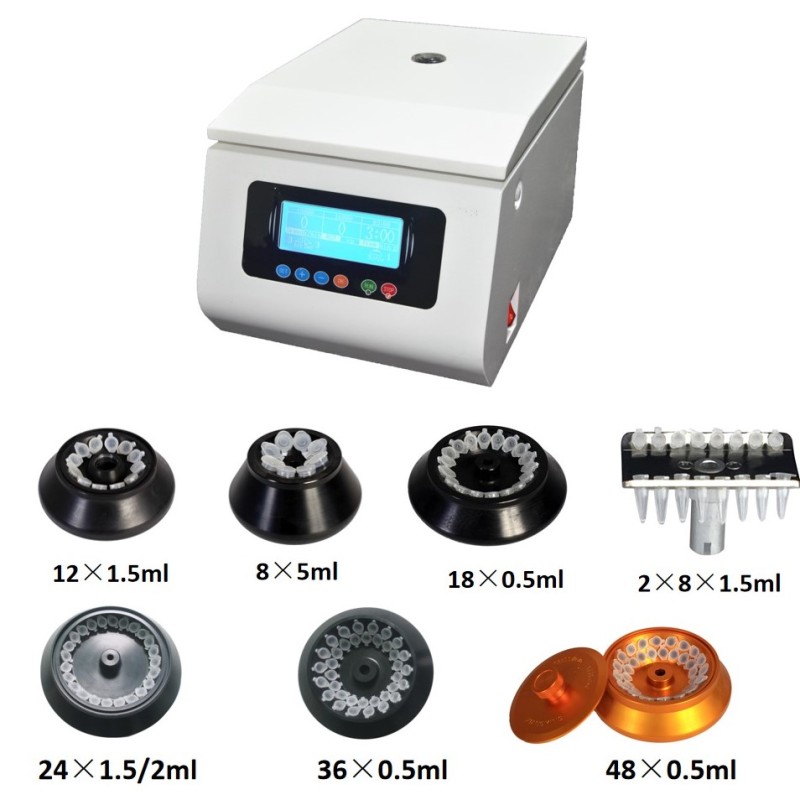

Rotors:
No.1 | Max Speed:18000r/min Max Capacity:12×1.5/2.2ml AR Max RCF:16800xg |
No.2
| Max Speed:16000r/min Max Capacity:12×1.5/2.2ml AR Max RCF:17800xg |
No.3 | Max Speed:12000r/min Max Capacity:12×5ml AR Max RCF:10560xg | No.4 | Max Speed:14000r/min Max Capacity:24×1.5/2ml AR Max RCF:18860xg |
No.5 | Max Speed:16000r/min Max Capacity:18×0.5/0.2ml AR Max RCF:17800xg | No.6 | Max Speed:13000r/min Max Capacity:8×5ml AR Max RCF:11400xg |
No.7 | Max Speed:13500r/min Max Capacity:36×1.5/2.2ml AR Max RCF:17600xg | No. 8 | Max Speed:16000r/min Max Capacity:2×8×0.2ml Max RCF:17800xg |
