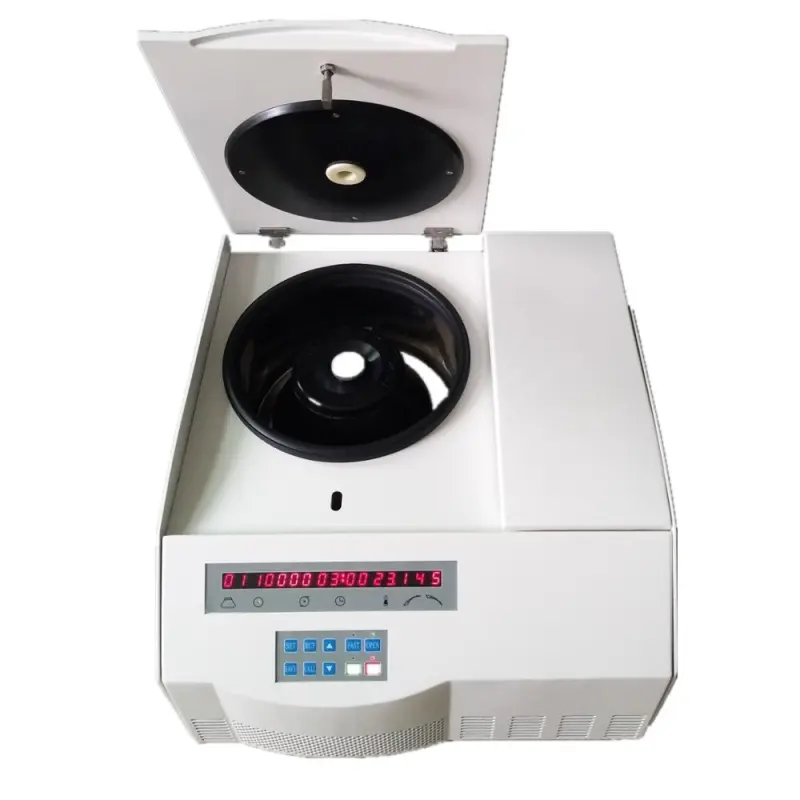

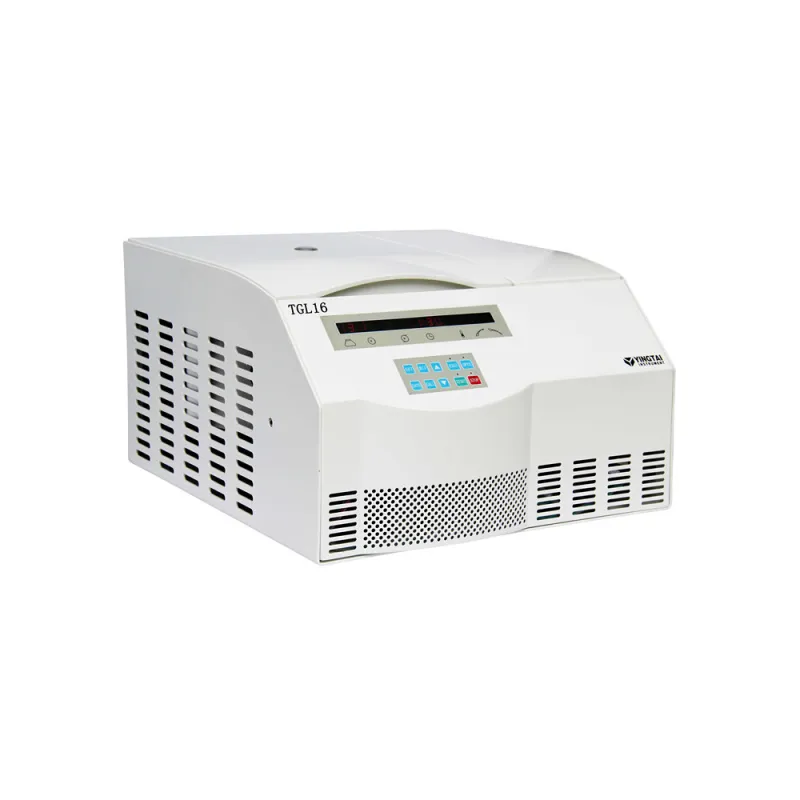

laboratorio centrifuga refrigerated centrifuga high speed centrifuga TGL16
- Information
laboratorio centrifuga refrigerated centrifuga high speed centrifuga TGL16
Features:
1.Brushless frequency dc motor in great torque, no carbon dust pollution, unnecessary to maintain, quick in speed up and down.
2.Imported compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..
3. Microprocessor control, digital display indicates all parameters running.
4. 3kinds of centrifugal methods: speed, RCF and W2t, which make you get the ideal centrifugal result.
5.10 kinds of accelerating and decelerating speed for your choice,
6. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
7. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
8. There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.
9.3 tiers protection steel cover and get the ideal centrifugation result.
TGL16 Technical Parameters:
Max speed | 16000rpm | Max RCF | 20600xg |
Max volume | 6x100ml | Noise | ≤58dBA |
Timer | 1~9h59min | Net weight | 82KG |
Dimension(HxDxW) | 608×570×380mm | Power supply | AC 220V 50HZ 10A |
Speed accuracy | ±20rpm | Temperature accuracy | ±1℃ |
Temperature range | -20~40℃ | Package | wooden box |

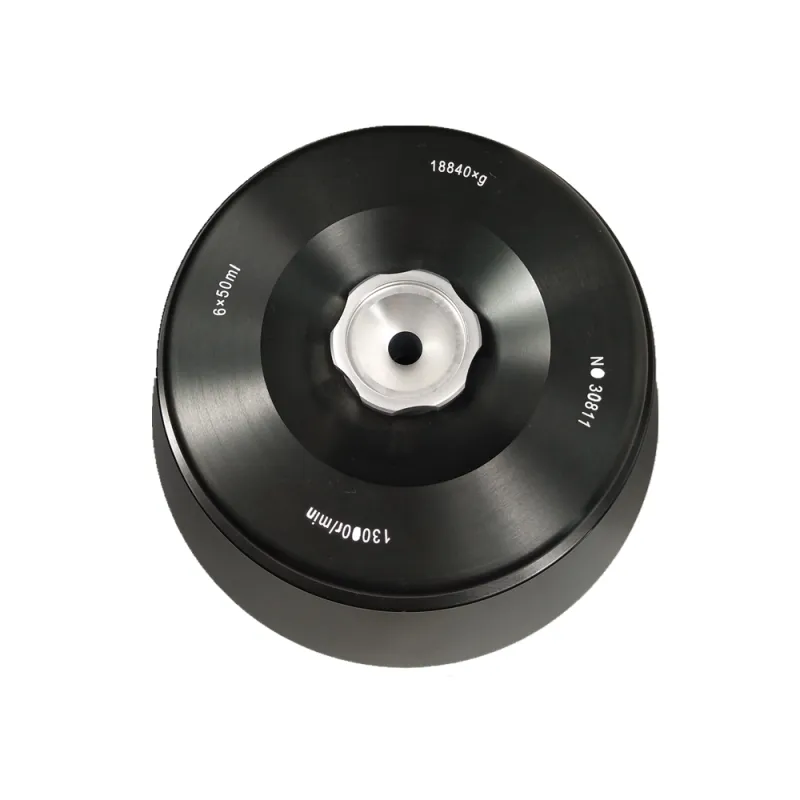

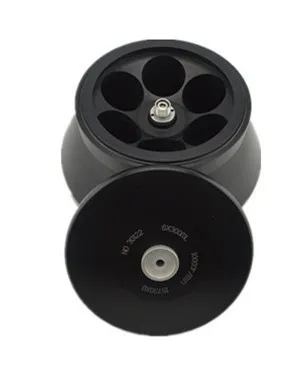

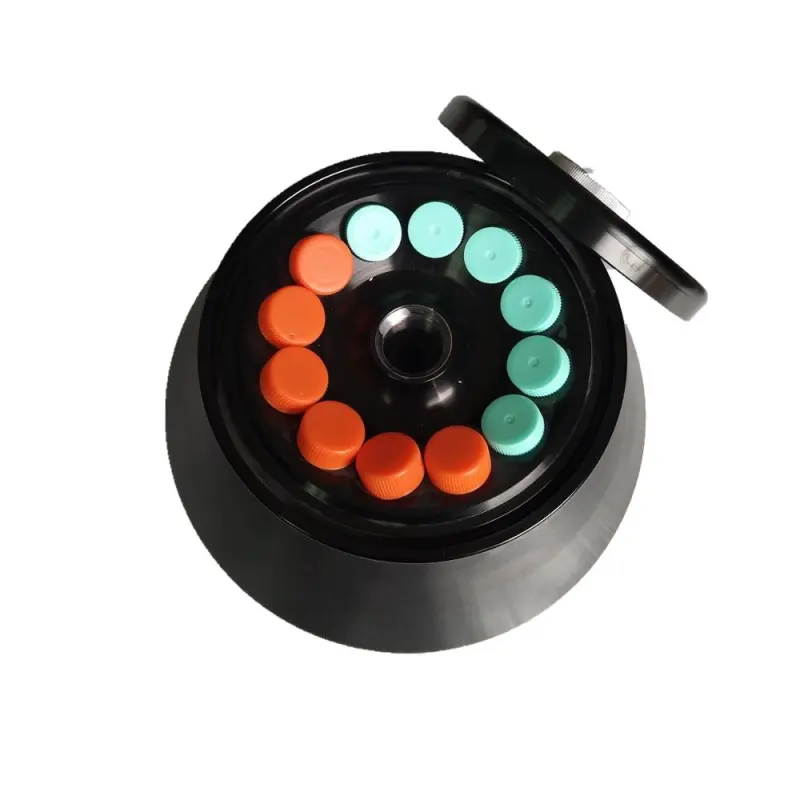

Rotors for TGL16:
Rotor No. | Rotor Type | Max speed(rpm) | Max capacity | Max RCF(xg) |
30401 | Angle rotor | 16000 | 12*1.5/2ml | 16270 |
30402 | Angle rotor | 14000 | 40*0.5ml | 19970 |

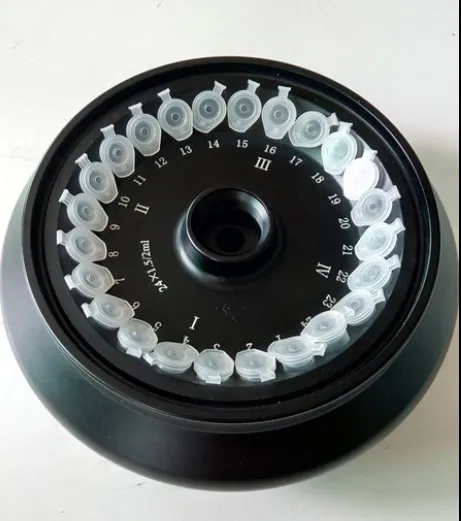

30403 | Angle rotor | 15000 | 24*1.5/2ml | 20600 |
30404 | Angle rotor | 13500 | 30*1.5/2ml | 19340 |
30405 | Angle rotor | 15000 | 16x5ml | 19350 |
30406 | Angle rotor | 14000 | 12x7ml | 16370 |
30407 | Angle rotor | 10000 | 12x15ml | 11840 |
30408 | Angle rotor | 12000 | 12x10ml | 14510 |
30409 | Angle rotor | 12000 | 8x20ml | 14510 |
30410 | Angle rotor | 12000 | 6x30ml | 14000 |
30411 | Angle rotor | 10000 | 6x50ml | 11140 |
30412 | Angle rotor | 10000 | 6x70ml | 10810 |
30413 | Angle rotor | 10000 | 4x100ml | 10310 |
30414 | Angle rotor | 8000 | 6x100ml | 7280 |
30415 | Angle rotor | 14000 | 6x10ml | 16460 |
30416 | Angle rotor | 15000 | 30x0.5ml | 18510 |
30480 | Swing rotor | 15000 | 4x5ml | 19920 |
30444 | Angle rotor | 11000 | 48x1.5/2ml | 12840 |
30676 | Bucket rotor | 4000 | 2x3x48 well | 2300 |
30435 | vertical rotor | 16000 | 16x5ml | 16540 |
