Micro High Speed 185000rpm Refrigerated Clinical Centrifuge I-TGL-18X
Micro High Speed 185000rpm Refrigerated Clinical Centrifuge I-TGL-18X
1. Stainless steel chamber, compact structure, can can use 8 different capacity rotors.
2. With Electric control for close and open door lid.. equipped with emergency lid lock release system in case of power off.
3. Imbalance sensor, Over speed and over temperature cut off
4. Easy operation, LCD touch screen, micro compressor control.
5. Smart size and with various rotors for option.
- Changsha, China
- 1 week
- 10000 sets
- Information
Micro High Speed 185000rpm Refrigerated Clinical Centrifuge I-TGL-18X
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
I-TGL-18X is useful for routine application in bio-technology , PCR, life science and clinical labs etc. This is suitable for routine sample analysis in Medical, Hospital and Institutional laboratories. With a wide choice of rotor heads and adapters, this unit is truly versatile.
Features
1. Stainless steel chamber, compact structure, can can use 8 different capacity rotors.
2. With Electric control for close and open door lid.. equipped with emergency lid lock release system in case of power off.
3. Imbalance sensor, Over speed and over temperature cut off
4. Easy operation, LCD touch screen, micro compressor control.
5. Smart size and with various rotors for option.
Technical Parameters
Model | I-TGL-18X | Speed Accuracy | ±10r/min |
Max Speed | 18500r/min | Timer Range | 0~99min |
Max RCF | 19920xg | Motor | Convert motor |
Display | LCD touch display | Noise | ≤55dB(A) |
Max Capacity | 36 x1.5/2ml | Power Supply | AC220V50Hz 10A |
Temperature Range | -10℃~+30℃ | Dimension | 560x370x325mm(L*W*H) |
Temperature Accuracy | ±1℃ | Weight | 40kg |

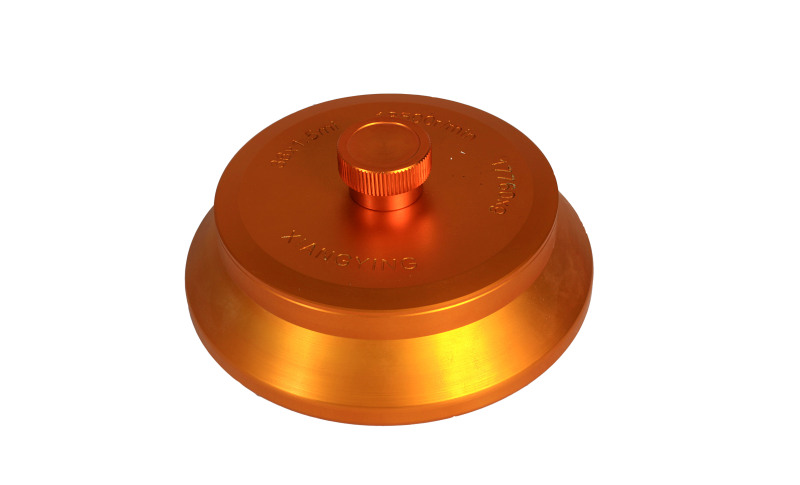

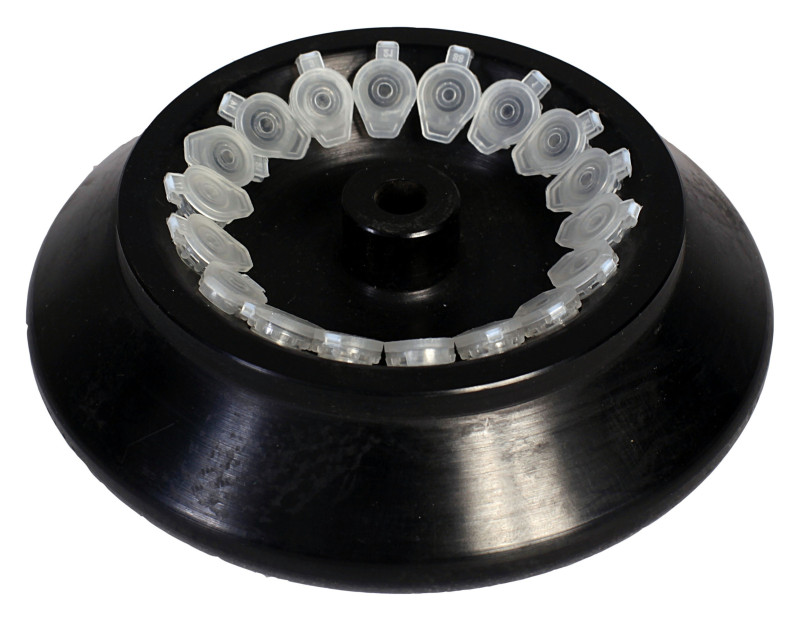

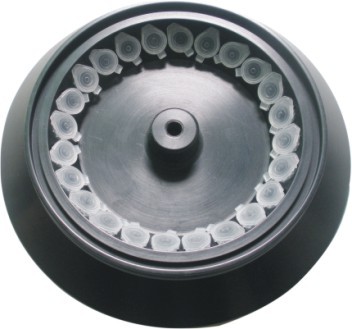

Rotors
No. | Max capacity | Max Speed | Max RCF |
No.1 Angle Rotor | 12×0.5ml | 18500r/min | 19920xg |
No.2 Angle Rotor | 12×1.5/2.2ml | 16000r/min | 17800xg |
No.3 Angle Rotor | 24×1.5/2.2ml | 14000r/min | 18860xg |

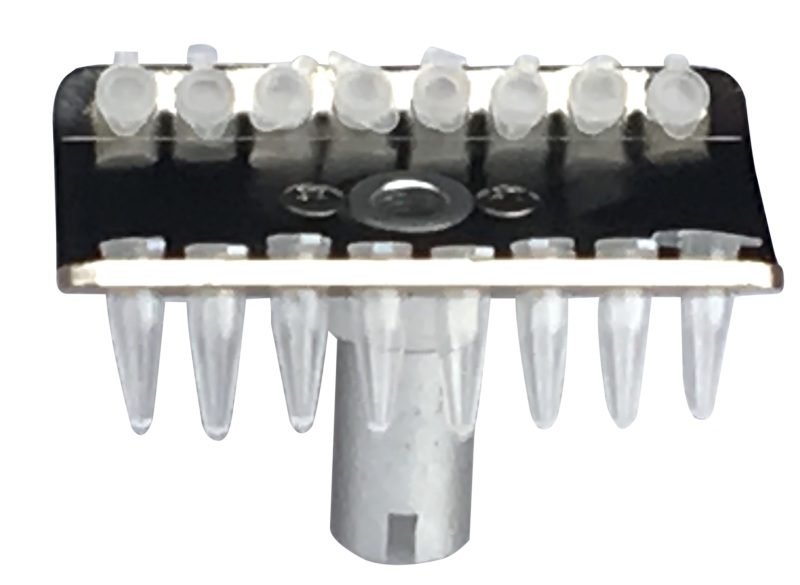

No.4 PCR tube | 3/2×8×0.2ml | 15000r/min | 14750xg |
No.5 Angle Rotor | 36×1.5/2.2ml | 11000r/min | 10800xg |
No.6 Angle Rotor | 18×0.5ml | 16000r/min | 15450xg |
No.7 Angle Rotor | 12/8×5ml | 12000r/min | 10560xg |
No.8 Angle Rotor | 48×0.5ml | 12000r/min | 11060xg |
