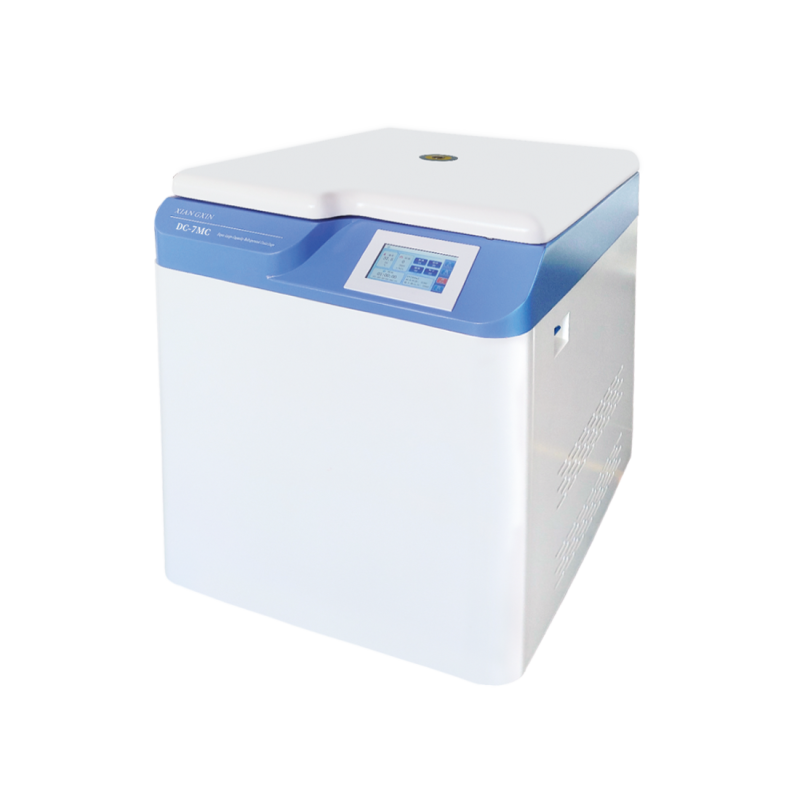

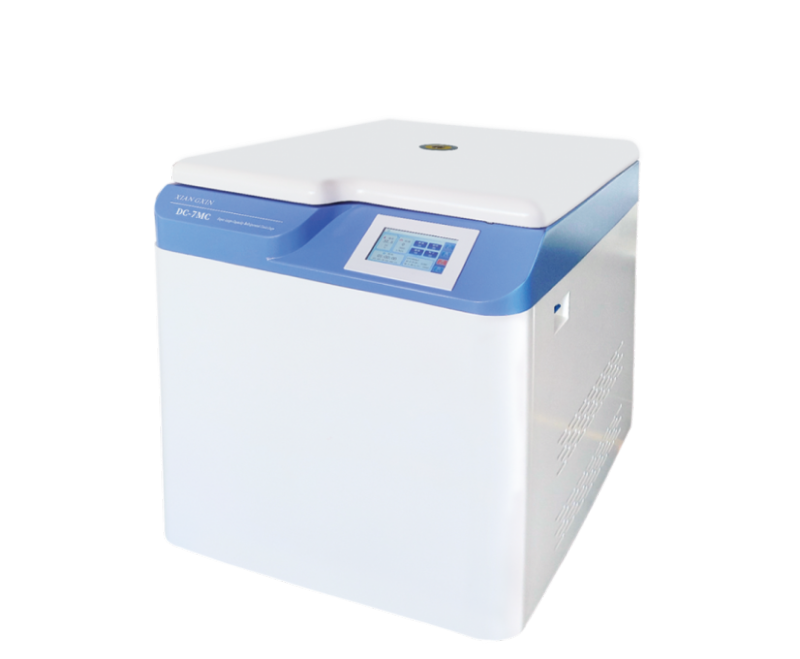

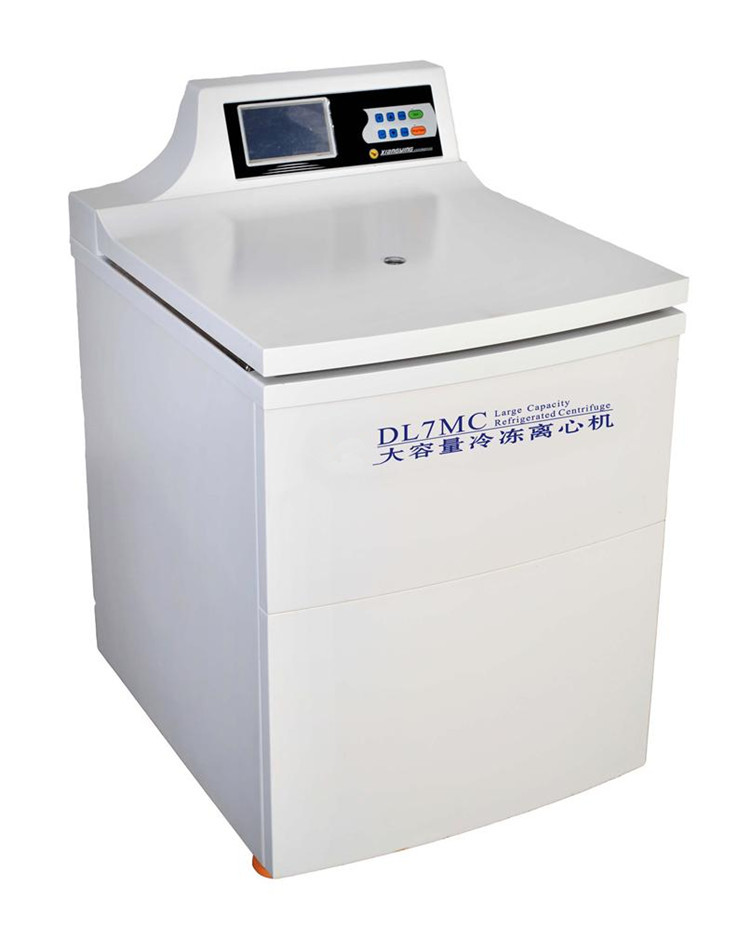

Intelligent Large Capacity Low Speed Refrigerated Clinical Centrifuge DL-7MC

Intelligent Large Capacity Low Speed Refrigerated Clinical Centrifuge DL-7MC
1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Electric control lid locks, can control both close and open door lid, with backup power to avoid power off unexpected, Backup power automatically recharges when machine powered on.
3. With large 7 Inches color panel, can operate with gloves. .
4. With wheels easy to short distance move, and wheels can be fixed.
5. Automatic Rotor Identification to avoid over-high speed running of rotor.
6. Data can be stored (Option function)

  • Changsha, China
  • 1 week
  • 10000 sets
  • Information

Intelligent Large Capacity Low Speed Refrigerated Clinical Centrifuge DL-7MC

We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.


If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.



Feature

1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.

2. Electric control lid locks, can control both close and open door lid, with backup power to avoid power off unexpected, Backup power automatically recharges when machine powered on.

3. With large 7 Inches color panel, can operate with gloves. .

4. With wheels easy to short distance move, and wheels can be fixed.

5. Automatic Rotor Identification to avoid over-high speed running of rotor.

6. Data can be stored (Option function)



Technical parameters

Model

I-DL-7MC

Max Speed

8000r/min

Max RCF

11620xg

Max Capacity

6×1000ml

Speed Accuracy

±10r/min

Timer Range

0-99h 59 min

Temperature Range

-20~+40℃

control&drive

microprocessor control/direct drive

Acc/dec Rate

0-9(Grade)

Program Store

99

Motor Power

4KW

Refrigerator Power

2.2KW

Noise

≤60dB(A)

Power Supply

AC220V/380V  50Hz 35A

Weight(Without Rotor)

280kg

Dimensions

730×840×100mm(L×W×H)

Refrigeration System

Big Brand High-performance Compressor CFC-free Refrigeration System

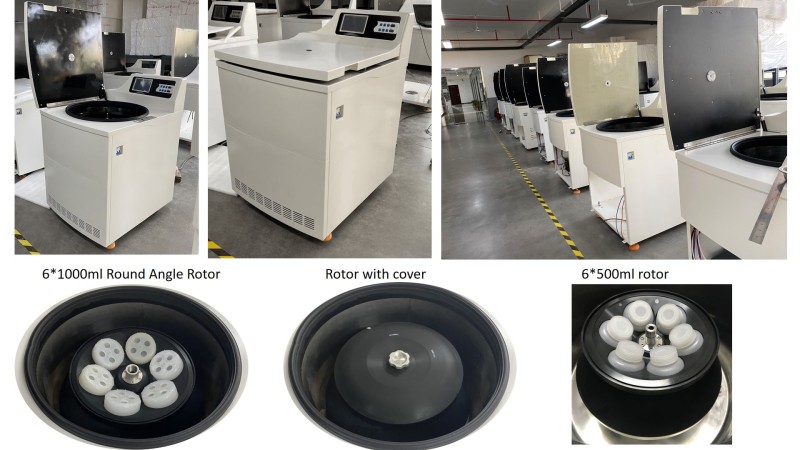

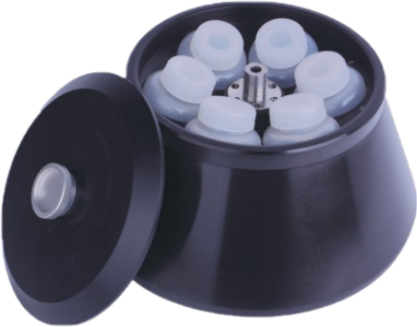

Rotor

No.1  AR 4*1000ml (8000rpm 11620xg)

No.2  AR 6*1000ml (7000rom 11500xg)
