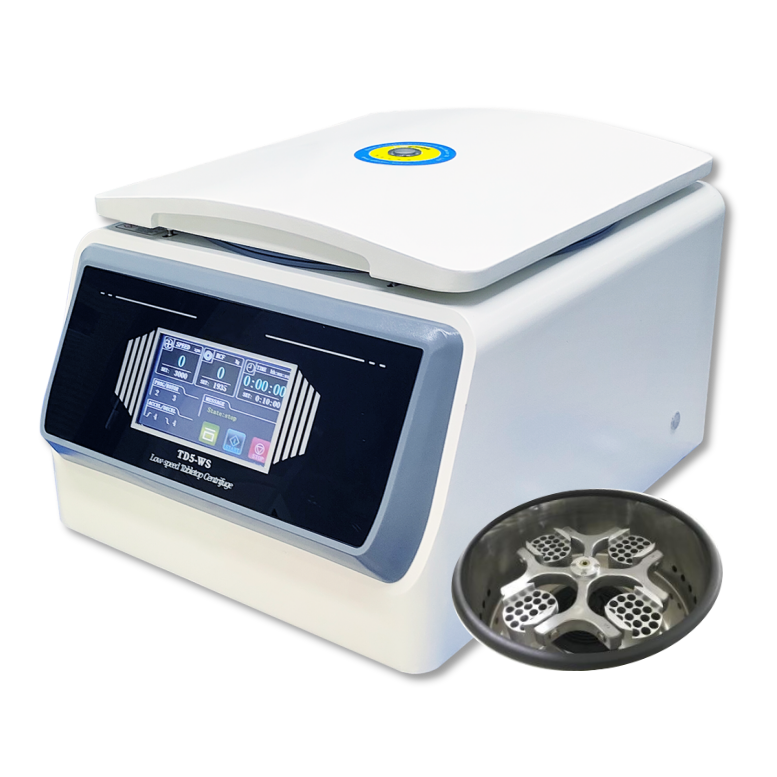

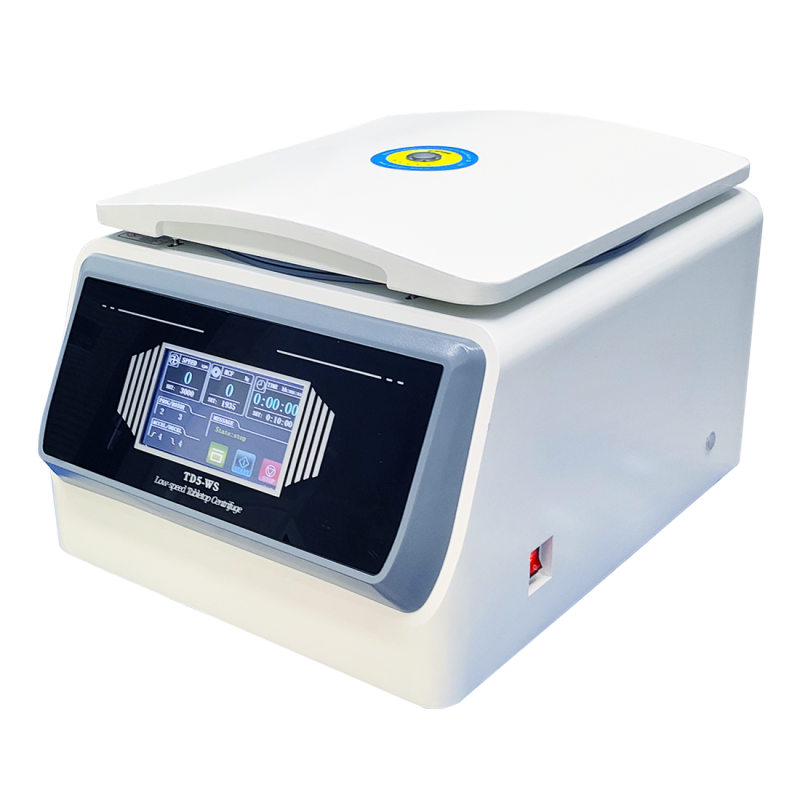

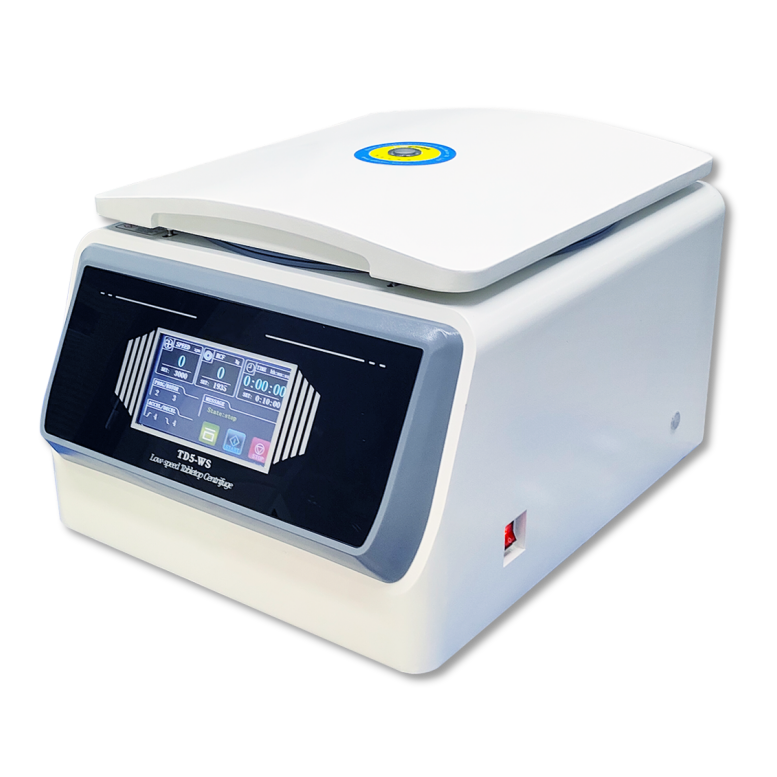

Intelligent Automatic Balance Low Speed 5500rpm lab centrifuge I-TD5-WS
Intelligent Automatic Balance Low Speed 5500rpm lab centrifuge I-TD5-WS
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. With electric door lid open and closed system, also equipped with emergency lid lock release in case of power off unexpected.
3. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
4. 10 programs can be stored, quickly recall the last used program.
5. With air cooling fans to avoid high temperature with long time working.
6. Full colored touch panel, shows with RPM, RCF, Acc, Dec , Rotor No., etc.
7. Automatic rotor identification avoid over speed running.
- Changsha, China
- 1 week
- 10000 sets
- Information
Intelligent Automatic Balance Low Speed 5500rpm lab centrifuge I-TD5-WS
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Product Introduction
I-TD5-WS intelligent low speed centrifuge are widely used in medical and Biological Field, Health Examination center, and laboratories etc.
Features
1. Stainless Steel Chamber, Full metal structure and microprocessor controlled
2. With electric door lid open and closed system, also equipped with emergency lid lock release in case of power off unexpected.
3. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
4. 10 programs can be stored, quickly recall the last used program.
5. With air cooling fans to avoid high temperature with long time working.
6. Full colored touch panel, shows with RPM, RCF, Acc, Dec , Rotor No., etc.
7. Automatic rotor identification avoid over speed running.
Technical Parameters
Model | TD5-WS | ||
Max Speed | 5500r/min | ||
Speed Accuracy | ±10rpm | ||
Max RCF | 5220×g | ||
Timer Range | 0~99min | ||
Rotor No. | Rotor Capacity | Speed (r/min) | RCF (xg) |

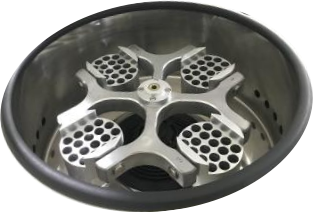

No.1 Angle Rotor | 12×10/15ml | 5500 | 5220 |

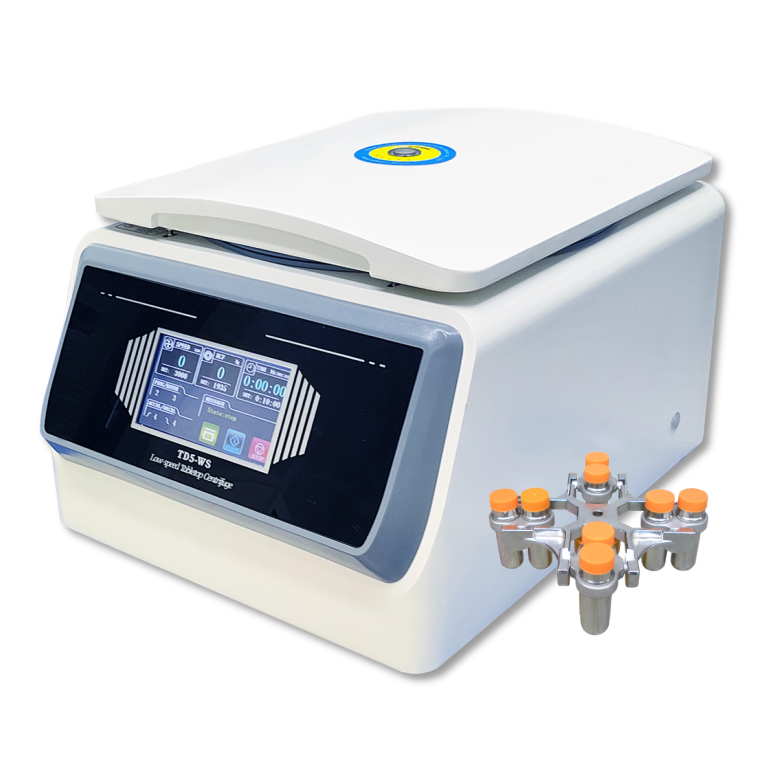

No.2 Swing Rotor | 4×100ml | 4000 | 3020 |
No.3 Swing Rotor | 8×50ml | 4000 | 3020 |
8×100ml | 4000 | 3020 | |
No.4 Swing Rotor | 32×10/15ml | 4000 | 3020 |
No.5 Swing Rotor | 24×10/15ml | 4000 | 3020 |
No.6 Swing Rotor | 48×5ml | 4000 | 3020 |
No.7 Swing Rotor | 72×2/5ml | 4000 | 3020 |
No.8 Swing Rotor | 4×250ml | 4000 | 3300 |
No.9 Swing Rotor | 48×10/15ml | 4000 | 3000 |
No.10 Micro plates | 2×2×96holes | 4000 | 2300 |
Timer Range | 0~99mins | ||
Noise | ≤55dB(A) | ||
Power Supply | AC220V & 110V 50Hz 5A | ||
Dimension | 600×460×340mm(L×W×H) | ||
Weight | 39kg | ||
