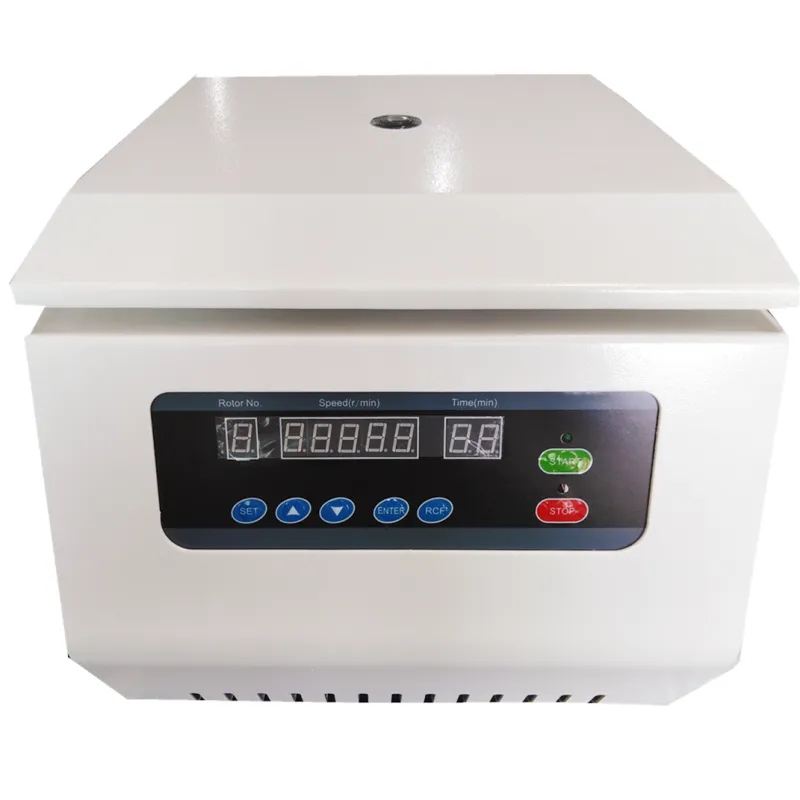

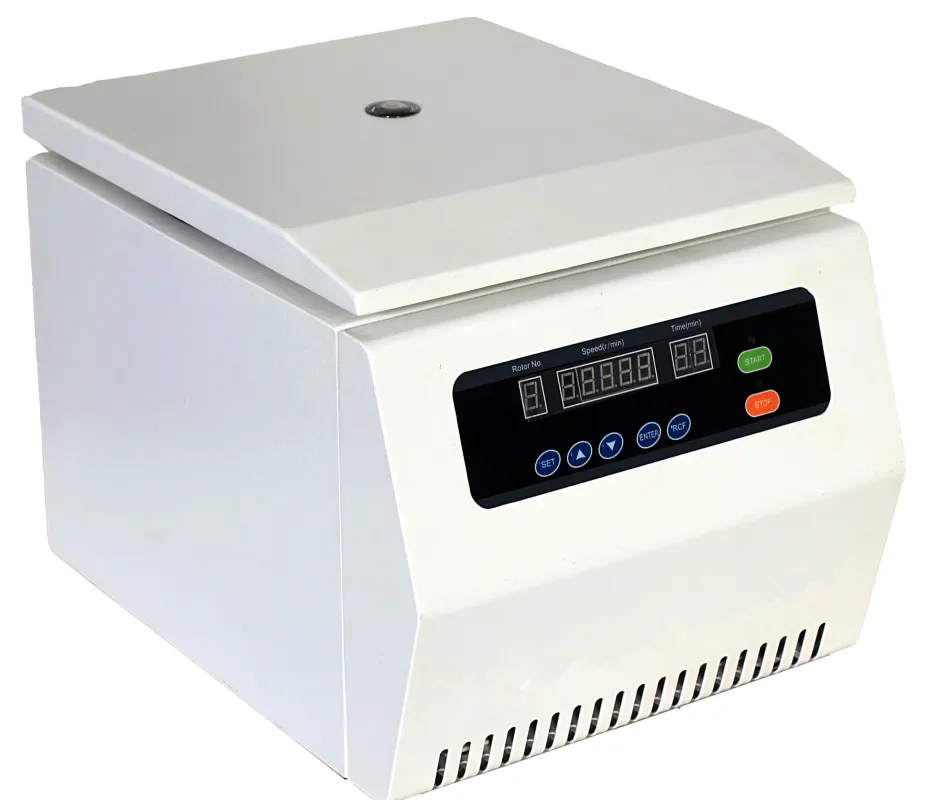

Benchtop High speed 24000 RPM centrifuge TG16-WS
Benchtop High speed 24000 RPM centrifuge TG16-WS
Reliable drive system, with low noise level and running stable.
Protection for door lid, over-speed, and imbalance.
Easy operation, and easy to load and unload rotors.
Stainless steel chamber and full metal structure.
With manual emergency lid release for unexpected power interruption.
Brushless induction motor with frequency drive ensures
- Changsha, China
- 1 week
- 10000 sets
- Information
Benchtop High speed 24000 RPM centrifuge TG16-WS
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Instrument characteristics
Microcomputer control, brushless variable frequency motor drive, can set centrifugal force or speed independently. Digital display, programmable, accessible and desirable
Equipped with overspeed, unbalanced and other protection, electronic door lock
Feature
n Reliable drive system, with low noise level and
running stable.
n Protection for door lid, over-speed, and imbalance.
n Easy operation, and easy to load and unload rotors.
n Stainless steel chamber and full metal structure.
n With manual emergency lid release for unexpected
power interruption.
n Brushless induction motor with frequency drive ensures
gentle start.
technical parameter

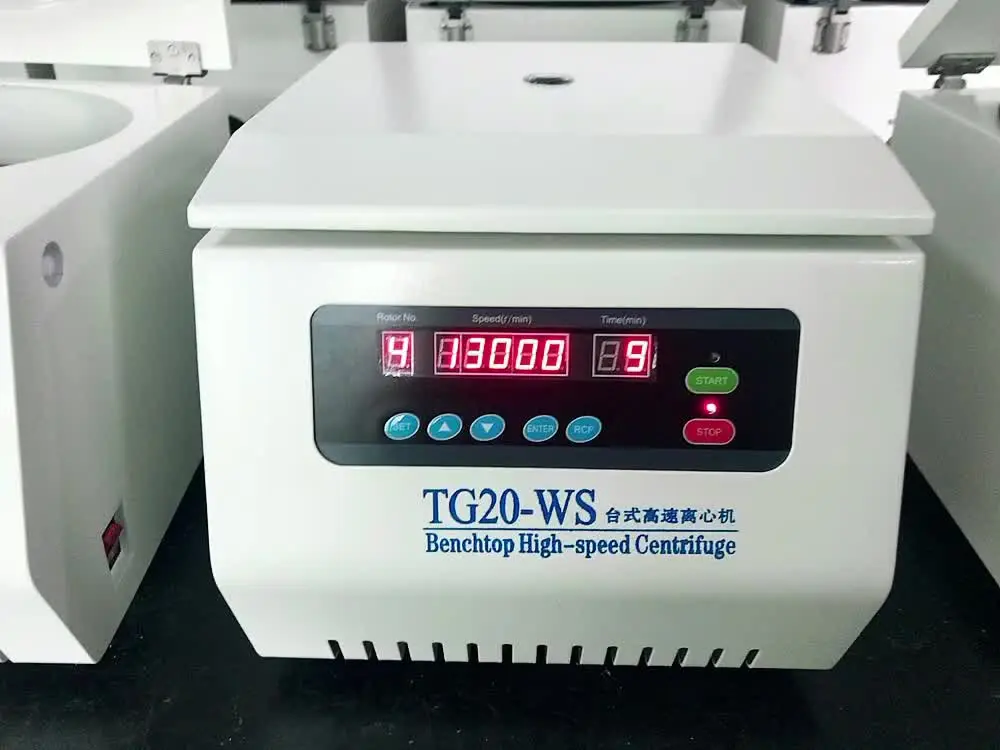

Model | TG16-WS | TG18-WS | TG20-WS | TG22-WS | TG24-WS |
Max Speed | 16000r/min | 18000r/min | 20000r/min | 22000r/min | 24000r/min |
Speed accuracy | ±10rpm | ±10rpm | ±10rpm | ±10rpm | ±10rpm |
Max RCF | 21800*g | 23200*g | 27800*g | 34700*g | 47800*g |
Time range | 0~99min | ||||
Motor | Variable frequency motor, Microcomputer control | ||||
Noise | ≤60dB(A) | ||||
Power Supply | AC220V&110V 50Hz 5A | ||||
Dimensions | 435*340*330mm(L*W*H) | ||||
Weight | 35kg | ||||

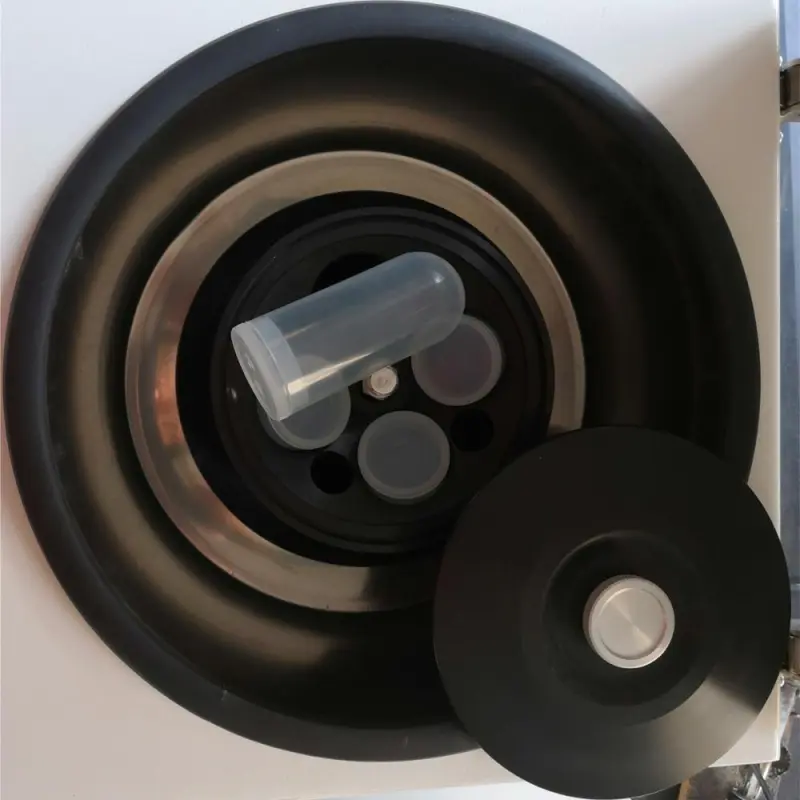

Rotor
| No.1 Angle rotor 12*1.5ml |
| No.2 Angle rotor Max capacity: 8*5ml |
| No.3 Angle rotor 12*10ml |
| No.4 Angle rotor 6*50ml |
| No.5 Horizontal enzyme labeled rotor 2*2*48hole |
| No.6 Angle rotor 24*1.5ml |
| No.7 Angle rotor 4*100ml |
| No.8 Angle rotor 36*1.5ml |
| No.9 Angle rotor 8*50ml |
| No.10 Angle rotor 6*30ml |
| No.11 Angle rotor 6*15ml |
|
|
