TD5B Oil Test Centrifuge is specifically designed for testing crude oils & determining sediment and water in crude oil.
- Changsha, China
- 1 week
- 5000 sets
- Information
Low Speed 4000 RPM Heated crude oil test centrifuge for TD5B
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.

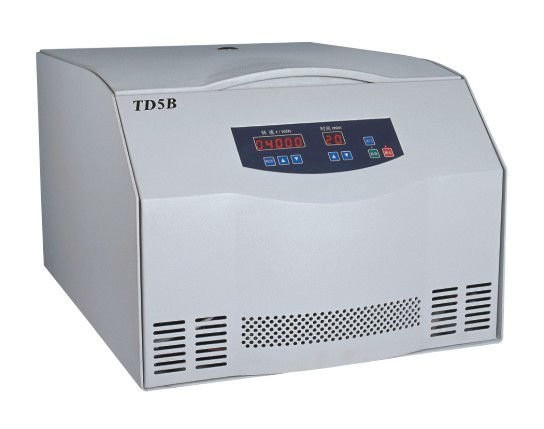

TD5B Oil Test Centrifuge is specifically designed for testing crude oils & determining sediment and water in crude oil.
The Oil Test Centrifuge is a microprocessor controlled, heated centrifuge which is specifically designed to meet oïl test parameters for determining sediment and water in crude oïl.

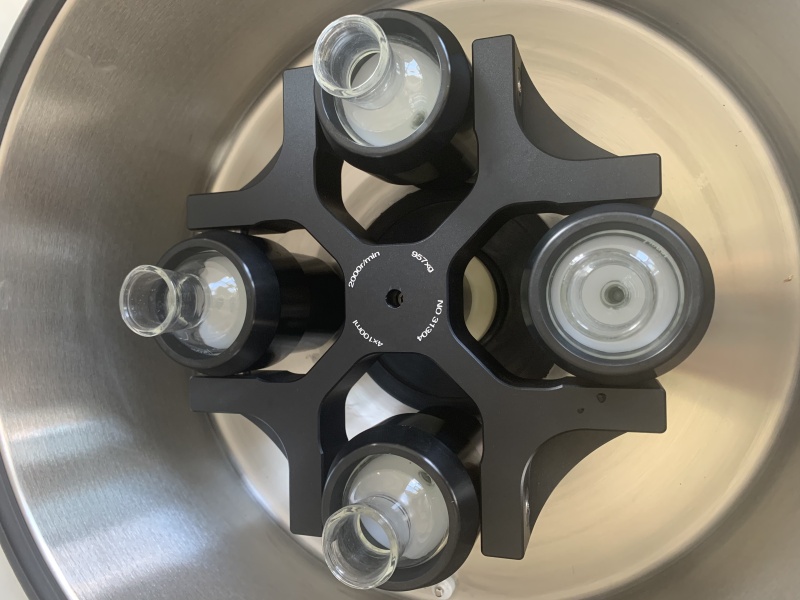

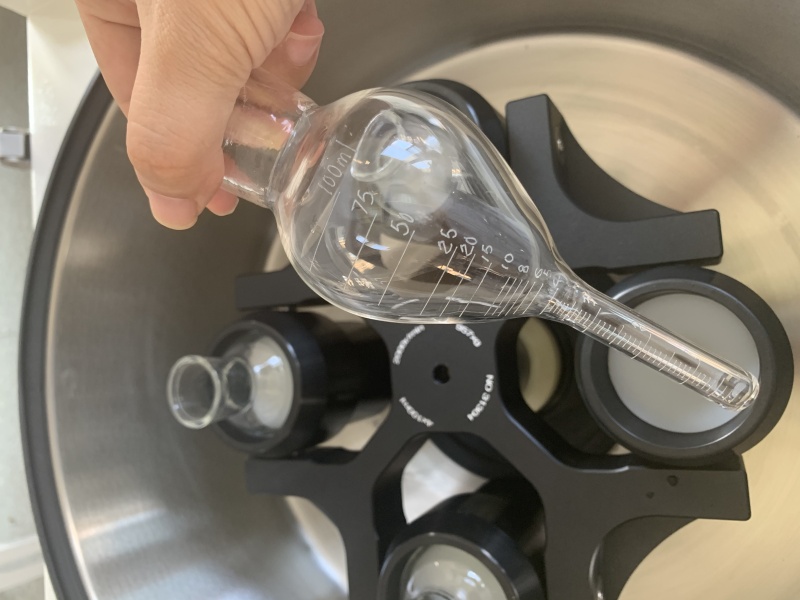

A four place swing out rotor and universal buckets assembly accomodates low cost adaptors and cushions suitable for borosilicate glass centrifuge tubes of the types specified for oil testing : conical (6 or 8 inch), trace sediment (8 inch) and pear-shaped (8 inch). To reduce errors in measurement of tube content the centrifuge has a purpose-made, large dimension heated bowl. This allows the special dimension test tubes (as required by relevant methods) to return to the near upright position following rotation. The centrifuge has a hinged lid that opens to the fully upright position which allows easy loading/unloading of tubes and access for cleaning the instrument between tests.
Speed, temperature and timing are microprocessor controlled. The run parameters are entered via a liquid proof “touch panel” and digital displays..
Supplied with rotor, buckets and cushions
Compliant with ASTM Test Methods D96, D1966,D2709.
Main paramers for TD5B crude oil Test
Max speed | 4000rpm | Max RCF | 2498xg |
Max volume | 4x100ml | Noise | ≤60dBA |
Timer | 1~99min | Net weight | 67KG |
Dimension(WxDxH)mm | 685×500×405mm | Temperature Range | Room temperature:+10~80℃ |
Speed accuracy | ±20rpm | Package
| Wooden box |
Matched rotors for TD5B crude oil Test and heated centrifuge
