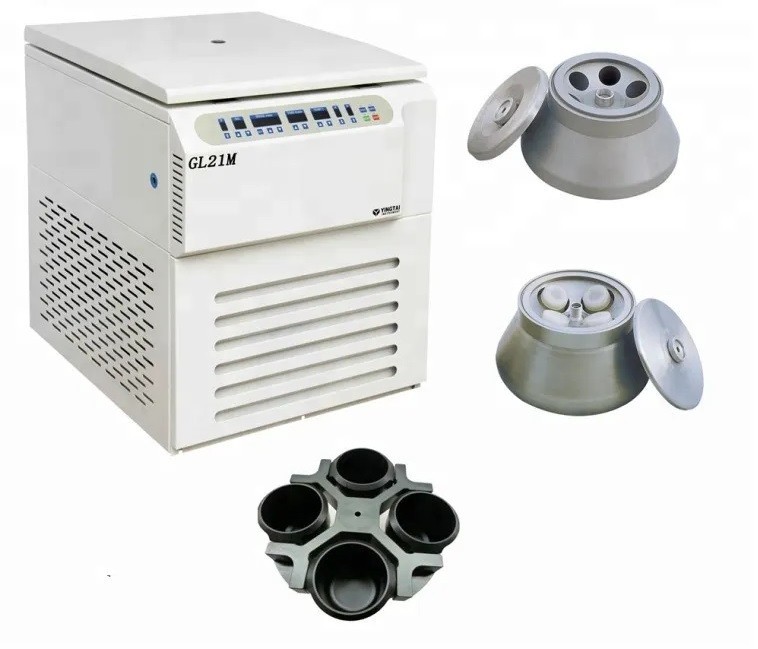

GL21M high-speed 21000 RPM Clinical blood bag centrifuge
GL21M high-speed 21000 RPM Clinical blood bag centrifuge
1. Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
5. Microprocessor control speed, temperature and time, digital display, 10 kinds of accelerating and decelerating speed for your choice.
6. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
7. The centrifuge body is made of high quality steel.
- Information
GL21M high-speed 21000 RPM Clinical blood bag centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
3.Packaging of TG18 high speed lab centrifuge machine
Export carton box packaging with inner protect foam plastic .
Features for GL21M medical blood bag centrifuge
1. Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
5. Microprocessor control speed, temperature and time, digital display, 10 kinds of accelerating and decelerating speed for your choice.
6. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
7. The centrifuge body is made of high quality steel.
8. 3 tiers protection steel cover, safe and reliable.
Technical parameters for GL21M medical blood bag centrifuge
Max speed | 21000r/min | Max RCF | 46140*g |
Time range | 1~99H59min | Speed accuracy | ±20r/min |
Weight | 235KG | Dimension | 865*728*1240mm
|
capacity | 6*500ml | Noise | <65dBA |
Packaged weight | 285KG | Packaged dimension | 1000*850*1510mm |
Temperature range | -20~40°C | Temperature accuracy | ±1°C |
Power | AC110/220V, 50-60HZ,35A | Rotor identification | Automatic identification |
Package | wooden box |

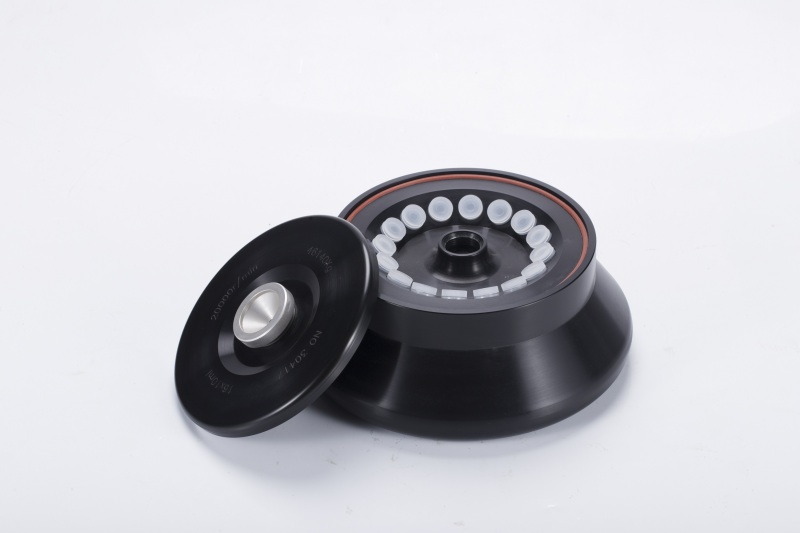

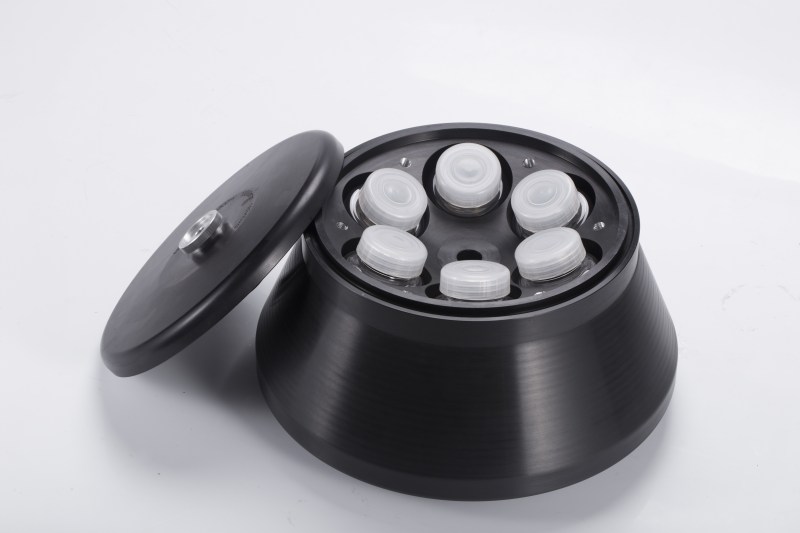

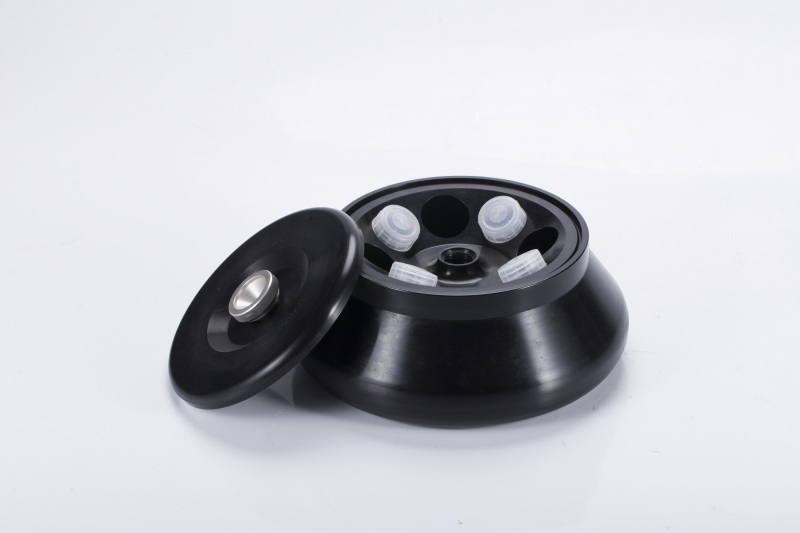

Matched Rotors for GL21M medical blood bag centrifuge
Order No. | Rotor | Max speed (r/min) | Max capacity (ml) | Max RCF (*g) |
30108 | Fixed rotor | 21000 | 12*10ml | 44440 |
30117 | Fixed rotor | 20000 | 16*10ml | 46140 |
30111 | Fixed rotor | 20000 | 6*50ml | 44700 |
30118 | Fixed rotor | 20000 | 8*30/20ml | 42040 |
30119 | Fixed rotor | 15000 | 8*50ml | 27540 |
30112 | Fixed rotor | 15000 | 6*70ml | 25480 |
30120 | Fixed rotor | 12000 | 8*100ml | 19610 |
30121 | Fixed rotor | 11000 | 4*300ml | 18120 |
30122 | Fixed rotor | 10000 | 6*300ml | 15730 |
30123 | Fixed rotor | 8000 | 6*500ml | 11740 |
30128 | Continuous centrifugal rotor | 17000 | 1000ml | 31390 |
30129 | Continuous centrifugal rotor | 14000 | 1800ml | 21710 |
30130 | Continuous centrifugal rotor | 8000 | 3000ml | 9450 |
30131 | Continuous centrifugal rotor | 8000 | 1800ml | 8600 |
30132 | Interval rotor | 17000 | 1000ml | 31390 |
30133 | Interval rotor | 12000 | 1200ml | 19350 |
30134 | Interval rotor | 10000 | 3000ml | 14890 |
30135 | Vertical rotor | 20000 | 16*5ml | 38340 |
Vertical rotor | 18000 | 8*30ml | 32650 | |
30180 | Swing rotor | 15000 | 4*5ml | 21670 |
30181 | Swing rotor | 13000 | 4*30ml | 23580 |
30182 | Swing rotor | 10000 | 4*50ml | 16240 |
30694 | Bucket rotor | 4000 | 4*4*96holes | 2840 |
30696 | Swing rotor | 4000 | 4*500ml | 3380 |
1. We have one –year warranty on our all products
2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.
3. We will visit our customers every year, see whether the machine is in good condition, if something wrong happened to our machine, we will repair it for you.
4. we will pay attention to the feedback of the customers within 24 hours.
5. We won’t charge customers any money for repairing the machine in one-year warranty time, the freight is also on us.
6. We only charge for the accessories on repairing the machine beyond the one-year warranty time.
7. We have technician training class twice a year, training the technician for our distributor.
