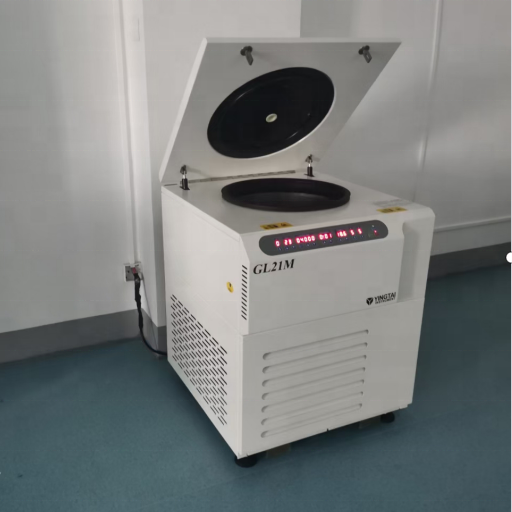

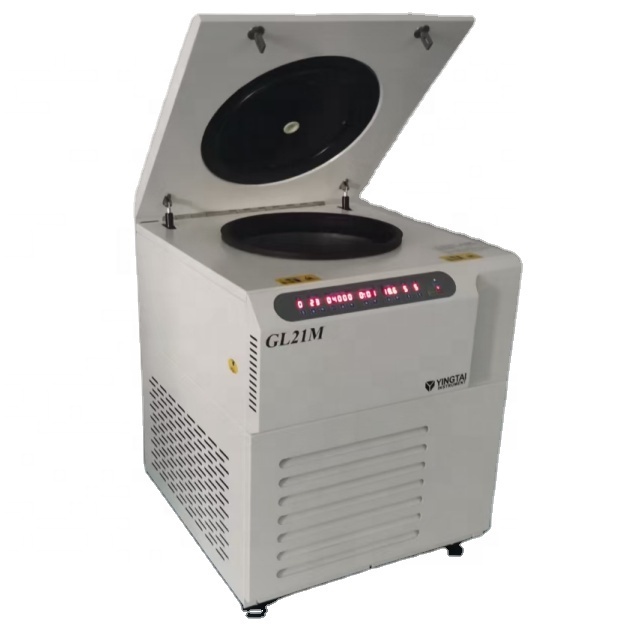

GL20 Floor standing Benchtop High Speed refrigerated centrifuge
GL20 Floor standing Benchtop High Speed refrigerated centrifuge
1. Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
5. Microprocessor control speed, temperature and time, digital display, 10 kinds of accelerating and decelerating speed for your choice.
6. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
7. The centrifuge body is made of high quality steel.
8. 3 tiers protection steel cover, safe and reliable.
- Changsha, China
- 1 week
- 5000 sets
- Information
GL20 Floor standing Benchtop High Speed refrigerated centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Application:
1. Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
2. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
3.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
4. There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously.
5. Microprocessor control speed, temperature and time, digital display, 10 kinds of accelerating and decelerating speed for your choice.
6. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
7. The centrifuge body is made of high quality steel.
8. 3 tiers protection steel cover, safe and reliable.
Technical parameters:
| Max speed | 21000r/min | Max RCF | 30910*g |
| Time range | 1~99H59min | Speed accuracy | ±50r/min |
| Weight | 170KG | Dimension | 865*728*1240mm |
| capacity | 4*800ml | Noise | <=65dBA |
| Temperature range | -20~40ºC | Temperature accuracy | ±1ºC |
| Power | AC110/220V, 50-60HZ,35A | Rotor identification | Automatic identification |
| Package | wooden box |

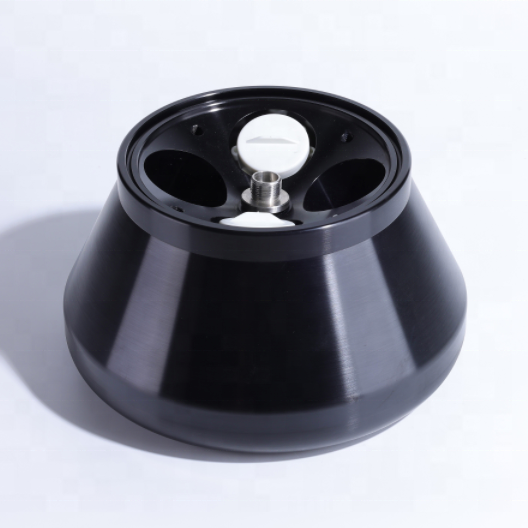

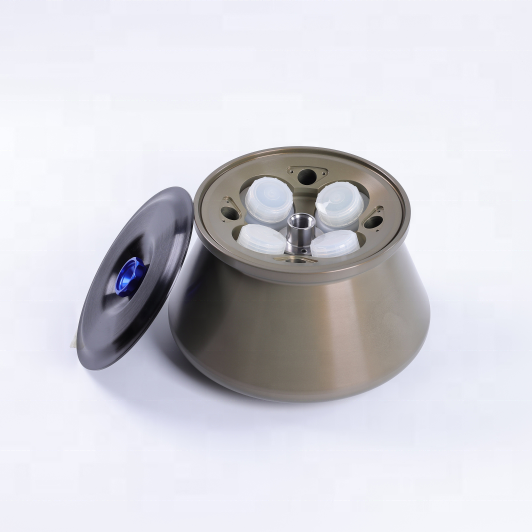

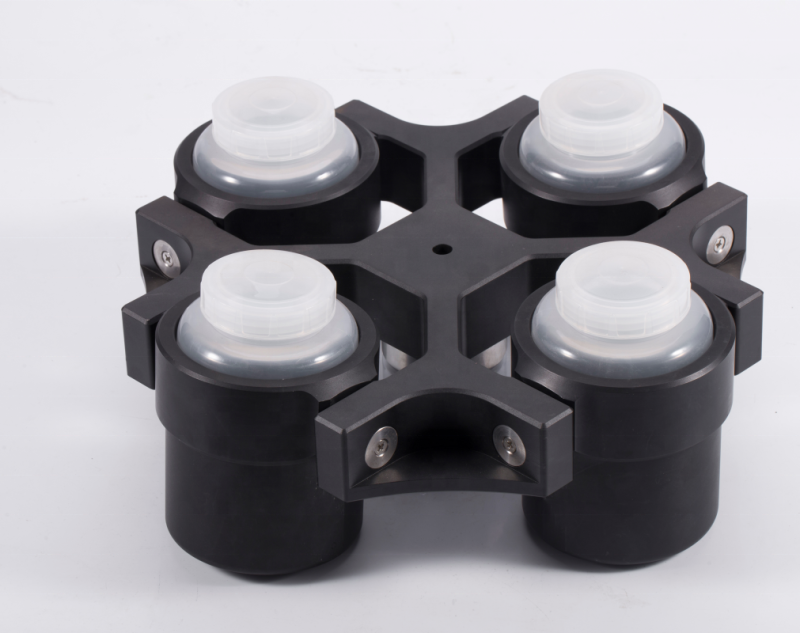

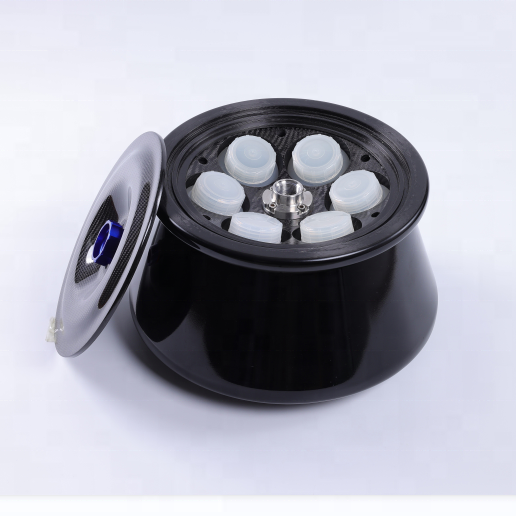

Matched Rotors for GL20:
| Order No. | Rotor | Max speed (r/min) | Max capacity (ml) | Max RCF (*g) |
| 30108 | Fixed rotor | 21000 | 12*10ml | 44440 |
| 30117 | Fixed rotor | 20000 | 16*10ml | 46140 |
| 30111 | Fixed rotor | 20000 | 6*50ml | 44700 |
| 30118 | Fixed rotor | 20000 | 8*30/20ml | 42040 |
| 30119 | Fixed rotor | 15000 | 8*50ml | 27540 |
| 30112 | Fixed rotor | 15000 | 6*70ml | 25480 |
| 30120 | Fixed rotor | 12000 | 8*100ml | 19610 |
| 30121 | Fixed rotor | 11000 | 4*300ml | 18120 |
| 30122 | Fixed rotor | 10000 | 6*300ml | 15730 |
| 30123 | Fixed rotor | 9000 | 6*500ml | 14860 |
| 30128 | Continuous centrifugal rotor | 17000 | 1000ml | 31390 |
| 30129 | Continuous centrifugal rotor | 14000 | 1800ml | 21710 |
| 30130 | Continuous centrifugal rotor | 8000 | 3000ml | 9450 |
| 30131 | Continuous centrifugal rotor | 8000 | 1800ml | 8600 |
| 30132 | Interval rotor | 17000 | 1000ml | 31390 |
| 30133 | Interval rotor | 12000 | 1200ml | 19350 |
| 30134 | Interval rotor | 10000 | 3000ml | 14890 |
| 30135 | Vertical rotor | 20000 | 16*5ml | 38340 |
| Vertical rotor | 18000 | 8*30ml | 32650 | |
| 30180 | Swing rotor | 15000 | 4*5ml | 21670 |
| 30181 | Swing rotor | 13000 | 4*30ml | 23580 |
| 30182 | Swing rotor | 10000 | 4*50ml | 16240 |
| 30694 | Bucket rotor | 4000 | 4*4*96holes | 2840 |
| 30696 | Swing rotor | 4000 | 4*500ml | 3380 |
Do you have specific request for packing?
We have especially reinforced out pacing in order to minimize the extent ofany possible damage to the centrifuges.
