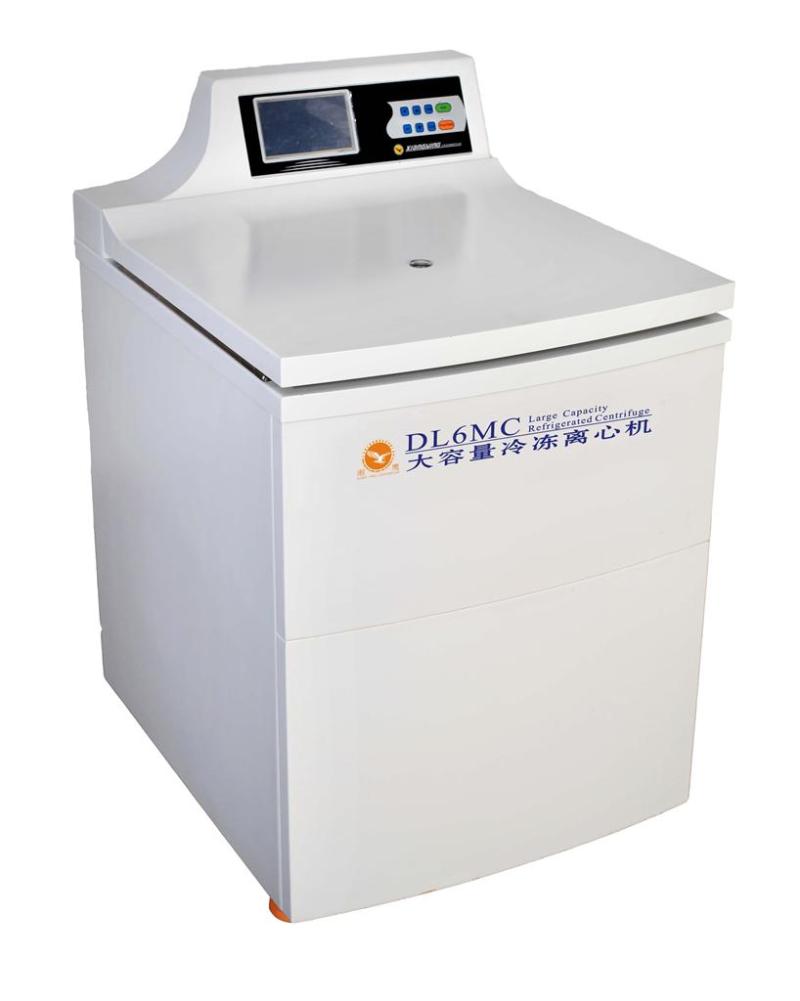

Large Capacity Low Speed Refrigerated Laboratory Centrifuge DL-6MC
Large Capacity Low Speed Refrigerated Laboratory Centrifuge DL-6MC
1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Microprocessor lid locks. The lid can be opened by electronic lock or via manual operation in case of resulted from broken electronic lock.
3. Easy open the centrifuge lid via pneumatic springs;
4. The centrifuge stand on movable casters.
5. With the self-diagnositc system and protection for imbalance, over-speed and over-
6. temperature. Both automatic electronic lock and mechanical lock to ensure safety.
- Information
Large Capacity Low Speed Refrigerated Laboratory Centrifuge DL-6MC
Feature
1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Microprocessor lid locks. The lid can be opened by electronic lock or via manual operation in case of resulted from broken electronic lock.
3. Easy open the centrifuge lid via pneumatic springs;
4. The centrifuge stand on movable casters.
5. With the self-diagnositc system and protection for imbalance, over-speed and over-
6. temperature. Both automatic electronic lock and mechanical lock to ensure safety.
Technical parameters
Model | DL-6MC | Max Speed | 6000r/min |
Max RCF | 6680xg | Max Capacity | 6×1000ml |
Speed Accuracy | ±10r/min | Timer Range | 0-99h 59 min |
Temperature Range | -20~+40℃ | control&drive | microprocessor control/direct drive |
Acc/dec Rate | 0-9(Grade) | Program Store | 35 |
Motor Power | 3.8KW | Refrigerator Power | 2.2KW |
Noise | ≤60dB(A) | Power Supply | AC220V/110V 50Hz 35A |
Weight(Without Rotor) | 260kg | Dimensions | 730×840×1200mm(L×W×H) |
Refrigeration System | Big Brand High-performance Compressor CFC-free Refrigeration System | ||

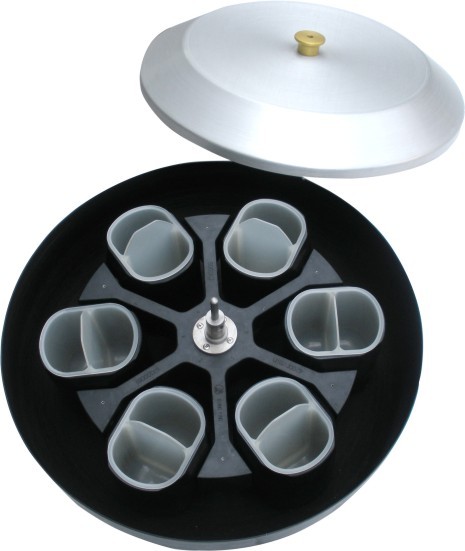

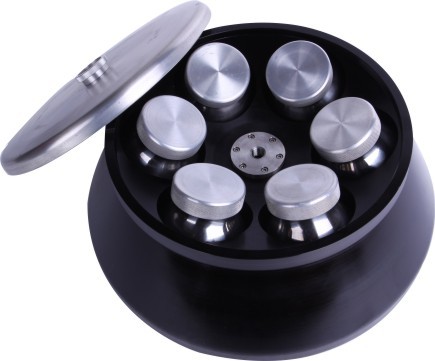

Rotor | No.1 AR 6*500ml (6000rpm 6680xg) No.2 SR 6*1000ml Round Cup (4200rom 5600xg) No.3 SR 6*1000ml Oval Cup (4000rom 5600xg) | ||
