Benchtop Refrigerated Large Capacity Centrifuge DL-6MC/DL-7MC
Benchtop Refrigerated Large Capacity Centrifuge DL-6MC/DL-7MC
1. Refrigerated Laboratory Centrifuge Machine with the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Refrigerated Laboratory Centrifuge Machine widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation,protein precipitation and cell collection.
3. Refrigerated Laboratory Centrifuge Machine adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relation RCF.
4. Refrigerated Laboratory Centrifuge Machine maintenance-free frequency conversion motor, and prevent over-speed operation.
- Information
Benchtop Refrigerated Large Capacity Centrifuge DL-6MC/DL-7MC
DL-6MC/DL-7MC Floortype Refrigerated Laboratory Centrifuge Machine with Large Capacity
Features
1. Refrigerated Laboratory Centrifuge Machine with the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Refrigerated Laboratory Centrifuge Machine widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation,protein precipitation and cell collection.
3. Refrigerated Laboratory Centrifuge Machine adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relation RCF.
4. Refrigerated Laboratory Centrifuge Machine maintenance-free frequency conversion motor, and prevent over-speed operation.
Technical Parameters
Model | DL-6MC | DL-7MC |
Max Speed | 6000r/min | 7000r/min |
Max RCF | 6680xg | 11500xg |
Max Capacity | 4×750ml | |
Speed Accuracy | ±50rpm | |
Temp Accuracy | ±1℃ | |
Temp Range | -20℃~+40℃ | |
Timer Range | 0~9h 59min | |
Motor | Microprocessor control, AC Frequency Motor | |
Noise | ≤60dB(A) | |
Power Supply | AC220V 50Hz 30A &AC110V 60Hz | |
Dimension | 730×840×1200(L×W×H) | |
Weight | 260kg | |
Rotors
Number | Max Speed | Max RCF | Capacity |
NO.1 Angle Rotor | 7000r/min | 11500xg | 6×500ml ( Blood bag and bottles) |
NO.2 Swing Rotor | 4200r/min | 4390xg | 4×750ml Bottles |
No.3 Uncap rotor | 4000r/min | 3840xg | 148×5/7ml Vacuum tubes |
No.4 Swing rotor | 4000r/min | 3780×g | 6×500ml blood bag and bottles |
No.5 Swing Rotor | 4000r/min | 3780×g | 4×500ml blood bag and bottles |
No.6 Automatic Uncap rotor | 4000r/min | 3480×g | 216×5/7ml Vacuum Tubes |
No.7 Microplates Rotor | 4000r/min | 2200×g | 2×2×96holes |

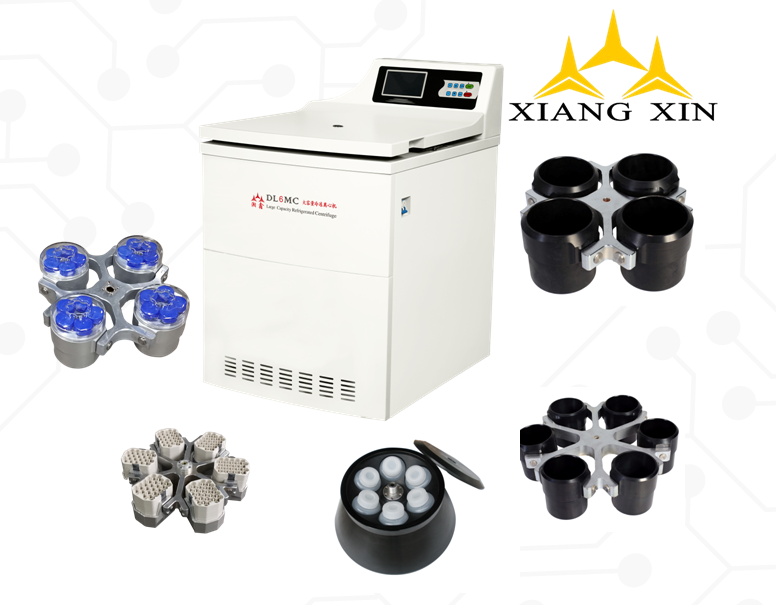

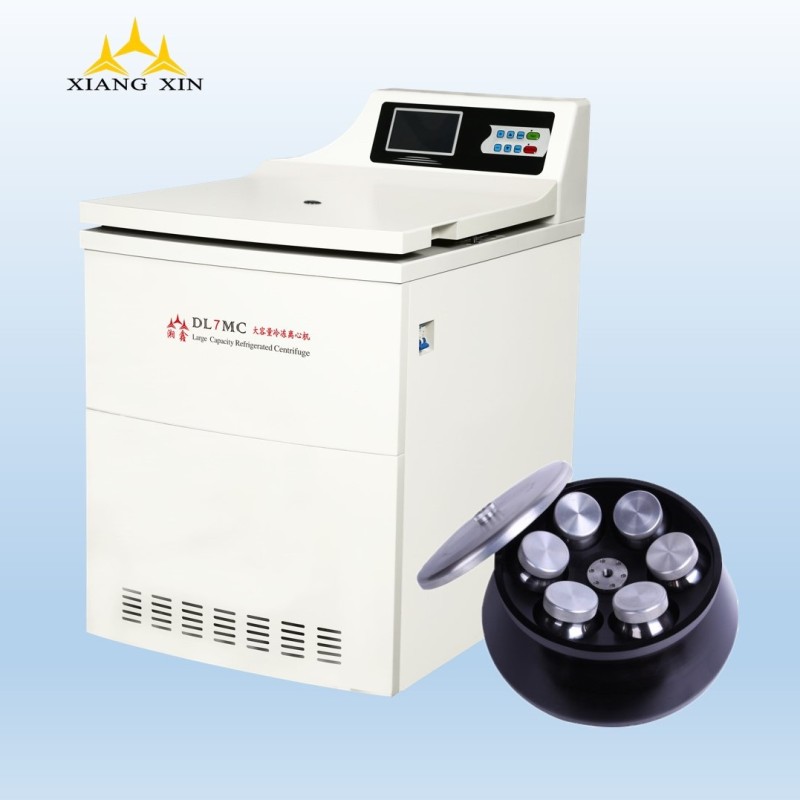

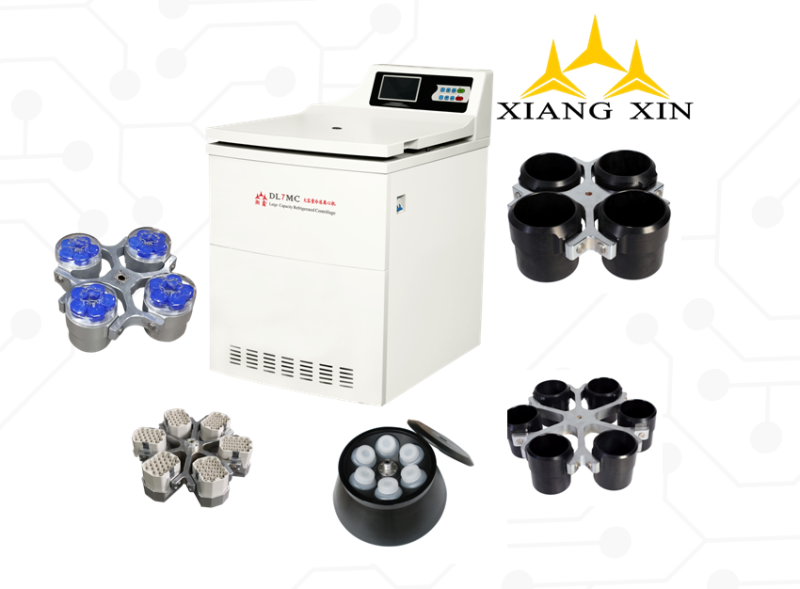

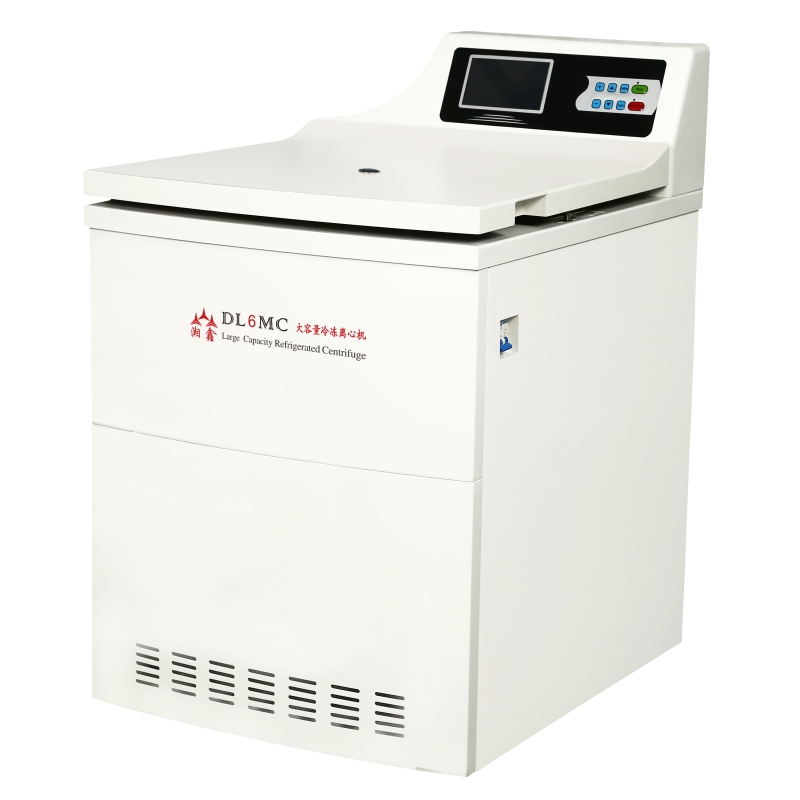

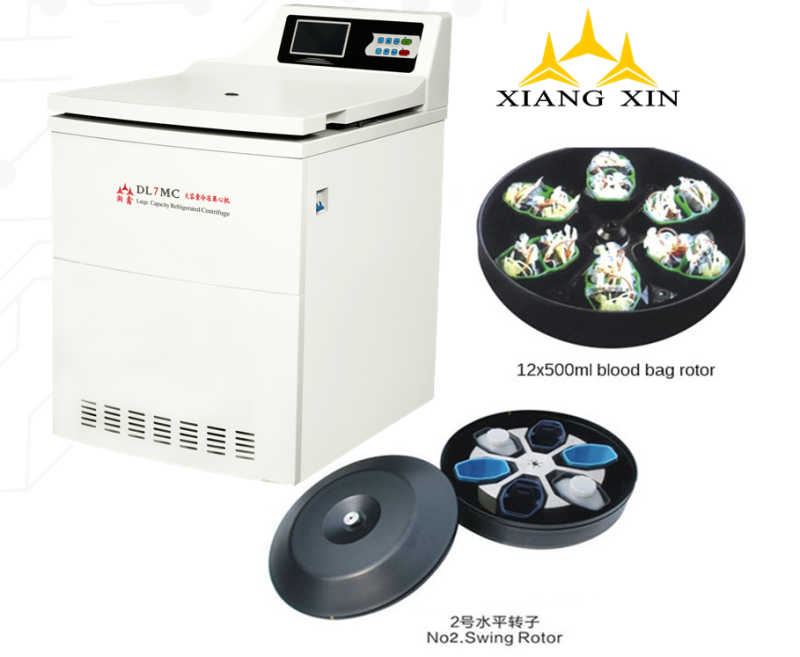

Product Images
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
