Low Speed 4000rpm Aerosol Filtration Centrifuge
Low Speed 4000rpm Aerosol Filtration Centrifuge
1. Greatly improved the work efficiency and avoided the re-mix of blood after separation.
2. Completely eradicated bacteria infection and It is suitable for every capacity of evacuated blood tube.
3. Microprocessor control and AC conversion motor, with high speed accuracy and 100% uncap rate.
4. Large LCD display, showing RPM, RCF, Speed, Running Time, Errors.
5. Adapter with double unique design to avoid caps dropping during running.
6. There are non-refrigerated type, refrigerated type, and small Range refrigerated type for choose
- Changsha, China
- 1 week
- 10000 sets
- Information
Low Speed 4000rpm Aerosol Filtration Centrifuge
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
TDL-420/DD4-TM/DL4-TM Floor-type Low Speed Automatic Uncap Aerosol Filtration Centrifuge
Features
Our product us a special design for hospital, blood station, radio-immunoassay and nuclear medicine.
It can complete all action at a time and solve the difficulty of uncap in separation of vacuum blood tube, which to be the most advanced and efficient separation machine.
1. Greatly improved the work efficiency and avoided the re-mix of blood after separation.
2. Completely eradicated bacteria infection and It is suitable for every capacity of evacuated blood tube.
3. Microprocessor control and AC conversion motor, with high speed accuracy and 100% uncap rate.

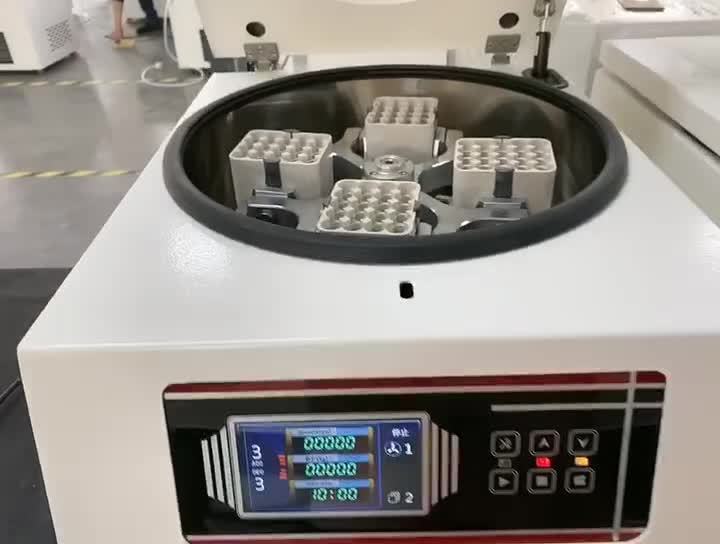

4. Large LCD display, showing RPM, RCF, Speed, Running Time, Errors.

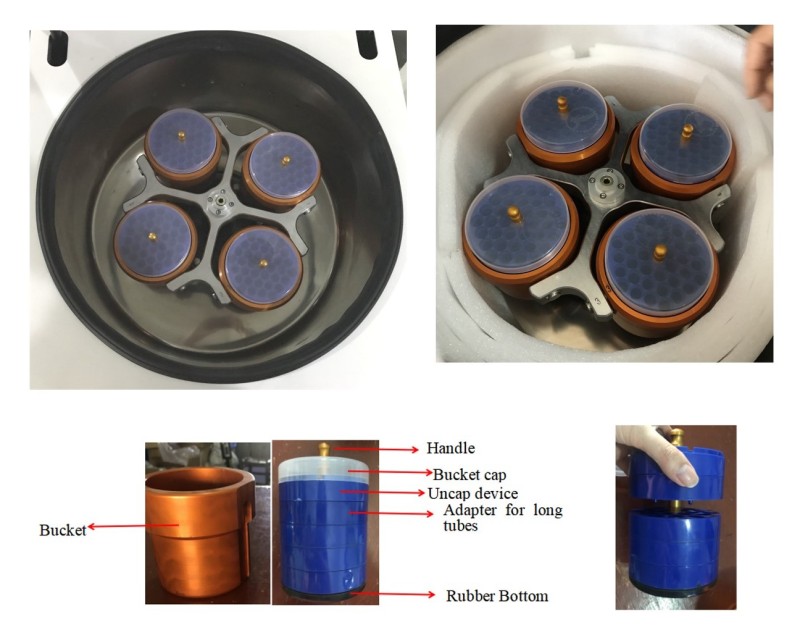

5. Adapter with double unique design to avoid caps dropping during running.
6. There are non-refrigerated type, refrigerated type, and small Range refrigerated type for choose.
Technical Parameters
Model | TDL420 (Temperature Control) | DD4-TM (RT) | DL4-TM (refrigerated) | ||
Max Speed | 4000r/min | ||||
Rotor | Rotor | Max Speed | RCF | ||
NO.1 Swing Rotor | 108×2/5ml | 4000r/min | 3840×g | ||
NO.2 Swing Rotor | 120×2/5ml | 4000r/min | 3840×g | ||
NO.3 Swing Rotor | 148×2/5ml | 4000r/min | 3840×g | ||
NO.4 Swing Rotor | 162×2/5ml | 4000r/min | 3840×g | ||
Motor | Microprocessor Control, AC Frequency Motor | ||||
Timer Range | 0~99min | ||||
Temperature Range | +0℃~+40℃ (Temper control type) -20℃~+40℃ (refrigerated type) | ||||
Noise | ≤65dB(A) | ||||
Power Supply | AC220V & 110V 50-60Hz 5A | ||||
Dimension | 800×600×820mm(L×W×H) | ||||
Weight | 120KG/150kg(Refrigerated Function) | ||||

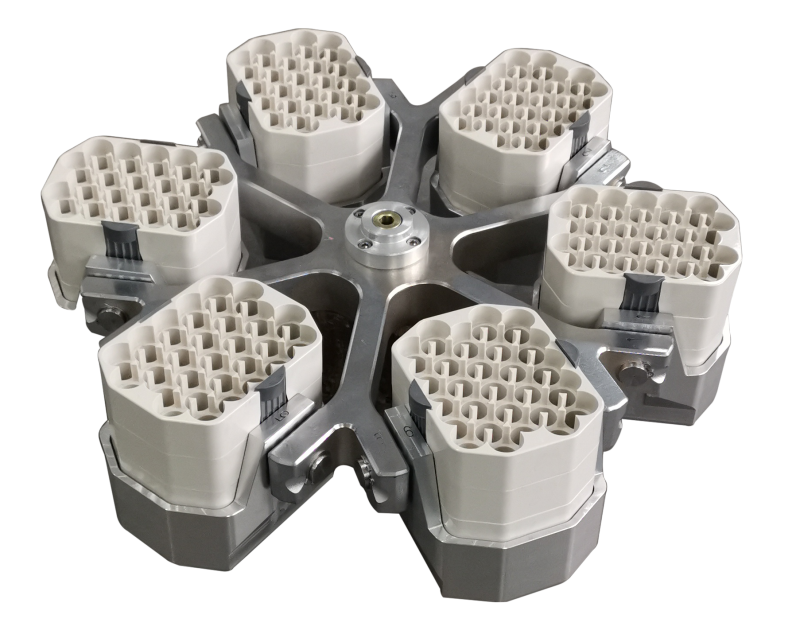

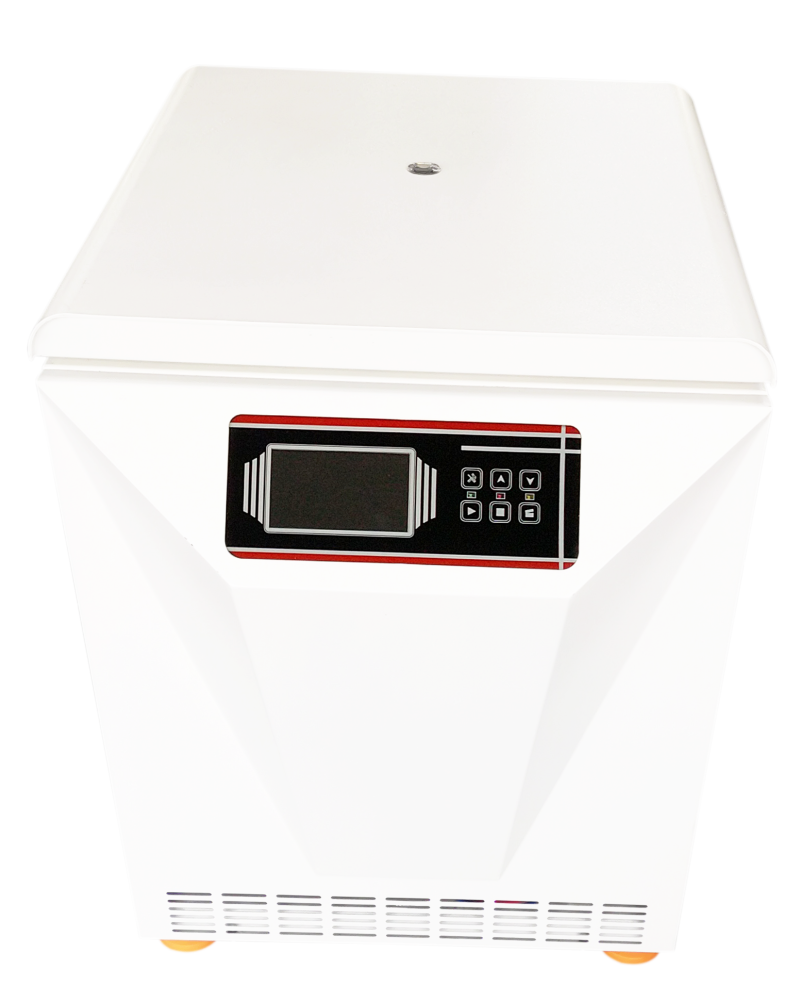

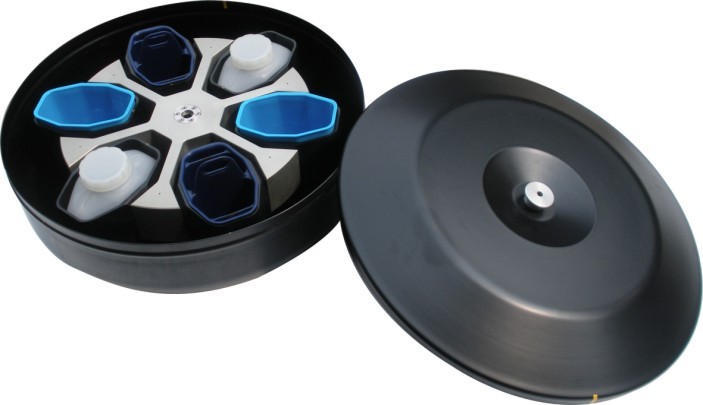

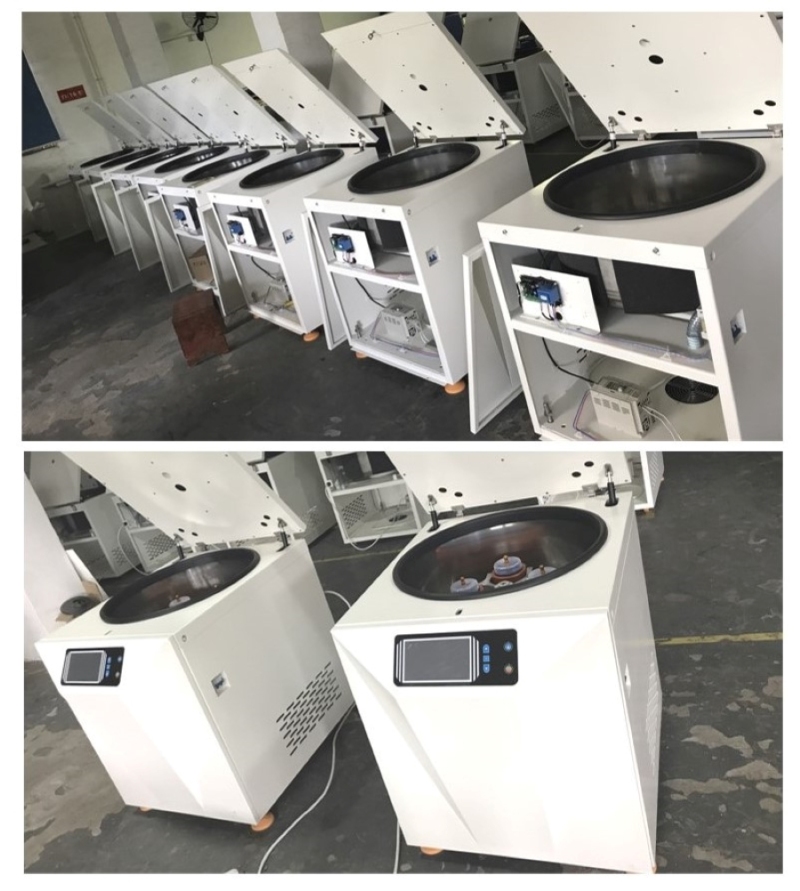

Product Images
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
