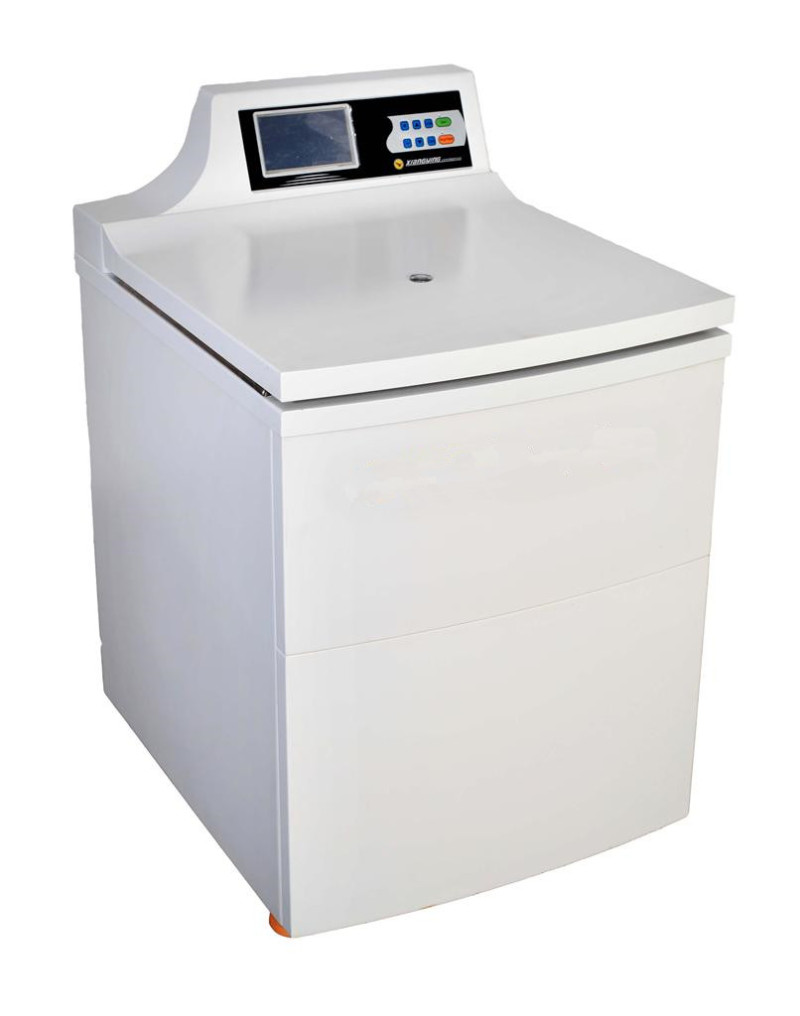

High Speed Large Capacity Refrigerated Laboratory Centrifuge GL-10MC
High Speed Large Capacity Refrigerated Laboratory Centrifuge GL-10MC
Superior performance
Microcomputer controlled, AC frequency variable motor drive, without power pollution,and longer lifetime. Lower noise and less vibration, equipped with multiple types of rotors for users to choose.Efficiency has been greatly improved.
Easy operation
Equipped with Large LCD with touch function display,programmable application, which can be operated freely with variety of rotors for selection.
Good effect
With function of freely setting the acceleration time, deceleration time, and automatically calculating RCF, which can achieve good centrifugal effect.
Safe and reliable performance
With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
- Information
High Speed Large Capacity Refrigerated Laboratory Centrifuge GL-10MC
Feature
Superior performance
Microcomputer controlled, AC frequency variable motor drive, without power pollution,and longer lifetime. Lower noise and less vibration, equipped with multiple types of rotors for users to choose.Efficiency has been greatly improved.
Easy operation
Equipped with Large LCD with touch function display,programmable application, which can be operated freely with variety of rotors for selection.
Good effect
With function of freely setting the acceleration time, deceleration time, and automatically calculating RCF, which can achieve good centrifugal effect.
Safe and reliable performance
With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
Technical parameters
Model | GL-10MC | ||
Max Speed/RCF | 10000r/min 18300xg | ||
Speed Accuracy | ±20r/min | ||
Temp Range | -20℃~+40℃±1℃ | ||
Refrigeration system | High-performance Compressor CFC-free Refrigeration System | ||
Timer Range | 0~23h 59min | ||
Motor | Microprocessor control, Frequency conversion motor | ||
Noise | ≤60dB(A) | ||
Power Supply | AC220V 50-60Hz 30A | ||
Dimension | 710×820×1200mm(L×W×H) | ||
Net Weight | 260kg | ||

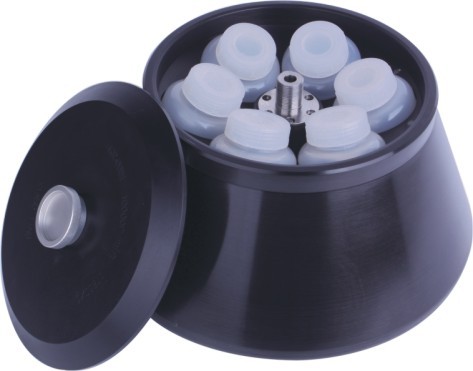

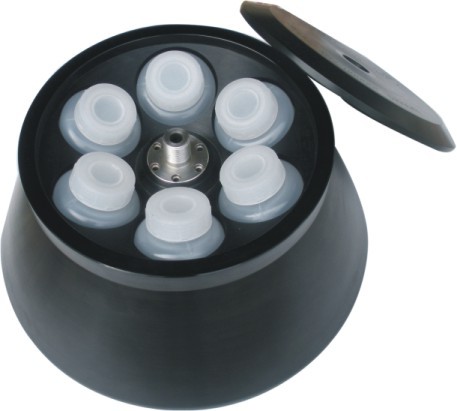

Rotor No. | Max Capacity | Max Speed | Max RCF |
No.1 AR | 6x300ml | 10000r/min | 18300xg |
No.2 AR | 6x500ml 4x750ml | 8000r/min | 11620xg |
No.3 SR | 4x1000ml | 4000r/min | 4050xg |
