Benchtop Large Capacity Refrigerated Centrifuge DL-7MC
Benchtop Large Capacity Refrigerated Centrifuge DL-7MC
1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation,protein precipitation and cell collection.
3. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relation RCF.
4. Maintenance-free frequency conversion motor, and prevent over-speed operation.
- Information
Benchtop Large Capacity Refrigerated Centrifuge DL-7MC
Feature
1. With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
2. Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation,protein precipitation and cell collection.
3. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relation RCF.
4. Maintenance-free frequency conversion motor, and prevent over-speed operation.
Technical Parameters:
Model | DL-6MC | DL-7MC |
Max Speed | 6000r/min | 7000r/min |
Max RCF | 6680xg | 11500xg |
Max Capacity | 4×750ml | |
Speed Accuracy | ±50rpm | |
Temp Accuracy | ±1℃ | |
Temp Range | -20℃~+40℃ | |
Timer Range | 0~9h 59min | |
Motor | Microprocessor control, AC Frequency Motor | |
Noise | ≤60dB(A) | |
Power Supply | AC220V 50Hz 30A &AC110V 60Hz | |
Dimension | 730×840×1200(L×W×H) | |
Weight | 260kg | |

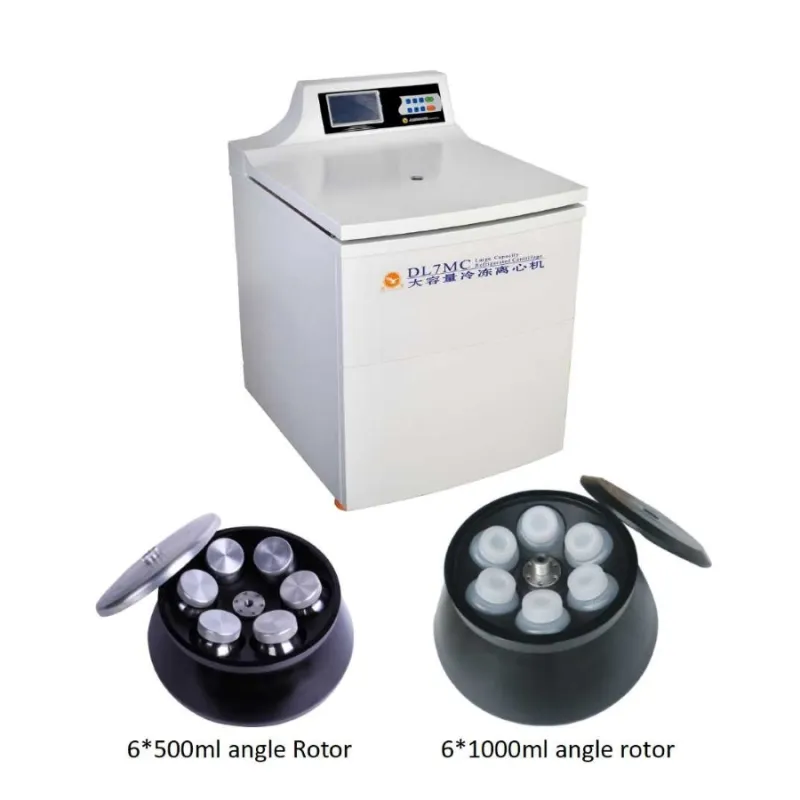

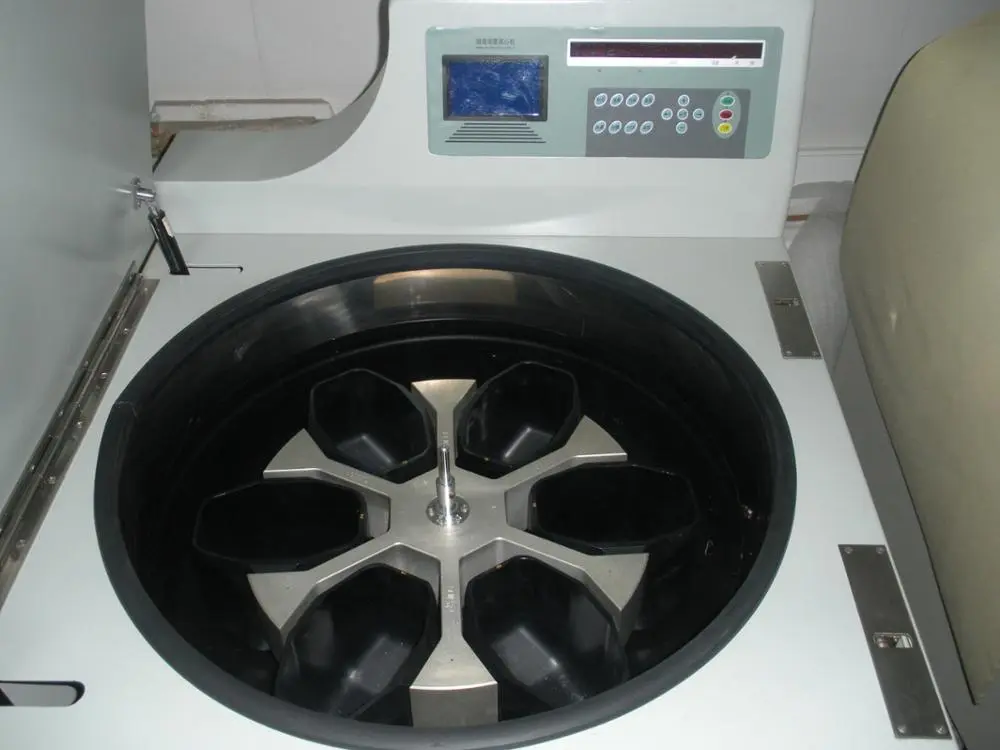

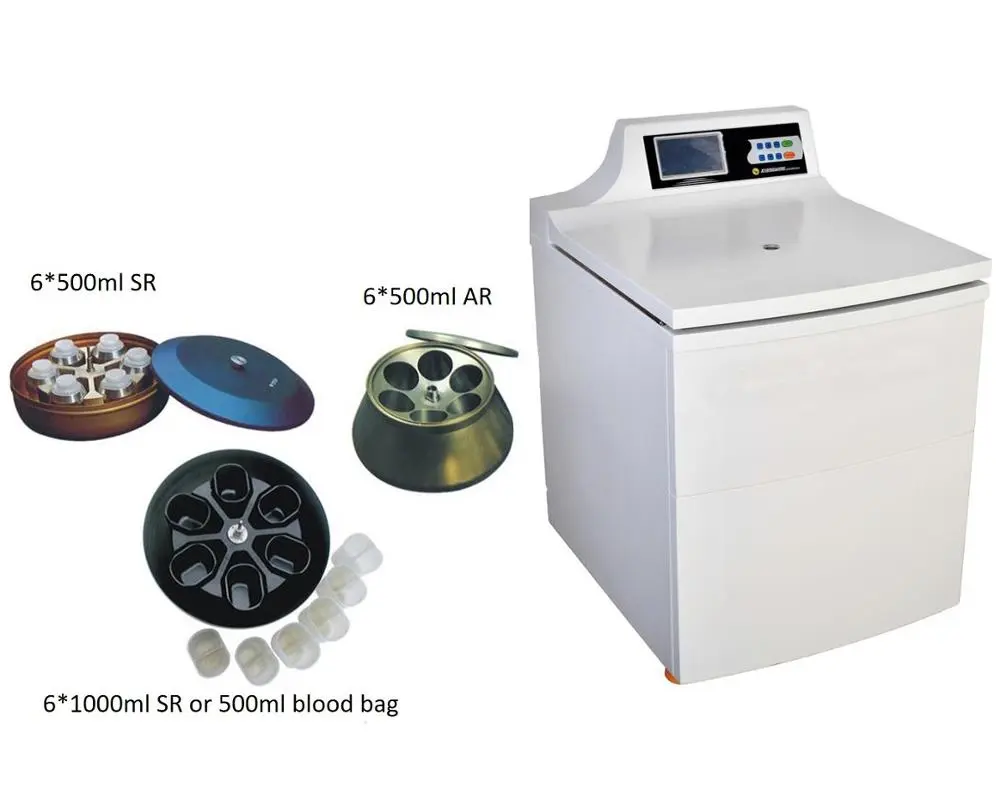

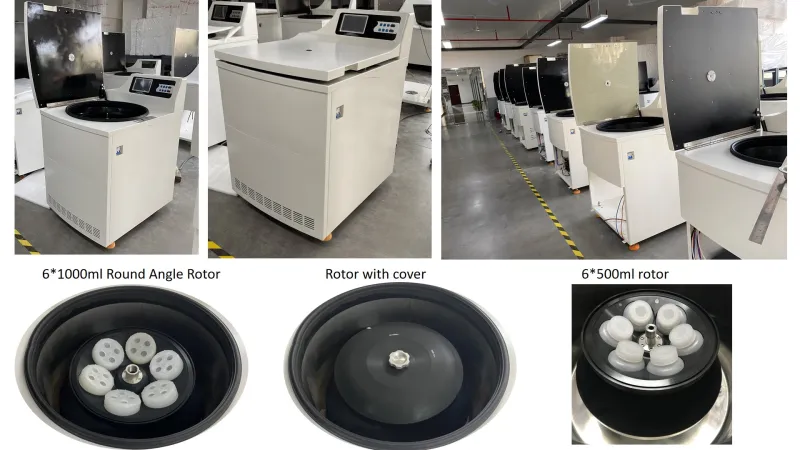

Rotor
Number | Max Speed | Max RCF | Capacity |
NO.1 Angle Rotor | 7000r/min | 11500xg | 6×500ml ( Blood bag and bottles) |
NO.2 Swing Rotor | 4200r/min | 4390xg | 4×750ml Bottles |
No.3 Uncap rotor | 4000r/min | 3840xg | 148×5/7ml Vacuum tubes |
No.4 Swing rotor | 4000r/min | 3780×g | 6×500ml blood bag and bottles |
No.5 Swing Rotor | 4000r/min | 3780×g | 4×500ml blood bag and bottles |
No.6 Automatic Uncap rotor | 4000r/min | 3480×g | 216×5/7ml Vacuum Tubes |
No.7 Microplates Rotor | 4000r/min | 2200×g | 2×2×96holes |
