DDL6 6000rpm large capacity refrigerated centrifuge with blood bag
- Information

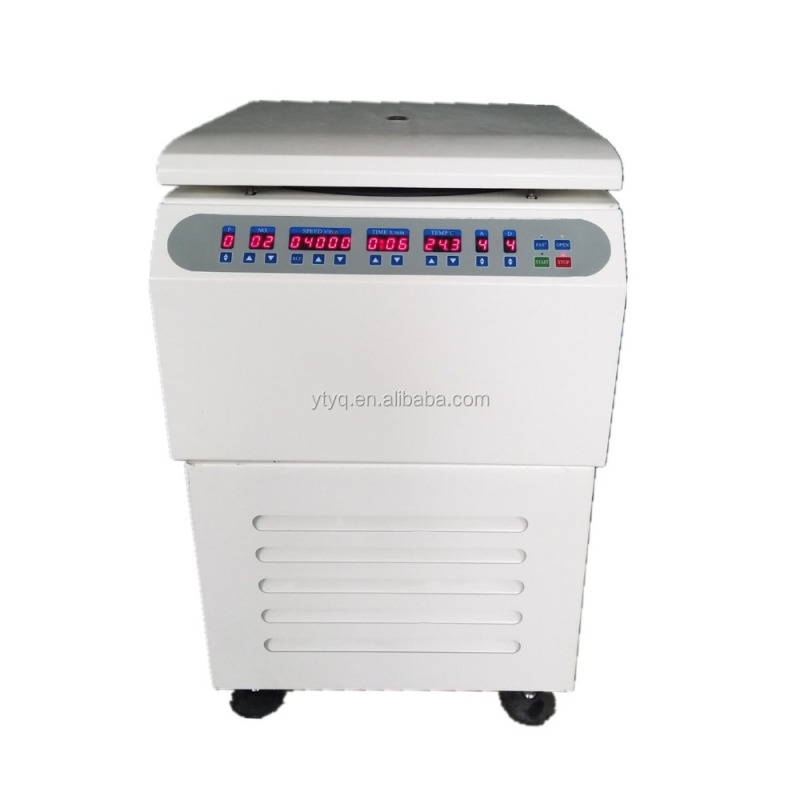

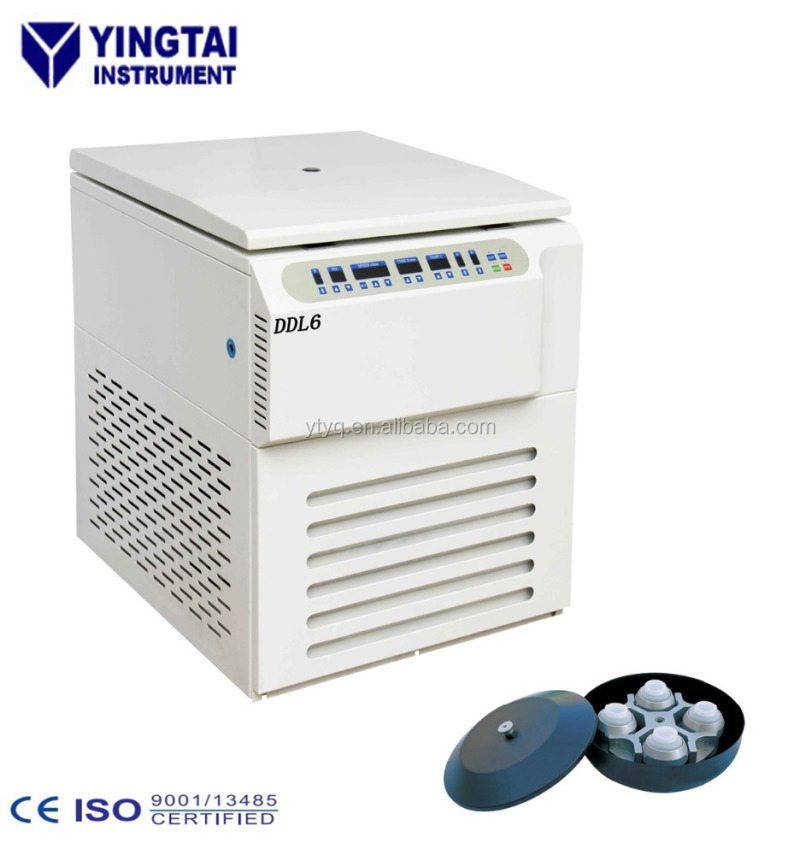

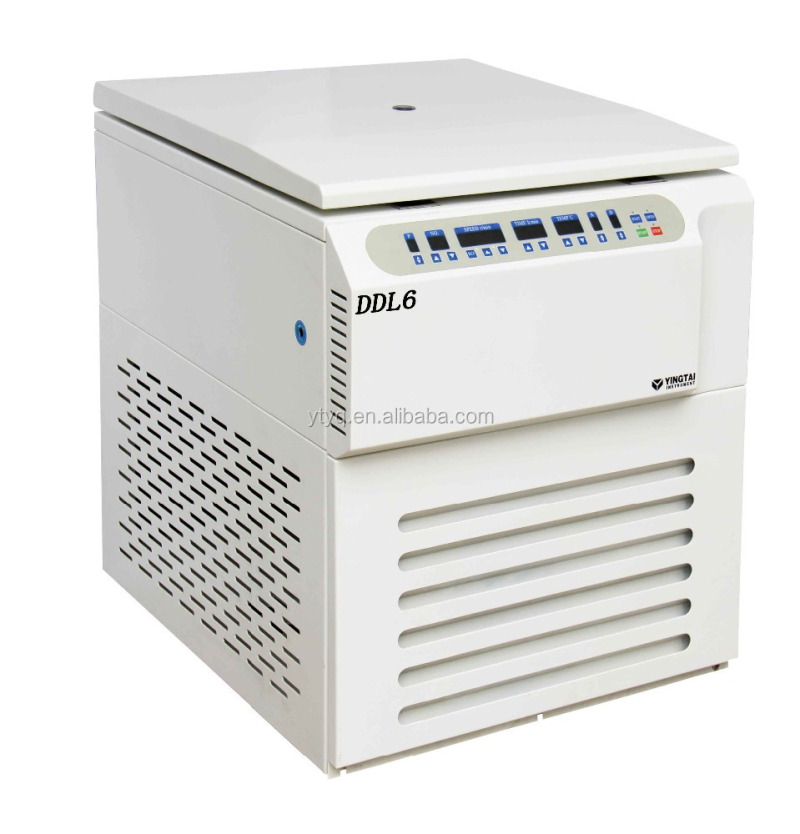

DDL6 large capacity refrigerated centrifuge
Application for DDL6 large volume refrigerated centrifuge
Widely used in the area of blood station, pharmaceutical factory, biochemistry, biological products and so on. It is the ideal instruments for blood separation, protein precipitation and cell collection..
Features for DDL6 large volume refrigerated centrifuge
1.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
2. Brushless DC motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down.
3. Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
4. Automatically electric lid lock, super speed, over temperature protection and imbalance protection.
5. Microprocessor control, speed, time, temperature and RCF in operation, speed rising and reducing quick, operate simply.
6.10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
7. There are many rotors for your choice, adapters are available by experiment requirements.
8.3 tiers protection steel cover, safe and reliable.
Technical Parameters for DDL6 large volume refrigerated centrifuge
Max. Speed | 6000rpm |
Max. RCF | 6600×g |
Max. Capacity | 4×1000ml(4*500ml blood bag) |
Time Range | 0~9h59min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | -20~40℃ |
Acc/Dcc | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | ±1℃ |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 800×675×830mm |
Net Weight(Kg) | 190KG |
Certificates | CE,ISO & Calibration report are available |

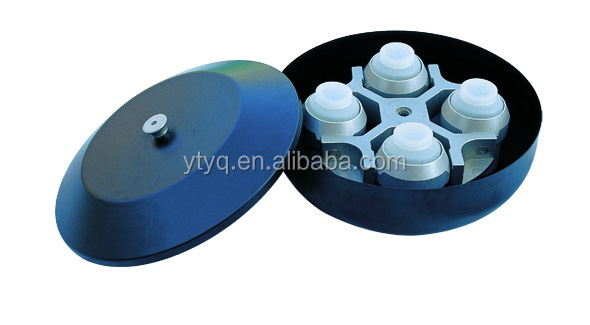

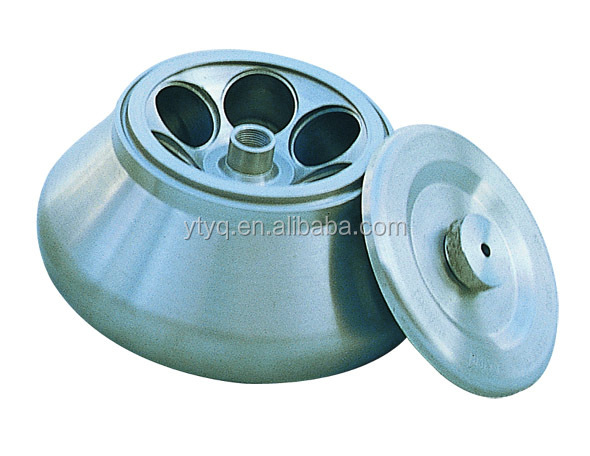

Rotors for refrigerated large capacity centrifuge DDL6
Order No. | Rotor No. | Max Speed (rpm) | Max Volume (ml) | Max.RCF(×g) |
NO33097 | Swing Rotor | 4000 | 4×1000ml | 4060 |
NO30221 | Angle Rotor | 6000 | 4×300ml | 5390 |
NO30222 | Angle Rotor | 6000 | 6×300ml | 5660 |
NO30223 | Angle Rotor | 6000 | 6×500ml | 6600 |
