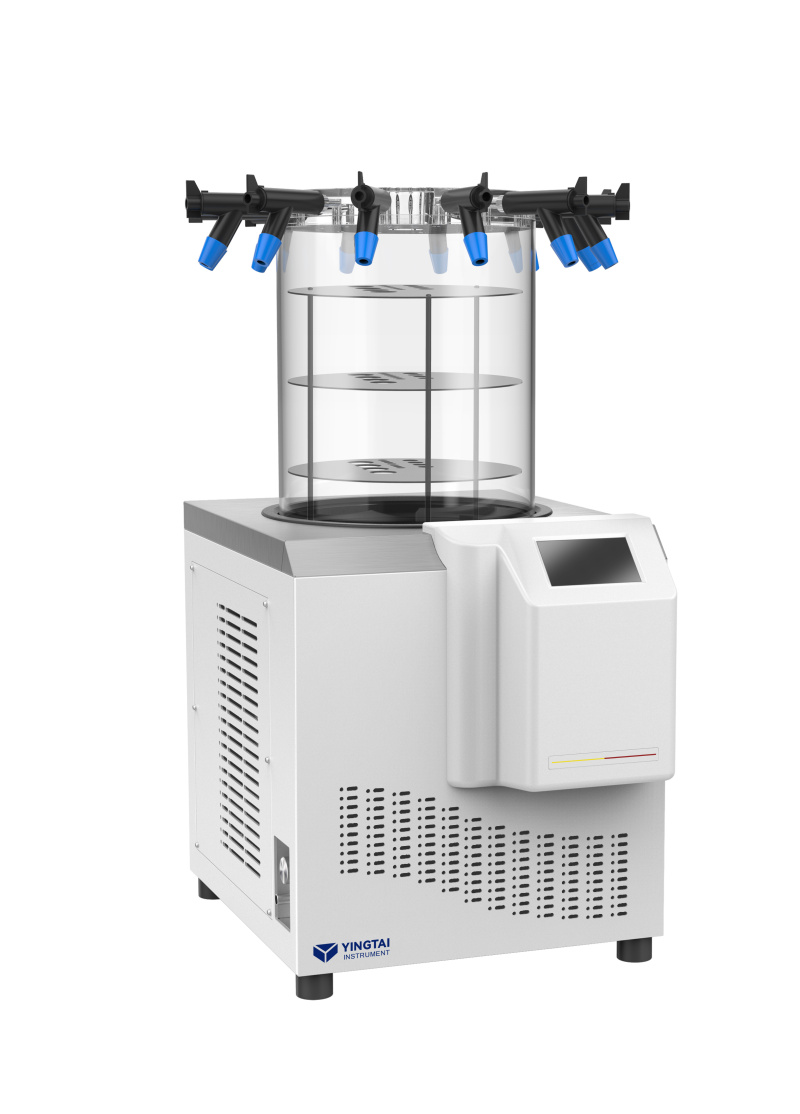

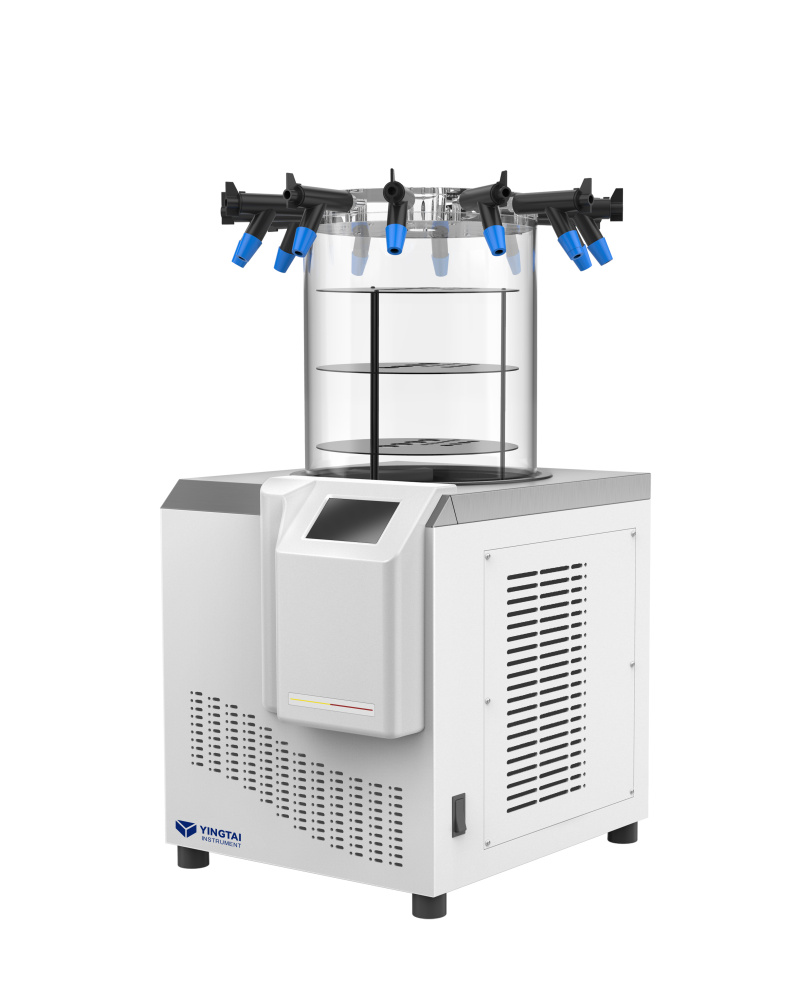

BD1-6 Tabletop small-scale vacuum freeze dryer
- Information
BD1-6 Tabletop small-scale vacuum freeze dryer
Features:
1. The most versatile freeze-drying machine model in the entire series
2. Compact desktop small freeze-drying machine
3. Suitable for drying conventional sample size.
Product Introduction:
1. 6kg water capture capacity, which can meet the needs of most laboratories for freeze-drying capacity
2. -70℃ ultra-low temperature cold trap, capable of capturing organic solvents at lower temperatures
3. Unique refrigeration technology, with a cooling time of ≤ 2 minutes from the start of the low-temperature refrigeration system to the target value of the cold trap
4. Direct capture coil cold trap, with higher efficiency and better ice capture effect;
5. The cold trap and condenser coil are fully treated with Teflon anti-corrosion, and can be freeze-dried with organic solvents
6. One click hot gas defrosting with defrosting compressor protection program.
7. Large flat flange silicone seal, permanently without the need to apply any auxiliary sealing silicone grease
8. High precision ultra wide width detection, vacuum sensor with full range automatic temperature compensation, making vacuum display more accurate.
9. The cavity vacuum can be read and accurately controlled, with a vacuum control accuracy of ≤ 0.1mbar
10. The sample shelf that can be moved and equipped with a dedicated hole for placing centrifuge tubes, making it easier to place and adjust the height.
11. Various types of cavities and T-frame configurations can fully meet the user's sample placement needs
12. Optional configurations include eutectic point detection system and data export system.
13. The vacuum pump and sample placement chamber can be freely combined according to user needs, making the configuration more flexible and convenient.
BD1-6 Technical Parameter:
|
Model |
BD1-6 |
|
Water capture capacity |
6kg/24h |
|
Cold trap temperature |
-70°C |
|
Cold trap volume |
10L |
|
Vacuum pump |
NAVAC NDD12 / Extraction rate:12m3/h |
|
Power |
0.6kw |
|
Product dimension |
489*498*487mm |

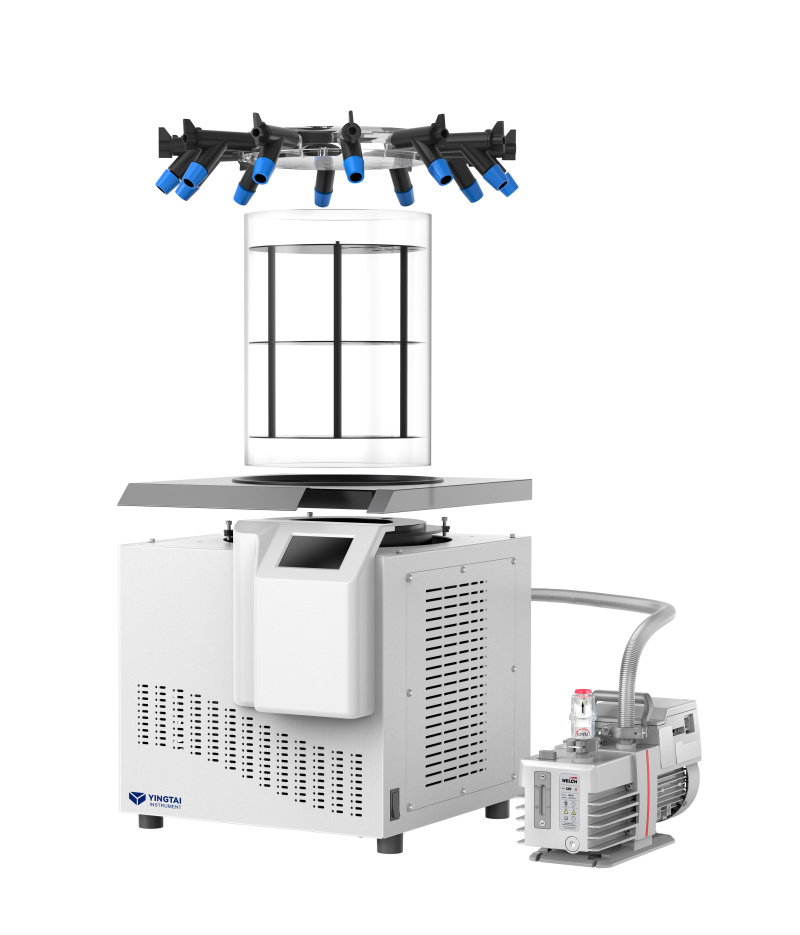

Types of cavities and T-frame configurations for option:
Acrylic chamber(standard configuration) Acrylic chamber with aluminum upper cover& external valve(6 ports/12 ports)
T-frame 12 ports T-frame 24 ports

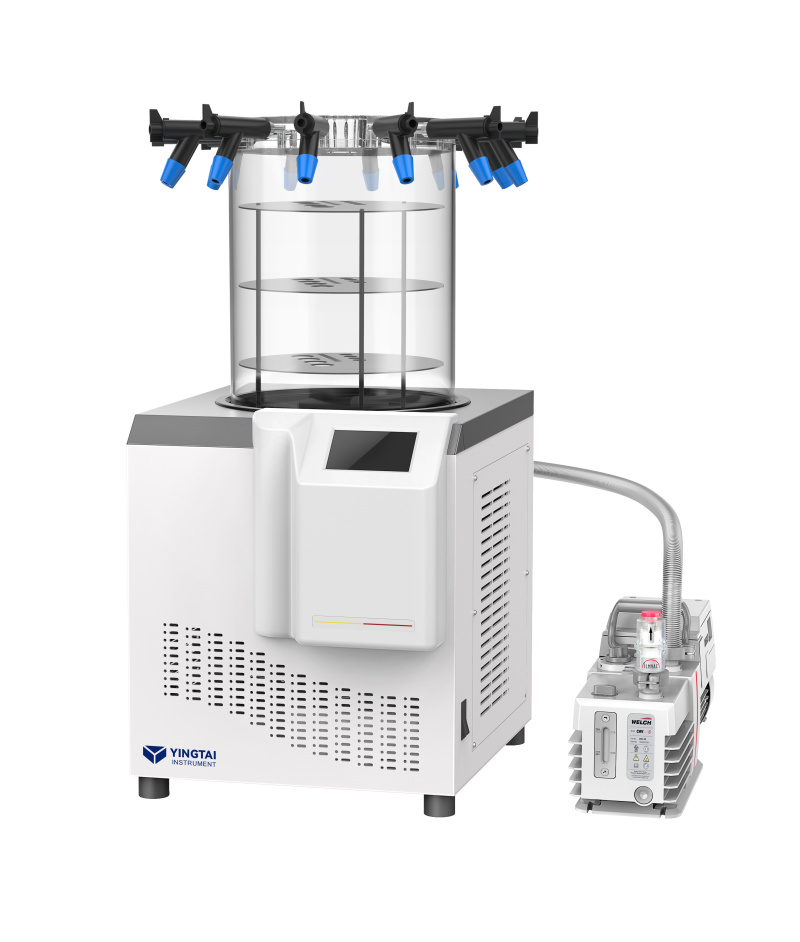

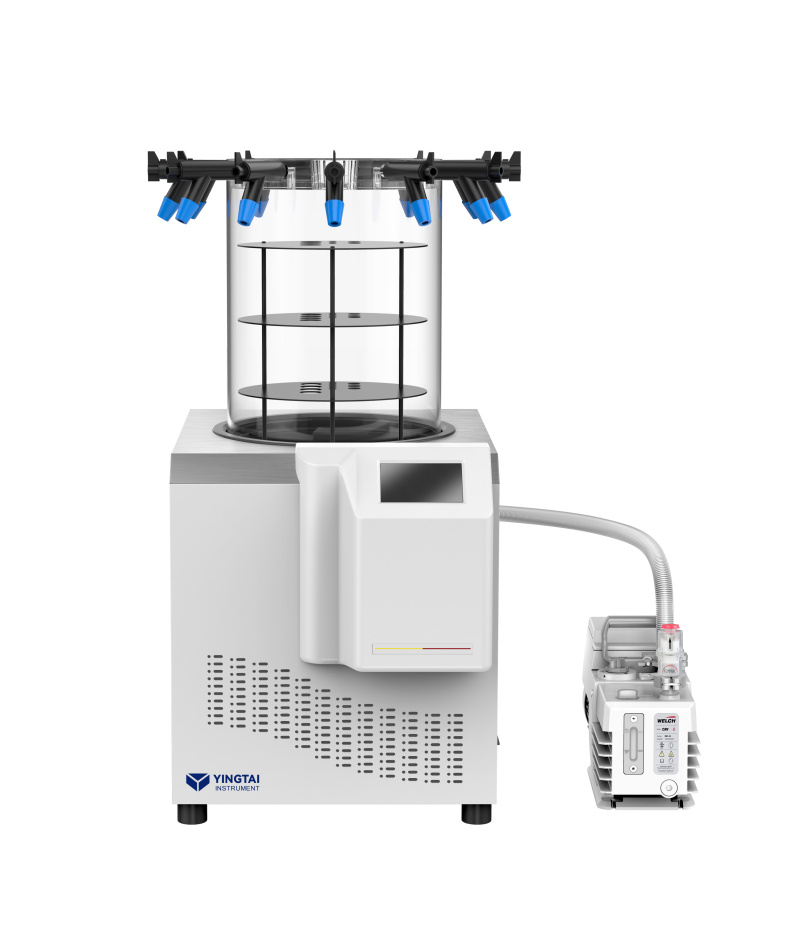

Different Pumps for options:
|
SN |
Vacuum pump type |
Origin |
Main Parameter |
|
|
1 |
Brand: Value Ordinary two-stage rotary vane pump 111
|
|
China |
Extraction rate 8 m ³/ H (133 L/min), 220 V, 50 Hz, with flange interface KF16, vacuum pump tube required |
|
2 |
Brand:NAVAC Oil sealed rotary vane pump Standard configuration |
|
USA |
Extraction rate 12 m ³/ H (200 L/min), 220 V, 50 Hz, with flange interface KF25, requires vacuum pump tube |
|
3 |
Brand:Welch Two-stage rotary vane pump |
|
China |
Extraction rate 6 m ³/ H (100 L/min), 230 V, 50 Hz, including flange interface DN16KF, requiring vacuum pump pipe |
|
4 |
Brand:Welch Chemical anti-corrosion vacuum pump |
|
Germany |
Extraction rate 8 m ³/ H (133 L/min), 230 V, 50 Hz, with flange interface DN16KF, vacuum pump pipe required |
|
5 |
VACUUBRAND Two-stage rotary vane pump |
|
Germany |
Extraction rate 5.7 m ³/ H (95 L/min), 230 V, 50 Hz, including flange interface DN16KF, requiring vacuum pump pipe |
|
6 |
VACUUBRAND Chemical hybridization pump |
|
Germany |
Extraction rate 5.9 m ³/ H (98 L/min), 230 V, 50 Hz, including flange interface DN16KF, requiring vacuum pump pipe |
