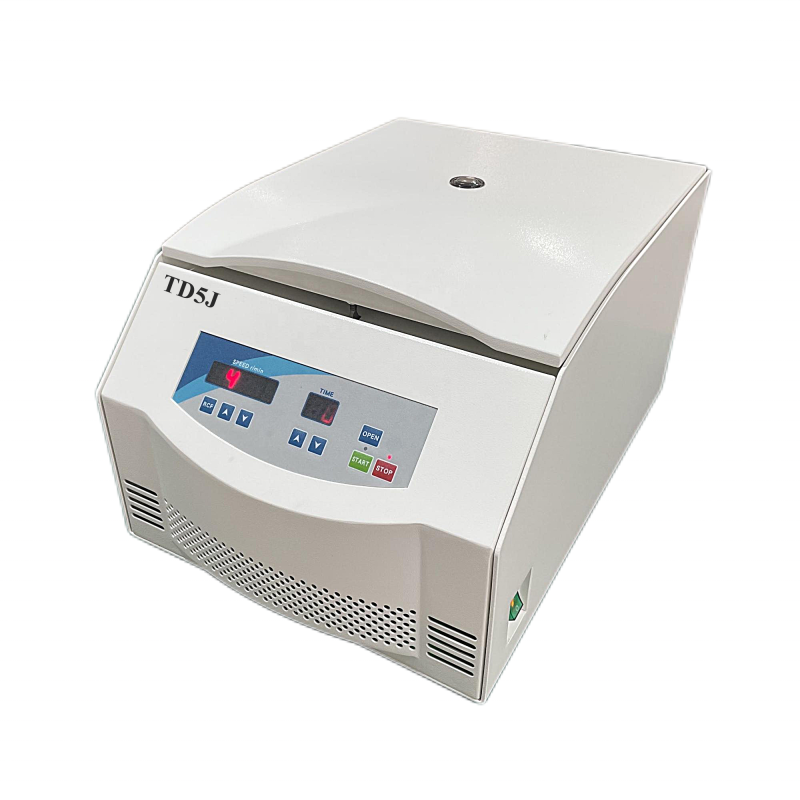

Low Speed 5000rpm prp clinical and lab centrifuge TD5J
Low Speed 5000rpm prp clinical and lab centrifuge TD5J
1. Metal housing is safe and compact. It is of microprocessor control accuracy high.
2. Brush-less DC motor, free maintenance, no powder pollution
3. Microprocessor control Digital display Speed/RCF & Time
4. There are 10 rates of speed up and down faster and stable.
5. Safety door lock alarm inside
6. There are five angle rotors are for options
7. ISO9001:2008, ISO13485, CE certificates are available as well as calibration report.
- Changsha, China
- 1 week
- 5000 sets
- Information
Low Speed 5000rpm prp clinical and lab centrifuge TD5J
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher. If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Product Description
Model TD5J 5000rpm swing out rotor prp centrifuge machine low speed laboratory centrifuge blood hospital medical centrifuge
Centrifuge for 5ml/7ml/10ml/15ml/50ml tubes
Features :
Ø Metal housing is safe and compact. It is of microprocessor control accuracy high.
Ø Brush-less DC motor, free maintenance, no powder pollution
Ø Microprocessor control Digital display Speed/RCF & Time
Ø There are 10 rates of speed up and down faster and stable.
Ø Safety door lock alarm inside
Ø There are five angle rotors are for options
Ø ISO9001:2008, ISO13485, CE certificates are available as well as calibration report.
Centrifuge for 5ml/7ml/10ml/15ml/50ml tubes
Technical Parameters
Max.Speed | 5,000r/min |
Max.Capacity | 6x50ml |
Timer | 0~99min |
Dimension | 540x370x280mm |
Speed Accuracy | ±20r/min |
Max.RCF | 4,110xg |
Power supply | AC220V, 50/60Hz |
Noise | ≤45dBA |
Net weight | 28KG without a rotor |
Temperature range | Non-refrigerated |
Centrifuge for 5ml/7ml/10ml/15ml/50ml tubes

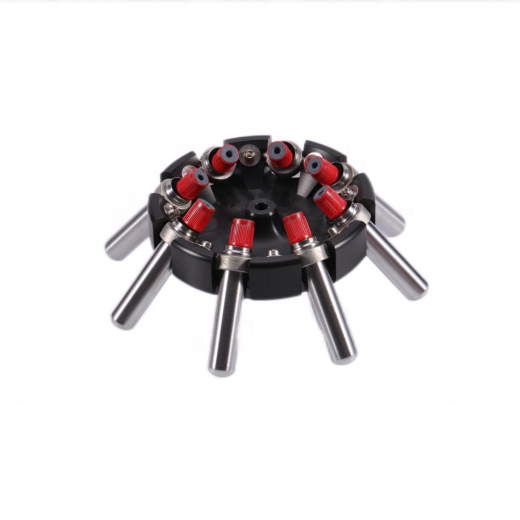

Matched Rotors
Order No. | Rotor type | Max.Speed (rpm) | Max.Volume (ml) | Max.RCF (xg) |
No31607 | Swing out rotor | 5,000 | 12x10ml | 4,140xg |
No31608 | Swing out rotor | 5,000 | 8x15ml | 4,110xg |
No31609 | Angle rotor | 5,000 | 24x15ml | 3,500xg |
No31610 | Angle rotor | 5,000 | 6x50ml | 2,850xg |
No31611 | Angle rotor | 5,000 | 6x100ml | 3,130xg |
Functions Testing
Centrifuge for 5ml/7ml/10ml/15ml/50ml tubes
1. Standard export carton box. One box for one main unit + one rotor
2. Package size: 560×380×330mm
3. Gross weight: 23KG including one rotor 4x50ml
4. Proper foam and sponge fixed the main unit well inside
5. for heavy machine, we will use wooden box only for export standard
Services
Centrifuge for 5ml/7ml/10ml/15ml/50ml tubes
We can offer OEM & ODM service for distributors via our Ministry of Overesea Development
We also attent many international overseas exhibitions to face to face to introduce and prompt our products to customers smoothly.
You may like others, please come over for a visit ~
