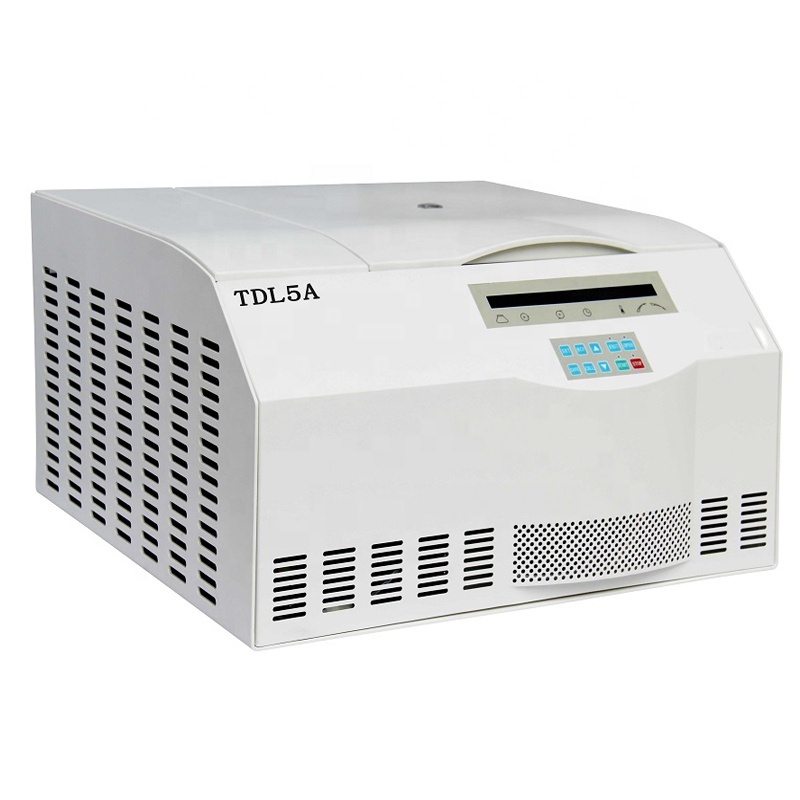

Low Speed 5000 RPM 4x300ml Laboratory Centrifuge TDL5A
Low Speed 5000 RPM 4x300ml Laboratory Centrifuge TDL5A
1. metal housing is safe and compact. It is of microprocessor control accuracy high.
2. Brush-less frequency motor, free maintenance, no powder pollution
3. Digital display Speed/RCF & Time for options
4. There are 10 rates of speed up and down faster and stable.
5. Electronic safety lock alarm inside, just press down the top lid until it will lock in sealed and open up after separation automatically.
6. having both swing out rotors and angle rotors are for options
7. ISO9001, ISO13485, CE certificates are available.
- Information
Low Speed 5000 RPM 4x300ml Laboratory Centrifuge TDL5A
We are a Leading centrifuge manufacturer, can provide many types of centrifuges, including clinical centrifuge, laboratory centrifuges, benchtop centrifuge, also high-speed and low speed centrifuges, refrigerated centrifuges, and microcentrifuges. Application including blood centrifuge, urine centrifuge, milk centrifuge, PRP centrifuge and also micro hematocrit centrifuge. Maximum operating speed can vary from 2800RPM to 26000RPM, or even higher.
If you have special requirements for centrifuge use, we can support customization, with our 20 years R &D experience, we know our customer very well.
Product Description
4x300ml Swing Buckets Laboratory Centrifuge adapter for 5ml 10ml 15ml 50ml tubes
Features
For TDL5A Refrigerated Centrifuge Swing Buckets Adapter For 5ml 10ml 15ml 50ml Tubes
1. metal housing is safe and compact. It is of microprocessor control accuracy high.
2. Brush-less frequency motor, free maintenance, no powder pollution
3. Digital display Speed/RCF & Time for options
4. There are 10 rates of speed up and down faster and stable.
5. Electronic safety lock alarm inside, just press down the top lid until it will lock in sealed and open up after separation automatically.
6. having both swing out rotors and angle rotors are for options
Technical Parameters
| Max.Speed | 5,000rpm |
| Max.RCF | 4,730xg |
| Max.Capacity | 4x300ml |
| Time Range | 1~99min |
| RPM/RCF Convert | yes |
| Noise (dB) | ≤65 |
| Temperature range | -10ºC~40ºC |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Voltage (Hz) | AC 220v 50Hz/60Hz |
| Size ( W x D x Hmm ) | 650x665x400mm |
| Net weight (kg) | 100KG |

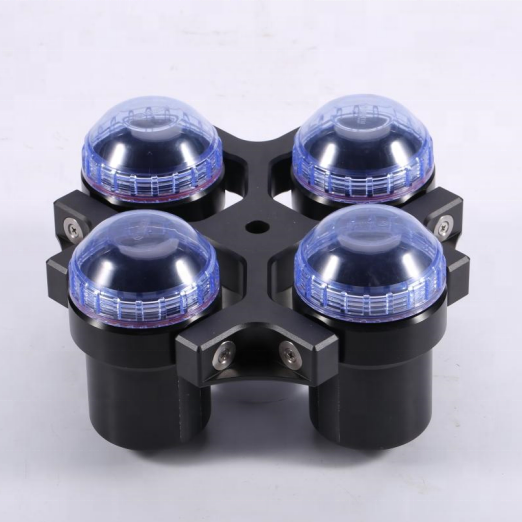

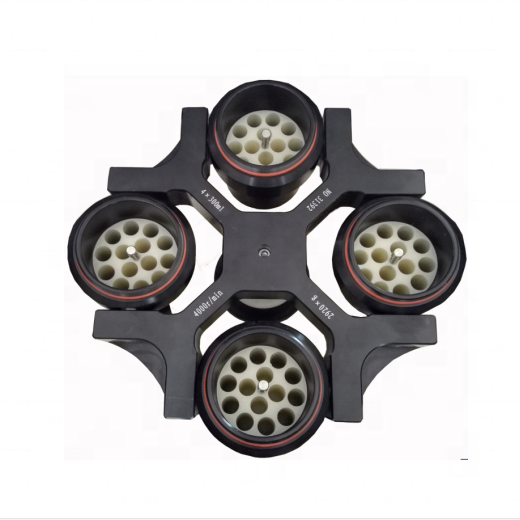

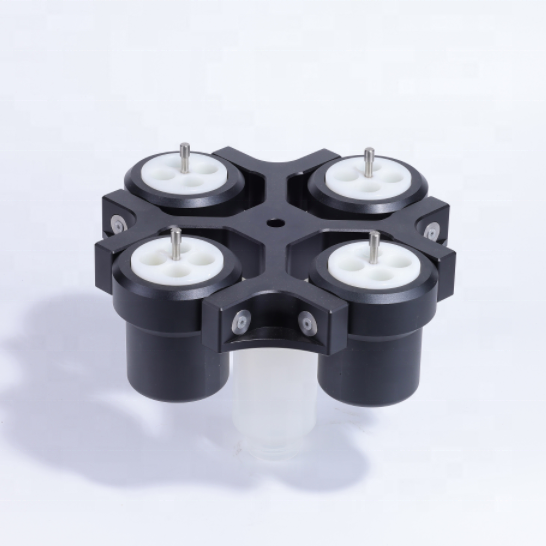

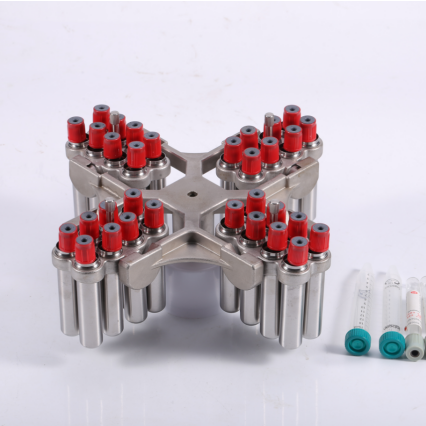

TDL5A 5000rpm Refrigerated Centrifuge Matched Rotors
Rotor No. | Rotor type | Max.Speed (rpm) | Max.Volume (ml) | Max.RCF (xg) |
No30592 | Swing out rotor | 4,000 | 4x300ml (round cup) | 3,180xg |
No31491 | Mircoplater rotor | 4,000 | 2x4x96well | 2,910 |
No30642 | Angle rotor | 4,000 | 24x50ml | 2,970 |
No30614 | Angle rotor | 5,000 | 6x100ml | 3,130 |
TDL5A Low Speed Refrigerated Centrifuge 4x300ml Swing Buckets Laboratory Centrifuge adapter for 5ml 10ml 15ml 50ml tubes
1. One -year warranty on all products.
2. After the machine fixed, our professional technician will file it and keep track of the usage of the machine.
3. We have professional overseas sales department, we always reply to our clients within 24 hours.
4. We won't charge clients any money for repairing the machine during one-year warranty time, the freight is also on us.
5. We only charge for the accessories on repairing the machine beyond the one-year warranty time.
6. We have technician training class twice a year, training the technician for our distributor.
TDL5A Low Speed Refrigerated Centrifuge 4x300ml Swing Buckets Laboratory Centrifuge adapter for 5ml 10ml 15ml 50ml tubes
