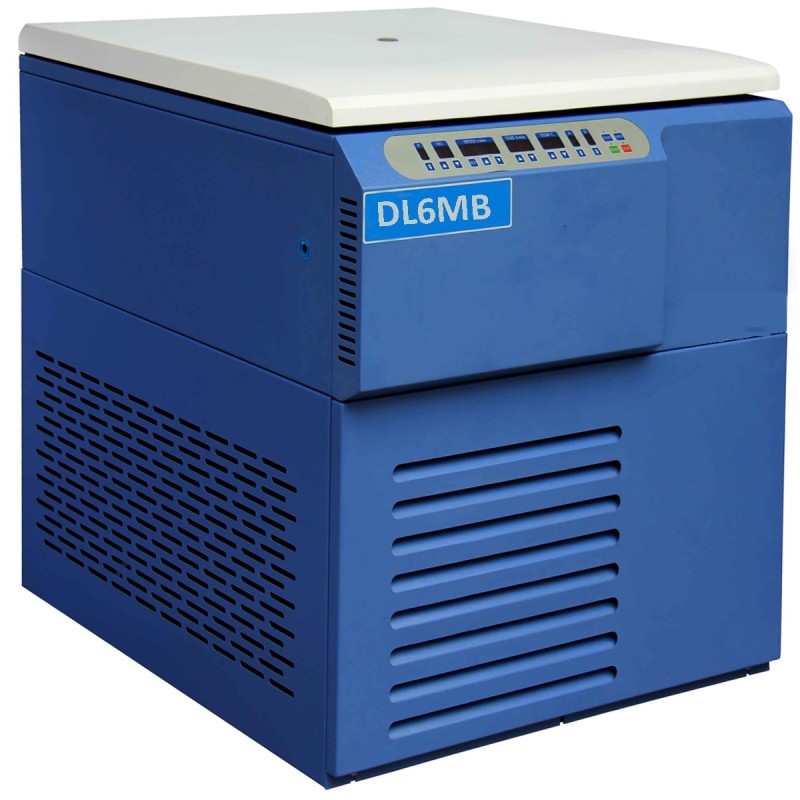

12L Capacity swing rotor bucket Blood Bank Refrigerated Centrifuge

12L Large Capacity 6x2400ml swing rotor bucket Blood Bank Centrifuge Refrigerated Centrifuge For Blood Bags 200ml 400ml 500ml

Blood Knowledge

Blood is also called whole blood, a red opaque viscous liquid.

Blood consists of plasma and blood cells.

Blood cells consist of red blood cells, white blood cells and platelets.

After separation, the upper layer is plasma (serum) and

the middle layer is platelets & white blood cells, the lower layer is red blood cells.

Tips for Blood Separation

Why Do Blood Separation ?

Because there are platelets in the blood, and the blood will coagulate; After centrifugation, different components have different functions and can be stored for a long time.

Centrifugal Force Range of Blood Separation

It is relative to set 1500xg ~ 2500xg. If the centrifugal force is too large, the blood cell wall will rupture to cause blood melting. That is why users need to select low-speed centrifuges to separate blood. (high speed centrifuges are required for experiments such as extracting DNA from red blood cells, but this is not called blood centrifugation.)

Normal or Cooling System ?

If the temperature in centrifugal chamber is too high, which will damage the blood, so the non-refrigerated centrifuges can be selected for small quantity and short-time centrifugation; For large quantity and long-time spin like blood bags separation, and then refrigerated centrifuges should be selected. The general setting temperature range is 4 ℃ -12 ℃.

Common Consumables For Blood Centrifugation

1. Vacuum blood collection vessel, also known as negative pressure blood collection vessel,

is mainly used for detection.

2. Centrifuge bottles: a large number of animal blood are separated, some of which are

 centrifuge bottles.

3. Blood bag capacities & types: there are generally 200ml, 300ml, 400ml, 500ml bags

 for options, flat lines; Human blood and animal blood are separated and stored

 in large quantities.

Each blood collection bag contains blood maintenance fluid (also known as anticoagulant, which is a chemical substance to prevent blood coagulation and damage of red blood cells).

4. In order to conveniently collect different components of blood, the blood bags have

triple band, quadruple band, etc.

Features For Blood Bags Centrifuge Plasma Centrifuge

1. Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.

2. Brushless frequency motor for model DL6MB which in great torque, free maintenance, no powder pollution, quick in speed up and down.

3. Model CDL7M with the digital display which indicates the speed, time and temperature.

4. Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.

5. There are 6 kinds of rotors for your choice.

6. Electric lid lock, compact design, super speed and imbalance protection.

7. The centrifuge body is made of high-quality steel, safe and reliable.

 Technical Parameters For Blood Bags Centrifuge Plasma Centrifuge

Matched Rotors

Blood Bags Centrifuges Series

Blood Plasma Centrifuge Refrigerated Centrifuge Large High speed Laboratory Centrifuge

1 .Producing time: 1~15days as receipt of payment as per the quantity
2. Perfect after-sales service with technical support
3. Wooden box : 1190mm*920mm*1410mm
4. Full one year warranty

International Logistic Service
1. Express service:  DHL, Fedex, TNT, UPS, EMS & CDEK
2. By Air to destination Airport
3. By Sea

Maintenance

1.1  You should take out the rotor from the centrifugal chamber when you don't use the machine for a long time, and then store them in the ventilation and dry place after cleaning.

2.2 Clen the centrifugal chamber when finished centifugation, dismantle the central sleeve from the axle regularly, and lubricate the axie and central sleeve, in case of corrosion.

2.3  Keep the place which settle the centrifuge clean, make sure the freezer is not chocked by dirty subjects.

Quality Gurantee

2.1  We have full one year warranty on our all products.

2.2 After the machine fixed our professional technician will file it and keep track f the usage of the machine.

2.3 We will track our customer regularly, see whether the machine is in good condition, if something wrong happened to our machine, we will guide professionally to repair

2.4 We will pay attention to the feedback of the customers within 24hours

2.5 We will charge for accessaries on repairing the machine beyond the one year warranty, and beyond the quality as well.

2.6 We also can offer technician training class, and training the technician for our distributors.
