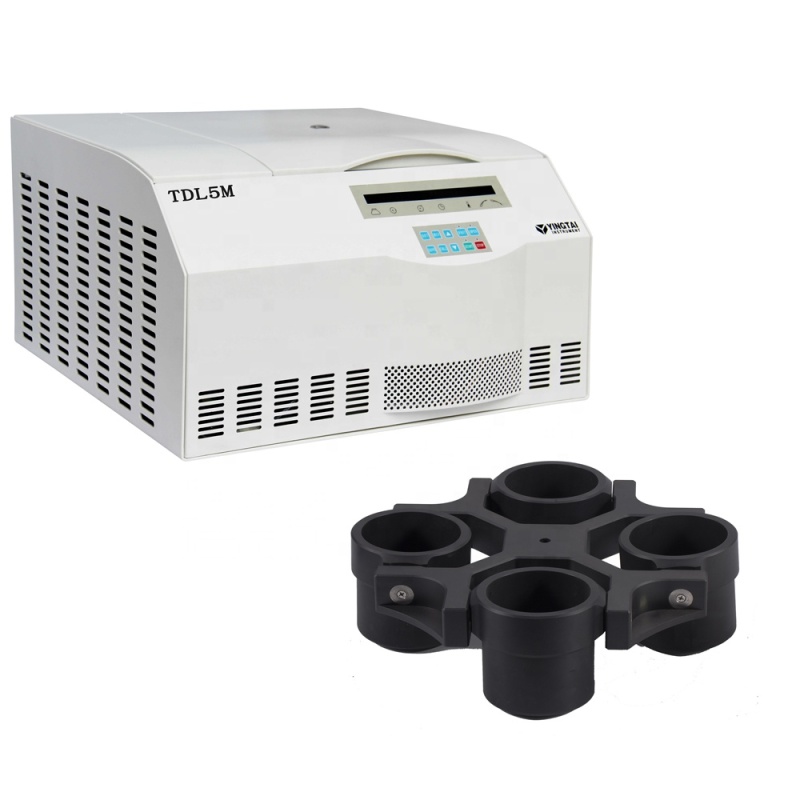

TDL5M 5000rmp refrigerated PRP blood bag centrifuge
- Information
Application:
Widely used in processing of bacteria,protein precipitation, RNA extraction and clinical sample for R & D institution of medicine, life science, bio-pharmaceutical, agriculture science and environmental.
Features: Brushless frequency motor for model TDL5M and brushless DC motor for TDL5 which in great torque, free maintenance, no powder pollution, quick in speed up and down.
2.Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control..

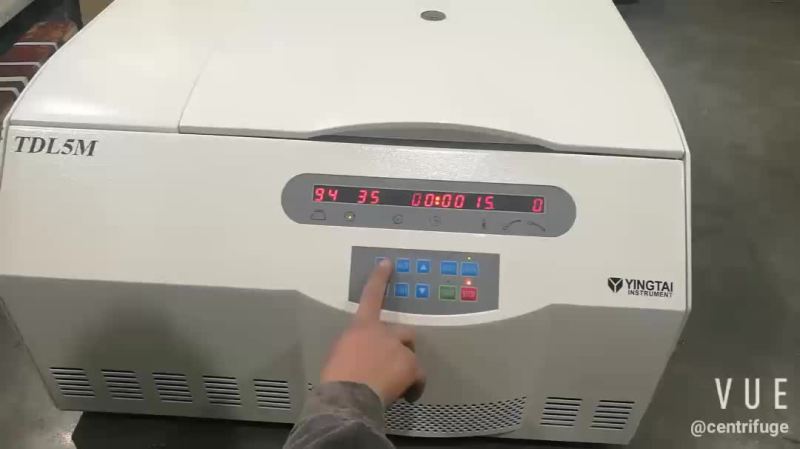

3. Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
4. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
5. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
6. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
7. There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.
8. 3 tiers protection steel cover and get the ideal centrifugation result.
TDL5M Technical Parameters:
|
Max speed |
5000rpm |
Max RCF |
4730xg |
|
Max volume |
4x750ml |
Noise |
≤65dBA |
|
Timer |
1~9h59min |
Net weight |
125KG |
|
Dimension(HxDxW) |
688×715×430mm |
Power supply |
AC 220V 50HZ 15A |
|
Speed accuracy |
±50rpm |
Temperature accuracy |
±1°C |
|
Temperature range |
-20~40°C |
Package |
wooden box |
Matched rotors for TDL5M:
|
Order No.
|
Rotor
|
Max speed (rpm)
|
Max capacity( ml)
|
Max RCF(*g)
|
|
30695
|
Swing rotor
|
4000
|
2*500ml
|
3380
|
|
30696
|
Swing rotor round cup
|
4000
|
4*500ml
|
3380
|
|
Swing rotor elliptic cup
|
4*500ml
|
3940
|
||
|
30592
|
Swing rotor
|
4000
|
4*250
|
2920
|
|
30589
|
Swing rotor
|
4000
|
88*5ml vacuum tube
|
2840
|
|
124*5ml vacuum tube
|
||||
|
30590
|
Swing rotor
|
4000
|
88*7ml vacuum tube
|
3140
|
|
124*7ml vacuum tube
|
||||
|
30691
|
Plate bucket
|
4000
|
2*4*96holes
|
2490
|
|
30694
|
Plate bucket
|
4000
|
4*4*96holes
|
2840
|
|
30676
|
Plate bucket
|
4000
|
2*3*48holes
|
2300
|
|
30679
|
Swing rotor cubic cup
|
4000
|
4*500ml
|
3310
|
|
31377
|
Swing rotor multi pipe
|
5000
|
4*50ml
|
4730
|
|
4*100ml
|
||||
|
31378
|
Swing rotor multi pipe
|
4000
|
8*100ml
|
3020
|
|
8*50ml
|
3200
|
|||
|
16*15ml
|
3200
|
|||
|
24*15ml
|
3200
|
|||
|
32*15ml
|
3200
|
|||
|
48*7ml
|
2880
|
|||
|
32*10ml
|
2790
|
|||
|
24*10ml
|
2790
|
|||
|
16*10ml
|
2790
|
|||
|
30638
|
Angle rotor
|
5000
|
6*15ml
|
2540
|
|
30607
|
Angle rotor
|
4000
|
12*15ml
|
3080
|
|
30639
|
Angle rotor
|
5000
|
24*15ml
|
3500
|
|
30640
|
Angle rotor
|
5000
|
4*50ml
|
2520
|
|
30611
|
Angle rotor
|
5000
|
6*50ml
|
2850
|
|
30641
|
Angle rotor
|
5000
|
12*50ml
|
3860
|
|
30642
|
Angle rotor
|
5000
|
24*50ml
|
2970
|
|
30613
|
Angle rotor
|
5000
|
4*100ml
|
2630
|
|
30614
|
Angle rotor
|
5000
|
6*100ml
|
3130
|
|
30643
|
Angle rotor
|
4000
|
12*100ml
|
2970
|
|
30627
|
Angle rotor
|
5000
|
30*15ml
|
3830
|
OEM service available
After-sale detail information, please check the below picture,
Yingtai centrifuges have exported to over 50 countries, such as USA, UK, France, Spain, Russian, Brazil, Argentina. Mexico and etc..
As one of first-class centrifuge manufacturer in China, we can make nearly all kind of centrifuges, just inform us the inform us your required, then we take rest work for you accordingly~
