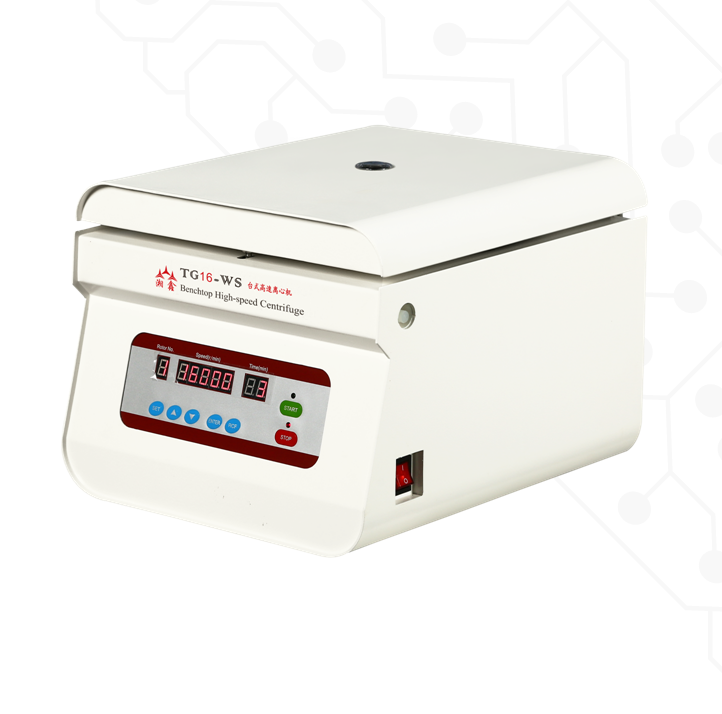

Benchtop High-Speed Laboratory Centrifuge TG16-WS
Benchtop High-Speed Laboratory Centrifuge TG16-WS
1. Adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
2. Taking stainless steel structure,which is suitable for sustainable use; using automatic electric lock and mechanical lock, which is easy to open.
3.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
4.The alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
- Information
Benchtop High-Speed Laboratory Centrifuge TG16-WS
Description of Products
1. Adopt advanced CPU control system, which has realized accurately microprocessor control of rotate speed, time, temperature and RCF.
2. Taking stainless steel structure,which is suitable for sustainable use; using automatic electric lock and mechanical lock, which is easy to open.
3.With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
4.The alarm sound for error of an imbalance running or stopping working will be showed in the LCD or digital display panel.
Technical Parameters
Model | TG18-WS | TG16-WS | ||
Max Speed | 18000r/min | 16000r/min | ||
Max RCF | 23200×g | 17800×g | ||
Number | Capacity | Speed (r/min) | RCF | |

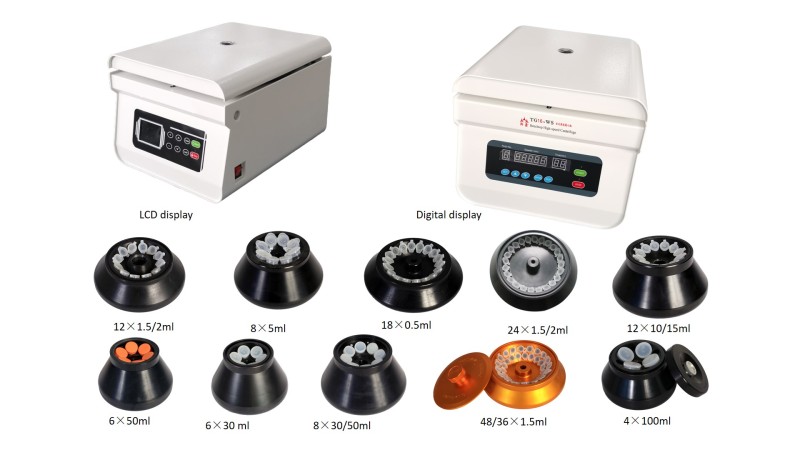

NO.1 Angle Rotor | 12×1.5/2 ml | 18000 | 23200×g | |
NO.2 Angle Rotor | 8×5 ml | 13000 | 11400×g | |
NO.3 Angle Rotor | 12×10 ml/15ml | 12000 | 14800×g | |
NO.4Angle Rotor | 24×1.5/2 ml | 13500 | 17760×g | |
NO.5Angle Rotor | 48×0.5 ml | 13500 | 14800×g | |
NO.6 Angle Rotor | 36×1.5 ml | 13500 | 17000×g | |
NO.7Angle Rotor | 6×50 ml | 11000 | 12900×g | |
NO.8Angle Rotor | 4×100 ml | 10000 | 9680×g | |
No.9 microplates Rotor | 2×2×48Holes | 4000 | 1400×g | |
NO.10Angle Rotor | 8×50 ml | 8000 | 9800×g | |
Timer Range | 0~99min | |||
Motor | Microprocessor control, AC Frequency conversion motor | |||
Noise | ≤65dB(A) | |||
Power Supply | AC220v 50Hz 5A | |||
Dimension | 500×360×330mm(L×W×H) | |||
Weight | 35kg | |||

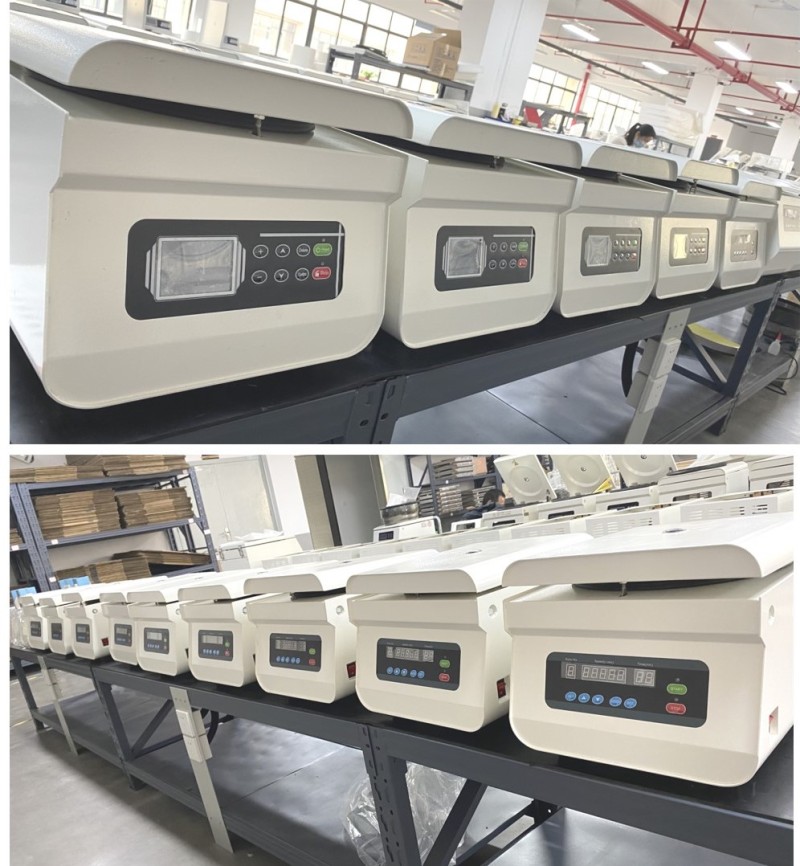

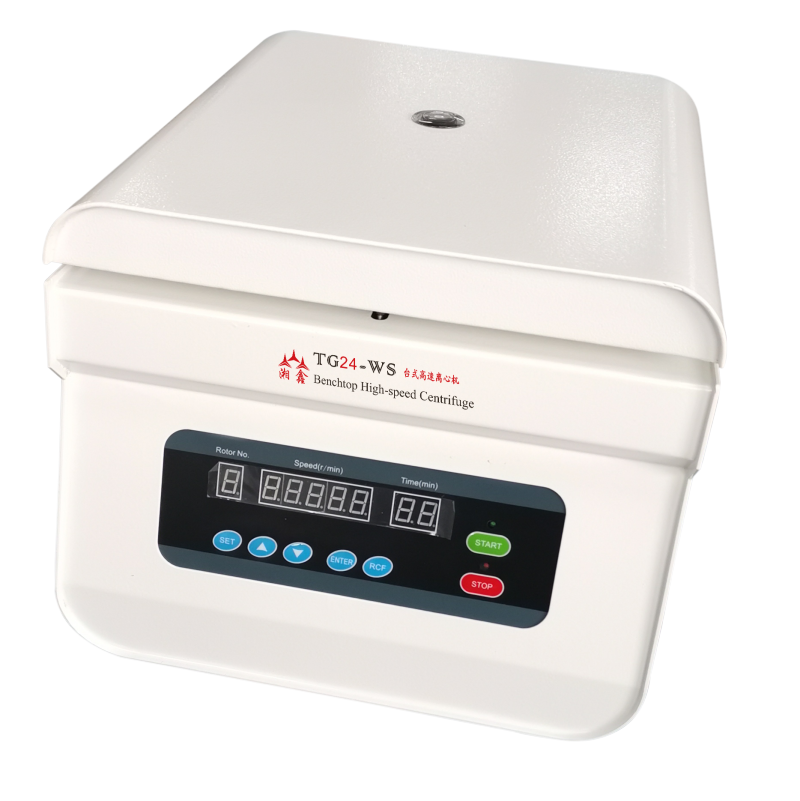

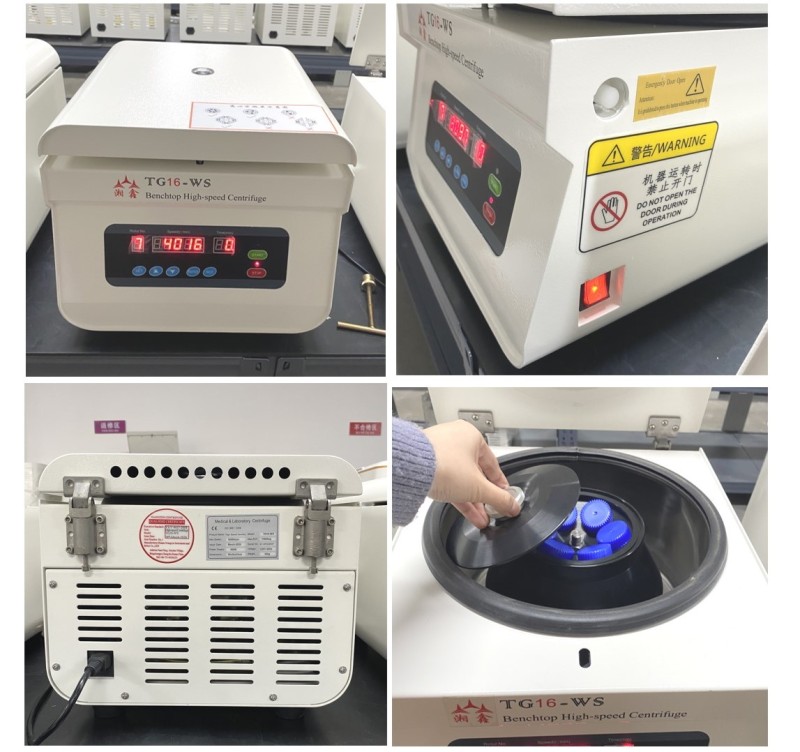

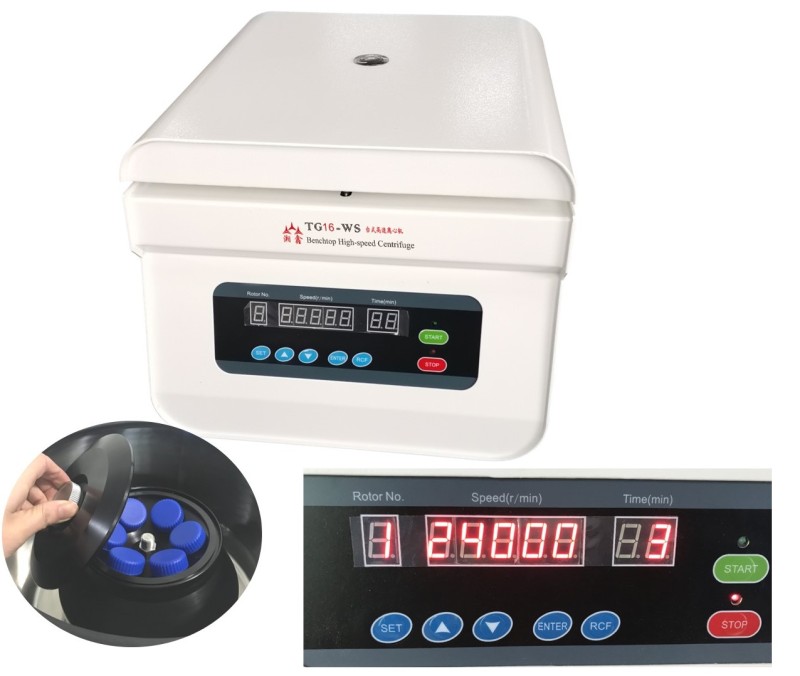

Product Images
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
